Extreme USB USB 2.0 RG2311 Quick Start Manual

USB 2.0 RG2311
1-Port USB 2.0 100m (330 ft) CAT 5e/6/7
Extender System with Flexible Power
Quick
Start
Guide
Product Contents:
▪ USB 2.0 RG2311 Local Extender

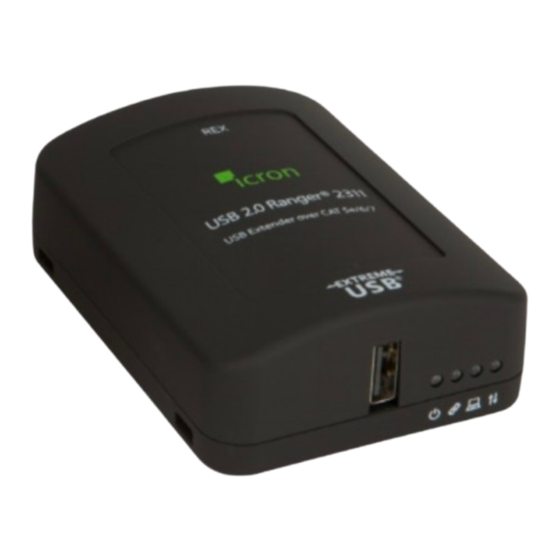

▪ USB 2.0 RG2311 Remote Extender
▪ USB 2.0 Cable
▪ AC Power Adapter
▪ Country Specific Power Cord
▪ Quick Start Guide
Before you get started, ensure that all the drivers
required for your USB device(s) are installed.
Place the units where desired, and connect the
1
CAT 5e/6/7 (solid core) extension link cabling into
the Link ports (RJ45) of the Local and Remote
Extenders.
2 Connect the power adapter into your desired unit –
Local Extender or Remote Extender.
Plug the power adapter into
either the local or remote unit
Local Extender
(CAT 5e/6/7 cable not included)
Max 100m
3 Connect the Local Extender into your computer
using the included USB 2.0 cable.
Computer
4 Attach your USB device to the Remote Extender.
Remote Extender
