Extreme USB 2304S Quick Start Manual

USB 2.0 RG2304N,
2304S or 2304GE-LAN
4-Port USB LAN or CAT 5e/6/7
Extender System
Quick
Start
Guide
Package Contents:
▪ USB 2.0 RG2304N/S/GE-LAN Local Extender
▪ USB 2.0 RG2304N/S/GE-LAN Remote Extender
▪ USB 2.0 Cable
▪ AC Power Adapter
▪ Country Specific Power Cord
▪ Quick Start Guide
Before you get started, ensure that all the drivers required for your USB device(s) are installed.

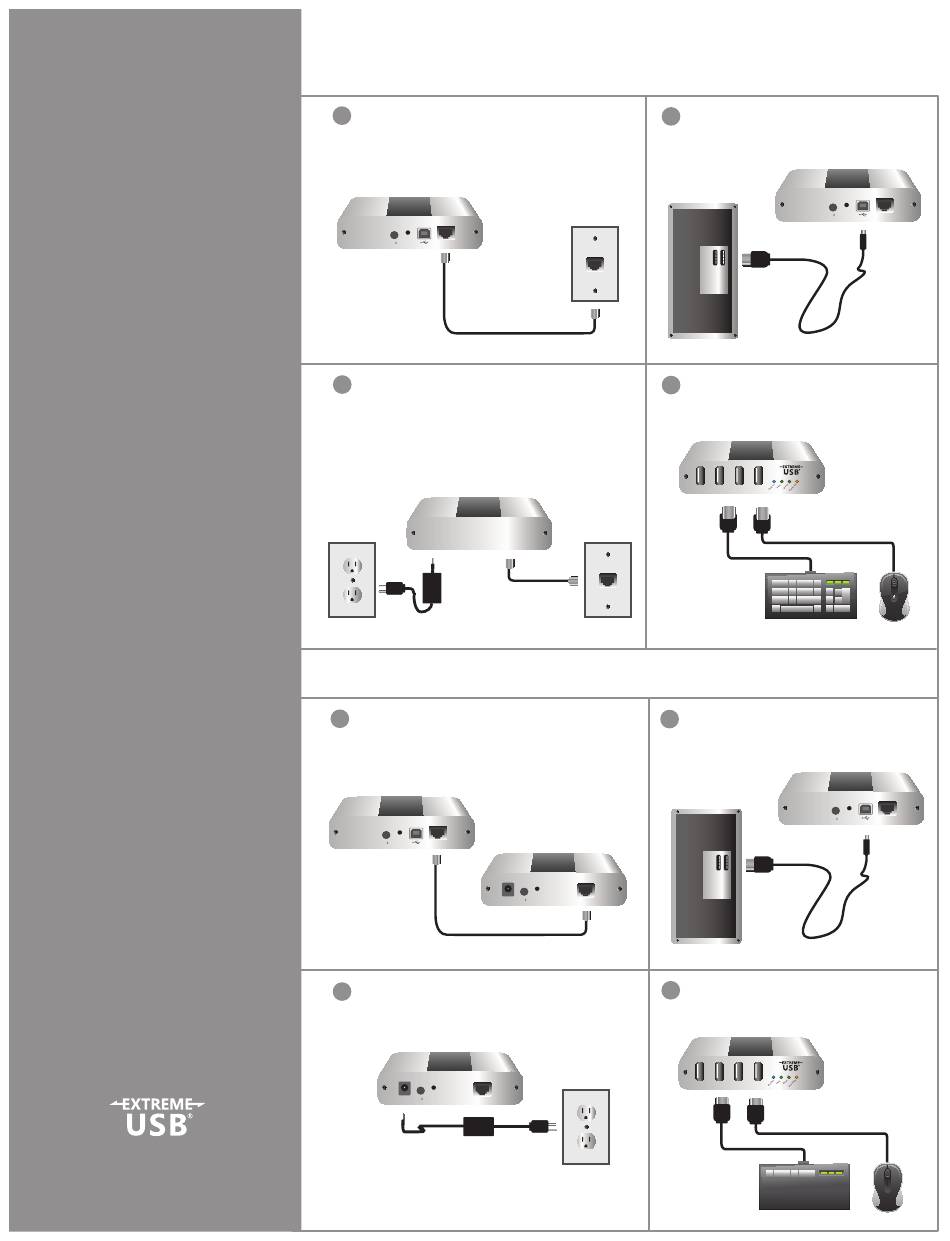

Place the Local Extender where desired
1 1
and connect a CAT 5e/6/7 patch cable from
the Link port (RJ45) to a network switch or
wall network port connected to a switch.
Local Extender (back view)
Mode Link
Con g
Max 100m between network devices
Place the Remote Extender where desired.
3
Connect a CAT 5e/6/7 patch cable from the
Link port (RJ45) to a network switch or
wall network port connected to a switch.
Connect the Remote Extender to the AC
adapter and plug it into a power source.
Remote Extender (back view)
24V 1A Con g Mode Link
Max 100m between network devices
Place extenders where desired and
1 1
connect the CAT 5e/6/7 extension link
cabling to the Link ports (RJ45) on the
Local and Remote Extenders.
Local Extender (back view)
Remote Extender (back view)
Con g Mode Link
24V 1A
Max 100m (CAT 5e/6/7 cable not included)
Connect the Remote Extender to the
3
AC adapter and plug it into a power
source.
Remote Extender (back view)
24V 1A Con g Mode Link
Network Connect
Connect the Local Extender to the
2
computer using the included USB
2.0 cable.
Computer
Attach USB device(s) to the Remote
4
Extender.
Remote Extender (front view)
Direct Connect
Connect the Local Extender to the
2
computer using the included USB
cable.
Computer
Con g Mode Link
Attach USB device(s) to the Remote
4
Extender.
Remote Extender (front view)
Local Extender (back view)
Con g Mode Link
Local Extender (back view)
Con g Mode Link
