Wavecom WMO2 Manual page 18

WCOM/GSM/WMO2/WMO2ATDOC
Function Type
connector
RF connector SMA
Serial link
SUB D
High
Density
(15 pt.)
AUDIO link
BOOT
RESET
Power Supply Micro-Fit
connector (4pts)
SIM holder
WAVECOM confidential ©
Pining
1 DCD (CT109)
2 TX (CT103)
6 RX (CT104)
7 DSR (CT107)
8 DTR (CT108/2)
9 GND
11 CTS (CT106)
12 RTS (CT105)
13 RI (CT125)
4 MICROPHONE (+)
5 MICROPHONE (-)
10 SPEAKER (+)
15 SPEAKER (-)
3 BOOT
14 RESET
1 V+BATTERY
2 GROUND
3-4 AUXI

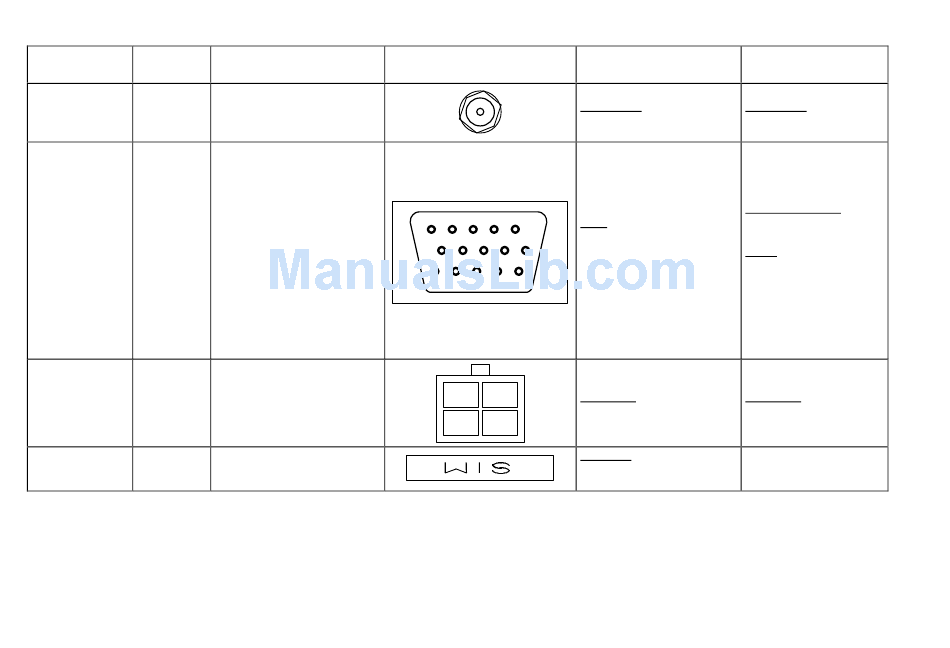

Drawing
RADIALL:
R284310085
5 4 3 2 1
JST:
KSEY-15S-3B6L18-13
1 9 8 7 6
0
1 1 1 1 1
5 4 3 2 1
1 2
MOLEX:
43045-0409
3 4
MOLEX:
52828-0611
WMO2 G900 / G1800 / G1900
Ref. supplier Mating connector
examples
RADIALL:
R125073
ITT CANNON:
ZDEA-15P-SB
or
JST:
KEC-15P
with contact JK-
SP2143
MOLEX:
43025-0400
MICRO SIM
