金笛短信网 http://www.sendsms.cn

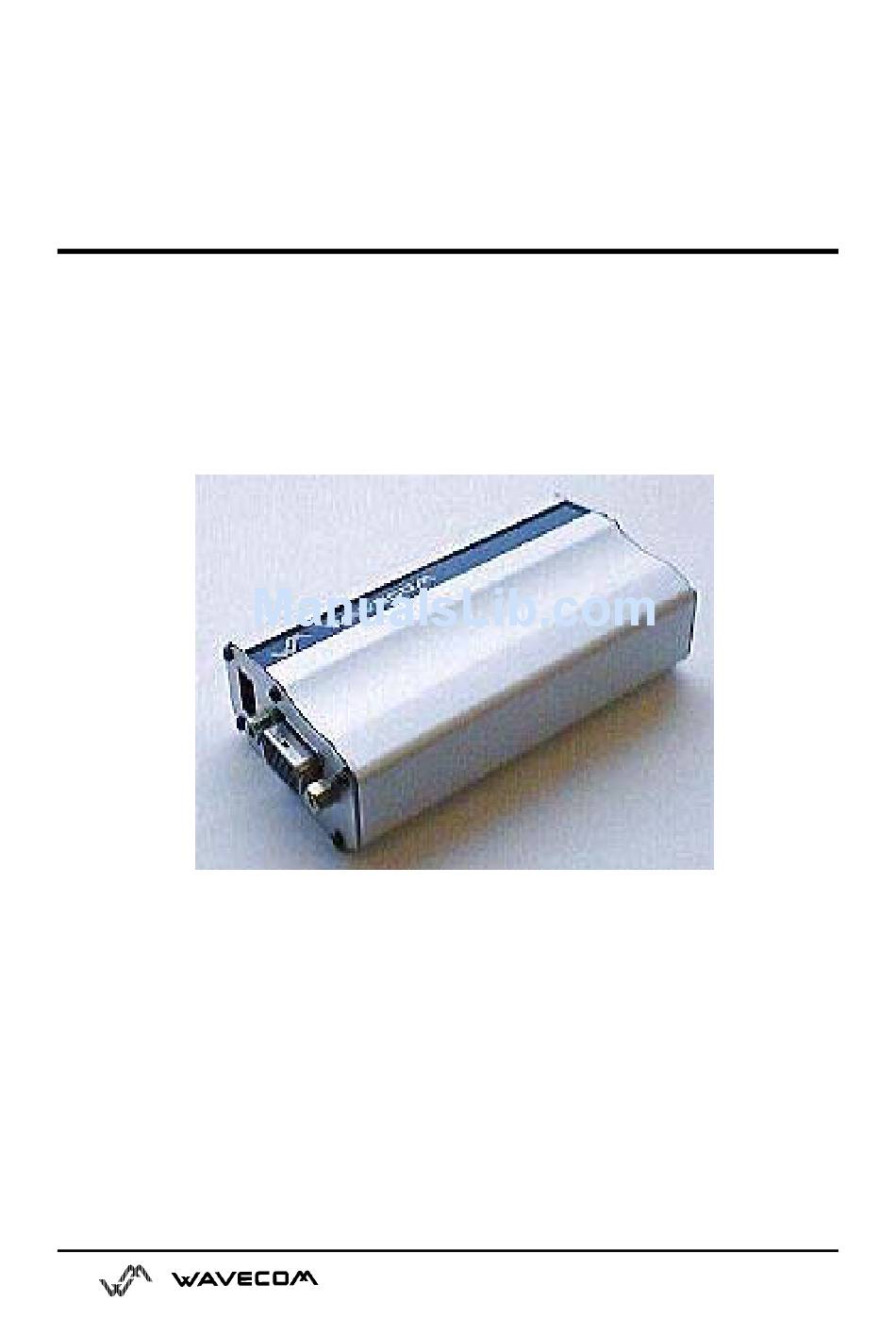

MODEM-G2 specifications
Revision:
1.3
Date:
11/01/02
Reference: WM02sp13.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wavecom G2

Summary of Contents for Wavecom G2

  • Page 1 金笛短信网 http://www.sendsms.cn MODEM-G2 specifications Revision: Date: 11/01/02 Reference: WM02sp13.doc...
  • Page 3 北京 wavecom 专营店 收集整理 www.sendsms.cn DOCUMENT AMENDMENTS ISSUE DATE STATUS AUTHOR COMMENTS 20/04/98 Creation 21/01/99 Sticker, Packaging, Accessories 29/01/98 Form...

  • Page 4: Table Of Contents

    北京 wavecom 专营店 收集整理 www.sendsms.cn 1. INTRODUCTION ........................... 1 1.1....................1 BJECTIVE OF THE DOCUMENT 1.2......................1 EFERENCE DOCUMENTS 2. BASIC OFFER AND ACCESSORIES ..................1 2.1..........................1 ASIC OFFER 2.1.1........................... 1 ONTAINED 2.1.2. P ........................... 1 ACKAGING 2.1.3.
  • Page 5 北京 wavecom 专营店 收集整理 www.sendsms.cn 5. CONTEXT SPECIFICATIONS ....................5 5.1....................5 ORMATIVE SPECIFICATIONS 5.2....................5 NVIRONMENT SPECIFICATIONS 5.2.1................5 LIMATIC AND MECHANICS ENVIRONMENT 5.2.2...................... 7 LECTRIC ENVIRONMENT 5.3....................8 HYSICAL CHARACTERISTICS 6. GENERAL DESCRIPTION ......................10 6.1.

  • Page 7: Introduction

    70mm (width) x 60mm (height) x135mm (length). This is a carton box. It is build in small waves which are covered with a thin film of white ice-cold paper. 北京 wavecom 专营店 收集整理 www.sendsms.cn...

  • Page 8: User Manual

    TBD :standard products 2.2.3. Antenna Two solutions could be proposed: a standard deported cellular phone antenna, a WAVECOM designed short antenna. 2.2.4. Power supply An AC(220V~)/DC(12V/2A) converter allows a power network connection. 2.3. Options 2.3.1. Car Kit...

  • Page 9: Marketing

    Beijing wavecom www.sendsms.cn Marketing 3.1. Product marketing research Market research. Competitor analysis. 3.2. The types of markets Modem plug in to a PC, Alarm, Vehicle Localisation, Metering. 3.5. Evolution Dual band, Dual Mode ? Micro controller option. 北京 wavecom 专营店 收集整理 www.sendsms.cn...

  • Page 10: Product Management

    This label is built with anodise aluminium. This one, has a blue silk screen treatment (marking : aluminium colour) and is located on the upper convex mechanical part. It supports the WAVECOM logo. Dimension: 96 x10 mm. 4.2.2. Production sticker...

  • Page 11: Context Specifications

    Beijing wavecom www.sendsms.cn Context specifications 5.1. Normative specifications Product is compliant with specification ETSI Phase II. 5.2. Environment specifications 5.2.1. Climatic and mechanics environment The following figure shows environment standard constraints: 北京 wavecom 专营店 收集整理 www.sendsms.cn...
  • Page 12 20 - 500H z : - 3 dB / oct 12 - 150H z : - 3 dB / oct w ide band Fdb test 3 x 10 m in 3 x 30 m in 北京 wavecom 专营店 收集整理 www.sendsms.cn...

  • Page 13: Electric Environment

    <200V 15µs Ignition Pulse, Normal <0.001 J <500Hz Continuous <3V Accessory Noise <1.5V 50 Hz to 10 KHz Transceiver Feedback 20mV R.F. Note : These transients may be present on any wire in the vehicle. 北京 wavecom 专营店 收集整理 www.sendsms.cn...

  • Page 14: Physical Characteristics

    5.3. Physical characteristics The physical characteristics are the following ones: Physical characteristic Qualification Comments Dimension 98x54x25 mm Without connectors Absolute maximum 110x54x25 mm quotations . dimension Weight < 140 g Volume 13.23 cm3 Case Aluminium profile 北京 wavecom 专营店 收集整理 www.sendsms.cn...
  • Page 15 Beijing wavecom www.sendsms.cn 北京 wavecom 专营店 收集整理 www.sendsms.cn...

  • Page 16: General Description

    No cordon is fixed to the case. The SIM card (micro-SIM) is put on an extract drawer. A red indicator specifies the functioning mode of the product. 北京 wavecom 专营店 收集整理 www.sendsms.cn...

  • Page 17: Mechanical Philosophy Retained

    Beijing wavecom www.sendsms.cn 6.2. Mechanical philosophy retained 北京 wavecom 专营店 收集整理 www.sendsms.cn...
  • Page 18 Beijing wavecom www.sendsms.cn 北京 wavecom 专营店 收集整理 www.sendsms.cn...

  • Page 19: Connectors Definition

    In order to extract or insert the Micro SIM card, each user has to press with a sharp element (a pen for example) the SIM holder ejector. If this procedure is no respected, the SIM holder could be destroyed. 北京 wavecom 专营店 收集整理 www.sendsms.cn...
  • Page 20 Beijing wavecom www.sendsms.cn Function Type Pining Drawing Ref. supplier opposite connector connector examples RF connector RADIALL : RADIALL : R284310085 R125073 (CT109) (CT103) (CT104) Serial link (CT107) (CT108/2) ITT CANNON : JST : ZDEA-15P-SB (CT106) KSEY-15S-3B6L18-13 High (CT105) JST :...

  • Page 21: Electrical Characteristics

    Beijing wavecom www.sendsms.cn 6.5. Electrical characteristics The following figure summarises electrical characteristics defined in input/output for all external connections. Parameters UNIT Comments Power supply : Input supply voltage 5*/6** 13,5 GSM or DCS/PCS Input supply voltage with Car Kit option...

  • Page 22: Electrical Functions

    Beijing wavecom www.sendsms.cn 6.6.Electrical functions 6.6.1. Functional schematic POWER SUPPLY REGULATION Power supply Vcc modem Main ΔV Filtering Protection regulation RS232 INTERFACE Vcc modem Regulation RS232 link RS232 link (application) (WISMO module) RS232 interface ESD Protection Filtering AUDIO INTERFACE : Head Set...

  • Page 23: Filtering

    Beijing wavecom www.sendsms.cn 6.6.2. Filtering Filtering guarantees: EMI/RFI protection in input and output, signal smoothing. Components retained are on the one hand Low Pass Filter (LC filter architecture) and other one power inductor. 6.6.3. ESD protection This function protects all input/output against the electrostatic surges.

  • Page 24: Accessories Description

    Beijing wavecom www.sendsms.cn Accessories description 7.1. Headset References of this kit have to be specified. 7.2. Cordon examples 7.2.1. Cordon RS232/AUDIO(head set) : Flat cable 4 wires : Wire constitution : tinned copper 7x0.15 mm (26AWG) Maximum operating temperature -20°C/+85°C...

  • Page 25: Power Supply Cordon

    Beijing wavecom www.sendsms.cn 7.2.3. Power supply cordon : Cable : 1 wire. Ame : tinned copper 24x0.2 mm Section : 0.75 mm² Maximum operating temperature: -20°C/+85°C. MICRO FIT connector 4 pts (MOLEX: 43025-0400). Contacts (x2) (MOLEX: 43030-0007. Side view Black Fuse 5x20 mm.
