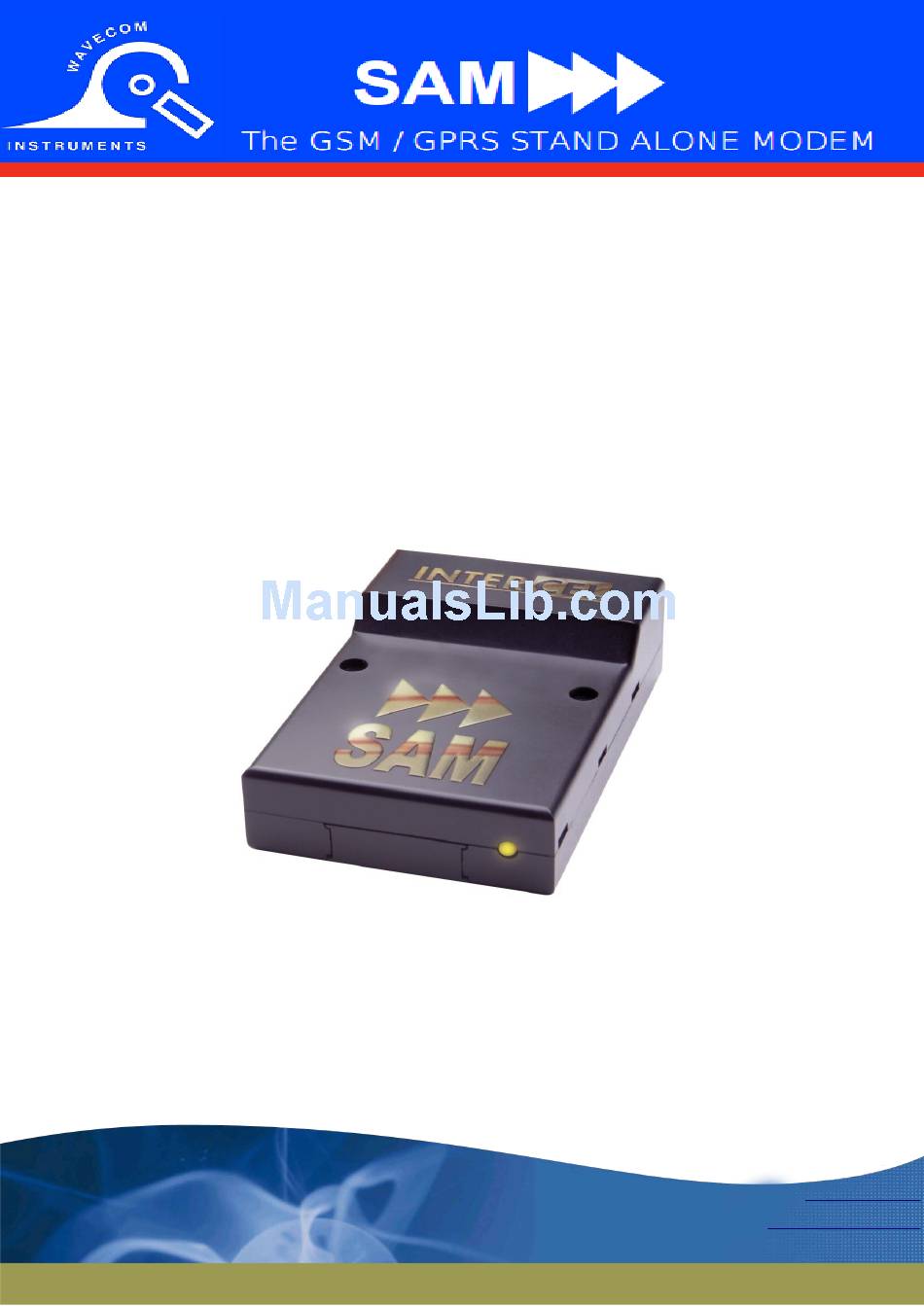

- Page 1 The GSM / GPRS STAND ALONE MODEM 2W User Guide Wavecom Instruments Pty Ltd 257 Grange Road Findon, South Australia 5023 Phone: (+61) 08 8243 3500 Fax: (+61) 08 8243 3501 Email: office@wavecom.com.au Website: www.wavecom.com.au ABN 60 065 609 225...
-
Page 2: Table Of Contents
A typical application - Remote meter reading 10. Trouble shooting Appendix A : SAR calculations Appendix B : SAR statement for CE-application Wavecom Instruments Pty Ltd t +61 3 9239 2000 257 Grange Road f +61 3 9561 2614 Findon, South Australia 5023 Phone: (+61) 08 8243 3500 .intercel.com.au... -
Page 3: Safety Precautions
The Stand Alone modem, SAM, is designed to be a compact modem, easy to use for both mobile and fixed machine to machine applications. It has an RJ45 socket for serial data and input power, an FME male antenna connector, a SIM holder and an LED indicator. -
Page 4: Radio Frequency Exposure - Sar
By ensuring the correct disposal of this equipment, it will help the environm ent and human’s health. The recycling will help to conserve the natural resources. Wavecom Instruments Pty Ltd t +61 3 9239 2000 257 Grange Road... -
Page 5: Packaging
The SAM package consists of : A SAM modem A data cable A one-page Specification of the SAM and its pinouts A SAM2W User Guide The carton box diameter is 120mm x 95mm x 60mm The Data cable is 2m long... -
Page 6: Functionality
6. Functionality a. General The SAM modem is a Quad band 850/900/1800/1900MHz GSM/GPRS modem. It consists of an RJ45 connector for serial port and input power, an FME male antenna connector and a SIM holder. The LED located near the SIM holder indicates the SAM operating status. - Page 7 Description Input voltage 5Vdc - 32Vdc Data Carrier Detect Data Terminal Ready Common Ground Serial Data out of the SAM Serial Data into the SAM Ready to Send Clear to Send Wavecom Instruments Pty Ltd t +61 3 9239 2000...
- Page 8 The data cable is 2m long. It consists of an RJ45 plug, a DB9-female connector and a 2-wire input power. Signals RJ45 Description Data Carrier Detect Serial Data out of the SAM Serial Data into the SAM Data Terminal Ready Common Ground Not Used Ready to Send...
- Page 9 The LED status The LED indication has the following status : LED on steady : The SAM is on but not ready LED flashes slowly : The SAM is on and ready LED flashes rapidly : The SAM is in use...
-
Page 10: Operation
7. Operation a. Preparation Before power up the SAM, make sure the SIM card is inserted, the antenna is connected properly and the data cable is in place. The default factory setting for the SAM is : Terminal Data speed : 115200bps... - Page 11 In Windows Dial-up networking, create a new connection -> Select connect using the Standard 19200bps modem -> Configured to 115200, hardware flow control Select phone number : *99**1# Wavecom Instruments Pty Ltd Click Dial. t +61 3 9239 2000 257 Grange Road...
- Page 12 33dBm±2dB 30dBm±2dB Min Output Power 5dBm±5dB 0dBm±5dB 5dBm±5dB 0dBm±5dB Wavecom Instruments Pty Ltd t +61 3 9239 2000 257 Grange Road f +61 3 9561 2614 Findon, South Australia 5023 Phone: (+61) 08 8243 3500 .intercel.com.au Fax: (+61) 08 8243 3501...
- Page 13 The recommended dual-band or quad-band antenna used with the SAM should have the following characteristics : Frequency range : Quad band GSM 850/900/1800/1900MHz Impedance : 50Ω VSWR : Rx Max = 1.5 : 1, Tz Max = 1.5 : 1 Typical radiated Gain : 0dBi d.
- Page 14 Network Configuration at the office GSM/GPRS External antenna Network At the remote site Wavecom Instruments Pty Ltd t +61 3 9239 2000 257 Grange Road f +61 3 9561 2614 Findon, South Australia 5023 Phone: (+61) 08 8243 3500 .intercel.com.au...
- Page 15 No credit on prepaid SIM Call barring on outgoing calls Call barring on incoming calls See other error codes in the AT command manual. Wavecom Instruments Pty Ltd t +61 3 9239 2000 257 Grange Road f +61 3 9561 2614...
- Page 16 The magnetic information may be affected by the RF. The modem is not a toy, please keep out of reach of children. Use authorized service centres only. Wavecom Instruments Pty Ltd t +61 3 9239 2000 257 Grange Road...
- Page 17 1.122 Distance from the antenna 20.15cm 19.76cm 10.22cm 10.00cm to POI : R=[(PG/4πS)]½ Wavecom Instruments Pty Ltd t +61 3 9239 2000 257 Grange Road f +61 3 9561 2614 Findon, South Australia 5023 Phone: (+61) 08 8243 3500 .intercel.com.au...
- Page 18 The SAM2W modem should NOT be operated when a person is within 203mm (8 inches) of the modem. On behalf of Wavecom Sang Vu Technical Director Wavecom Instruments Pty Ltd t +61 3 9239 2000 257 Grange Road f +61 3 9561 2614 Findon, South Australia 5023 Phone: (+61) 08 8243 3500 .intercel.com.au...
