ADTRAN ACT LIU Installation & Maintenance

PRACTICES
CONTENTS
1. GENERAL ............................................................. 1
2. INSTALLATION .................................................... 2
3. TESTING................................................................ 3
4. MAINTENANCE ................................................... 4
5. WARRANTY AND CUSTOMER SERVICE ........ 5
FIGURES
Figure 1. ADTRAN ACT LIU List 1 ..........................1
Figure 2. Internal Switch Location .............................2
Figure 4. ACT LIU Functional Block Diagram ..........4
Figure 3. Connector Pin Assignments ........................4
Figure 5. Faceplate Indication .....................................5
TABLES
Table 1. ACT LIU Option Settings ............................ 3
Table 2. Port Data Settings ......................................... 3
Table 3. Faceplate Indicators ..................................... 5
1. GENERAL
This section provides installation and maintenance
information for the ADTRAN Advanced
Communications Terminal Line Interface Unit (ACT
LIU). Figure 1 is an illustration of the unit. Detailed
product information can be found in ADTRAN
Description, Section 61150070L1-2.
Features
The basic features of the ACT LIU, List 1, part
number 1150070L1 include the following:
• Provides for T1 interface at the DSX-1 interface
• SF or ESF data framing formats
• AMI or B8ZS line code formats
• Local or remote loopbacks
• Front panel Bantam jacks for testing
• Front panel indicators showing the status of the
unit
• Front panel DB-9 connector for access to timing
signals for testing
61150070L1-5D
ADVANCED COMMUNICATIONS TERMINAL
LINE INTERFACE UNIT
INSTALLATION & MAINTENANCE
Section 61150070L1-5, Issue 4
List 1: CLEI Code # D4IME2A_ _ _
ACT LIU

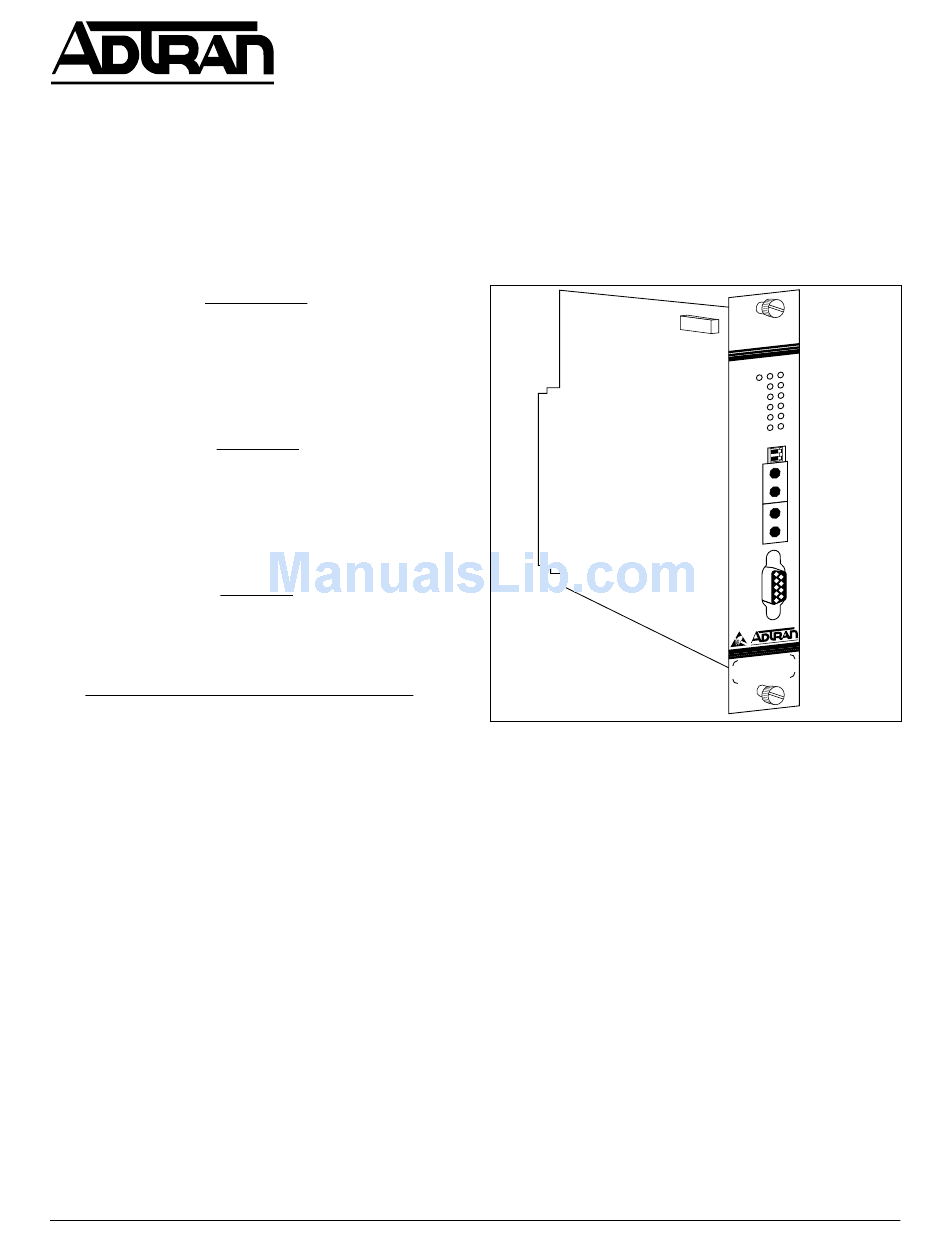

Figure 1. ADTRAN ACT LIU List 1

• Local, loop, or external timing modes
• Composite clock output
• Installs in the ACT 2300 and ACT 1900 channel
banks
Revision History
Issue 4 adds a Note on the T1 interface and updates
the document format.
Description
The ADTRAN ACT LIU is a common card plug-in
for the ADTRAN ACT 2300 and ACT 1900 channel
banks. It connects the channel bank to a T1 line at the
DSX-1 level. All data formatting and line encoding
are performed by the ACT LIU. The ACT LIU also
provides timing for the channel bank.
Section 61150070L1-5
Issue 4, January 1999
L IU
1 1 5 0 0 7 0 L 1
LO C
EX T LT
AR
RC V
AY
ES F
AI
B8 ZS
RM
LC
TS
TS
RM
LC
PM
PM
LO C LB
OF F
RE M LB
M
IN
O
N
OU T
F
IN
A
C
OU T
TE ST
1
