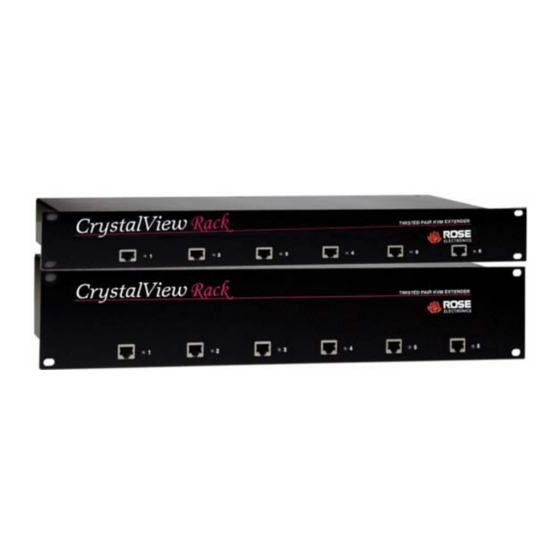

CrystalView CAT5 Rack

Features and Benefits

Extend 6 to 12 KVM stations from 6 to 12 CPUs using
a single CAT5 twisted pair, solid core cable
(Up to 1,000 feet)
Video resolutions up to 1600 x 1200 at 200 feet,
1280 x 1024 at 300 feet, 1024 x 768 at 1,000 feet
Compatible with the Rose Electronics family of KVM
switches such as the ServeView Pro, UltraView Pro,
UltraMatrix, and other KVM switches
Compatible with Windows, Windows NT, OS/2, UNIX,
Linux and other operating systems
Fully automatic KVM sharing on a first-come, first-serve
basis using the dual models
Uses a microprocessor to emulate the keyboard and
mouse. The keyboard and mouse on the Remote units
do not have to be connected for the PC to boot; only
the local units must be connected to the PC
The local unit can invoke a private mode to inhibit
usage of the remote unit (Dual models only)
On the dual models, the connected computer's video is
displayed on both the local and remote monitors
Bi-directional serial and stereo audio options (Serial and
audio models only)
Stereo audio can be transmitted in either direction
across the CAT5 link simultaneously
(Serial and audio models only)
Rack mountable chassis
KVM access over CAT5 cable
Extends the distance from 6 to 12 PC's up
to 1,000 feet
Video resolutions up to 1600 x 1200
Single or dual models. Dual models provide an
additional KVM station at the local unit
Serial and stereo audio options available on all
6-port models
Stereo audio and serial data can be transmitted in
either direction across the CAT5 link simultaneously
The CrystalView™ Rack Advantage .
The CrystalView CAT5 Rack is the KVM extender
of choice for businesses big and small that need
to extend several KVM stations away from CPUs.
The CrystalView CAT5 Rack allows you to
position 6 or 12 CPUs up to 1,000 feet away from
the KVM stations using common twisted pair
CAT5 cable. Each CrystalView module is
completely independent from the other modules.
Access to your computers or servers is made
convenient in a variety of situations. You can
locate users away from hazardous industrial
environments, locate CPUs away from areas
vulnerable to theft of hardware and data, reduce
noise and heat, increase desk space, and floor
space.
The CrystalView CAT5 Rack is available in the
following models.
6 – single locals
6 – single locals with serial and audio
6 – dual locals
6 – dual locals with serial and audio
12 – single locals
6 – single remotes
6 – single remotes with serial and audio
All models use a microprocessor to emulate the
keyboard and mouse for plug and play operation.
The keyboard and mouse on the Remote Unit
does not have to be connected for the PC to
boot; only the Local unit connected to a PC.
The CrystalView Rack is designed for plug-and-
play operation. Connect the computers, a KVM
station, and a CAT5 cable between
the local and remote units, and its
ready to use.
Standard CAT5 connectors
