Front Panel Controls and Indicators
ID Toggle Switch
A.
Reset Button
B.
C.
NIC 1 Activity LED (green)
D.
Sleep Button
E.
Power Button
F.
Hard Drive Activity LED (bi-color)
MAXDATA PLATINUM 5220 Server
a

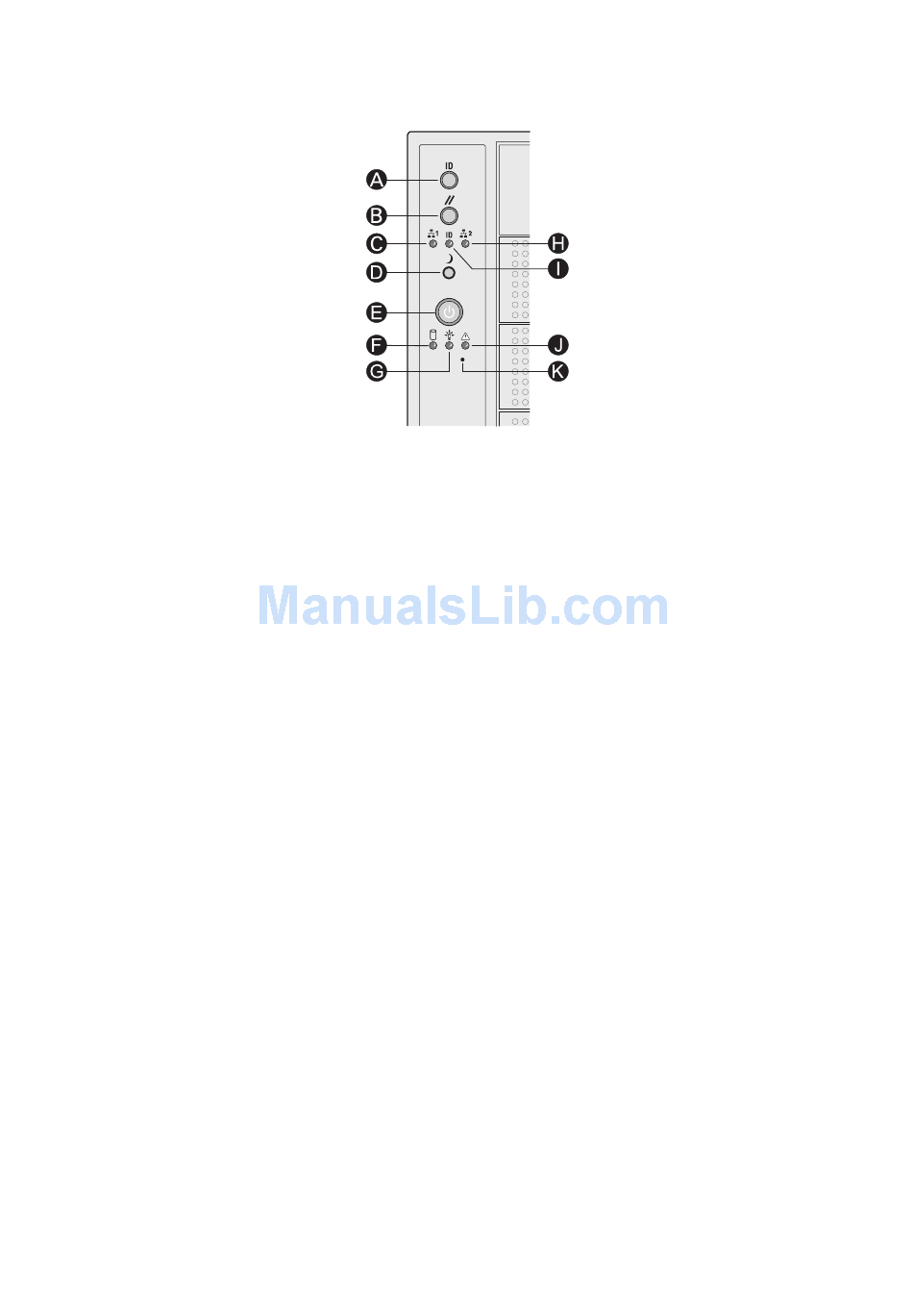

Figure 2. Pedestal Controls and Indicators
Power/Sleep LED (green)
G.
NIC 2 Activity LED (green)
H.
I.
ID LED (blue)
J.
Status LED (bi-color)
K.
NMI Button
