MAXDATA PLATINUM 500 I – Quick Start Guide
Thank you for buying a MAXDATA PLATINUM 500 I Server. This document describes how to set up
the system, turn on the system, and complete configuration for the system.
Follow the link "User-Support und Treiber" on www.maxdata.de to access the download area and download a more detailed guide.
Safety
Warning
Installation and service
Installation and service of this product is to be performed only by qualified service
personnel to avoid risk of injury from electrical shock or energy hazard.
Enclosure cover
In order to comply with applicable safety, emission, and thermal requirements, no
covers should be removed and all bays must be fitted with drive carriers.
Battery Safety
There is a danger of explosion if the battery is incorrectly replaced.
Dispose of used batteries in accordance with the manufacturer's instructions and
national regulations.

Site Selection

The system is designed to operate in a typical office environment. Choose a site that is:
• Clean, dry and free of airborne particles (other than normal room dust).
• Well-ventilated and away from sources of heat including direct sunlight and radiators.
• Away from sources of vibration or physical shock.
• Isolated from strong electromagnetic fields produced by electrical devices.

System Overview

Technical Specifications
Dimensions (upright configuration):
- 444 mm high
- 222 mm wide
- 675 mm deep
- 36 kg max. weight
System power:
- Redundant power supply (two line connectors)
100–127 V/200–240 V at 50/60 Hz; 10 A/5 A max.
- Single power supply
100–127 V/200–240 V at 50/60 Hz; 10 A/5 A max.
Temperature range: +10 °C to +30 °C

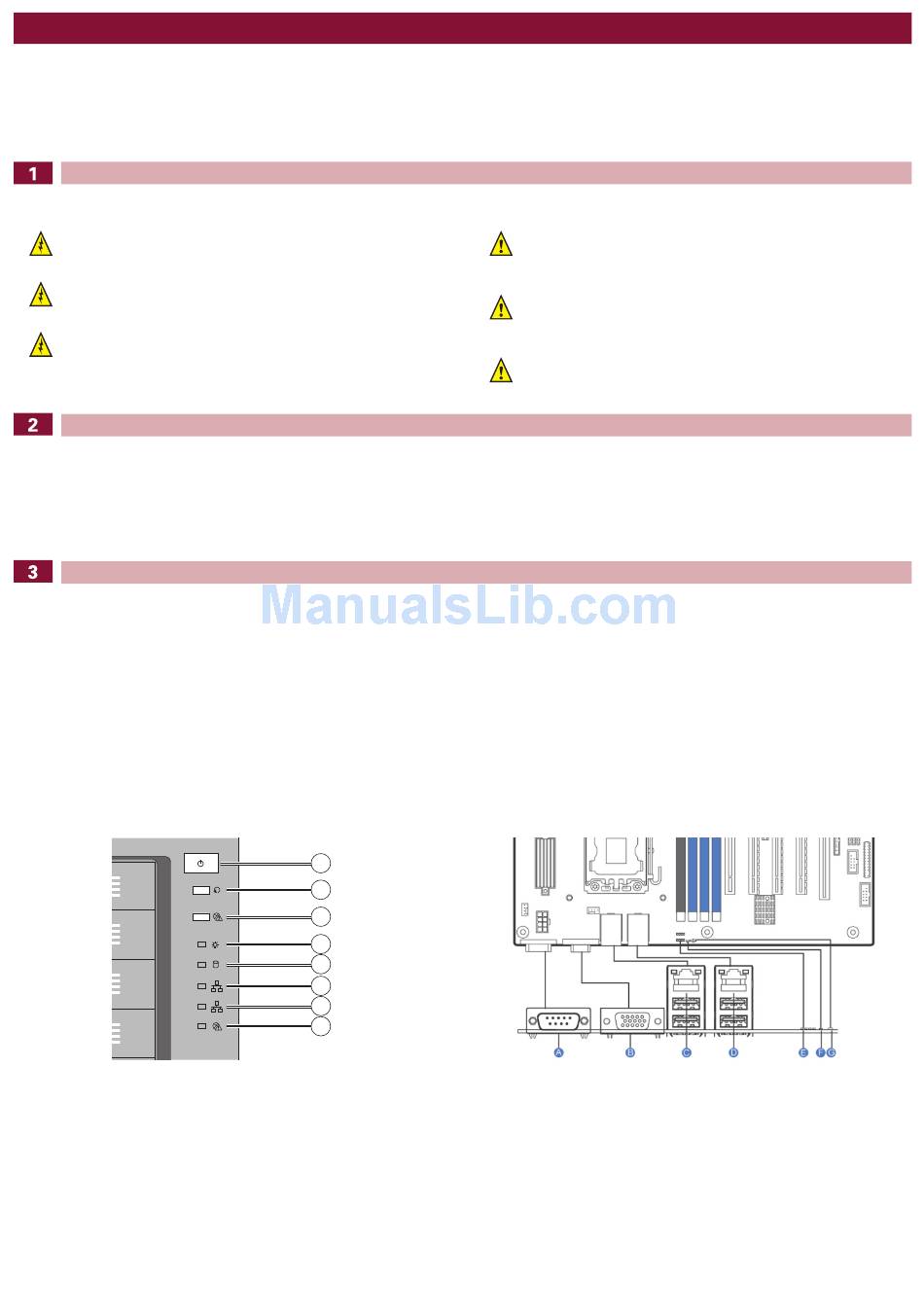

Front Controls
A.
B.
C.
D.
E.
F.
G.
H.
A
B
C
D
E
F
G
H
Power button
Reset button
Warning mute button
Power LED
HDD LED
NIC2 LED
NIC1 LED
Warning LED
Caution
Electrostatic discharge
Observe normal Electrostatic Discharge (ESD) procedures during system integration
to avoid possible damage to the server board and/or other components of the server
system.
Server system power
System power on/off: The power button DOES NOT turn off the system AC power. To
remove power from the server system, you must unplug the AC power cord from the
wall outlet or the chassis.
Safety instruction for upright system
To ensure stability, the floor stands must be turned outwards.
• In regions that are susceptible to electrical storms, we recommend you plug your system into a
surge suppresser and disconnect telecommunication lines to your modem during an electrical
storm.
• Provided with a properly grounded wall outlet.
• Provided with sufficient space to access the power supply cord(s) because they serve as the
product's main power disconnect.
Regulatory Compliance
This product complies to the following requirements:
- EN 60950 – Safety
- EN 55022 – Emissions
- EN 55024 – Immunity
- EN 61000-3-2 – Harmonics
- EN 61000-3-3 – Voltage Flicker
- CE – EMC Directive 89/336/EEC
This product has a CE declaration of conformity (CENELEC Europe).
This server system is compliant to European Directive 2002/95/EC (RoHS).
Back Panel Connectors
A. Serial port A
B. Video port
C. NIC 1 (top), two USB ports (bottom)
D. NIC 2 (top), two USB ports (bottom)
E. Diagnostic LEDs
F. ID LED
G. Status LED
MAXDATA PLATINUM 500 I M8 – Quick Start Guide 1
