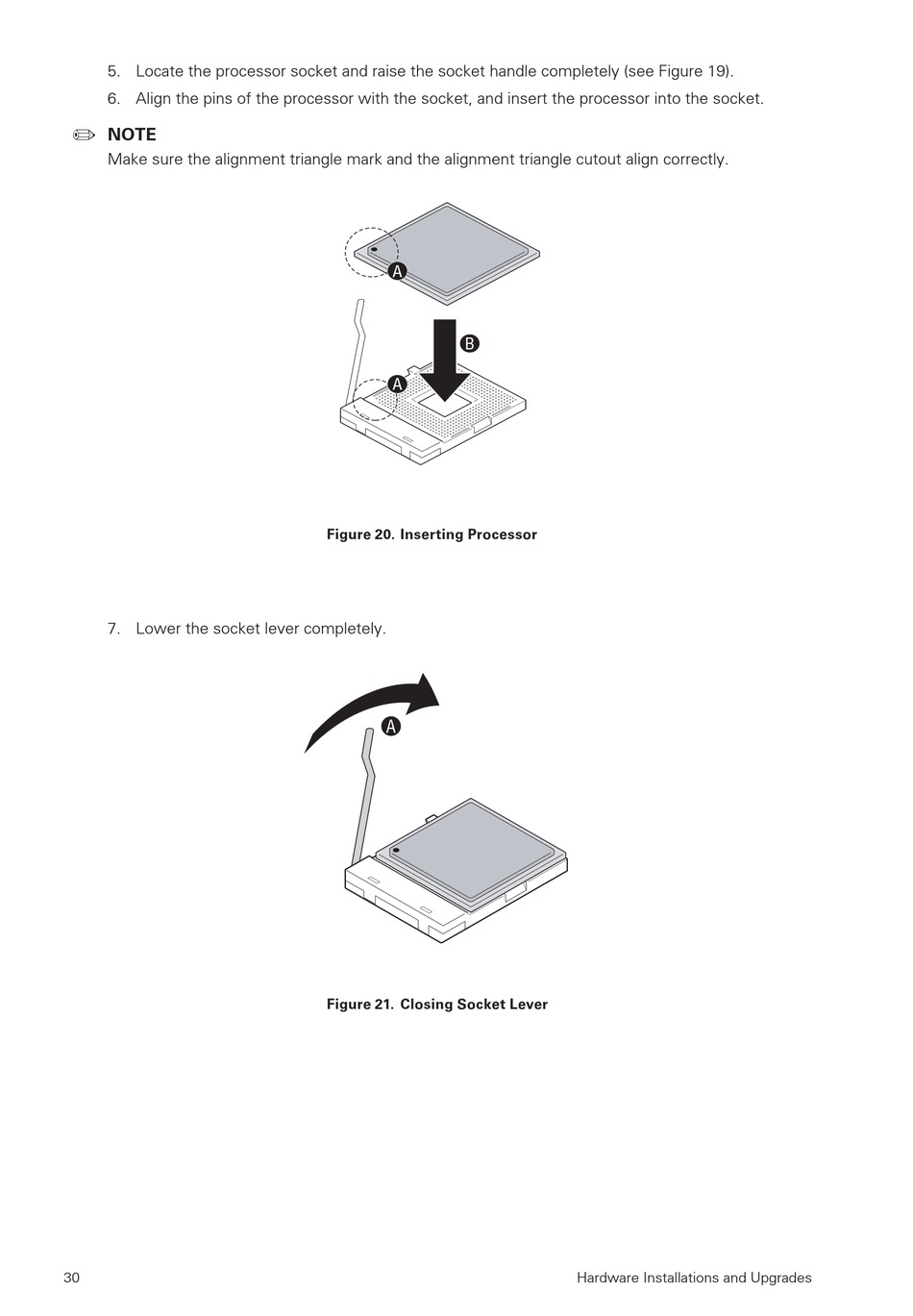

5. Locate the processor socket and raise the socket handle completely (see Figure 19).
6. Align the pins of the processor with the socket, and insert the processor into the socket.

NOTE
Make sure the alignment triangle mark and the alignment triangle cutout align correctly.
7. Lower the socket lever completely.
30
A
B
A
a
Figure 20. Inserting Processor
A
a
Figure 21. Closing Socket Lever
TP00727
TP00728
Hardware Installations and Upgrades
