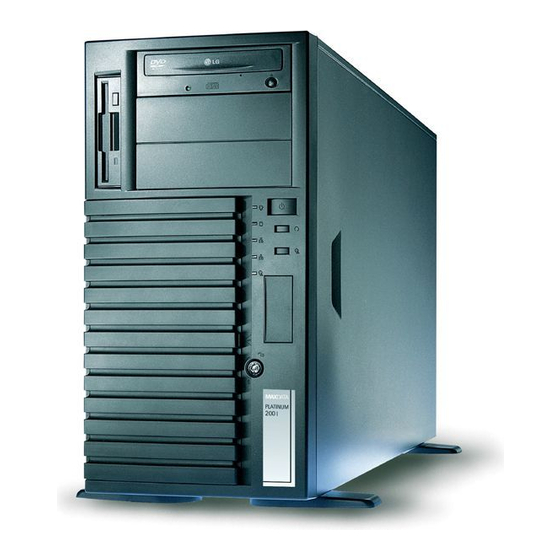

MAXDATA PLATINUM 200 I
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLATINUM 200 I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MAXDATA PLATINUM 200 I

Summary of Contents for MAXDATA PLATINUM 200 I

  • Page 1 MAXDATA PLATINUM 200 I User’s Manual...
  • Page 2 Contents Contents...

  • Page 3: Table Of Contents

    Creating Intel Matrix Storage Technology RAID set ...............8 ® Creating LSI Technology RAID set ....................8 Loading the RAID Drivers (Windows Server 00) ................9 5 Rack Installation Parts List ..............................1 Installation ............................. MAXDATA PLATINUM 00 I M9 MAXDATA PLATINUM 00 I M9...
  • Page 4 6 Technical Reference Power Supply Specifications .........................5 00 W Single Power Supply Input Voltage ..................5 00 W Single Power Supply Output Voltages ..................5 50 W Redundant Power Supply Input Voltages ................5 50 W Redundant Power Supply Output Voltages ................5 7 Regulatory and Compliance Information Product Regulatory Compliance ......................7 Product Safety Compliance ......................7 Product RoHS Compliance .......................7...

  • Page 5: Setting Up The System Safety Information

    - any unpainted metal surface - on your server when handling parts. ATTENTION In order to fully separate the server from current, the power cord must be removed from the wall outlet. ATTENTION To ensure stability, the floor stands must be turned outwards (pedestal version only). MAXDATA PLATINUM 00 I M9...

  • Page 6: System Access Warnings

    System Access Warnings CAUTION To avoid personal injury or property damage, the following safety instructions apply whenever accessing the inside of the product: • Turn off all peripheral devices connected to this product. • Turn off the system by pressing the power button to off. •...

  • Page 7: Connecting The System

    Solid Green Network connection in place Blinking Green Transmit/receive activity Right 10 Mbps connection (if left LED is on or blinking) Solid Green 100 Mbps connection Solid Amber 1000 Mbps connection MAXDATA PLATINUM 00 I M9 MAXDATA PLATINUM 00 I M9...

  • Page 8: Powering Up The System

    At the front of the case, you can find the necessary controls like power button and the HDD LEDs. Press the power button one time briefly in order to boot the server. Figure 2. PLATINUM 200 I Controls A. Power LED...

  • Page 9: Server Features

    Single or redundant 300 W / 350 W power supply Support for two system fans and one processor fan Fans System Management Integrated IPMI 2.0-compliant baseboard management controller • Support for remote management module 3 (“KVM over IP”) • Support for system management software MAXDATA PLATINUM 00 I M9...

  • Page 10: Connector And Header Locations

    Connector and Header Locations Figure  shows the approximate location of the major components on board. B C D Figure 3. Board Connector and Component Locations Table 3. Board Connectors and Components Label Description Label Description Slot 1, 32 Mbit/33 MHz PCI CPU fan connector Slot 2, PCI Express Gen1 x1 (x4 connector) USB SSD connector...

  • Page 11: Configuration Jumpers

    The server board provides a 4-pin SSI front panel connector. The following figure shows the pin-out for this connector. Figure 5. SSI Front Panel Connector Power LED Reset Button HDD LED NIC1 LED Power Button NIC2 LED MAXDATA PLATINUM 00 I M9 MAXDATA PLATINUM 00 I M9...

  • Page 12: Hardware Requirements

    Hardware Requirements To avoid integration difficulties and possible board damage, your system must meet the requirements outlined below. Processor The mainboard supports one Intel Xeon 400 series processor with up to 95 W Thermal Design ® ® Power (TDP) with .5 GT/s. Memory The server board supports two memory channels with up to three DIMM sockets per channel.

  • Page 13: Hardware Installations And Upgrades

    During installation, the bezel assembly is at an opening angle of approx. 0 degrees to the top of the chassis. . Rotate the bezel assembly towards the chassis and push against it so that the hooks snap into place on top. Figure 6. Bezel assembly MAXDATA PLATINUM 00 I M9...

  • Page 14: Removing The Chassis Cover

    Removing the Chassis Cover 1. Remove the cover. . Loosen the three thumbscrews that fasten the left front cover to the chassis. . Pull the cover outwards (approx. 1 cm) so that the guiding hooks can slide out of the chassis grooves.
  • Page 15 5. With the black lever open, insert the drive carrier into the drive cage. Once inserted, rotate the black lever upwards to latch the drive carrier into position. Figure 10. Inserting Drive Carrier into Drive Cage MAXDATA PLATINUM 00 I M9 MAXDATA PLATINUM 00 I M9...

  • Page 16: Installing Or Replacing A Processor

    Installing or Replacing a Processor NOTE Use the instructions provided below to install or replace a processor instead of using the instructions that came with the processor. When installing a second processor, verify that the processors are identical and of the same voltage and speed.
  • Page 17 11. Align the processor with the socket in such a way that both notches match up with the Heideman Assoc. processor socket pins. Gently insert the processor into the socket. Grosse Point Server Board AF003188.ai 11 May 2009 Heideman Assoc. AF003190 Figure 14. Inserting the Processor MAXDATA PLATINUM 00 I M9 MAXDATA PLATINUM 00 I M9...
  • Page 18 1. Close the load plate (see letter “A”), close the socket lever, and ensure the load plate tab engages under the socket lever when fully closed (see letter “B” and “C”). AF003191 Figure 15. Closing Load Plate and Socket Lever 1.

  • Page 19: Installing The Heat Sink

    Figure 16. Installing the Heat Sink 4. Reinstall and reconnect any parts you removed or disconnected to reach the processor sockets. 5. Replace the server‘s cover and reconnect the AC power cord. MAXDATA PLATINUM 00 I M9 MAXDATA PLATINUM 00 I M9...

  • Page 20: Removing A Processor

    Removing a Processor 1. Observe the safety and ESD precautions at the beginning of this book. . Turn off all peripheral devices connected to the server. Turn off the server. . Remove the AC power cord from the server. 4. Remove the server‘s cover. 5.

  • Page 21: Installing And Removing Memory

    11. Reconnect or replace any internal components you needed to disconnect or remove. 1. Replace the server’s cover. Reconnect any external components you needed to disconnect. 1. Attach the AC power cord. MAXDATA PLATINUM 00 I M9 MAXDATA PLATINUM 00 I M9...

  • Page 22: Replacing The Backup Battery

    Replacing the Backup Battery The lithium battery on the server board powers the RTC for up to 10 years in the absence of power. When the battery starts to weaken, it loses voltage, and the server settings stored in CMOS RAM in the RTC (for example, the date and time) may be wrong.
  • Page 23 9. Close the chassis. 10. Run Setup to restore the configuration settings to the RTC. Grosse Point Server Board AF003185.ai 11 May 2009 Heideman Assoc. MAXDATA PLATINUM 00 I M9 MAXDATA PLATINUM 00 I M9...

  • Page 25: Server Utilities

    These parameters can be changed if the user has adequate security rights. If a value cannot be changed for any reason, the feature’s value field is inaccessible. MAXDATA PLATINUM 00 I M9...
  • Page 26 Table 4 describes the keyboard commands you can use in the BIOS Setup menus. Table 4. Keyboard Commands Press Description <F1> Help - Pressing F1 on any menu invokes the general Help window. ← → The left and right arrow keys are used to move between the major menu pages. The keys have no affect if a sub menu or pick list is displayed.

  • Page 27: Clearing The Cmos

    5. Return the CMOS Clear jumper to the Normal location, covering pins 1 and . 6. Close the server chassis. 7. Reconnect the AC power and power up the system. MAXDATA PLATINUM 00 I M9 MAXDATA PLATINUM 00 I M9...

  • Page 28: Configuring The System For Embedded Serial Ata Raid

    Configuring the System for embedded Serial ATA RAID Configuring the BIOS 1. Make sure you are having at least two SATA hard drives. . Enter system BIOS Setup by pressing the <F> key after the Power-On-Self-Test (POST) memory tests begin. .

  • Page 29: Loading The Raid Drivers (Windows Server 00)

    Matrix Storage Manager depending ® on the RAID technology you chose previously. This will allow for local monitoring of the RAID configuration. Additionally errors will be entered to the local system log files. MAXDATA PLATINUM 00 I M9 MAXDATA PLATINUM 00 I M9...

  • Page 31: Rack Installation

    NOTE Countersunk screws are not required. Tip: Customers with a MAXDATA rack can simplify installation of the server by taking the screws, washers, and clamping nuts from the fastening set of their cabinet. MAXDATA PLATINUM 00 I M9...

  • Page 32: Installation

    Installation 1. Pull the internal rail (C) out of the middle rail (B). . Leave the middle rail (B) inside the external rail (A). . Measure the distance between the front and rear breadboard section of your cabinet. At-tach the silver end brackets (D) to the external rail (A) with two screws (E) and two nuts (G) each. Be careful to make sure that the distance between the fastening bracket for the external rail (A) and the end bracket (D) is the same as the distance between both bread-board sections of your server cabinet.
  • Page 33 6. When finished, you can slide the server into the server cabinet by pushing the inner rail (C) into the middle rail (B). To be able to slide the server completely inside, you have to push in the locking device at both sides of the rails. MAXDATA PLATINUM 00 I M9 MAXDATA PLATINUM 00 I M9...

  • Page 35: Technical Reference

    The table below lists the total wattage available for supplying power from the power subsystem for each voltage. Table 6. 350 W Power Supply Output Rating Voltage Maximum Current +3.3 V 18 A +5 V 25 A +5 V Standby 16 A +12 V –12 V 0.5 A MAXDATA PLATINUM 00 I M9...

  • Page 37: Regulatory And Compliance Information

    Europe (CE Declaration of Conformity) This product has been tested in accordance too, and complies with the Low Voltage Directive (7// EEC) and EMC Directive (89/6/EEC). The product has been marked with the CE Mark to illustrate its compliance. MAXDATA PLATINUM 00 I M9...
