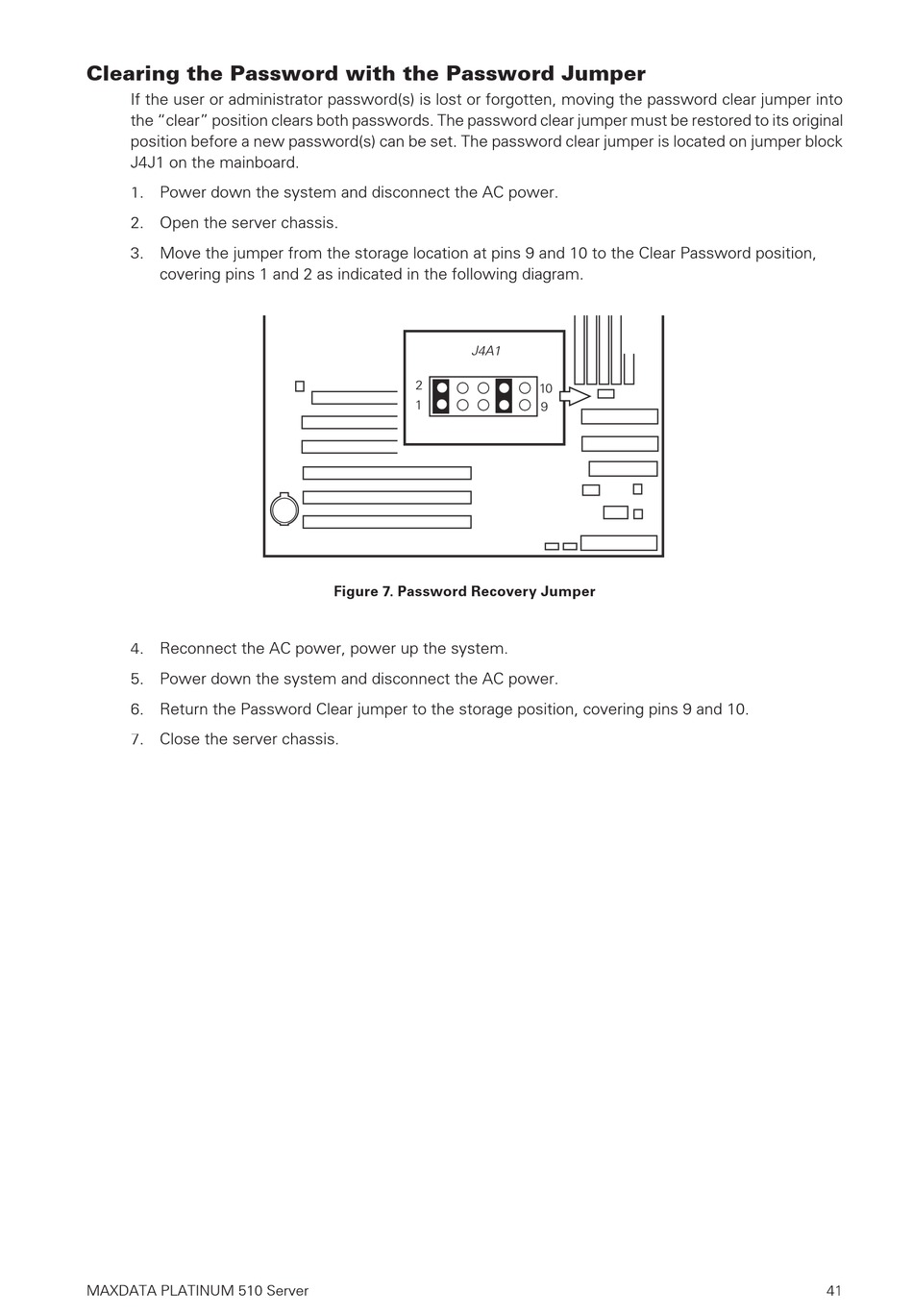

Clearing the Password with the Password Jumper

If the user or administrator password(s) is lost or forgotten, moving the password clear jumper into
the "clear" position clears both passwords. The password clear jumper must be restored to its original
position before a new password(s) can be set. The password clear jumper is located on jumper block
J4J1 on the mainboard.
1. Power down the system and disconnect the AC power.
2. Open the server chassis.
3. Move the jumper from the storage location at pins 9 and 10 to the Clear Password position,
covering pins 1 and 2 as indicated in the following diagram.
4. Reconnect the AC power, power up the system.
5. Power down the system and disconnect the AC power.
6. Return the Password Clear jumper to the storage position, covering pins 9 and 10.
7. Close the server chassis.
MAXDATA PLATINUM 510 Server
J4A1
�
�
Figure 7. Password Recovery Jumper
��
�
