Overview
of the Avaya G700 Media Gateway
and Avaya S8300 Media Server
555-234-200
Issue 4.1
December 2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avaya G700

  • Page 1 Overview of the Avaya G700 Media Gateway and Avaya S8300 Media Server 555-234-200 Issue 4.1 December 2003...
  • Page 2 The final responsibility for securing both this system and its networked equipment rests with you - Avaya’s customer system Avaya Inc. provides a limited warranty on this product. Refer to your administrator, your telecommunications peers, and your managers. sales agreement to establish the terms of the limited warranty. In Base the fulfillment of your responsibility on acquired knowledge and addition, Avaya’s standard warranty language as well as information...
  • Page 3 The LASER devices operate within the following parameters: Avaya attests that this registered equipment is capable of providing users access to interstate providers of operator services through the use • Maximum power output: -5 dBm to -8 dBm of access codes. Modification of this equipment by call aggregators to •...
  • Page 4 FIC Code SOC/REN/ Network (SDoC) Identifier A.S. Code Jacks Avaya Inc. in the United States of America hereby certifies that the Ground Start CO trunk 02GS2 1.0A RJ11C equipment described in this document and bearing a TIA TSB-168 DID trunk 02RV2-T AS.0...
  • Page 5: Table Of Contents

    S8300 Media Server Avaya Media Modules Avaya Communication Manager Avaya Integrated Management Standard Management Solutions Maintenance Software The Avaya X330 WAN Access Routing Module Avaya Expansion Modules Other G700 Components Avaya P330 Stacking Fabric (Octaplane) Power Supply S8300-Specific Adjunct Support...
  • Page 6 Contents Overview for G700 and S8300 December 2003...
  • Page 7: Overview

    The S8300 Media Server is a Pentium based-processor in a Media Module form factor that resides in the G700 Media Gateway. The S8300 Media Server is also available in a Local Survivable Processor (LSP) configuration.
  • Page 8: Main Components

    Main Components Main Components The main hardware components of the G700 Media Gateway and S8300 Media Server configurations are: • G700 Media Gateway chassis • S8300 Media Server circuit board • Avaya Media Modules: — Avaya MM710 T1/E1 Media Module —...
  • Page 9: G700 Media Gateway

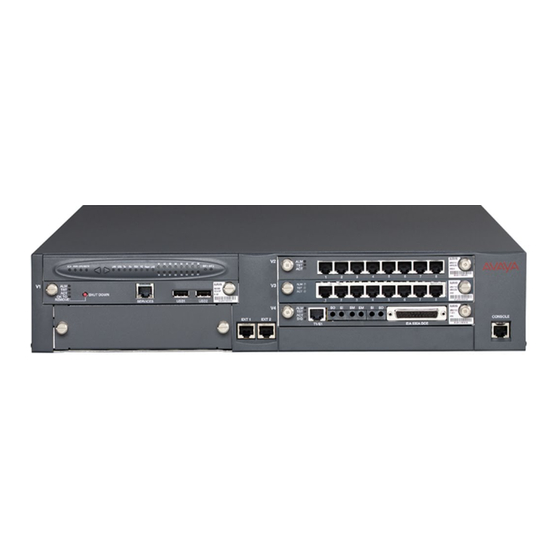

    Dual 10/100Base-T Ethernet switch ports G700 Media Gateway The G700 Media Gateway is designed to offer options and provide scalability. It is functional on its own or with other G700 Media Gateways. A maximum of 50 G700 Media Gateways can be supported using the S8300 Media Server.
  • Page 10 • Can sit on a desk top The G700 Media Gateway has a physical design that is similar to other Avaya stackable switching products. The following figure shows the G700 Media Gateway with two Avaya P330 switches. The G700 is shown at the top of the stack.
  • Page 11: S8300 Media Server

    — SNMP access to configure trap destinations, and stop and start the master agent — S8300 Media Server configuration information and upgrade access — Download of the Avaya Terminal Emulator from the S8300 Media Server to a PC on the •...
  • Page 12: Avaya Media Modules

    Avaya Media Modules Avaya Media Modules convert the voice path of the traditional circuits such as analog trunk, T1/E1, and DCP to a TDM bus. The VoIP engine then converts the voice path from the TDM bus to a compressed or uncompressed and packetized VoIP on an Ethernet connection.
  • Page 13 Figure 5: Avaya MM711 Analog Media Module mmdc711 KLC 022702 mmdc711 KLC 022702 For more information, see Hardware Guide for Avaya Communication Manager. Avaya MM712 DCP Media Module The MM712 allows you to connect up to eight two-wire Digital Communications Protocol (DCP) voice terminals.
  • Page 14 KLC 022702 mmdc712 KLC 022702 For more information on the MM720 see Hardware Guide for Avaya Communication Manager. Avaya MM760 VoIP Media Module The MM760 is a clone of the motherboard VoIP engine. The MM760 provides an additional 64 VoIP channels with G.711 compression.
  • Page 15: Avaya Communication Manager

    Main Components Avaya Communication Manager Avaya Media Servers use Avaya Communication Manager for call processing solutions. For more information on these solutions, see Overview for Avaya Communication Manager. Avaya Communication Manager is an open, scalable, highly reliable and secure telephony application.
  • Page 16 For use on site to install new software on the S8300, S8500, and S8700 Avaya Installation Wizard Media Servers and firmware on the G350 and G700 Media Gateways. The Installation Wizard can also be used to install software patches and configure the media servers. For G700/S8300, it can install basic telephony translations and configure trunking parameters and trunk diagnostics.
  • Page 17: Maintenance Software

    The Media Server with the G700 Media Gateway has a dual maintenance strategy. Maintenance software runs on both the G700 Media Gateway platform and the Media Server for the subsystems on the platform. This platform software performs initialization and motherboard maintenance, along with internal environmental monitoring.
  • Page 18: Avaya Expansion Modules

    Other G700 Components Avaya P330 Stacking Fabric (Octaplane) The Octaplane is a name for an Avaya hardware capability to bundle stackable components using a 4 bgps in each direction technology. This technology combines separate units into a larger logical switch using different lengths of cables that are connected to the expansion slots in the rear of the units.
  • Page 19: S8300-Specific Adjunct Support

    TDM bus that exists between the small circuit board and the S8300 Media Server. The IA 770 uses many of the resources of the S8300 Media Server and the G700 Media Gateway in which it resides. The following outlines the shared resources used by the IA 770: •...
  • Page 20 Main Components The G700 announcement software has the following capacities:. Table 1: G700 Announcement software capacities Area description Avaya G700 announcement software Maximum storage time per media gateway Up to 20 minutes at 64Kbps uncompressed speech Concurrent Calls per Announcement...
  • Page 21: G700 And S8300 Reliability

    IP-to-IP calls. LSP Capacities An LSP can support up to 50 G700 Media Gateways. The number of LSPs that can be supported in a configuration depends on the primary controller. The S8500 and S8700 Media Servers can support up to 50 LSPs.
  • Page 22: Endpoint Devices

    Endpoint Devices The Avaya media servers support the following types of endpoint devices. Avaya Telephones for the Media Servers The S8300 Media Server and G700 Media Gateway support the following types of telephones: IP Telephones • Avaya 4602 IP Telephone •...
  • Page 23: Analog Telephones

    Endpoint Devices Analog Telephones • Avaya 6211 Analog Telephone • Avaya 6219 Analog Telephone • Avaya 2500 and the Avaya 2554 Analog Terminals • 2520 Explosive Atmosphere Telephone Avaya Wireless • Avaya TransTalk 9040 SoundStation • 3127 SoundPoint Speakerphone •...
  • Page 24: System Capacities

    10,000 Busy Hour Calls (Maximum, call center) 5,000 Locations For a complete list of capacities, see System Capacities Table for the Avaya Communication Manager on Avaya Media Servers, 555-245-601. This is a partial list of adjuncts that Avaya provides. •...
  • Page 25: International Information

    Korea Switzerland Brazil Mexico Taiwan Canada The Netherlands Trinidad Chile New Zealand Tobago China Nordics United Kingdom Colombia Panama United States Costa Rica Paraguay Uruguay France Hong Kong Venezuela Germany Ireland Guatemala Israel Overview for G700 and S8300 December 2003...
  • Page 26 International Information Overview for G700 and S8300 December 2003...
  • Page 27: Index

    Customer Configuration Options for the S8300 Media Wireless Server with G700 Media Gateway description of Server memory modules S8300 Media Server Web Interface S8300 Media Server with G700 Media Gateway Configuration Description Customer Configuration Options DCP Media Module (MM712) Media Server Web Interface Overview...
  • Page 28 Index Overview for G700 and S8300 December 2003...
