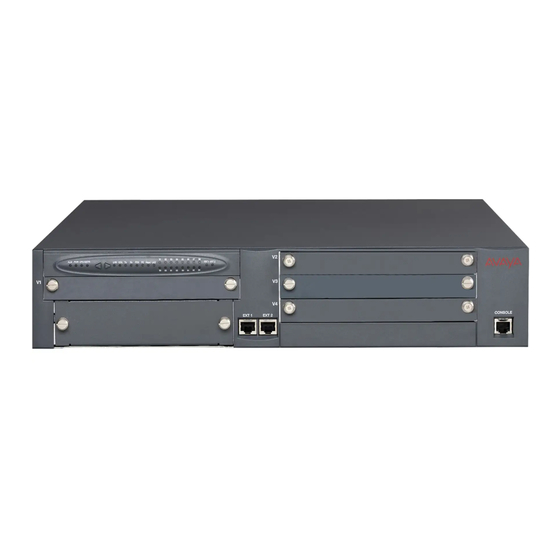

Avaya G700 Quick Start For Hardware Installation
Media gateway and media server
Hide thumbs
Also See for G700:
- Installing and upgrading (808 pages) ,
- Installing manual (768 pages) ,
- Installation and upgrades (734 pages)
Related Manuals for Avaya G700
Summary of Contents for Avaya G700
- Page 1 Quick Start for Hardware Installation: Avaya G700 Media Gateway Avaya S8300 Media Server 555-233-150 Issue 4 June 2004...
- Page 2 The final responsibility for securing both this system and its networked equipment rests with you - Avaya’s customer system Avaya Inc. provides a limited warranty on this product. Refer to your administrator, your telecommunications peers, and your managers. sales agreement to establish the terms of the limited warranty. In Base the fulfillment of your responsibility on acquired knowledge and addition, Avaya’s standard warranty language as well as information...
- Page 3 The LASER devices operate within the following parameters: Avaya attests that this registered equipment is capable of providing users access to interstate providers of operator services through the use • Maximum power output: -5 dBm to -8 dBm of access codes. Modification of this equipment by call aggregators to •...
- Page 4 SOC/REN/ Network (SDoC) Identifier FIC Code A.S. Code Jacks Avaya Inc. in the United States of America hereby certifies that the Ground Start CO trunk 02GS2 1.0A RJ11C equipment described in this document and bearing a TIA TSB-168 DID trunk 02RV2-T AS.0...
-
Page 5: Table Of Contents
Install Media and Expansion Modules Install USB Modem and CD-ROM Drive Install UPS and Apply Power 10 Connect the Laptop — G700 without an S8300 11 Connect the Laptop — G700 with S8300 Quick Start: G700 and S8300 June 2004... - Page 6 Contents Quick Start: G700 and S8300 June 2004...
-
Page 7: Before You Go To The Installation Site
Documentation for Avaya Communication Manager, Media Gateways and Servers, 555-300-151. License file, software, and firmware The following tasks must be completed before you can install an Avaya S8300 Media Server and Avaya G700 Media Gateway. Meet with the customer to complete the Electronic Preinstallation Worksheet. The Electronic Preinstallation Worksheet contains specific information about the customer’s network... -
Page 8: Laptop Requirements
Information on the Avaya Installation Wizard options for ProVision is in the Electronic Preinstallation Worksheet. Laptop requirements The laptop PC that you use to access the S8300 and/or G700 and to launch the Avaya Installation Wizard must meet the following requirements: •... -
Page 9: Conduct Equipment Inventory
The DCP and the Analog media modules look similar. Check their labels to verify the module type. Optional Avaya MM760 VoIP Media Module AVAYA Optional Avaya MM714 4FXS x 4FXO Analog Media Module Optional Avaya MM717 24-port DCP Media Module. NOTE: Endpoints connected to this media module must be in-building only. - Page 10 Optional Avaya IA770 Messaging Module. Optional USB modem. Material ID: 700277551 Optional Teac USB CD-ROM Drive. Material ID: 700289580. Optional Uninterruptable Power Supply (UPS) for AC-Powered Gateways Only. NOTE: A stand-alone version of the UPS is shown. Quick Start: G700 and S8300 June 2004...
- Page 11 The X3300SC Short Cable is sometimes shipped attached to the X3300STK Octaplane Stacking Module. Optional X3300RC Redundancy Cable. Optional X3300 LC Long Cable. Optional USB Cable and Adapter for use with the USB modem. Quick Start: G700 and S8300 June 2004...
- Page 12 Conduct Equipment Inventory Crossover Ethernet Cable (CAT5) Serial or "Console" Cable and Adapter Ground wire. Optional AC Power Cord Optional DC Power Cord. Feet used for table mounting. Quick Start: G700 and S8300 June 2004...
-
Page 13: Mount Media Gateway
For desktop mount. Install feet using plastic ALM PWR CPU MSTR LNK COL Tx FDX FC Hspd LAG EXT1 EXT2 push rivets. EXT1 EXT2 Quick Start: G700 and S8300 June 2004... - Page 14 Mount Media Gateway Connect the ground wire to the ground conductor on the back of the media gateway. Attach the other end of the ground wire to an approved ground. Quick Start: G700 and S8300 June 2004...
-
Page 15: Install Octaplane Stacking Module
Install Octaplane Stacking Module Install Octaplane Stacking Module NOTE: Complete these steps only if you are connecting more than one G700 Media Gateway in a stack configuration. Remove the blank faceplate from the Octaplane slot on the back of the media gateway. -
Page 16: Connect Media Gateways
Connect Media Gateways Connect Media Gateways NOTE: Complete these steps only if you are connecting more than one G700 Media Gateway in a stack configuration. Using the gray X330SC short cables, connect the media gateways from the bottom up: •... - Page 17 “Cable to upper unit” on the top unit of the stack 1. • Connect the dark gray connector of the gray X330LC long cable to the port labeled “Cable to lower unit” on the bottom unit of the stack 2. Multiple-stack redundancy Quick Start: G700 and S8300 June 2004...
-
Page 18: Install S8300 Media Server
Complete these steps if you are installing an S8300 Media Server (configured as the primary controller or as a Local Survivable Processor). From the front of the G700 Media Gateway, remove the blank faceplate from slot V1. Remove the LED module (located above slot V1) and place in an anti-static bag. - Page 19 Tighten the captive screws on the S8300. ALM PWR CPU MSTR LNK COL Tx FDX FC Hspd LAG EXT1 EXT2 SHUT DOWN OK TO REMOVE SERVICES USB1 USB2 EXT1 EXT2 Quick Start: G700 and S8300 June 2004...
-
Page 20: Install Media And Expansion Modules
To install the expansion module, first remove the lower left blank faceplate. Align the expansion module with the interior guides and insert into slot until firmly seated. Tighten the captive screws. Quick Start: G700 and S8300 June 2004... -
Page 21: Install Usb Modem And Cd-Rom Drive
CD-ROM drive. NOTE: If you have installed a TFTP server on your laptop, you can use the your laptop’s CD-ROM drive instead of the external USB CD-ROM drive when remastering the S8300 hard drive. Quick Start: G700 and S8300 June 2004... -
Page 22: Install Ups And Apply Power
Install UPS and Apply Power Install UPS and Apply Power UPS (AC only) The UPS is an option for AC-powered gateways only. From the back of the G700 Media Gateway, connect the Uninterruptable Power Supply (UPS) using the manufacturer’s instructions. -
Page 23: Connect The Laptop - G700 Without An S8300
Connect the Laptop — G700 without an S8300 This section assumes the G700 does not contain an S8300 Media Server. Use the Gateway Installation Wizard from the laptop to enter the initial gateway configuration parameters. Connect the RJ45 end of a serial cable to the Console port on the lower right of the front of the G700. - Page 24 Connect a straight Ethernet cable to one of the Ethernet ports (labeled Ext EXT1 EXT2 1 and Ext 2) on the front of the G700. Connect the other end of the cable to a LAN connector. Quick Start: G700 and S8300...
-
Page 25: Connect The Laptop - G700 With S8300
Connect the Laptop — G700 with S8300 Connect the Laptop — G700 with S8300 This section assumes the G700 has an S8300 Media Server installed. Connect a crossover Ethernet cable to the Services port on the faceplate of the S8300 Media Server. - Page 26 Connect the Laptop — G700 with S8300 Log in to the S8300 Media server with the craft login and password for initial installation. Use the Avaya Installation Wizard. Click on Launch Avaya Installation Wizard and continue. NOTE: If you are not using the Avaya...
- Page 27 Connect the Laptop — G700 with S8300 To connect USB Modem To configure the G700 and S8300 remotely, connect the USB modem. Connect the USB cable to either of the two USB port on the faceplate of the S8300. Following the instructions packaged with the modem, connect the other end of the USB cable to the modem.
- Page 28 Connect the Laptop — G700 with S8300 Quick Start: G700 and S8300 June 2004...
