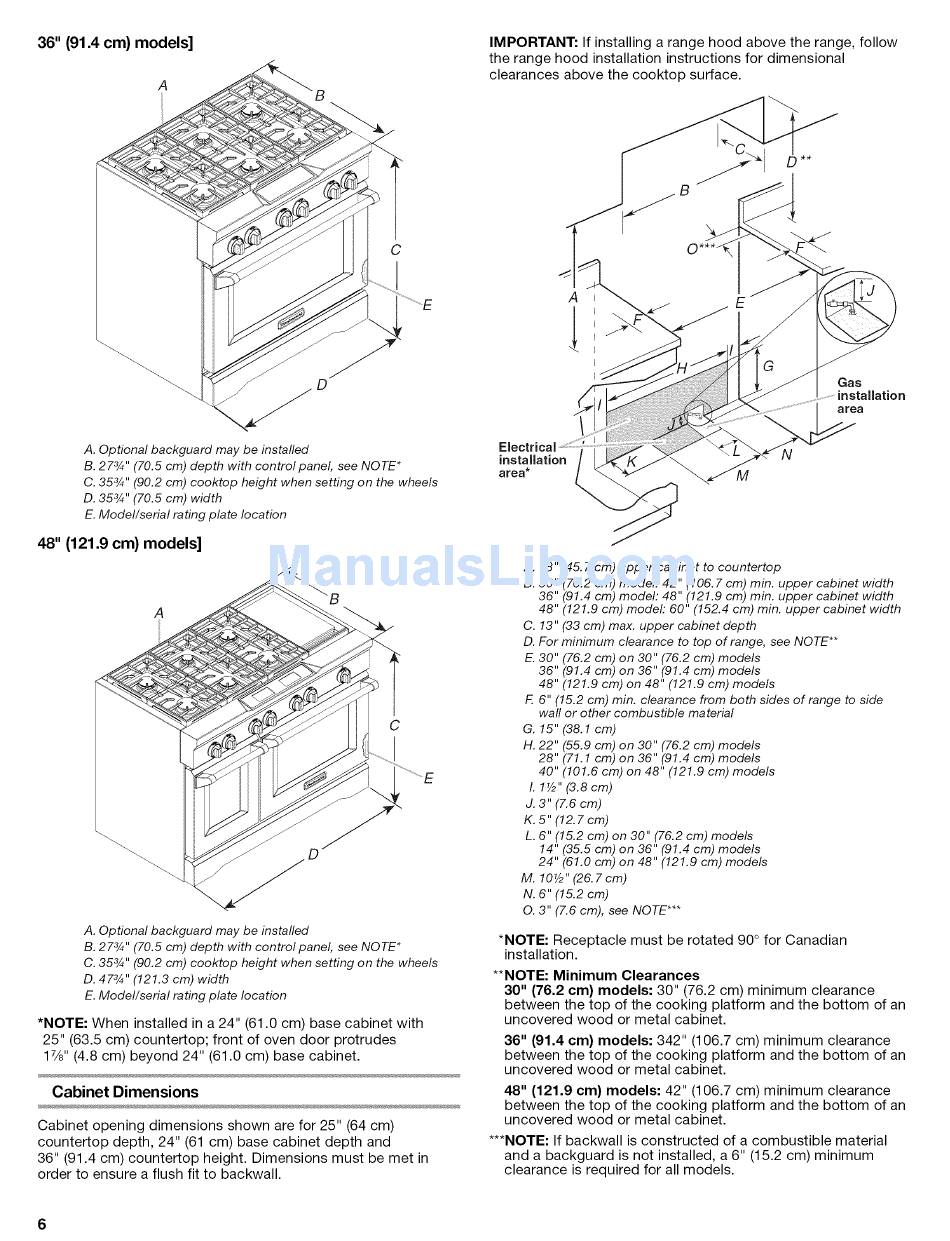

36" (91.4 cm) models]
A
D
C
IMPORTANT: If installing a range hood above the range, follow
the range hood installation instructions for dimensional
clearances above the cooktop surface.
B
A
Gas
area
A. Optional backguard may be instafled
B. 273/4'' (70.5 cm) depth with control panel, see NOTE*
C. 353/4" (90.2 em) eooktop height when setting on the wheels
D. 353/4" (70.5 cm) width
E. Model/serial rating plate location
48" (121.9 cm) models]
A
C
A. Optional backguard may be instafled
B. 273/4'' (70.5 cm) depth with control panel, see NOTE*
C. 353/4" (90.2 em) eooktop height when setting on the wheels
D. 473/4'' (121.3 cm) width
E. Model/serial rating plate location
*NOTE: When installed in a 24" (61.0 cm) base cabinet with
25" (63.5 cm) countertop; front of oven door protrudes
17/8 '' (4.8 cm) beyond 24" (61.0 cm) base cabinet.
Cabinet Dimensions
Cabinet opening dimensions shown are for 25" (64 cm)
countertop depth, 24" (61 cm) base cabinet depth and
36" (91.4 cm) countertop height. Dimensions must be met in
order to ensure a flush fit to backwall.
installation
area*
N
A. 18" (45. 7 cm) upper cabinet to countertop
B. 30" (76.2 cm) model: 42" (106.7 cm) min. upper cabinet width
36" (91.4 cm) model: 48" (121.9 cm) min. upper cabinet width
48" (121.9 cm) modeh 60" (152.4 cm) min. upper cabinet width
C. 13" (33 cm) max. upper cabinet depth
D. For minimum clearance to top of range, see NOTE**
E. 30" (76.2 cm) on 30" (76.2 cm) models
36" (91.4 cm) on 36" (91.4 cm) models
48" (121.9 cm) on 48" (121.9 cm) models
F. 6" (15.2 cm) min. clearance from both sides of range to side
wall or other combustible material
G. 15" (38.1 cm)
H. 22" (55.9 cm) on 30" (76.2 cm) models
28" (71.1 cm) on 36" (91.4 cm) models
40" (101.6 cm) on 48" (121.9 cm) models
I. 1V2" (3.8 cm)
J. 3" (7.6 cm)
K. 5" (12. 7 cm)
L. 6" (15.2 cm) on 30" (76.2 cm) models
14" (35.5 cm) on 36" (91.4 cm) models
24" (61.0 cm) on 48" (121.9 cm) models
M. 10V2" (26. 7 cm)
N. 6" (15.2 cm)
O. 3" (7.6 cm), see NOTE***
*NOTE: Receptacle must be rotated 90 ° for Canadian
installation.
**NOTE: Minimum Clearances
30" (76.2 cm) models: 30" (76.2 cm) minimum clearance
between the top of the cooking platform and the bottom of an
uncovered wood or metal cabinet.
36" (91.4 cm) models: 342" (106.7 cm) minimum clearance
between the top of the cooking platform and the bottom of an
uncovered wood or metal cabinet.
48" (121.9 cm) models: 42" (106.7 cm) minimum clearance
between the top of the cooking platform and the bottom of an
uncovered wood or metal cabinet.
***NOTE: If backwall is constructed of a combustible material
and a backguard is not installed, a 6" (15.2 cm) minimum
clearance is required for all models.
6
