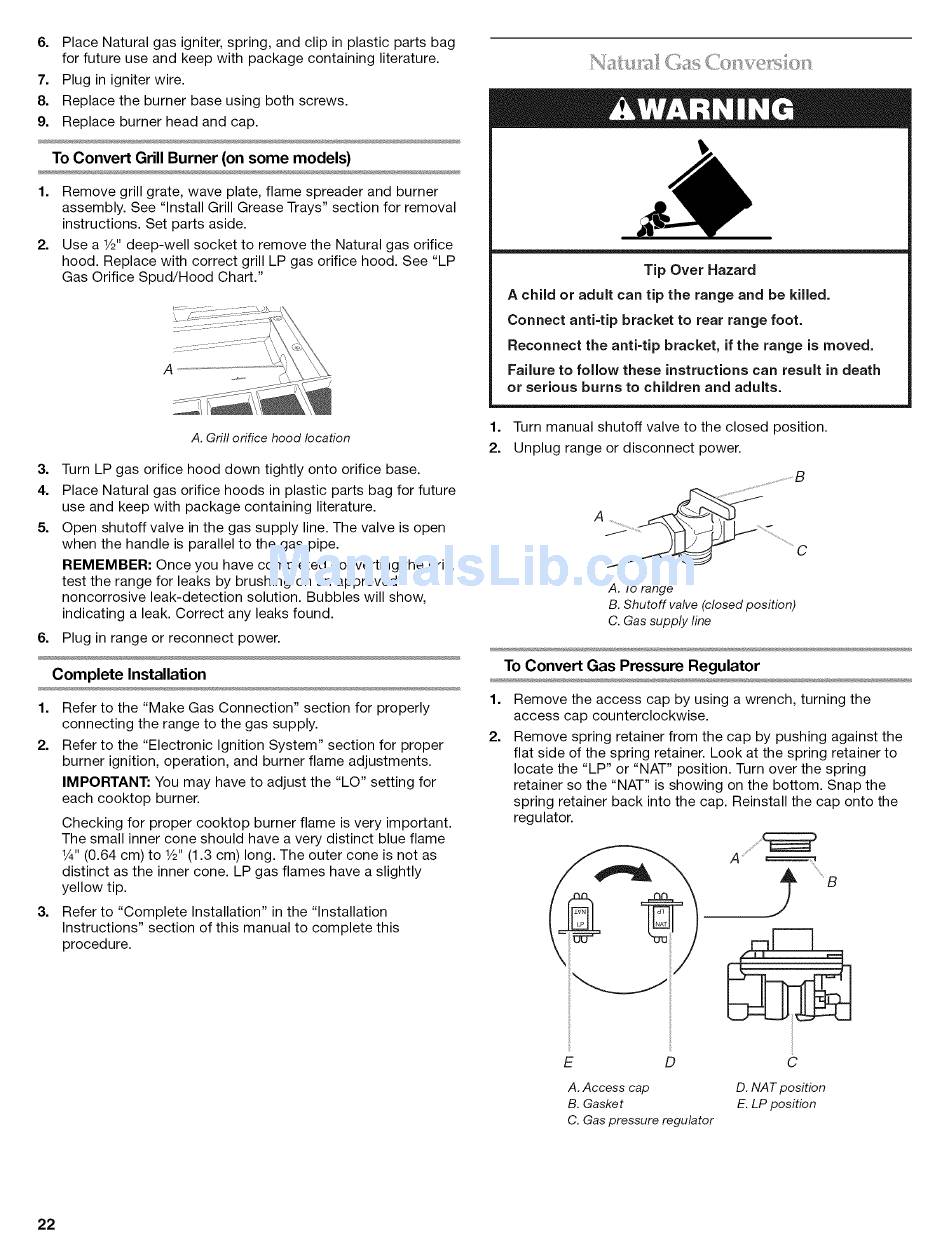

6. Place Natural gas igniter, spring, and clip in plastic parts bag
for future use and keep with package containing literature.
7. Plug in igniter wire.
8. Replace the burner base using both screws.
9. Replace burner head and cap.
To Convert Grill Burner (on some models)
1. Remove grill grate, wave plate, flame spreader and burner
assembly. See "Install Grill Grease Trays" section for removal
instructions.
Set parts aside.
2. Use a 1/2"deep-well socket to remove the Natural gas orifice
hood. Replace with correct grill LP gas orifice hood. See "LP
Gas Orifice Spud/Hood
Chart."
A
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti=tip bracket to rear range foot.
Reconnect
the anti=tip bracket,
if the range is moved.
Failure to follow these instructions can result in death
or serious
burns to children
and adults.
A. Grill orifice hood location
3. Turn LP gas orifice hood down tightly onto orifice base.
4. Place Natural gas orifice hoods in plastic parts bag for future
use and keep with package containing literature.
5. Open shutoff valve in the gas supply line. The valve is open
when the handle is parallel to the gas pipe.
REMEMBER:
Once you have completed converting the grill,
test the range for leaks by brushing on an approved
noncorrosive
leak-detection
solution. Bubbles will show,
indicating a leak. Correct any leaks found.
6. Plug in range or reconnect power.
Complete
Installation
1. Refer to the "Make Gas Connection"
section for properly
connecting the range to the gas supply.
2. Refer to the "Electronic Ignition System" section for proper
burner ignition, operation, and burner flame adjustments.
IMPORTANT: You may have to adjust the "LO" setting for
each cooktop burner.
Checking for proper cooktop burner flame is very important.
The small inner cone should have a very distinct blue flame
1_,,(0.64 cm) to 1/2"(1.3 cm) long. The outer cone is not as
distinct as the inner cone. LP gas flames have a slightly
yellow tip.
3. Refer to "Complete Installation"
in the "Installation
Instructions"
section of this manual to complete this
procedure.
1.
2.
Turn manual shutoff valve to the closed position.
Unplug range or disconnect
power.
..............................................................................
S
A
,
J
....................
C
A. Torange
B. Shutoff valve (closed position)
C. Gas supply line
To Convert Gas Pressure Regulator
1. Remove the access cap by using a wrench, turning the
access cap counterclockwise.
2. Remove spring retainer from the cap by pushing against the
flat side of the spring retainer. Look at the spring retainer to
locate the "LP" or "NAT" position. Turn over the spring
retainer so the "NAT" is showing on the bottom. Snap the
spring retainer back into the cap. Reinstall the cap onto the
regulator.
E
D
A. Access cap
D. NAT position
B. Gasket
E. LP position
C. Gas pressure regulator
C
22
