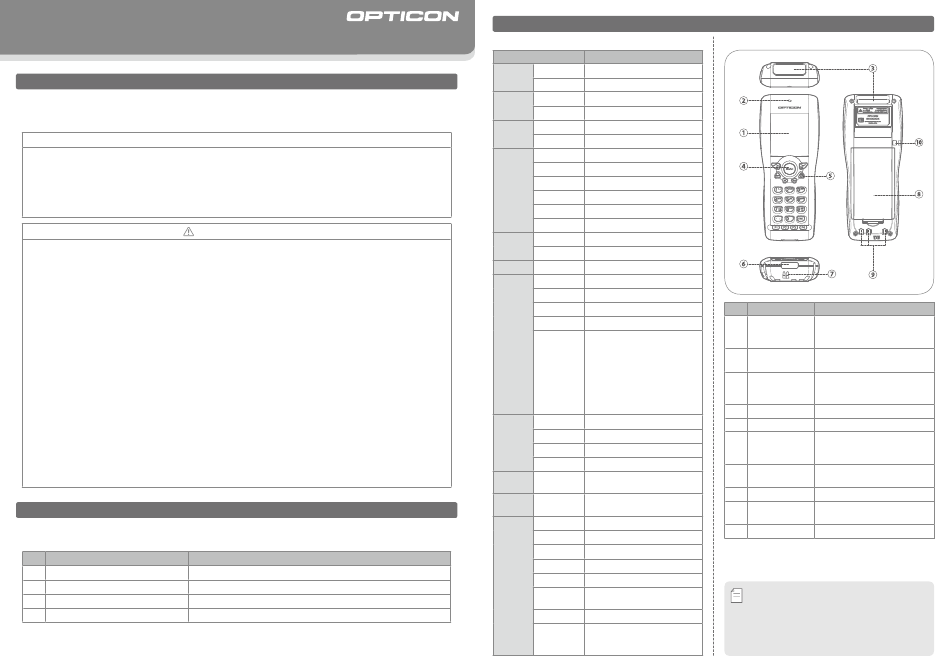

Opticon OPH-1004 Quick Start Manual

OPH-1004
• Read this quick start guide carefully before installing and/or using this product.
• Keep this quick start guide for future reference and store in a safe place.
• This quick start guide may be revised or withdrawn at any time without prior notice.
• This quick start guide may not, in whole or in part, be copied, photocopied, reproduced, translated or con-
verted to any electronic or machine readable form without prior written consent of Opticon.
• Trademarks used are property of their respective owners.
• Under no circumstances shall Opticon be held responsible for any special, incidental, consequential or
indirect damages howsoever caused.
1. Laser Safety
• Do not stare into the laser beam.
2. Handling Instructions
【 OPH-1004 】
• Do not attempt to disassemble, modify or update this device.
• Operating the scanner while operating machinery or a vehicle can be distracting.
• Do not drop this product or put heavy items on this product.
• Do not insert foreign substances into the device.
• Do not use this product in the following areas:
- In areas exposed to direct sunlight for long periods of time.
- In dusty environments.
- Near water or other liquids, or in extremely high humidity.
- Near heat sources, such as radiators, heat registers, stoves, or other types of devices that produce heat.
- Near microwaves, medical devices, or low-power radio stations.
• When cleaning this product, rub gently with either a soft dry cloth or a damp cloth with mild detergent.
Battery Pack
【 】
• Do not attempt to disassemble this battery.
• Do not expose the battery pack to liquids or allow the battery contacts to get wet.
• Do not expose the battery pack to heat sources including other devices that produce heat.
• Do not short the power leads on the battery pack. If the (+) and (-) terminals come in contact with metals
(such as a necklace or hairpin), a short-circuit will occur.
• Do not load the battery pack with its (+) and (-) terminals reversed.
• Check the local regulations for proper battery disposal.
Before Getting Started
What's in the Box
■
Confirm that you have the following items before getting started:
No. Item
1 Portable Terminal A laser portable terminal with a barcode scanning feature.
2 Lithium-ion Battery Pack Designated battery pack for the OPH-1004.
3 Strap
Quick Start Guide
4 Provides product information and instruction guide.
* The number of accessories may differ depending on the product specification.
Please contact the nearest dealer if accessories are damaged or missing.
Copyright
Quick Start Guide
Introduction
Notice
Caution and Warning
(Please refer to the specification manual and instruction guide for details.)
Function
©
2008, Opticon All rights reserved.
OPH-1004 Basic Specifications
■
Parameter Specifications
Physical Size
(H) 136.0 x (W) 55.4 x (D) 22.8 mm
Features
Weight
Approx. 140g (including Li-ion battery)
Control CPU
32bit RISC CPU
Section
OS
μ ITRON
Memory FROM
4MB
RAM
16Mbyte (User data area: Approx. 14MB)
Display Material
FSTN semi-transmissive LCD
Section
Number of dots 128 dots x 128 dots
Dot size
0.24mm x 0.24mm
Dot pitch
0.02mm x 0.02mm
Backlight
White LEDs
Contrast Control Enabled
Other Display LED
Bi-color LED (Red and Green)
Section
Buzzer
Tone and loudness can be configured
Operation Section Keys
23 keys
Scanning
Light Source Red laser diode
Section
Wavelength 650 ± 10nm
Light Output 1mW or less
Scan Rate 100 ± 20scan /sec
JAN, EAN, UPC-A, UPC-E, NW-
7(Codabar), Industrial 2 of 5,
Interleave d 2 of 5, Co de 11,
Code 39, Code 93, Code 128,
Supported
MSI/Plessey, UK/Plessey, IATA,
Symbologies
Telepen, Matrix 2 of 5, S-Code,
Tri-Optic, Chinese Post, EAN 128,
R S S - 1 4 , R S S L i m i t e d , R S S
Expanded, PDF417, MicroPDF417
Power Main Battery Lithium-ion battery (3.7V 1100mAh)
Supply
Backup Battery Manganese dioxide lithium-ion battery (18mAh)
Section
Operating Time Approx. 80 hours (2 scans/10 sec)
Data Retention Time More than 7 days
Comm.
IrDA Ver. 1.2
IrDA
Section
Baud rate: (SiR): 9600 to 115.2kbps
Clock Real Time
Supports year, month, day, hour,
Section
Clock (RTC) minute, second (leap year supported)
Durability Operating Temp. -10 deg. C to 50 deg. C
Operating Humidity 20% to 85% (non-condensing)
Storage Temp. -20 deg. C to 60 deg. C
Storage Humidity 20% to 90% (non-condensing)
Charging Temp. 0 deg. C to 40 deg. C
Ambient Light
Fluorescent: up to 4,000lx
Immunity Sunlight: up to 80,000lx
Dust- and Drip-proof IP54
Dropped 3 times from each of 6 angles
Shock
onto concrete from a height of 150cm
Endurance
with no defects found. (Total 18 times)
Overview
Detailed View
■
No. Part Function
Indicates the status of program
LCD
① execution, scanned data and so
on.
Status LED Alerts users the status of scanning
②
(Red and Green)
operation and data communication.
The scan engine emits a laser beam
Optical Window
③ through the optical window while
scanning a barcode.
SCAN Key
④ Starts a barcode scanning operation.
POWER Key
⑤ Turns ON or OFF the power.
IrDA This portable terminal communicates
Communication
⑥ with the designated cradle through
Window the IrDA communication window.
Buzzer sounds through the buzzer
Buzzer Hole
⑦
hole.
Battery Cover
⑧ Protects the battery pack.
Charging Electrical terminals for power distri-
⑨
Terminals
bution and power management.
Strap Hook
⑩
・ To avoid communication problems between the portable
terminal and a cradle, keep the IrDA communication
Memo
window clean.
・ The IrDA communication performance may decline
due to excessive ambient light especially under
strong sunlight or inverted fluorescent light.
