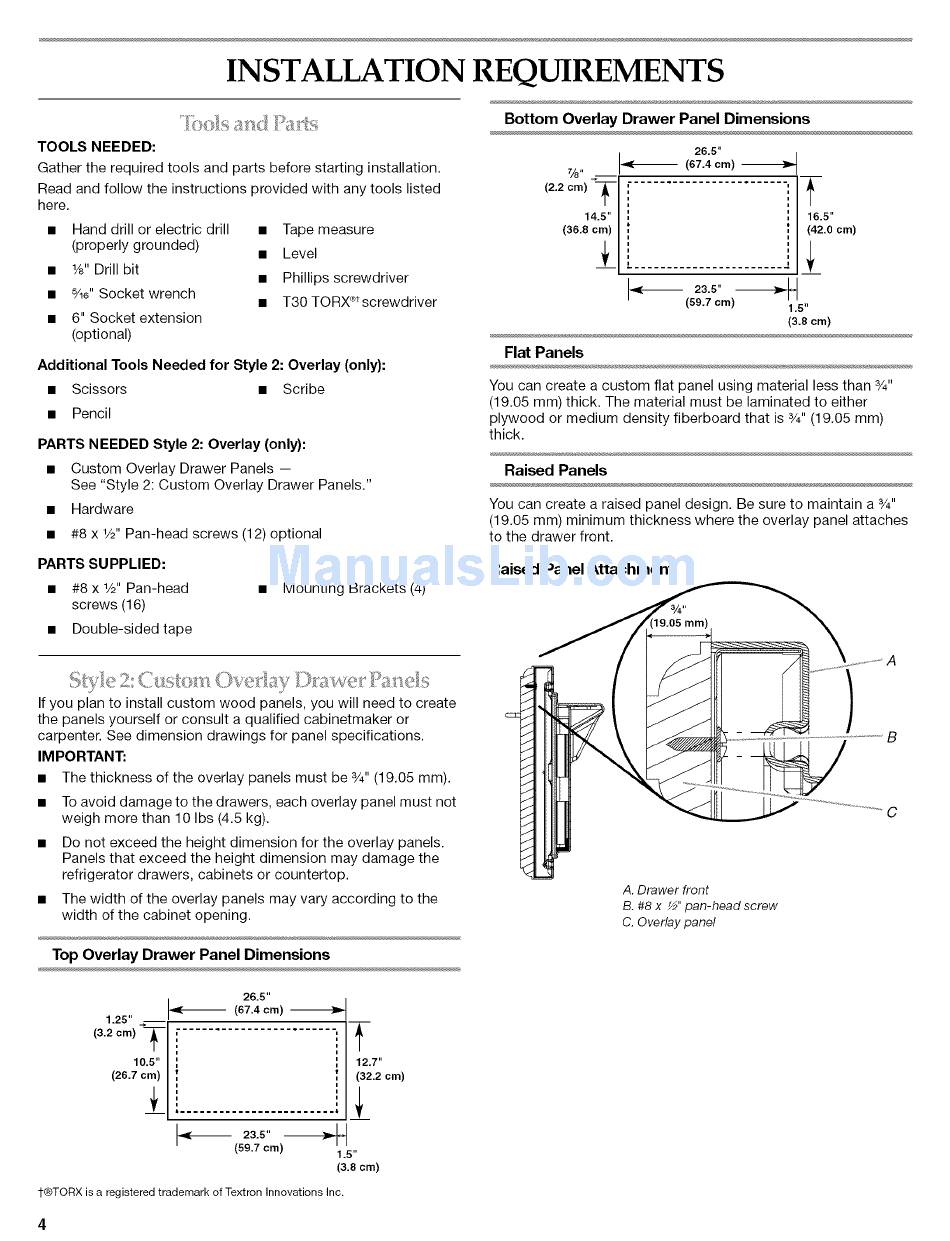

INSTALLATION
REQUIREMENTS
_¢¢¢¢¢¢¢¢/_
TOOLS NEEDED:
Gather the required tools and parts before starting installation.
Read and follow the instructions
provided with any tools listed
here.
Hand drill or electric drill
Tape measure
(properly grounded)
Level
r/8" Drill bit
Phillips screwdriver
%6" Socket wrench
T30 TORX_tscrewdriver
6" Socket extension
(optional)
Additional Tools Needed for Style 2: Overlay (only):
Scissors
Scribe
Pencil
PARTS NEEDED Style 2: Overlay (only):
Custom Overlay Drawer Panels --
See "Style 2: Custom Overlay Drawer Panels."
Hardware
#8 x W' Pan-head screws (12) optional
Bottom Overlay Drawer Panel Dimensions
26.5"
(67,4 cm)
7/8"
(2"2°m'
T .........................
T
14.5"
16.5"
(36,8
cm)
(42.0
cm)
23.5,,
(59,7 cm)
1.5"
(3.8
cm)
Flat Panels
You can create a custom flat panel using material less than 3/4"
(19.05 mm) thick. The material must be laminated to either
plywood or medium density fiberboard that is 3/4"(19.05 mm)
thick.
Raised Panels
You can create a raised panel design. Be sure to maintain a 3/4"
(19.05 mm) minimum thickness where the overlay panel attaches
to the drawer front.
PARTS SUPPLIED:
#8 x r/_,, Pan-head
screws
(16)
Mounting Brackets (4)
Raised Panel Attachment
Double-sided
tape
If you plan to install custom wood panels, you will need to create
the panels yourself or consult a qualified cabinetmaker
or
carpenter. See dimension drawings for panel specifications.
IMPORTANT:
The thickness of the overlay panels must be 3/4"(19.05 mm).
To avoid damage to the drawers, each overlay panel must not
weigh more than 10 Ibs (4.5 kg).
Do not exceed the height dimension for the overlay panels.
Panels that exceed the height dimension may damage the
refrigerator drawers, cabinets or countertop.
The width of the overlay panels may vary according to the
width of the cabinet opening.
Top Overlay Drawer Panel Dimensions
A. Drawer front
B. #8 x ½" pan-head
screw
C. Overlay panel
)
B
26.5"
(67.4 cm)
1.25"
(3.2 cm)
T
.........................
/
10.5"
(26,7 cm)
T
12.7"
(32,2
cm)
235
(59.7
cm)
1.5"
(3.8 cm)
1-®TORX is a registered trademark
of Textron Innovations
Inc.
