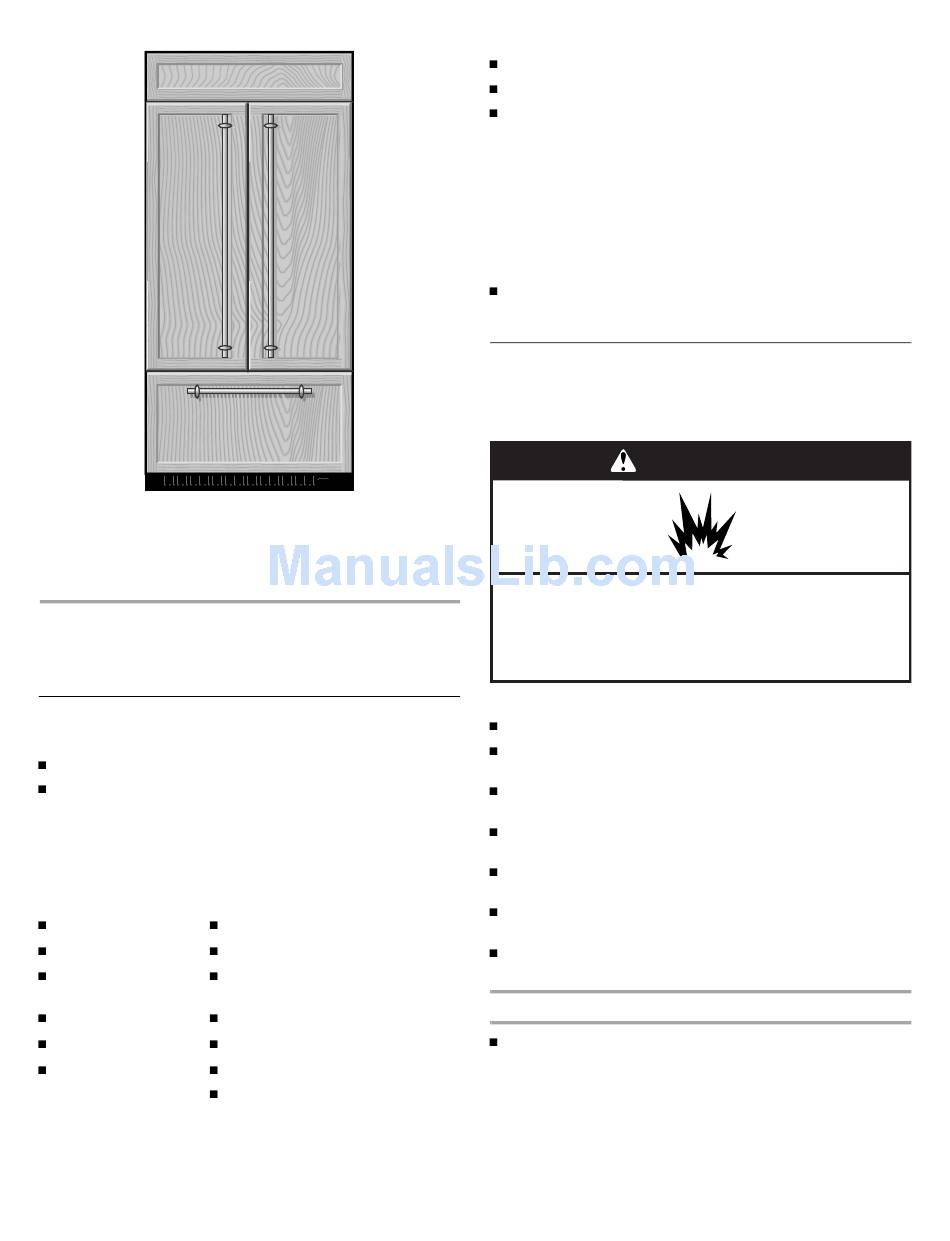

Overlay Series (42" [106.7 cm] Models)
Features factory-installed, overlay style trim, to provide a
"frameless" look. This series requires the installation of custom
panels, handles, and standoffs.
KBFO42FTX
INSTALLATION
REQUIREMENTS

Tools and Parts

IMPORTANT:
Installer: Leave Installation Instructions with the homeowner.
Homeowner: Keep Installation Instructions for future
reference. Save these Installation Instructions for the local
electrical inspector's use.
TOOLS NEEDED:
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Cordless drill
Drill bits
Two adjustable
wrenches
Phillips screwdriver
Small level
Appliance dolly
†®TORX is a registered trademark of Textron Innovations Inc.
www.dexpress.com
Cond Inst
Torx
®†
T15 and T27 screwdrivers
¹¹⁄₃₂" nut driver
³⁄₈", ¹⁄₄", and ¹⁄₂" open-end
wrenches
⁵⁄₃₂" Allen wrench
¹⁄₄" and ⁵⁄₁₆" socket drivers
Tape measure
Utility knife
Cond Inst
Page 4 of 18
PARTS NEEDED:
Six #8 x 3" (7.6 cm) wood screws (longer screws may be needed)
One or two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) wood board(s)
Order factory panels, make custom panels or consult a
qualified cabinetmaker or carpenter to make the panels.
Classic Series: Order factory panels, make custom panels, or
consult a qualified cabinetmaker or carpenter to make the
panels. See "Installation Requirements" for more information.
Overlay Series: Make custom panels, or consult a qualified
cabinetmaker or carpenter to make the panels. See
"Installation Requirements" for more information.
Architect
®
Series is shipped complete.
If you are connecting the water line directly to copper tubing
and not to a shutoff valve, you need a ferrule, a union, and a
¹⁄₄" compression fitting.

Location Requirements

The refrigerator can be recessed in an opening between cabinets
or installed at the end of a cabinet run using a side panel to
enclose the refrigerator.
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
IMPORTANT:
Observe all governing codes and ordinances.
It is recommended that you do not install the refrigerator near
an oven, radiator, or other heat source.
Do not install in a location where the temperature will fall
below 55°F (13°C).
Floor must support the refrigerator weight, more than 600 lbs
(272 kg), door panels and contents of the refrigerator.
Ceiling height must allow for side tipping radius. See "Tipping
Radius."
Location should permit door to open fully. See "Door Swing
Dimensions."
Location must permit top grille removal. See "Opening
Dimensions."
Opening Dimensions
To avoid tipping during use, the solid soffit must be within 1"
(2.5 cm) maximum above the refrigerator. If the solid soffit is
higher than 1" (2.5 cm) or one is not available, then the
refrigerator must be braced.
If the anti-tip boards are needed, they must be attached to
the rear wall studs 80" to 90" (203 to 229 cm) above the floor.
See "Install Anti-Tip Boards" for more information.
Page 4 of 18
KBRO36FTX
3/24/2012
WARNING
Explosion Hazard
KBRO36FTX
3/24/2012
5
