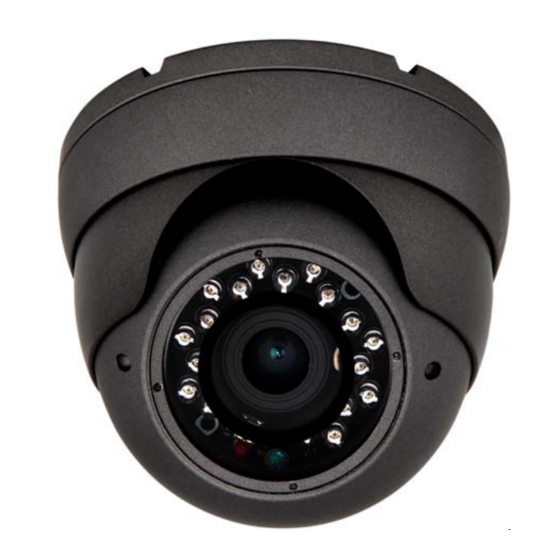

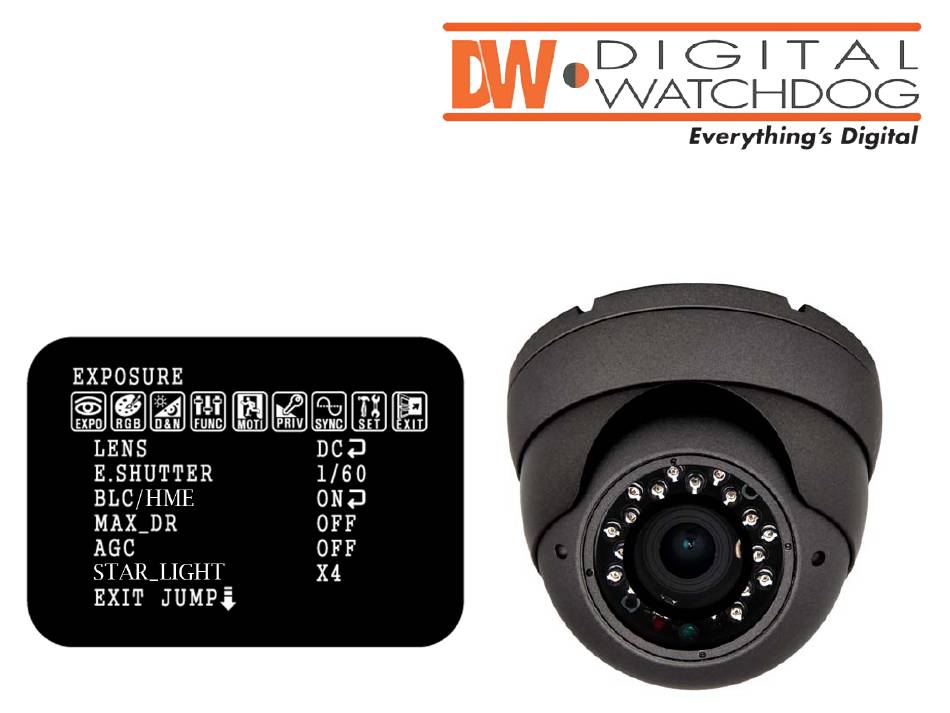

- Page 1 Starlight BL5363TIR User Manual Version #2: Camera with ICON Menu 11192010...
-
Page 2: Fcc Compliance
PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages. ... - Page 3 FEATURES 1/3” Sony Super HAD II CCD High Resolution 560 TV Lines 2.8 ~ 11mm Varifocal Auto Iris Lens 65ft Range IR with Intelligent Camera Sync True Day & Night / TDN5 (Electro Magnetic Mechanism) Star-Light (Super Low Light Technology) DRC (Dynamic Range Compressor) Dark spots in images particularly become more visible without overexposing the bright spots to create one perfect image.
- Page 4 DIMENSION (mm) & POWER REQUIREMENT POWER REQUIREMENT: 12VDC @1A 24VAC @ .500mA Power Wire Maximum Distance Wire Gauge 12VDC 24VAC 24 AWG 80ft 323ft 22 AWG 128ft 513ft 20 AWG 203ft 815ft 18 AWG 323ft 1295ft 16 AWG 514ft 2056ft 14 AWG 816ft 3264ft...
-
Page 5: Installation And Adjustment
INSTALLATION AND ADJUSTMENT INSIDE THE BOX Digital Watchdog Ball Dome Camera Zoom & Focus Adjustment Tool Pack of Four (4) Wood Screws One Security L-Key Security Lock Screw Zoom & Focus Seal Covers Quick Connect & Disconnect Power Connector User Manual... -
Page 6: Installation
INSTALLATION... -
Page 7: Osd Control
OSD CONTROL... -
Page 8: Day & Night
EXPOSURE LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.) SHUTTER 1/160 /1/100 / FLC / 1/250 ~ 10000 / SENS-UP x2 ~ x250 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (Auto Gain Control) MAX-DR OFF / ON (0 ~ 20) (Electronic Wide Dynamic Range) - Page 9 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF/ ON OFF / LOW / MIDDLE / HIGH 3D-DNR 3D-DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) OFF / ON SLC (Side Light Compensation)
- Page 10 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SETUP CAMERA ID 0 ~ 255 TITLE...
-
Page 11: Save And Exit
SYNC SYNC INTERNAL / AUTO V-PHASE 0 ~ 199 EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET EXIT EXIT Exit the menu SAVE&EXIT Exit the menu and save the setting FACTORY SET Reset the menu setting to factory default... -
Page 12: Specifications
Camera TYPE Color / BW BL5363TIR SPECIFICATIONS: Mount 3 Axis Ball Image Device Super HAD II CCD Size 1/3" Pixels-Total 811(H) x 508 (V) Pixels-Effective 768(H) x 494 (V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min. -
Page 13: About Manual
Starlight BL5363D Ball Camera User Manual Version #1: Camera without ICON Menu ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 11192010... -
Page 14: Camera Settings
CAMERA SETTINGS SETUP [DC] - Brightness (DC Lens is recommended.) LENS Manual. Shutter is available. FLK (Flicker Free) SHUTTER ESC (Electronic Shutter Control) - Brightness Adjustment Manual Adjustment ATW 1800K ~10500K (ATW is recommended). WHITE BALANCE Manual Adjustment AWC (Auto White Balance) BACKLIGHT OFF / LOW / MIDDLE / HIGH NORMAL / HIGH / OFF (When the AGC is Off, DNR is not available.) - Page 15 Camera TYPE Color / BW BL5363TIR SPECIFICATIONS: Mount 3 Axis Ball Image Device Super HAD II CCD Size 1/3" Pixels-Total 811(H) x 508 (V) Pixels-Effective 768(H) x 494 (V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min.
