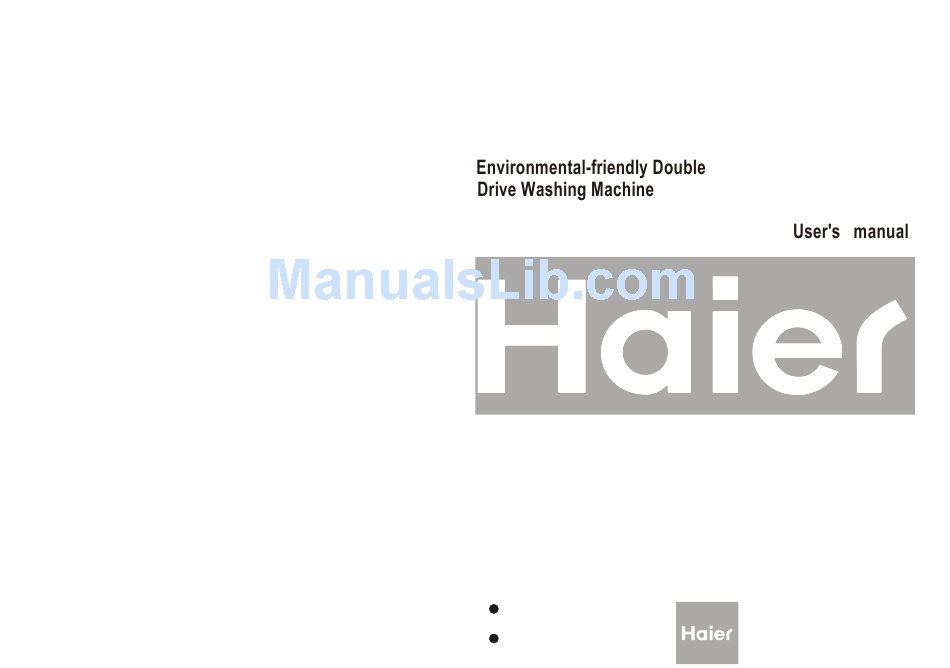

Haier HWM70-0588 User Manual

Environmental-friendly double drive washing machine
Hide thumbs


Quick Links

This manual is for
Please read this manual
carefully before using.
Retain it for future reference.



  Related Manuals for Haier HWM70-0588

  Summary of Contents for Haier HWM70-0588

  • Page 1 This manual is for HWM70-0588 Please read this manual carefully before using. Retain it for future reference.
  • Page 2: Table Of Contents

    CONTENTS Specification table the 2nd cover Names of the parts Safety precautions Installation and adjustment Install the water inlet hose Preparation before washing Put in the laundries Usage of the detergent Close the top lid Use the operation button Finish washing Disposal after washing Trouble shooting answer to question Packing list...
  • Page 3: Names Of The Parts

    Packing list Inside the document bag Inside the document bag Components of the water inlet hose Inside the accessory bag Bottom plate Between the upper cushion of the washing machine package and the upper seal of the package carton Inner cover Inside the accessory bag component Automatic washing machine...
  • Page 4: Safety Precautions

    Safety precautions The washing machine must be positioned Please plug the power plug on special so that the plug is accessible. Be sure to pull the receptacle. Be sure to use three-pins plug off and close the water faucet in power receptacle.
  • Page 5 Disposal after washing After using, please clean the lint and foreign materials of the lint filter etc. in time. Otherwise it may influence your using the machine. Please first pull off the power plug from the receptacle before cleaning. The lint filter must be used during washing. Clean the detergent box and set it on It must be cleaned in time after each using.
  • Page 6: Installation And Adjustment

    Installation and adjustment Please install and adjust the machine according to the requirement of the manual. It is very important to your security and correct operating the machine. Install the Inner cover component Before initial use of the machine, assemble the inner cover as described below: 1.Open the top lid of the washing machine.
  • Page 7 Steps of using the operation buttons and description of the steps Wash/spin REMAIN WASH RINSE SPIN speed SOAK Overflow RESERVE SPIN RESERVE SPEED LOCK 1.Push "POWER" button to switch on the power 2.Push "PROGRAM"button to select suitable full-auto program After the power is switched on, "Normal" is automatically set. To select other full-auto program, please push the "PROGRAM"...
  • Page 8: Install The Water Inlet Hose

    Install the water inlet hose Confirm the water faucet Water faucet,suitable Outlet end surface It is required that the front end shall be longer than 10mm. The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage. Connection between the water inlet hose jointer and the water faucet 1.Press the lower end of the lock lever and push down the slider.
  • Page 9 4 Use the operation button Description of operation button Indicator mode and meaning Flashing, indicating the running program On, indicating the program about to run or the selection mode "START/PAUSE" button After the power is switched on, press it to start the machine During working, push it to pause.
  • Page 10: Preparation Before Washing

    1 Preparation before washing Preparation before washing 1.Connect the water inlet hose. 2.Confirm that the washing machine is earthed reliably. Then insert the power plug into the receptacle. Do not connect the earth terminal to the gas pipe and tap water pipe. 3.Put down the drain hose.
