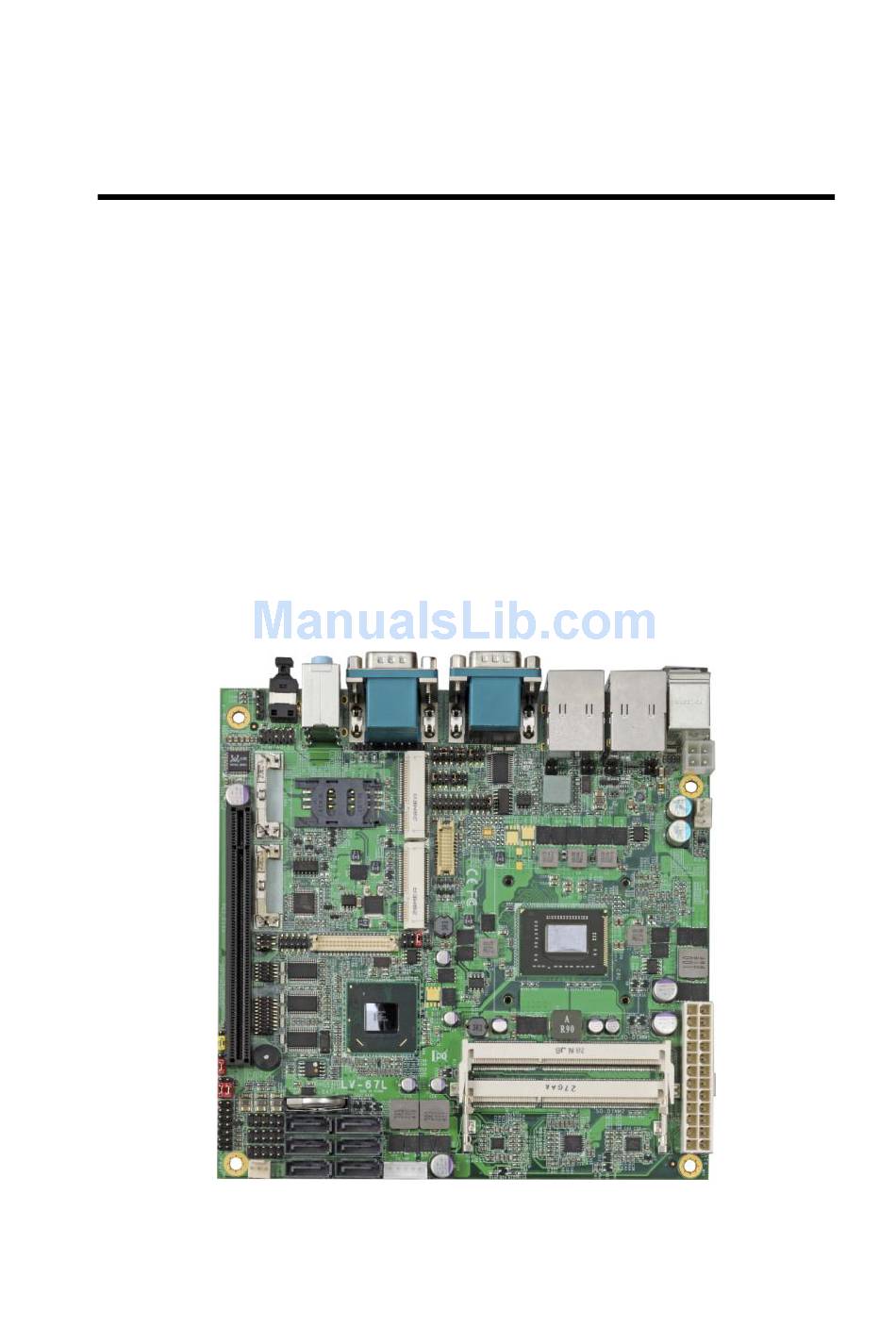

- Page 1 LV-67L Mini-ITX Motherboard User’s Manual Edition 1.0 2012/12/07...
- Page 3 LV-67L User’s Manual Copyright Copyright 2012, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 4: Packing List
LV-67L User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LV-67L Mini-ITX Motherborad x 1 Cable Kit: SATA Cable x 2 DC Power Cable x 1 (OALSATA3-L) (OALDC-A) Power Cable x 1 DVI module with bracket x 1 (ADPDVI &... - Page 5 LV-67L User’s Manual Optional Cable: Dual COM PORT cable x 1 USB2.0 Cable x 1 (OALES-BKU2) (OALUSBA-1)
- Page 6 LV-67L User’s Manual Index Chapter 1 <Introduction> ............. 7 1.1 <Product Overview> ..................7 1.2 <Product Specification> ................8 1.3 <Mechanical Drawing> ................10 1.4 <Block Diagram> ..................11 Chapter 2 <Hardware Setup> ..........12 2.1 <Connector Location> ................12 2.2 <Jumper Location &...
-
Page 7: Table Of Contents
LV-67L User’s Manual 2.14.3 <Fan connector> ..............38 2.15 <Switch and Indicator> ................39 Chapter 3 <System Setup> ............40 3.1 <Audio Configuration> ................40 3.2 <Display Properties Setting> ..............41 Chapter 4 <BIOS Setup> ............43 Appendix A <I/O Port Pin Assignment>... - Page 8 LV-67L User’s Manual (This page is left for blank)
-
Page 9: Chapter 1
LV-67L User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-67L the 2 Generation Intel of the Mini-ITX motherboard, supports 2 Generation Intel Celeron® Processor 807UE/847E and features Intel HM65 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA and Intel Gigabit LAN. - Page 10 LV-67L User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Intel® Celeron® Processor 807UE 1.0GHz (LV-67LNB) Intel® Celeron® Processor 847E 1.1GHz (LV-67LBU) Package type：FCBGA1023 Memory 2 x DDRIII SO-DIMM 1066/1333 MHz up to 4GB (LV-67LNB) 2 x DDRIII SO-DIMM 1066/1333 MHz up to 16GB...
- Page 11 LV-67L User’s Manual Ordering Code LV-67LNB Intel® Celeron® Processor 807UE + HM65 with Onboard VGA, LVDS, DVI, LAN, USB2.0, HD Audio, SATAII, SATAIII, SMBUS, LPC, SIM, GPIO and PCI Express mini card. LV-67LNBS Intel® Celeron® Processor 807UE + HM65 with Onboard VGA, LVDS, DVI, LAN, USB2.0, HD Audio, SATAII, SATAIII, SMBUS, LPC, SIM,...
-
Page 12: Mechanical Drawing
LV-67L User’s Manual 1.3 <Mechanical Drawing>... - Page 13 LV-67L User’s Manual 1.4 <Block Diagram> Intel® Celeron® Processor 807UE (1M Cache, 1.0 GHz) LV-67LNB 1 x PCI Express x16 (LV-67LBU only) Intel® Celeron® Processor 847E (2M Cache, 1.1 GHz) 2 x 204-pin DDR3 LV-67LBU SO-DIMM 1066/1333/1600 MHz up to 16GB...
-
Page 14: Chapter 2
LV-67L User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_AUDIO CN_SMBUS JSPD2 JSPD1 CD_IN CN_IR CN_GPIO JACT2 JACT1 DC_IN MINI_CARD2 SIMM CPUFAN CN_DVI MINI_CARD1 PCIE x16 CN_LPC CN_LVDS COM4 COM5/6 JFRNT CN_USB3/4/5 SYSFAN CN_INV SO-DIMM2 SATA6 SATA3 SO-DIMM1 SATA5 SATA2... - Page 15 LV-67L User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) Com3 Voltage Setting (For Pin 9) Com4 Voltage Setting (For Pin 9)
- Page 16 LV-67L User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark SO-DIMM 1/2 204 -pin DDR3 SO-DIMM socket SATA 1/2 7-pin Serial ATAIII connector SATA 3/4/5/6 7-pin Serial ATAII connector DC_IN DC 9~24V input connector 24-pin power input connector...
- Page 17 LV-67L User’s Manual 2.4 <Memory Setup> 2.4.1 <Memory Setup> The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3 memory module. 2 x DDRIII SO-DIMM 1066/1333 MHz up to 4GB. (LV-67LNB) 2 x DDRIII SO-DIMM 1066/1333 MHz up to 16GB.
- Page 18 LV-67L User’s Manual 2.5 <CMOS & ATX Setup> The board‟s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
-
Page 19: Serial Ata Interface
LV-67L User’s Manual 2.6 <Serial ATA Interface> Based on Intel PCH, the board provides two Serial ATAIII(SATA Port1/2) interfaces with up to 600MB/s of transfer rate and four Serial ATAII(SATA Port3/4/5/6) interfaces with up to 300MB/s of transfer rate. SATA6 SATA3... -
Page 20: Onboard Display Interface
LV-67L User’s Manual 2.8 <Onboard Display Interface> Based on Intel CPU with built-in HD Graphic, the board provides one Sandy Bridge DB15 connector on real external I/O port, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector and provides 20-pin DVI interface. - Page 21 LV-67L User’s Manual 2.8.2 <Digital Display> The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_LVDS...
- Page 22 LV-67L User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 23 LCD Installation Guide: Preparing the LV-67L, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 24 LV-67L User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...
- Page 25 LV-67L User’s Manual 2.8.3 <DVI Interface> The board provides one 20-pin DVI connector, supports up to 1920 x 1080 resolution. Connector: CN_DVI/DP Type: onboard 20-pin connector for DVI connector Connector model: HIROSE DF13-20DP-1.25V Pin Number Assignment Pin Number Assignment +3.3V...
-
Page 26: Integrated Audio Interface
LV-67L User’s Manual 2.9 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 code, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance. - Page 27 LV-67L User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground...
- Page 28 LV-67L User’s Manual 2.10 <USB Interface> LV-67L integrates ten USB2.0 ports. The specifications of USB2.0 are listed below: Interface USB2.0 Intel®HM65 Controller Transfer Rate Up to 480Mb/s Voltage Type: USB2.0 CN_USB3/4/5 Type: USB2.0...
- Page 29 LV-67L User’s Manual Connector: CN_USB3/4/5 Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description (5V_SB/ 5V) (5V_SB/ 5V) Data0- Data1- Data0+ Data1+ Ground Ground Ground JVUSB Connector: JVUSB Type: 6-pin Power select jumper Description 1-3 & 2-4 5V_SB 3-5 &...
- Page 30 LV-67L User’s Manual 2.11 <Serial Port> The board supports Three RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. COM1 COM3 COM2 Connector: COM1/3 Type: 9-pin D-sub male connector on bracket for COM1/3...
- Page 31 LV-67L User’s Manual JCSEL1 JCSEL2 COM4 COM5/6...
- Page 32 LV-67L User’s Manual Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP1/JP2/JP3/JP4 (COM1/2/3/4) Type: onboard 6-pin header Power Mode JP1/2/3/4 Pin 9 with 5V Power Pin 9 with 12V Power Standard COM port...
-
Page 33: Pcie Mini Card And Sim Interface
MPX-SDVOD card will not work if it is placed in other slot. Please also be noted that this slot is the only slot for MPX-SDVOX card but a customized BIOS is needed for the MPX-SDVOX card. Please contact Commell for customized BIOS for your MPX-SDVOX card. - Page 34 LV-67L User’s Manual Connector: SIMM Type: 6-pin SIM socket Description Description SIMVCC SIMRST SIMCLK SIMVPP SIMDATA...
-
Page 35: Sim Step
LV-67L User’s Manual 2.12.1 <SIM Step> Step1. SIM card holder is marked by circle. Slide the cap toward OPEN direction. Step 2. Make sure that the cap is now at the OPEN position. Step 3. Flip the cap up for inserting a SIM card into. - Page 36 LV-67L User’s Manual Step 4. Insert a SIM card as shown in the photo. Be sure that the corner cut is on top and the golden pads are up. Step 5. Now, flip down the cap as shown in the photo.
- Page 37 LV-67L User’s Manual 2.13 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm)
- Page 38 LV-67L User’s Manual 2.14 <Power Supply and Fan Interface > 2.14.1 <Power Input> The board requires onboard 4-pin DC-input connector voltage range is from 9V to 24V, or onboard 24-pin ATX2.0, for the input current, please take a reference of the power consumption report on appendix.
- Page 39 LV-67L User’s Manual 2.14.2 <Power Output> The board provides one 24-pin ATX connector for +5V/+12V output for powering your HDD, CDROM or other devices. Attention: When DC-IN had power supplied, the ATX become output ! Avoid DC-IN and ATX power supply input at the same time !
- Page 40 LV-67L User’s Manual 2.14.3 <Fan connector> The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system. CPUFAN SYSFAN Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V...
- Page 41 LV-67L User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header...
-
Page 42: Chapter 3
LV-67L User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® HM65 with REALTEK® ALC888 code. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. - Page 43 LV-67L User’s Manual 3.2 <Display Properties Setting> Based on Intel HM65 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices.
- Page 44 LV-67L User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Resolution and Refresh Rate Click Intel® Dual Display Clone to setup the dual display mode as same screen...
-
Page 45: Chapter 4
LV-67L User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 46 LV-67L User’s Manual (This page is left for blank)
-
Page 47: Appendix A
LV-67L User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4/5/6 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports... -
Page 48: A.5
LV-67L User’s Manual A.5 <LAN LED Port> Connector: JSPD1/2 Type: 5-pin header for LAN Speed LED connector When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JATC1/2 Type: 5-pin header for LAN Activity LED connector... -
Page 49: Appendix B
LV-67L User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “Phlash16.exe”, it‟s the utility that can write the data into the... -
Page 50: Appendix C
LV-67L User’s Manual Appendix C <Programming GPIO’s> The GPIO‟can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration -o 2E 87... -
Page 51: Appendix D
LV-67L User’s Manual Appendix D <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... - Page 52 Taiwan Commate Computer Inc. 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Address Taipei City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
