Owner's Manual — Phoenix 200 MAX
The Phoenix 200 MAX is one of the most effective and versatile drying devices available. The 200 MAX
removes more water and features better grain depression than other refrigerant dehumidifiers, while
drawing only 7.4 amps of electricity.
The term LGR (Low Grain Refrigerant) was created to describe the unique drying capabilities of the
Phoenix 200 dehumidifier. These units were known for delivering substantially drier air, as well as for
drying areas to much lower humidity levels than conventional dehumidifiers. The Phoenix 200 MAX, an
improved version of the original Phoenix 200, is the culmination of over a decade of LGR manufacturing
and design expertise.

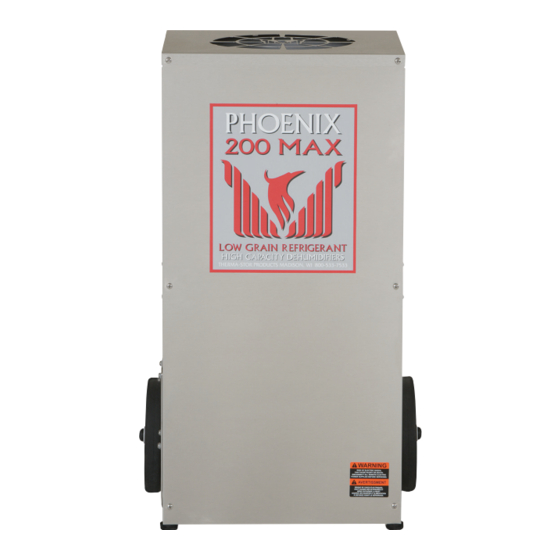

The Phoenix 200 MAX LGR,
High Capacity Dehumidifier
• Improved water removal
16 gals/day (128 pints) AHAM (80ºF, 60%)
30 gals/day maximum
• Improved grain depression
The driest air from an LGR
• Multiple air filter options
Standard 65% MERV-11, or 95% MERV-14
• Multiple ducting options
12" intake, 10" lay-flat exhaust
• Less than 7.5 amps
Removes the most pints of water per kilowatt
• Stainless steel cabinet
• Internal pump with 30 feet of hose
• Five-year warranty on the sealed refrigeration
system.
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
4201 Lien Rd. • Madison, WI 53704
Installation, Operation & Service Instructions
Read and Save These Instructions
Phoenix 200 MAX
PN 4029740
1
www.UsePhoenix.com • sales@UsePhoenix.com
TS-608
08/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200 MAX LGR and is the answer not in the manual?

Questions and answers

Related Manuals for Phoenix 200 MAX LGR

Summary of Contents for Phoenix 200 MAX LGR

  • Page 1: Introduction

    Installation, Operation & Service Instructions Read and Save These Instructions The Phoenix 200 MAX is one of the most effective and versatile drying devices available. The 200 MAX removes more water and features better grain depression than other refrigerant dehumidifiers, while drawing only 7.4 amps of electricity.

  • Page 2: Table Of Contents

    • If used in a wet area, plug it into a GROUND FAULT your Phoenix 200 MAX dehumidifier. INTERRUPTER. • DO NOT use the Phoenix 200 MAX as a bench or table. • It must always be used in the upright position. Toll-Free 1-800-533-7533...

  • Page 3: Electrical Requirements

    The Phoenix 200 MAX plugs into a common grounded outlet on a 15 Amp circuit. It draws 7.4 Amps at 80°F, When the Phoenix 200 MAX is used in a cool area, or the dewpoint is below 50°, frost will form on the cooling coil 60% RH.

  • Page 4: Maintenance

    3 Maintenance 4 Service 3.1 Air Filter The Phoenix 200 MAX is equipped with a pleated fabric air CAUTION: Servicing the Phoenix 200 MAX with its high filter that must be checked regularly. The standard filter pressure refrigerant system and high voltage circuitry is a MERV-11 high efficiency filter.

  • Page 5: Troubleshooting

    The mixture of gas and liquid refrigerant enter the 5. Defective defrost thermostat (Sec. 4.7) accumulator after leaving the evaporator coil. The 6. Low refrigerant charge (Sec. 4.4). accumulator prevents any liquid refrigerant from reaching the Air leak such as loose front cover. compressor.

  • Page 6: Compressor/Capacitor Replacement

    5. Rotate the blower outlet toward you as you remove it. If there is no needle movement with the meter set on Use care to avoid hooking wiring, tubing or electrical the Rx100000 scale, the capacitor is open and must be components.

  • Page 7: C Replacing A Compressor- Non-Burn Out

    Consult the factory for advice. If the condensate pump fails and cannot be replaced 6. Install the replacement compressor with a new capacitor immediately, the Phoenix 200 MAX can be used by draining and an oversized liquid line filter. by gravity.

  • Page 8: Options And Accessories

    4” Mini-Pleat Media 95% MERV-14 (Optional) 4024750 12” x 25’ Intake Flex Duct 4024935 10” x 250’ Lay-flat Duct 4026600 Phoenix Solution LGR Performance Amplifier 4026734 Phoenix Shield Kit 6 Wiring Diagram Figure 3: Electrical schematic of 200 MAX Toll-Free 1-800-533-7533...

  • Page 9: Service Parts List

    7 Service Parts Item Part No. Qty. Description Item Part No. Qty. Description 4021822 Power Switch 4022254 Accumulator 4029266 4021475 Air Filter, Pleated, 2” x 16” x 20” 65% Merv-11 ***** Wheel/Axle Assembly 4022489 Air Filter, Pleated, 4” x 16” x 20” 4026304 Wheel, 12”...

  • Page 10: Warranty

    (but all warranty periods will be extended by the period of time, if any, that the Phoenix 200 MAX Dehumidifier is out of service while awaiting covered warranty service).
