Owner's Manual — Phoenix R175 LGR Dehumidifier
The Phoenix R175 is the first roto-mold LGR (low grain
refrigerant) dehumidifier manufactured by Therma-Stor,
LLC. The R175 combines Phoenix innovation, technical
expertise and proven durability. This unit will remove more
water, produce more grain depression and dry structures and
contents faster than standard refrigerant dehumidifiers.

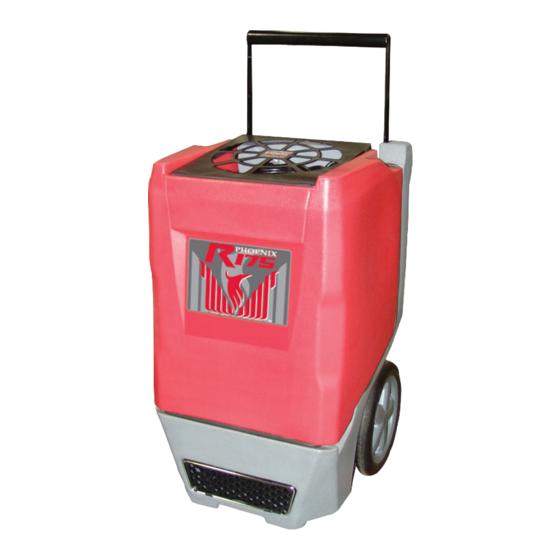

The Phoenix R175 LGR Dehumidifier
Increased Capacity - The Phoenix R175 removes over
30% more water than other dehumidifiers of equal size.
Energy Efficiency - Removes 92 pints at AHAM while
drawing only 6.3 amps.
Patented Bypass Technology
230 CFM - More processed air speeds drying and
provides superior static pressure for ducting.
More Grain Depression - Drier from an LGR gets your
jobs drier quicker.
Focused Airflow - Patent focused outlet directs air
downward across the wet surface.
Multiple Ducting Options - 12" intake, 10" exhaust.
Plastic Housing - Rugged roto-molded housing resists
dents and scratches.
Solid State Controls - Easy to read and operate.
Protected Condensate Hose - Located under the lid.
Cannot catch or be damaged on obstructions.
Telescoping Handle - A heavy-duty retractable handle
for ease of transport and reduces space for storage and
stacking.
Recessed 12" Wheels - Allows greater maneuverability
on the job site and efficient storage. Rolls over obstacles
with ease.
Pleated Media Air Filter - A MERV-8 is standard.
Stacking/Nesting - Reduces space for ease of stacking
and storage.
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
4201 Lien Rd. • Madison, WI 53704
Installation, Operation & Service Instructions
Read and Save These Instructions
In addition to the performance benefits, patented bypass
technology and tough compact size, are the multiple ducting
options, pleated media filter and energy efficient operation.
The R175 is the latest member of the Phoenix line of LGR
dehumidifiers; the most effective and versatile drying devices
made.
Phoenix R175
Part No. 4029200
Patent 7,246,503
7,281,389
7,540,166
1
www.UsePhoenix.com • sales@UsePhoenix.com
™
Patented
BYPASS
TS-592
03/14
