4201 LIEN RD. • MADISON, WI 53704
Phoenix DryMAX - LGR Dehumidifier

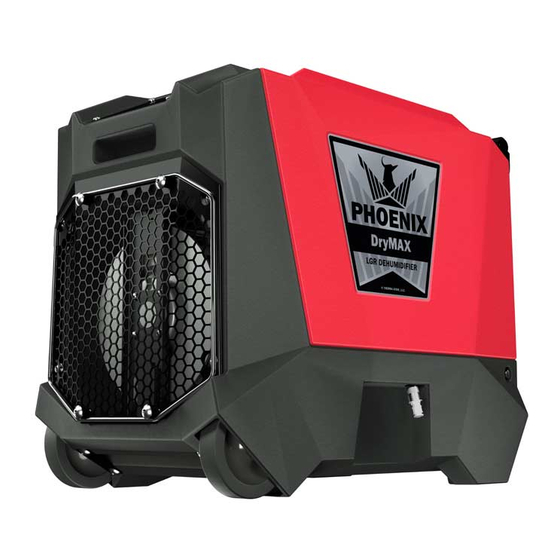

The Phoenix DryMAX LGR Dehumidifier
•
LGR Capacity - Removes moisture even in dry
conditions for deep drying.
•
Energy Efficiency - Removes 80 pints at AHAM while
drawing only 5.7 amps.
•
Smallest Footprint Large Category Dehumidifier.
•
Slide Out Handle with Recessed Wheels for Easy
Maneuverability and Compact Storage.
•
Integrated Cord and Hose Management for
Transportation and Storage.
•
Bright, 4 Line Control Panel – Displays the Most
Common Readings without the Need for Scrolling.
•
Status Light Indicator – Tell at a Glance What
Operating Mode the Unit is in.
•
Integrated, Superior Stacking for Transportation and
Storage.
•
170 CFM - Optimized process air speeds drying and
provides static pressures for ducting.
•
Plastic Housing - Rugged roto-molded housing resists
dents and scratches
•
Outlet Ducting - 10" lay flat exhaust.
•
Pleated Media Air Filter – MERV 10
•
Lighted cord - Easy to determine power to the unit.
1.800.533.7533
OWNER'S MANUAL
Installation, Operation & Service Instructions
– READ AND SAVE THESE INSTRUCTIONS –
USEPHOENIX.COM
The Phoenix DryMAX is 6% smaller than the closest
dehumidifier and yet it still has an integrated handle and
wheels as well as onboard storage for the power cord and
condensate hose! The all-new Phoenix Micro-Channel
condenser allows us to pack so much performance into such
a small dehumidifier.
The feedback on the stacking of the AirMAX was so positive
we made sure to build it into the Phoenix DryMAX.
We've also added a new four line display which provides you
with all the information you need to take readings directly
from the home screen.
A new Status Bar is located at the top of the new control
panel to give you instant feedback about the dehumidifier
from across the room.
Remove only four fasteners and you have easy access to
service the unit.
Phoenix DryMAX
Part No. 4036000 (RED)
US Patent 7,194,870
Specifications subject to change without notice.
WISCONSIN
1
Phoenix now offers
this unit in both
Red and Blue
4036060 (BLUE)
TS-943
05/19 Rev. F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DryMAX 4036000 and is the answer not in the manual?

Questions and answers

Related Manuals for Phoenix DryMAX 4036000

Summary of Contents for Phoenix DryMAX 4036000

  • Page 1: Introduction

    Energy Efficiency - Removes 80 pints at AHAM while drawing only 5.7 amps. The feedback on the stacking of the AirMAX was so positive we made sure to build it into the Phoenix DryMAX. • Smallest Footprint Large Category Dehumidifier.

  • Page 2: Table Of Contents

    • If used in a wet area, plug it into a GROUND FAULT INTERRUPTER. 3 Operation • DO NOT use the Phoenix DryMAX as a bench or table. Place dehumidifier inside structure, place condensate • It must always be used in the horizontal position.

  • Page 3: Electrical Requirements

    3.2 Electrical Requirements 3.3.3 Navigation The Phoenix DryMAX plugs into a common grounded outlet on a 15 amp circuit. It draws 5.7 amps at 80°F, 60% RH. If used in a wet area, a ground fault interrupter (GFI) is Press the...
  • Page 4 3.3.7 Humidistat Mode Press the Set button to toggle the Humidistat Fan mode from Always On to Auto. Press the Next button to confirm selection and advance to the next screen. Light Bar = On The light bar colors and animations will persist while in Settings.
  • Page 5 Light Bar = On Light Bar = On The light bar colors and animations will persist while in The light bar colors and animations will persist while in Settings. Settings. 3.3.12 Dew Point 3.3.15 About This Device The screen displays the ambient dew point. The following information is displayed on the About this Device screen: 3.3.13 Shut Down Sequence...

  • Page 6: Condensate Removal

    Next button for 3 seconds to return to the Dashboard. 3.4 Condensate Removal The Phoenix DryMAX is equipped with an internal Press the Set button to toggle the Fan On/Off. condensate pump to remove the water that is condensed Press the Next button to advance to the next screen.

  • Page 7: Ducting

    The duct and collar may then be quickly attached to the Phoenix DryMAX by snapping the collar over the four exhaust tabs.

  • Page 8: Storage And Freeze Protection

    The refrigerant is cooled and condensed by giving up its heat to the air that is about to There are two issues to consider when the Phoenix DryMAX be discharged from the unit. The refrigerant liquid then...

  • Page 9: Air Mover

    Unit removes some water but not as much as expected. 3. Pull thermistor probe up and out of evaporator coil 1. Air temperature and/or humidity have dropped 4. Remove control board cover 2. Humidity and/or temperature measurement is out of 5.

  • Page 10: Wiring Diagram

    7 Wiring Diagram BLK (CORD) WHT (CORD) WHT-12 WHT-6 RED-3 LINE BLK-4 COMPRESSOR CAPACITOR BLK-5 BLK-13 YEL-2 POWER BOARD WHT-10 CONTROL BOARD RH-OUT RH-IN AUX EVAP FLOAT FLOAT SWITCH TEMP/RH TEMP/RH SENSOR SENSOR THERMISTOR PROBE PRESS PUMP SWITCH BLK-5 BLOWER BLK-11 WHT-10 BLK-13...

  • Page 11: Service Parts

     8 Service Parts -   -         -                        ...

  • Page 12: Warranty

    (but all warranty periods will be extended by the period of time, if any, that the Phoenix DryMAX Dehumidifier is out of service while awaiting covered warranty service).
