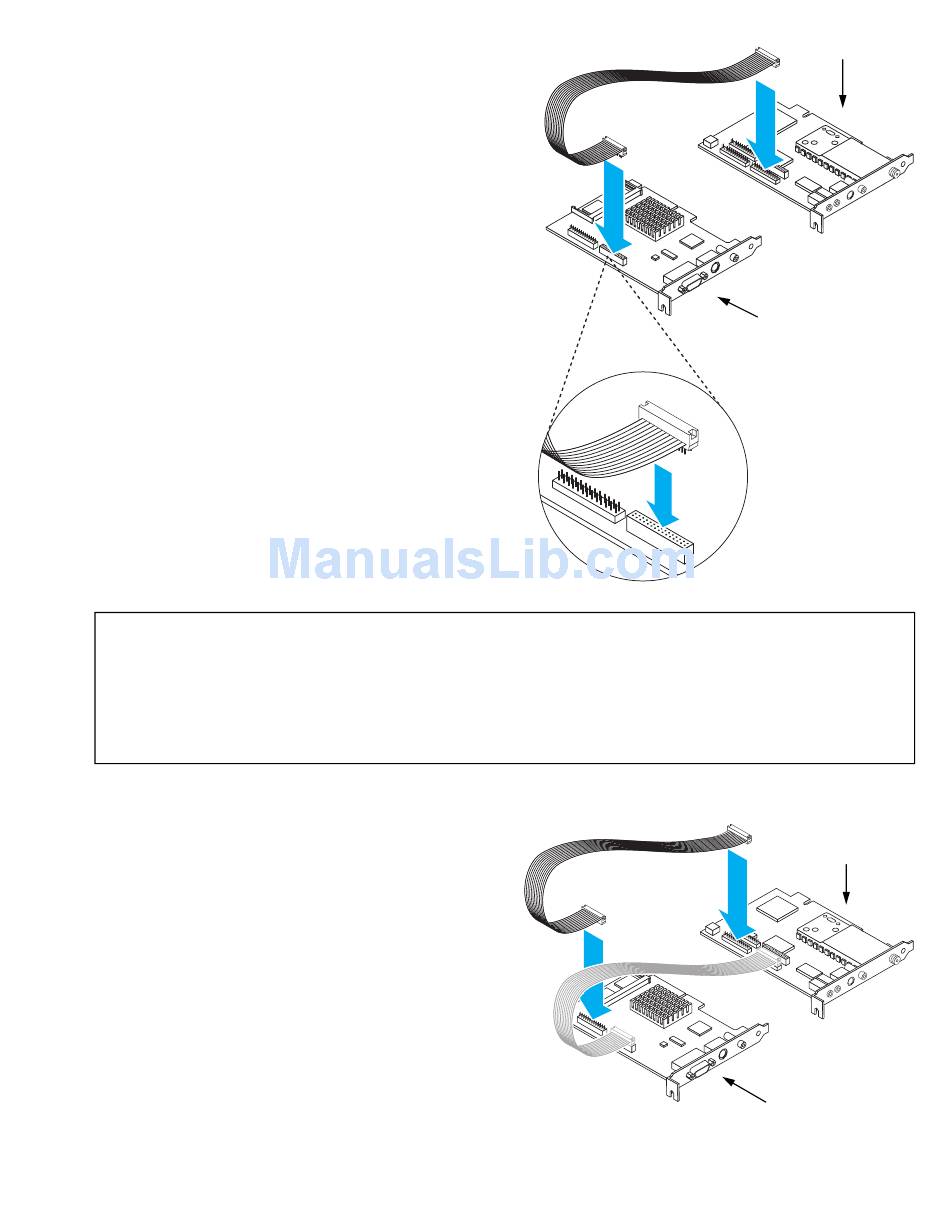

Attach the first ribbon cable
3
Use one of the two ribbon cables included
with Rainbow Runner G-Series – the one
with connector pins on one end.
a Attach the end with the pins to the
connector near the top edge of your
Matrox graphics card – the connector
closer to the bracket.
Attach the other end to the corresponding
b
connector near the top edge of your
Rainbow Runner G-Series card.
WARNING: Pressing together incorrectly aligned connectors can damage them. The
connectors on the ends of the ribbon cables and the connectors on the Matrox cards are made
so they attach to each other only one way. Before pressing connectors together, make sure all
pins and holes are correctly aligned. After pins and holes are aligned, make sure connectors are
firmly pressed together.
Attach the second ribbon cable
4
Use the second ribbon cable included with
Rainbow Runner G-Series.
Attach one end to the second connector
a
near the top edge of your Matrox
graphics card.
b Attach the other end to the second
connector near the top edge of your
Rainbow Runner G-Series card.
Matrox Rainbow Runner G-Series – User Guide
Rainbow Runner
G-Series card
Matrox
graphics
card
Rainbow Runner
G-Series card
Matrox
graphics
card
