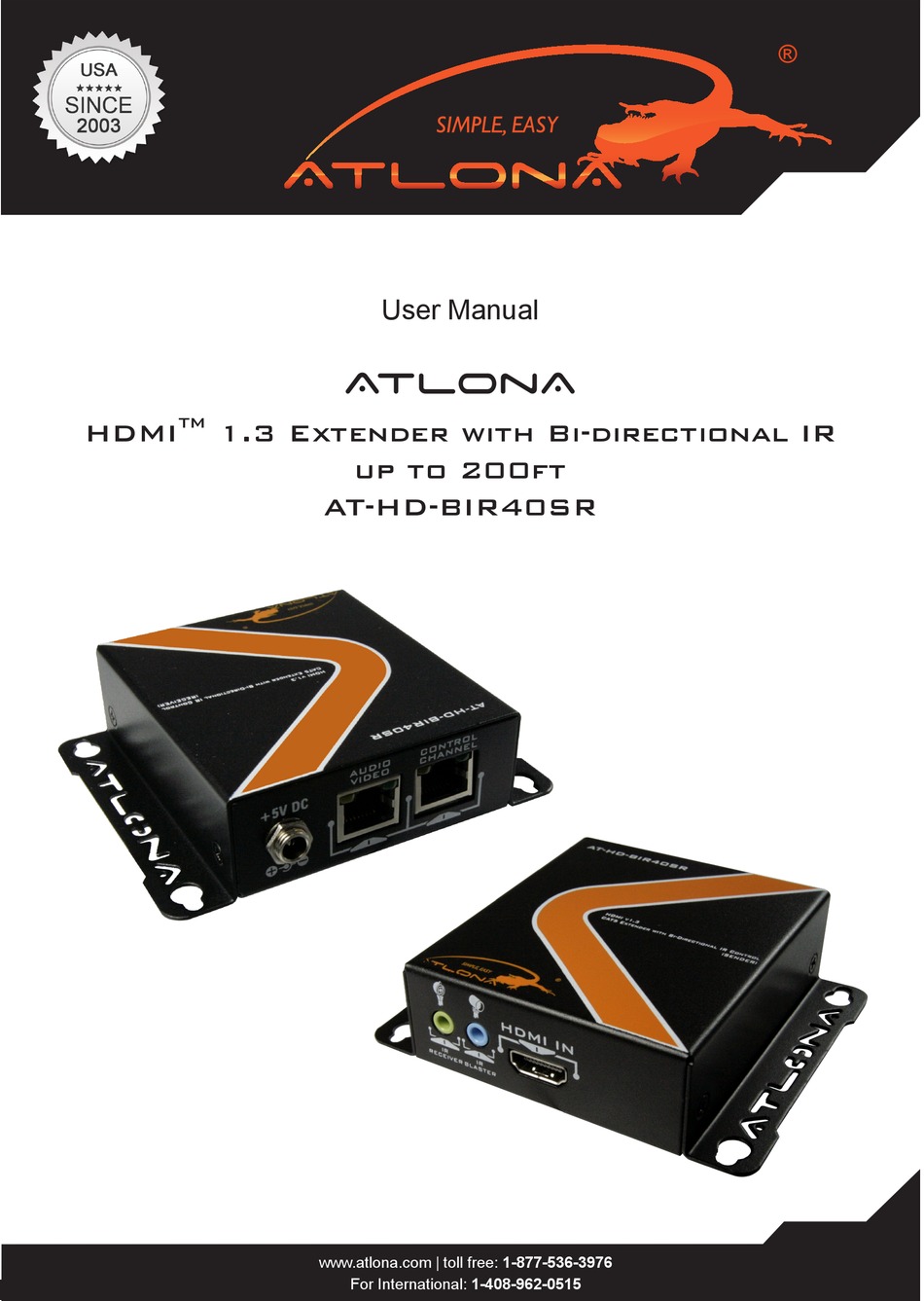

- Page 1 User Manual AtlonA HDMI 1.3 Extender with Bi-directional IR up to 200ft AT-HD-BIR40SR www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
7. INSTALLATION ..........8. RJ45 / CAT5 PIN DEFINITION ..........9. CONNECTION DIAGRAM ..........10. NOTICE ..........11. PERFORMANCE GUIDE ..........12. ATLONA PRODUCT REGISTRATION ..........13. SAFETY INFORMATION ..........14. WARRANTY ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
HDMI display at romote site via IR remote in di-directional IR pass-through. The AT-HD-BIR40SR includes two units: Sender unit and Receiver unit. The Sender unit sends the HDMI or DVI signals received from the source device and receives IR signals from the Receiver unit or sends the received IR signal from the Sender unit via two low cost Cat-5/5e/6 cables. -
Page 4: Package Contents
PACKAGE CONTENTS: • 1x AT-HD-BIR40SR (Transmitting and Receiving Modules) • 1x IR blaster extension cable • 1x IR receiver extension cable • 1x 5V DC power supply unit • 1x User's manual www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Specifications
Wall-mounting case with screws Power supply 5V DC either at Sender Unit or at Receiver Unit Power consumption 1.5 Watts [max] Operation temperature 0~40°C (32~104°F) Storage temperature -20~60°C (-4~140°F] Relative humidity 20~90% RH (no condensation) www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: Panel Descriptions
AUDIO VIDEO: Connect a Cat-5/5e/6 cable to the AUDIO/VIDEO port on the receiver unit CONTROL CHANNEL: Connect a Cat-5/5e/6 cable to the CONTROL CHANNEL port on the receiver unit www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 7: Receiving Module
Dial the EQ from MIN to MAX and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level setting may cause overpowering issues that would shorten the product's life significantly! www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 8: Ir Pass-Through
IR extender to the respective IR sockets. Warranty will not cover the damage. 6.3. Definition of IR Earphone Jack. IR Blaster IR Receiver 1. Power 1. IR Signal [20-60KHz] 2. IR Signal [20-60KHz] 2. Grounding 3. Grounding 1 2 3 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 9: Supported Ir Data Format
SONY 12 BIT CODE SONY 15 BIT CODE SONY 20 BIT CODE RCA CODE RCM CODE MATSUSHITA CODE MITSUBISHI CODE ZENITH CODE JVC CODE M50560-001P MN6125H MN6125L MN6014_C5D7 MN6014-C6D6 MC14457P LC7464(AHEA) GEMINI_CM www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 10: Installation
MIN stands for the weakest HDMI signal level for short transmission length. Try adjusting the signal level from MIN to MAX to find the optimal setting for the HDMI over CAT5 transmission. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 11: Rj45 / Cat5 Pin Definition
RJ45 / CAT5 PIN DEFINITION: Audio/Video Port Control Channel Port www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 12: Connection Diagram
CONNECTION DIAGRAM: AT-HD-BIR40SR AT A A CAT5/6 cable AT-HD-BIR40SR LCD TV or plasma TV www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 13: Notice
For desired resolutions greater than 1080i or 1280x1024, a Cat-6 cable is recommended. 8. If your HDMI display has multiple HDMI inputs, it is found that the first HDMI input [HDMI input 1] generally can produce better transmission performance among all HDMI inputs. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 14: Performance Guide
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. -
Page 15: Safety Information
It may equipment. also cause damage to your AT-HD-BIR40SR. Opening the product will void the warranty. Operate this product using only the included external power supply. Use of other power Do not attempt to service the unit. -
Page 16: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer's receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
