- Page 1 POEFE404 8 Port Fast Ethernet Switch with 4 POE Ports Version 1.01 Date: 26 September 2005...
- Page 2 1. Overview The POEFE404 is an 8 port Fast Ethernet switch with 4x IEEE 802.3af compliant 10/100Mbps POE ports and 4 standard ports The unit is designed in a robust metal casing suitable for use in almost any environment - Desktop, Rackmount (with add on brackets) or Industrial applications.
- Page 3 For Fast Ethernet connections Cat.5 or Cat. 5e cable must be used with a maximum distance of 100m. Insert the power cord in to the POEFE404 to supply power to the unit. If you are connecting a PD device that will draw power from the POEFE404 device please ensure that you plug the cable into one of the four PSE ports.

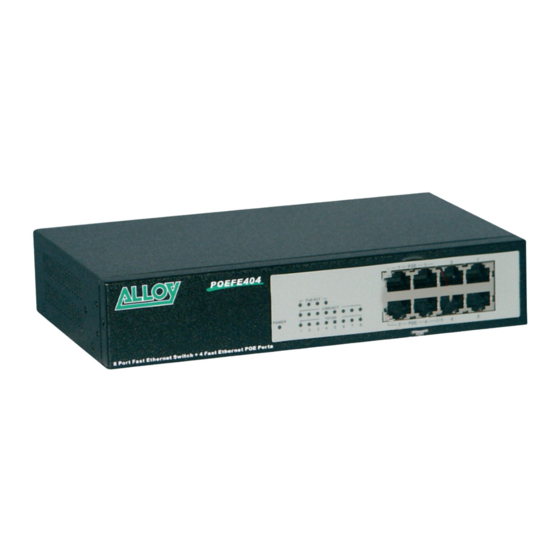

- Page 4 Lit when 100Mbps speed is active Off when 10Mbps speed is active POEFE404 8 Por t Fast E ther net Switch + 4 Fast Ether net P OE Por ts Fig. 3 Front View of the 8-Port Fast Ethernet Switch with 4 POE Ports...
- Page 5 5. Specifications Standards: IEEE 802.3/802.3u/802.3x IEEE 802.3af Power over Ethernet Transmission: 10/100Mbps supports full or half duplex Data Transfer Rate: 100Mbps: 148,800 PPS 10Mbps: 14,880 PPS MAC Address: Up to 1K Buffer Memory: 96Kbyte on chip frame buffer Flow Control: IEEE 802.3x compliant for full-duplex Backpressure flow control for half-duplex Switching Method:...
