Installation Instructions
D_

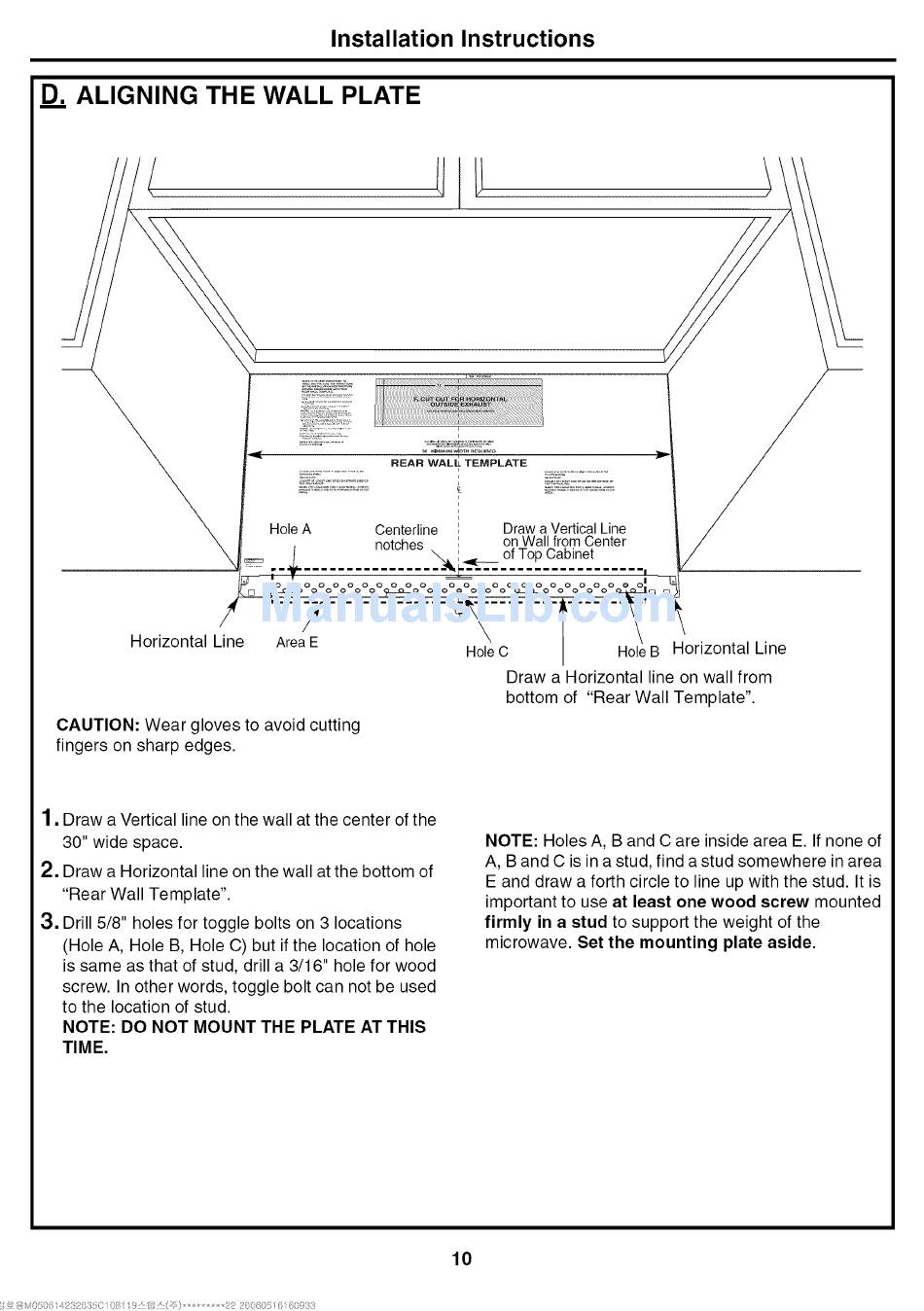

ALIGNING THE WALL PLATE
Horizontal
Line
Hole A
Area E
REAR
WALI_ TEMPLATE
Centerline
Draw a Vertical Line
notches
on Wall from Center
of Cabinet
Hole C
CAUTION:
Wear gloves to avoid cutting
fingers on sharp edges.
Hole B Horizontal
Line
Draw a Horizontal
line on wall from
bottom
of "Rear Wall Template".
1,
Draw a Vertical line on the wall at the center of the
30" wide space.
2. Draw a Horizontal
line on the wall at the bottom of
"Rear Wall Template".
3. Drill 5/8" holes for toggle
bolts on 3 locations
(Hole A, Hole B, Hole C) but if the location of hole
is same as that of stud, drill a 3/16" hole for wood
screw. In other words, toggle bolt can not be used
to the location
of stud.
NOTE:
DO NOT MOUNT
THE PLATE
AT THIS
TIME.
NOTE:
Holes A, B and C are inside area E. If none of
A, B and C is in a stud, find a stud somewhere
in area
E and draw a forth circle to line up with the stud. It is
important
to use at least one wood
screw
mounted
firmly
in a stud to support the weight of the
microwave.
Set the mounting
plate aside.
10
