Installation
Instructions

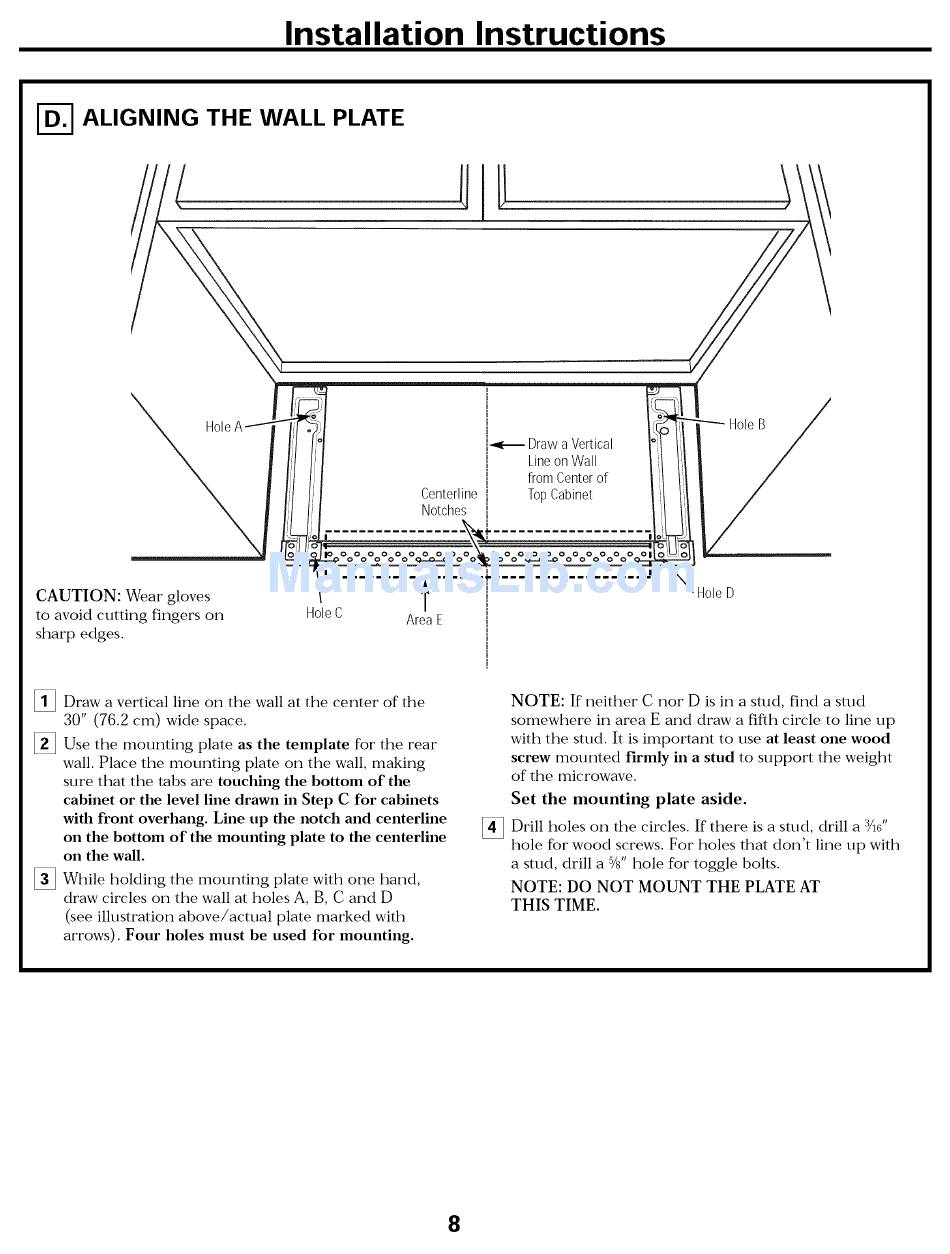

ALIGNING
THE WALL PLATE
CAUTION:
Wear
gloves
to avoid
cutting
fingers
on
sharp
edges.
.
s
[_-_
Draw a Vertical
°:t
[
Line on Wall
_I
l
from Center of
,:1
Centerline [
Top Cabinet
i!t
Notches
[
J:l
I
-_? o o ? o o cF--o---_ o c _ o o Or---o-_o o o_
I
,
Hole C
Area E
I
I
i
\ Hole D
[]Draw
a vertical
line
on the
wall at the
center
of the
30"
(76.2
cm)
wide
space.
[]Use
the
mounting
plate
as the
template
for the
rear
wall. Place
the
mounting
plate
on the
wall,
making
sure
that
the
tabs
are
touching
the
bottom
of the
cabinet
or the
level
line
drawn
in Step
C for
cabinets
with
front
overhang.
Line
up the
notch
and
centerline
on the
bottom
of the
mounting
plate
to the
centerline
on the
wall.
[]While
holding
the
mounting
plate
with
one
hand,
draw
circles
on the
wall at holes
A, B, C and D
(see
illustration
above/actual
plate
marked
with
arrows).
Four
holes
must
be
used
for
mounting.
[]
NOTE: If
neither
C nor
D
is in a stud,
find
a stud
somewhere
in area
E
and
draw
a fifth
circle
to line
up
with
the
stud.
It is important
to use
at least
one
wood
screw
mounted
firmly
in a stud
to support
the
weight
of the
microwave.
Set the mounting
plate aside.
Drill
holes
on the
circles.
If there
is a stud,
drill
a 3/16'1
hole
for wood
screws.
For
holes
that
don't
line
up with
a stud,
drill
a 5/8" hole
for toggle
bolts.
NOTE: DO NOT MOUNT THE PLATE AT
THIS TIME.
8
