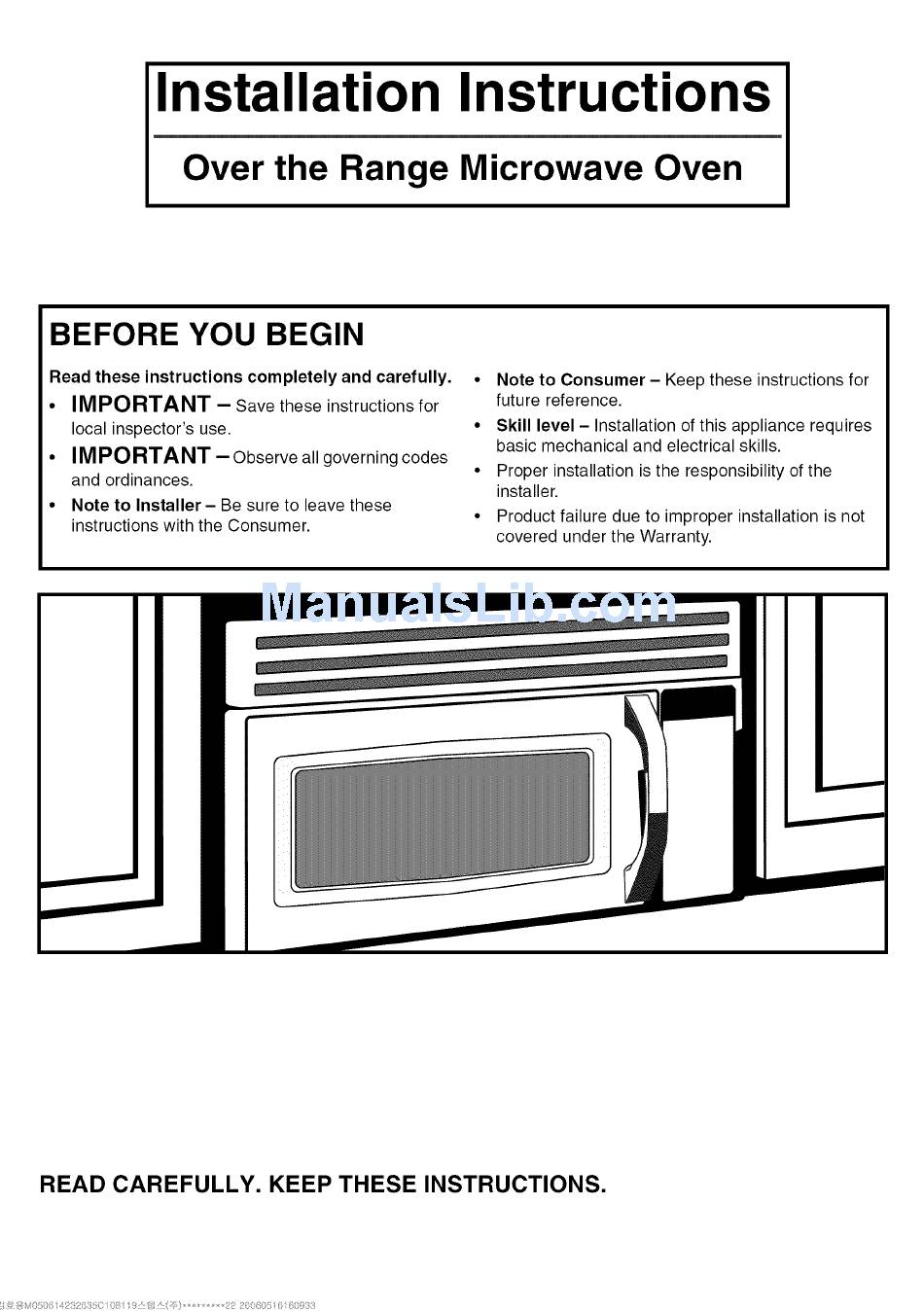

Installation Instructions
Over the Ran e Microwave Oven
BEFORE YOU BEGIN
Read these instructions
completely
and carefully.
IMPORTANT
- Save these instructions
for
local inspector's
use.
IMPORTANT-observe
all governing
codes
and ordinances.
Note to Installer-
Be sure to leave these
instructions
with the Consumer.
Note to Consumer-
Keep these instructions
for
future reference.
Skill
level - Installation
of this appliance
requires
basic mechanical
and electrical
skills.
Proper installation
is the responsibility
of the
installer.
Product failure
due to improper
installation
is not
covered
under the Warranty.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

Advertisement

Table of Contents
loading

Summary of Contents for Frigidaire LEVM30FE

  • Page 1 Installation Instructions Over the Ran e Microwave Oven BEFORE YOU BEGIN Read these instructions completely and carefully. • Note to Consumer- Keep these instructions future reference. IMPORTANT • - Save these instructions • Skill level - Installation of this appliance requires local inspector's use.
  • Page 2: Table Of Contents

    Installation Instructions CONTENTS General information Outside Back Exhaust ......18-21 Preparing Rear Wall ........ Important Safety Instructions ..... Attach Mounting Plate to Wall ... 18, 19 Electrical Requirements ......Preparation of Top Cabinet ..... Hood Exhaust ........... 4, 5 Adjust Blower ........
  • Page 3: Important Safety Instructions

    Installation Instructions IMPORTANT SAFETY INSTRUCTIONS This product requires a three-prong grounded outlet. You should have the wall receptacle and circuit The installer must perform a ground continuity check checked by a qualified electrician to make sure on the power outlet box before beginning the receptacle is properly grounded.
  • Page 4: Hood Exhaust

    Installation Instructions HOOD EXHAUST NOTE: Read these next two pages only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, proceed to page 11. OUTSIDE TOP EXHAUST (EXAMPLE ONLY) The following chart describes an example...
  • Page 5 Installation Instructions NOTE: If you need to install ducts, note that the total Maximum duct length: duct length of 3W' x 10" rectangular or 6" diameter For satisfactory air movement, the total duct length of round duct should not exceed 60 equivalent feet.
  • Page 6: Damage - Shipment/Installation

    Installation Instructions DAMAGE - SHIPMENT/ PARTS INCLUDED INSTALLATION HARDWARE PACKET • If the unit is damaged in shipment, return the unit to the store in which it was bought for repair PART QUANTITY or replacement. Wood Screws • If the unit is damaged by the customer, repair (W'x...
  • Page 7: Tools You Will Need

    Installation Instructions TOOLS YOU WILL NEED Ruler or tape measure Carpenter square 4_ _ straight edge (optional) Pencil # 1 and #2 Phillips screwdriver Tin snips (for cutting Scissors Electric drill with 1/2" 3/16", damper, if required) Filler blocks or scrap wood (to cut template, if necessary) and 5/8"...
  • Page 8: Removing The Mounting Plate

    Installation Instructions 1.PLACEMENT OF THE MOUNTING PLATE A. REMOVING THE MICROWAVE B. FINDING THE WALL STUDS OVEN FROM THE CARTON/ REMOVING THE MOUNTING PLATE Remove the installation instructions, Exhaust iWall Studs adaptor, filters, glass tray and the small hardware bag. Do not remove the Styrofoam protecting front of the oven.
  • Page 9: Determining Wall Plate Location

    Installation Instructions DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET Plate position - beneath framed recessed Plate position - beneath flat bottom cabinet cabinet bottom Draw a vertical line on the wall at the center of 33" to Cooktop the 30" wide space. Tape the Rear Wall Draw a vertical line on the wall at the center...
  • Page 10: Aligning The Wall Plate

    Installation Instructions ALIGNING THE WALL PLATE REAR WALI_ TEMPLATE Centerline Draw a Vertical Line Hole A notches on Wall from Center of Cabinet Horizontal Line Area E Hole B Horizontal Line Hole C Draw a Horizontal line on wall from bottom of "Rear Wall Template".
  • Page 11: Installation Types

    Installation Instructions 2. INSTALLATION TYPES (Choose A, B or C) This microwave oven is designed for adaptation NOTE: This microwave is shipped after being the following three types of ventilation: assembled for "Recirculating". And exhaust adaptor is shipped assembled to the filler-upper. Select the A.
  • Page 12 Installation Instructions A. RECIRCULATING (Non-Vented Ductless) INSTALLATION OVERVIEW A1. Attach Mounting Plate to Wall A2. Prepare Top Cabinet A3. Mount the Microwave Oven ÷ AI.__. A TTACH THE MOUNTING PLATE Place the mounting plate against the wall and TO THE WALL insert the toggle wings into the holes in the wall to mount the plate.
  • Page 13 Installation Instructions MOUNT THE MICROWAVE OVEN especially when mounting flush to bottom cabinet. Cabinet Front Cabinet Bottom Shelf Filler Block Equivalent to Depth of FOR EASIER INSTALLATION AND PERSONAL Cabinet Recess SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.
  • Page 14 Installation Instructions B._,.. OUTSIDE TOP EXHAUST (Vertical Duct) INSTALLATION OVERVIEW B1. Attach Mounting Plate to Wall B2. Prepare Top Cabinet B3. Adjust Blower B4. Check Damper Operation B5. Mount Microwave Oven B6. Adjust Exhaust Adaptor B7. Connect Ductwork To use toggle bolts: Blm ATTACH THE MOUNTING PLATE TO THE WALL...
  • Page 15 Installation Instructions B3. ADAPTING MICROWAVE B2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP BLOWER FOR OUTSIDE TOP CABINET EXHAUST Remove and save You need to drill holes for the top support screws, 2, Lift up the hole large enough for the power cord to fit through, screw that holds blower plate.
  • Page 16 Installation Instructions B5._,.. MOUNT THE MICROWAVE OVEN FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN. IMPORTANT: Do not grip or use handle during 5. Place the blower unit back into the opening. installation. NOTE: If your cabinet is metal, use the nylon...
  • Page 17 Installation Instructions B5.__. MOUNT THE MICROWAVE OVEN B6_ ADJUST THE EXHAUST ADAPTOR (cont.) Open the top cabinet and adjust the exhaust adaptor to connect to the house duct. Cabinet Front Cabinet Bottom Shelf Back of Blower-Plate Damper Microwave Filler Block Depth of Cabinet Equivalent to Recess...
  • Page 18: Attach Mounting Plate To Wall

    Installation Instructions C.__. OUTSIDE BACK EXHAUST (Horizontal Duct) INSTALLATION OVERVIEW 01. Prepare Rear Wall 02. Attach Mounting Plate to Wall 03. Prepare Top Cabinet 04. Adjust Blower 05. Mount the Microwave Oven C1__ PREPARING THE REAR WALL C2._.ATTACH THE MOUNTING PLATE FOR OUTSIDE BACK EXHAUST...
  • Page 19 Installation Instructions C2.__. ATTACH THE MOUNTING PLATE 04_ ADAPTING MICROWAVE BLOWER FOR OUTSIDE BACK EXHAUST TO THE WALL (cont.) Remove and save screw that holds blower Plate To use toggle bolts: to microwave. Spacing for Toggles More Blower motor Than Wall Thickness Lift up the Blower Plate.
  • Page 20 Installation Instructions MOUNT THE MICROWAVE OVEN Place the blower unit back into the opening. End A End B FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN. CAUTION: Do not pull or stretch the blower unit IMPORTANT: Do not grip or use handle during...
  • Page 21 Installation Instructions C5.__. MOUNT THE MICROWAVE OVEN (cont.) Install grease filters. See the Owner's Manual packed with the microwave. Cabinet Front Cabinet Bottom Shelf Filler Block Depth of Cabinet Recess quivalent to Self-Aligning Screw Microwave Oven Top Attach the microwave oven to the top cabinet.
  • Page 22 Installation Instructions BEFORE YOU USE YOUR MICROWAVE Make sure the microwave oven has been 6. Read the Owner's Manual. installed according to instructions. packing 7, KEEP INSTALLATION INSTRUCTIONS 2. Remove material from the microwave ove n. THE LOCAL INSPECTOR'S USE. 3, Install turntable and ring in cavity.
  • Page 23 Installation Instructions NOTE...
