Installation
Instructions

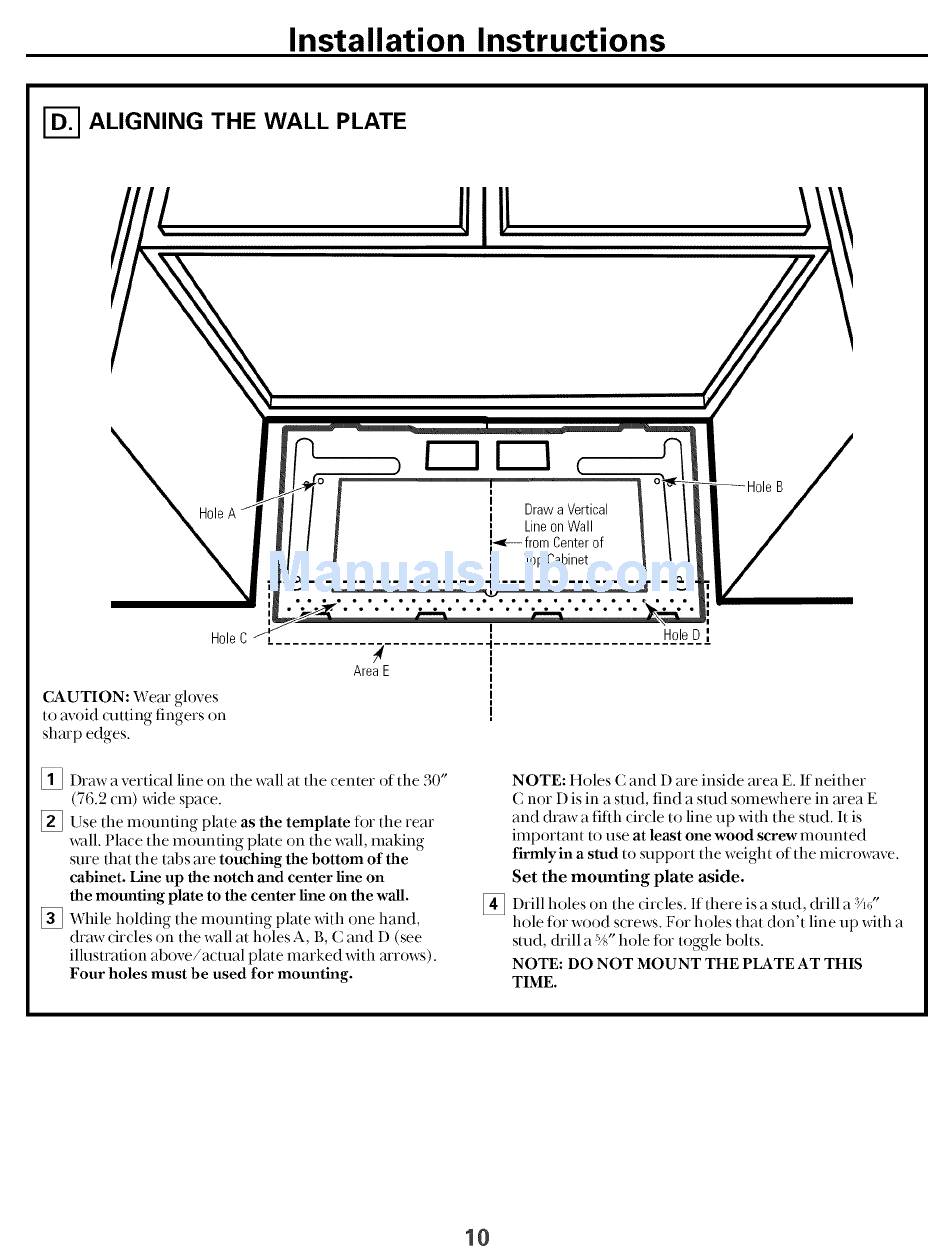

ALIGNING
THE WALL PLATE
Hole
1
HoleC J;
CAUTION:
Wear gloves
to avoid cutting fingers on
sharp edges.
)
(
t
I
Draw a Vertca
i
Line onWall
u_-- fromCenter of
i
T°pCabinet
._
%,"
HoleD ',
[]
Draw a vertical line on the wall at tile center of tim 30"
(76.2 cm) wide space.
[]
Use tile mounting
plate as the template tot the rear
wall. Place tile mounting
plate on the wall, making
sure that the tabs are touching the bottom of the
cabinet. Line up the notch and center line on
the mounting plate to the center line on the wall.
[]
While holding the mounting
plate with one hand,
draw drcles on the wall at holes A, B, ( and D (see
illustration above/aculal
plate marked with rerows).
Four holes must be used for mounting.
[]
NOTE: Holes C and D are inside area E. If neither
C nor D is in a stud, find a stud somewhere in area E
and draw a fifth circle to line up with the stud. It is
important
to use at least one wood screw mounted
firmly in a stud to support the weight of the inicrowave.
Set the mounting
plate aside.
Drill holes on the drcles. If there is a stud, drill a _)&_"
hole tot wood soews. For holes that don't line up with a
stud, drill a %" hole lot toggle bolts.
NOTE: DO NOT MOUNT THE PLATE AT THIS
TIME.
10
