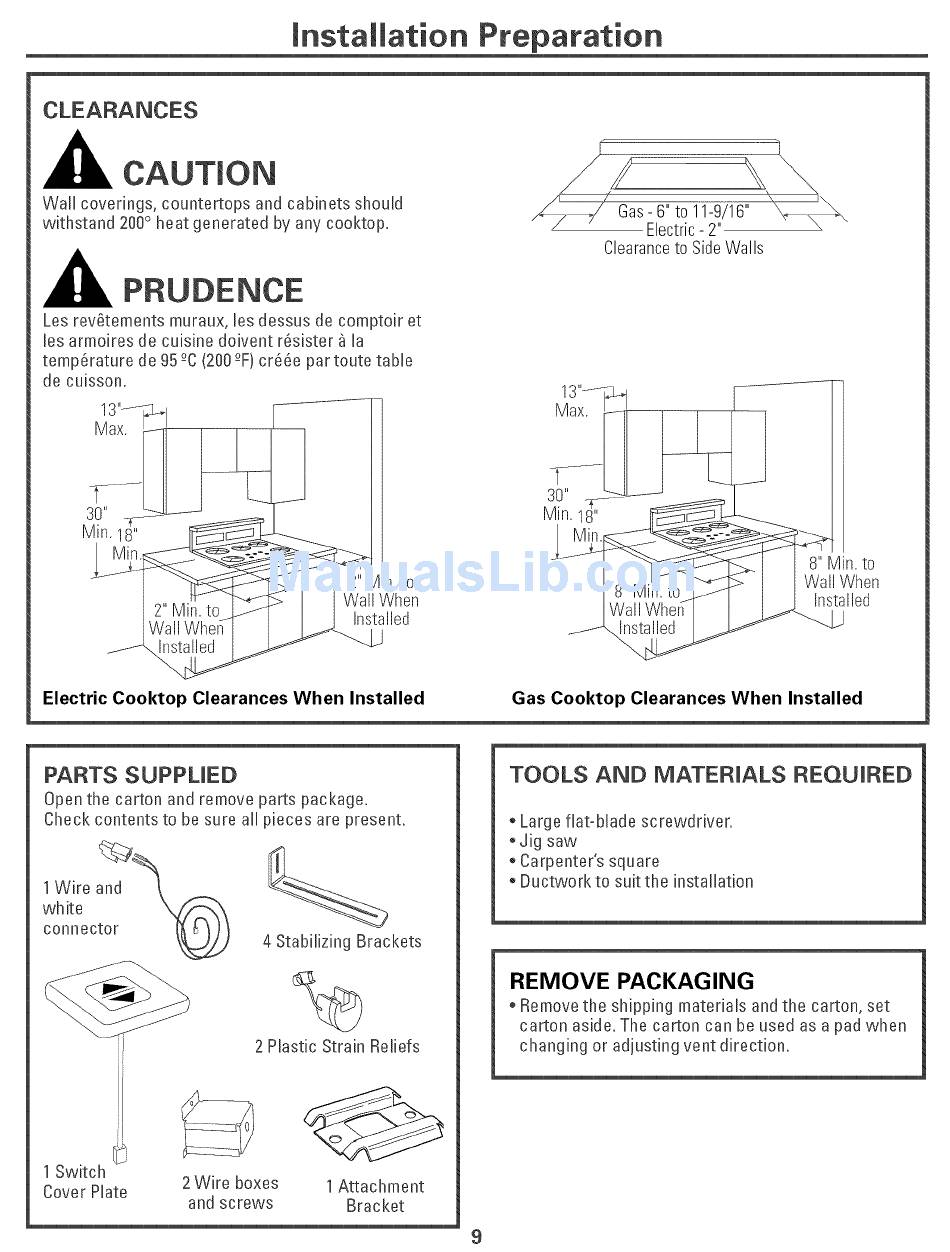

Installation Preparation
CAUTION
Wall coverings, countertops and cabinets shouN
wkhstand 200° heat generated by any cooktop.
PRUDENCE
Les rev_tements muraux, Jes dessus de comptoir et
les armoires de cuisine doivent r_sister a Ja
temp6rature de 95 -oC (200 -°F)cr_6e par toute table
de cuisson.
Max. [-------------
2" Min. to
Wall When
Installed
JJ
1
Max.
/
Gas- 6" to 11-9/16"
Electric- 2"
Clearance to Side Walls
8" MJn. to
Wall When
Installed
&s
Electric Cooktop Clearances When Installed Gas Cooktop Clearances When Installed
PARTS SUPPUED
Open the carton and remove parts package.
Check contents to be sure all pieces are present.
1 Wire and
white
connector
4 Stabilizing Brackets
%
2 Plastic Strain Reliefs
1 Switch
Cover Plate 2 Wire boxes 1 Attachment
and screws Bracket
TOOLS AND MATERIALS REQUIRED
Large flat=blade screwdriver.
Jig saw
Carpenter's square
Ductwork to suit the installation
REMOVE PACKAGING
Remove the shipping materials and the carton, set
carton aside. The carton can be used as a pad when
changing or adjusting vent direction.
