Step 3, Install Raise/Lower Switch - GE Monogram ZVB36 Installation Instructions Manual

mnstamiation mnstructions

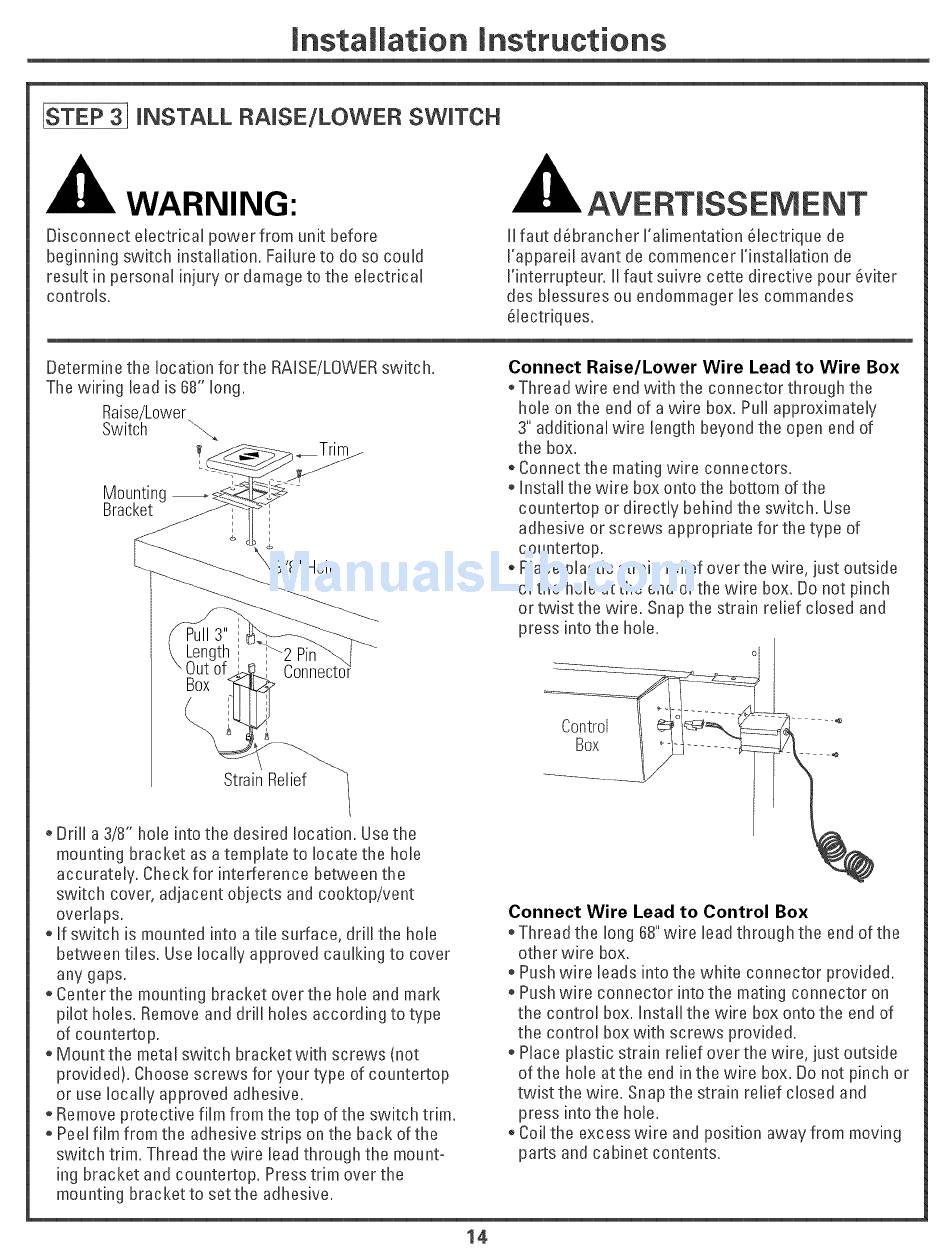

[STEP 31 iNSTALL RAiSE/LOWER SWITCH
WARNING:
Disconnect electrical power from unit before
beginnhlg switch installation. Failure to do so could
result in personal injury or damage to the electrical
controls.
AVERTiSSEMENT
II faut d_brancher Valimentation _lectrique de
Vappareil avant de commencer I'installation de
Hnterrupteur. II faut suivre cette directive pour _viter
des Nessures ou endommager les commandes
_lectriques.
Determine the location for the RAISE/LOWER switch.
The wiring lead is 68" long.
Raise/Lower
Switch _.,
Mounting
Bracket
i
i
i
i
_3/8" Hole
Connect Raise/Lower Wire Lead to Wire Box
Thread wire end with the connector through the
hole on the end of a wire box. Pull approximately
3" additional wire length beyond the open end of
the box.
Connect the mating wire connectors.
Install the wire box onto the bottom of the
countertop or directly behind the switch. Use
adhesive or screws appropriate for the type of
countertop.
Place plastic strain relief over the wire, just outside
ofthe hole atthe end ofthe wire box. Do not pinch
or twist the wire. Snap the strain relief closed and
press into the hole.
Strain Relief
Connectoi
Drill a 3/8" hole into the desired location. Use the
mounting bracket as a template to locate the hole
accurately. Check for interference between the
switch cover, adjacent objects and cooktop/vent
overlaps.
If switch is mounted into a tile surface, drill the hole
between tiles. Use locally approved caulking to cover
any gaps.
Center the mounting bracket over the hole and mark
pilot holes. Remove and drill holes according to type
of countertop.
Mount the metal switch bracket with screws (not
provided). Choose screws for your type of countertop
or use locally approved adhesive.
Remove protective film from the top of the switch trim.
, Peelfilm from the adhesive strips on the back of the
switch trim. Thread the wire lead through the mount°
ing bracket and countertop. Press trim over the
mounting bracket to set the adhesive.
Control
Box
Connect Wire Lead to Control Box
Thread the long 68" wire lead through the end of the
other wire box.
Push wire leads into the white connector provided.
Push wire connector into the mating connector on
the control box. Install the wire box onto the end of
the control box with screws provided.
• Place plastic strain relief over the wire, just outside
ofthe hole atthe end in the wire box. Do not pinch or
twist the wire. Snap the strain relief closed and
press into the hole.
Coil the excess wire and position away from moving
parts and cabinet contents.
14
