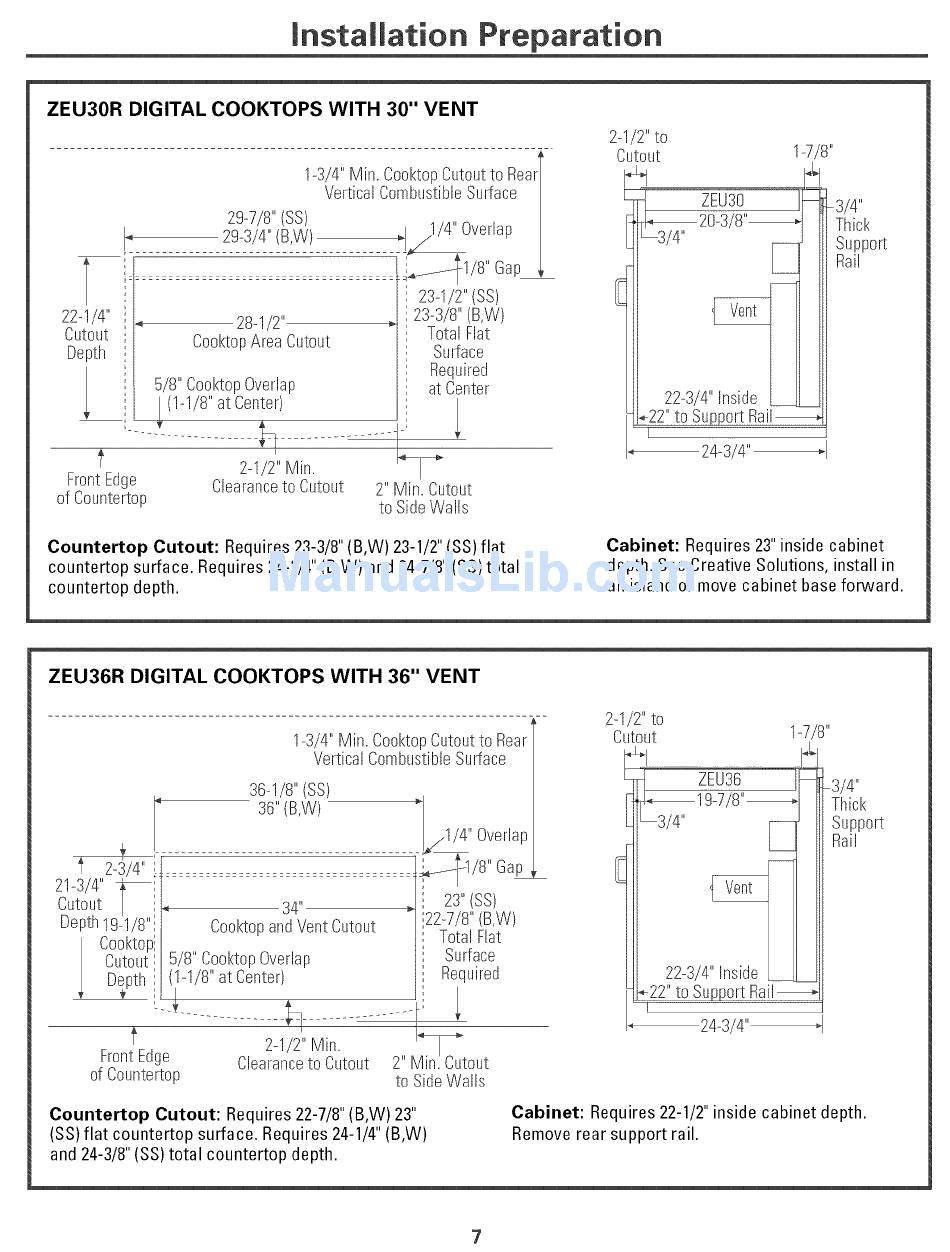

Installation Preparation
ZEU30R DIGITAL COOKTOPS WITH 30" VENT
1-3/4" Min. Cool<topCutout to Rear
Vertical Combustible Surface
29-7/8" (SS)
22-1/4"
Cutout
Depth
t
Front Edge
of Countertop
28-1/2"
Cool<top Area Cutout
5/8" Cool<topOverlap
_ (1-1/8" at Center)
i E
I
2-1/2" Min. _
Clearanceto Cutout 2" Min. Cutout
to Side Walls
23-1/2" (SS)
23-3/8" (B,W)
Total Flat
Surface
Required
at Center
2-1/2" to
Cutout
_22" to Support Rail_
I
24-3/4"
Thick
Support
Rail
Countertop Cutout: Requires 23-3/8" (B,W) 23-1/2" (SS) flat
countertop surface. Requires 24-3/4" (B,W) and 24-7/8" (SS) total
countertop depth.
Cabinet: Requires 23" inside cabinet
depth. See Creative Solutions, install in
an island or move cabinet base forward.
ZEU36R DIGITAL COOKTOPS WITH 36" VENT
1-3/4" Min. Cool<topCutout to Rear
Vertical Combustible Surface
36-1/8" (SS)
36" (B,W)
. jN/4" Overlap
1` "
,,2-3/4 Gap
21-3/4 _ 23"
Cutout | 34" (SS)
Depth 19-1/8" Cooktop and Vent Cutout 22-7/8" (B,W)
Cooktop{ Total Flat
Cutout 5/8" Cool<topOverlap Surface
(1-1/8" at Center) Required
I' 2-1/2" Min. , _--__
Front Edge Clearance to Cutout 2 Min. Cuto t
of Countertop to Side Walls
Countertop Cutout: Requires 22-7/8" (B,W) 23"
(SS) flat countertop surface. Requires 24-1/4" (B,W)
and 24-3/8" (SS) total countertop depth.
2-1/2" to
Cutout 1-7/8"
_22" to Support Rail_
24-3/4"
3/4"
Thick
Support
Rail
Cabinet: Requires 22-1/2" inside cabinet depth.
Remove rear support rail.
