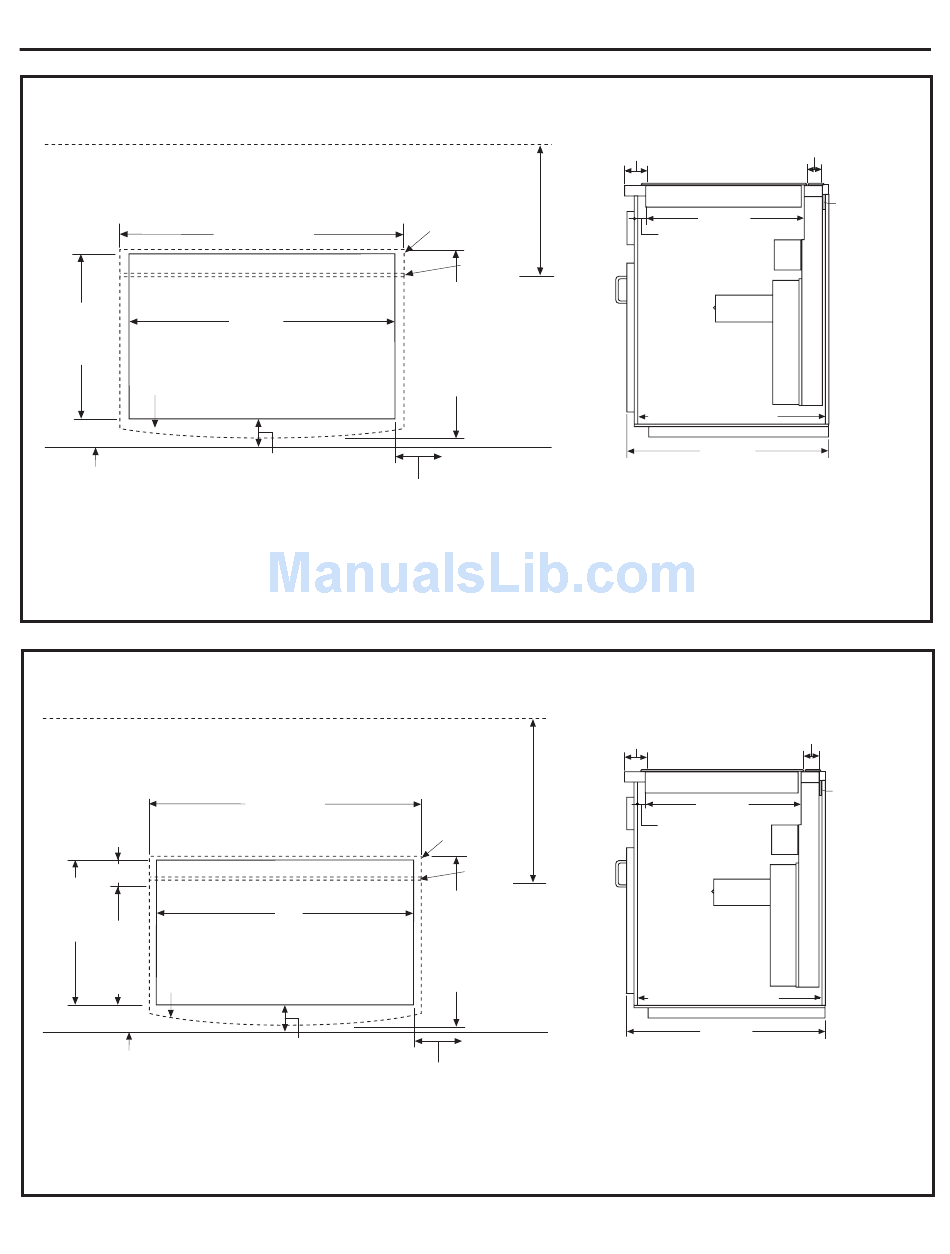

ZEU30R DIGITAL COOKTOPS WITH 30" VENT
29-3/4" (B,W)
22-1/4"
Cutout
Cooktop Area Cutout
Depth
5/8" Cooktop Overlap
(1-1/8" at Center)
Front Edge
Clearance to Cutout
of Countertop
Countertop Cutout: Requires 23-3/8" (B,W) 23-1/2" (SS) flat
countertop surface. Requires 24-3/4" (B,W) and 24-7/8" (SS) total
countertop depth.
ZEU36R DIGITAL COOKTOPS WITH 36" VENT
2-3/4"
21-3/4"
Cutout
Depth 19-1/8"
Cooktop and Vent Cutout
Cooktop
5/8" Cooktop Overlap
Cutout
(1-1/8" at Center)
Depth
Front Edge
of Countertop
Countertop Cutout: Requires 22-7/8" (B,W) 23"
(SS) flat countertop surface. Requires 24-1/4" (B,W)
and 24-3/8" (SS) total countertop depth.
Installation Preparation
1-3/4" Min. Cooktop Cutout to Rear
Vertical Combustible Surface
29-7/8" (SS)
28-1/2"
2-1/2" Min.
2" Min. Cutout
to Side Walls
1-3/4" Min. Cooktop Cutout to Rear
Vertical Combustible Surface
36-1/8" (SS)
36" (B,W)
34"
2-1/2" Min.
2" Min. Cutout
Clearance to Cutout
to Side Walls
1/4" Overlap
1/8" Gap
23-1/2" (SS)
23-3/8" (B,W)
Total Flat
Surface
Required
at Center
1/4" Overlap
1/8" Gap
23" (SS)
22-7/8" (B,W)
Total Flat
Surface
Required
Cabinet: Requires 22-1/2" inside cabinet depth.
Remove rear support rail.
7
2-1/2" to
Cutout
ZEU30
20-3/8"
3/4"
Vent
22-3/4" Inside
22" to Support Rail
24-3/4"
Cabinet: Requires 23" inside cabinet
depth. See Creative Solutions, install in
an island or move cabinet base forward.
2-1/2" to
Cutout
ZEU36
19-7/8"
3/4"
Vent
22-3/4" Inside
22" to Support Rail
24-3/4"
1-7/8"
3/4"
Thick
Support
Rail
1-7/8"
3/4"
Thick
Support
Rail
