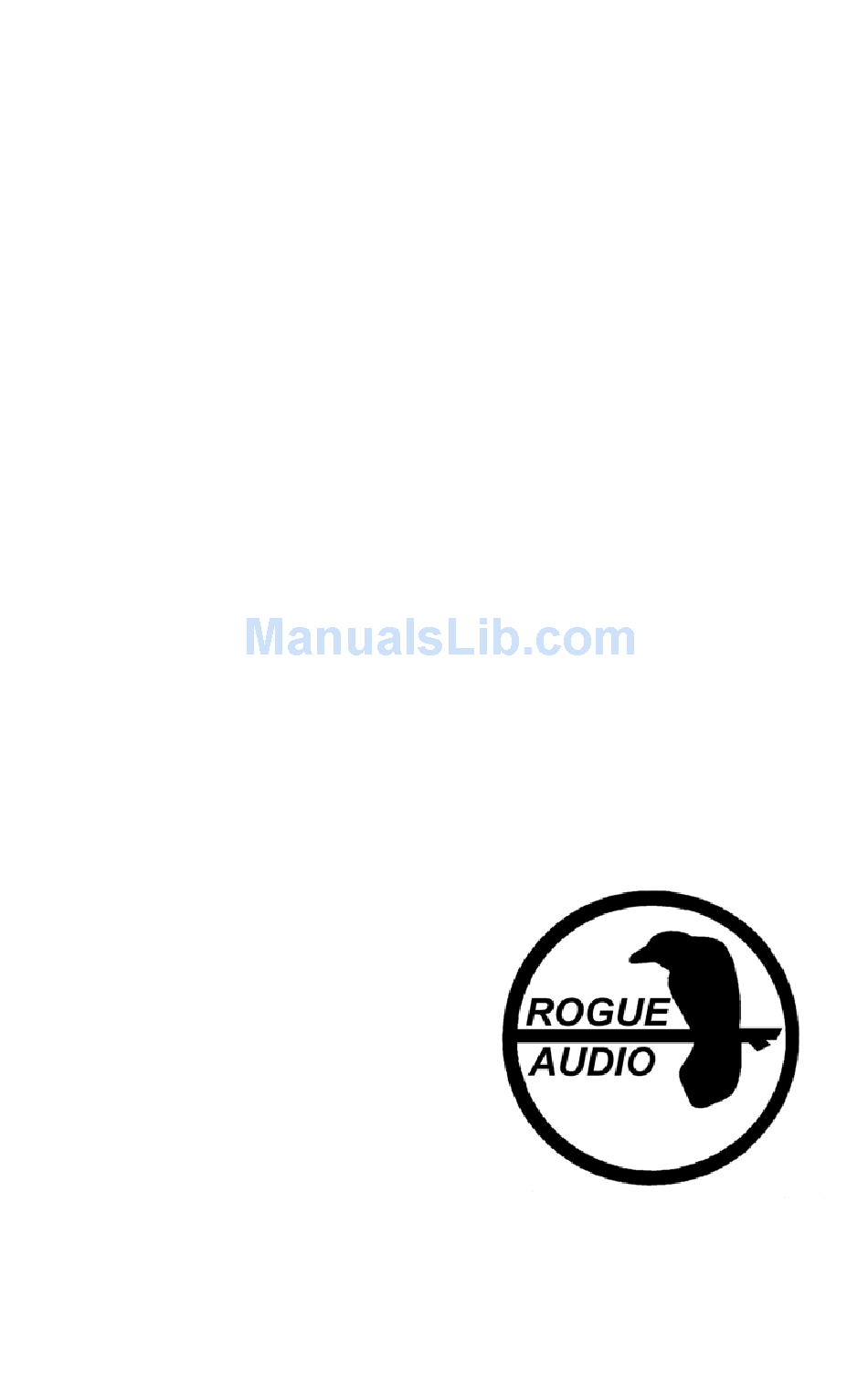

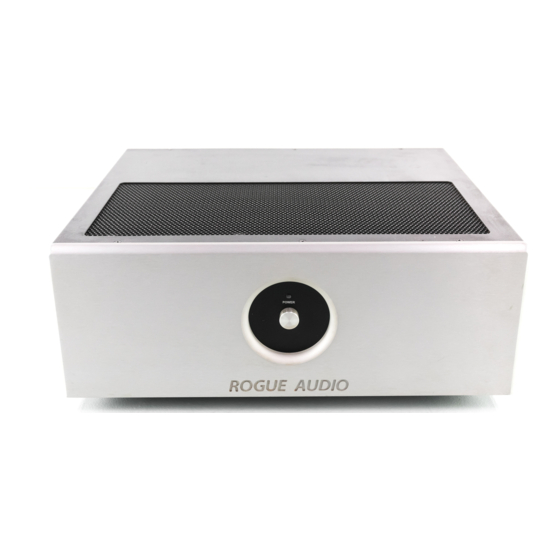

- Page 1 Issue date : 5/3/00 Rogue Eighty Eight Vacuum Tube Power Amplifier Owners Manual Vacuum Tube Amplifiers...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1) Introduction 2) Setting up your power amplifier 3) Operating your power amplifier 4) Maintenance 5) If there’s a problem 6) Owner/Warranty Registration Form 7) Specifications 8) Warranty... -
Page 3: Introduction
INTRODUCTION Congratulations on your purchase decision! We at Rogue Audio truly believe that our amplifiers provide the “smartest” value in high-end audio. If you have never owned a vacuum tube amplifier you will be thrilled by the silky-smooth sound and incredible detail that only a tube amplifier can provide. - Page 4 2) Remove Shipping Pallet - The amplifier is shipped attached to a shipping pallet. This pallet serves two purposes. First, and foremost it acts to tie down the mechanically isolated transformer platform. Secondly, it provides strength to the main chassis. Both of these items are critical to ensure that no damage occurs in transit.
- Page 5 3) Remove the Top Cover - Using a phillips head screwdriver, remove the top cover of the amplifier chassis. See Figure 2. WARNING - If the unit has been powered up, you must turn off the power at the switch and wait at least one hour before disconnecting the electrical cord.
- Page 6 4) Install Power Tubes - To avoid damage in transit, the power tubes are shipped in a protective container inside the main shipping container. Carefully unpack the tubes, and using a glove or a clean dry cloth, install the tubes as shown in figure 3. 5) Inspect Input and Driver Tubes - Inspect the remaining tubes to ensure that they are fully seated in their ceramic sockets.
- Page 7 6) Select Mode - The Rogue 88 features a user selectable option of running in either Triode or Ultra-Linear modes. Some listeners prefer pure triode operation, however, it does limit the power output of the amplifier to approximately 40 watts per channel. Ultra-Linear operation offers the amplifier’s full rated output power of 60 watts per channel.
- Page 8 7) Matching Speaker Impedance - The Rogue 88 provides options for either 4 ohm or 8 ohm speakers. The impedance selected will depend on the speakers used. Consult either the owner’s manual for your speaker or your local dealer for the correct choice. To switch impedance setting, refer to figures 5 and 6.
- Page 9 Figure 6 ⇒ Remove the polyurethane tubing from the unused 4-ohm wire and lug. ⇒ Place 4-ohm wire and lug onto red binding post. ⇒ Place polyurethane tubing on the 8-ohm wire and lug. ⇒ Replace nut onto binding post and tighten with wrench. 8) Attach Power Cord - Connect the IEC end of detachable power cord to the amplifier, and plug opposite end into corresponding outlet.
- Page 10 10) Polarity - The Rogue 88 amplifier is a non-inverting amplifier (positive signal in gives positive signal out) so, for best sound, care should be taken to ensure correct polarity at the speaker terminals. If your preamplifier is also non-inverting, then connect the positive (+) outputs of your power amplifier to the positive (+) terminals of the loudspeakers and the negative (-) outputs to (-) negative loudspeaker terminals.
-
Page 11: Operating Your Power Amplifier
Air Intakes Top & Side Minimum 6 to 8 Exit inches vent clearance Figure 7 OPERATING YOUR AMPLIFIER 1) Powering up the system - First turn on the amplifier by pushing in the “power” button. The red LED will light after several seconds after which the unit is ready for use. -
Page 12: Maintenance
MAINTENANCE The Rogue Eighty-Eight has been designed to provide many years of enjoyable and reliable service. The greatest care has been taken to select vacuum tubes that provide superior sound and ensure long life. However, at some point in time, the tubes will wear out. The factory-installed tubes should last thousands of hours. -
Page 13: If There's A Problem
1) It is possible that a tube has gone bad. Return the unit to the dealer to the dealer to test the tubes. If these do not clear the problem, please call Rogue Audio Technical Support on 570-992-9901. OWNER AND WARRANTY REGISTERATION FORM Included with this manual is an Owner and Warranty Registration Form. -
Page 14: Specifications
SPECIFICATIONS output power 60 WPC frequency response 5Hz - 50 kHz < 0.1% typical < 1% at rated power input sensitivity 1.0 V RMS dimensions 18 ¼” W x 15 ¾” D x 7” H weight 55 Lbs power requirements 115/230V - 50/60Hz Rogue Eighty-Eight Owners Manual... -
Page 15: Limited Warranty
Rogue Audio, lightening, power surges, or acts of God. Use of any other than Rogue Audio factory parts may void this warranty... - Page 16 THE ROGUE AUDIO MISSION ..At Rogue Audio we design and manufacture vacuum tube amplifiers. There is fierce competition in this market and we will only survive by delivering a superior product and superior service - we have the engineering and managerial talent to do so.
