Page 1: User Manual

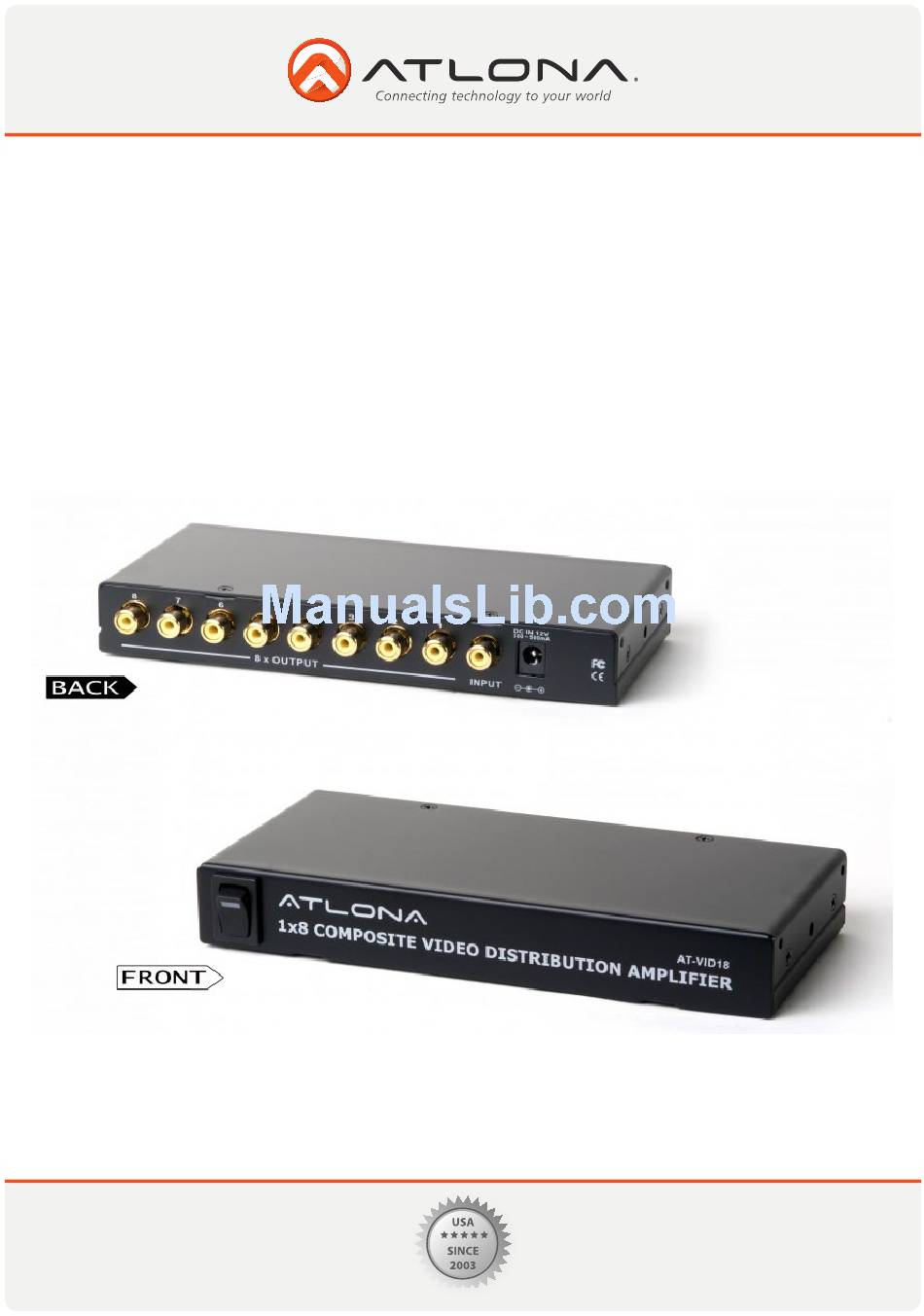

User Manual 1x8 COMPOSITE VIDEO DISTRIBUTION AMPLIFIER AT-VID18 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
5. Panel Descriptions ..........3 5.1 Front Panel ..........3 5.2 Rear Panel ..........3 6. Connection and Installation ..........4 7. Safety Information ..........5 8. Warranty ..........6 9. Atlona Product Registration ..........7 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
With 1 Composite Video Input and 8 Composite Video Outputs, the AT-VID18 is capable of sending signal from one source to all 8 desired displays at the same time at lengths up to 200ft without signal degradation. This unit is perfect for applications for distributing signals from VCRs, Camcorders, Video Game Consoles, DVDs, Satellite Receivers, Set Top Boxes, etc. -
Page 4: Package Contents
PACKAGE CONTENTS 1. AT-VID18 Distribution Amplifier x 1 2. Instruction Manual x 1 3. RCA to RCA video cable 6ft (2m) x 1 4. Universal AC Adaptor : 12V DC PANEL DESCRIPTIONS 1. Front Panel 1. Power Indication LED: LED illuminates red when unit is powered on 2. -
Page 5: Connection And Installation
2. Connect Desired source to the Composite Video Input (RCA). 3. Connect Composite Outputs (RCA) to desired Displays 4. Plug in 12V DC power supply. 5. Power on the monitors. 6. Power on the source. 7. Power on AT-VID18 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Safety Information
It may also cause damage to your AT-VID18. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 7: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 8: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
