2D Barcode Scanning
Using the 2D barcode scanner:
The PP-60 uses a scan engine that supports two-dimensional (2D)
barcode symbols. The effective reading distance of the barcode reader
varies depending on the barcode size.
Scanning 2D Barcodes:

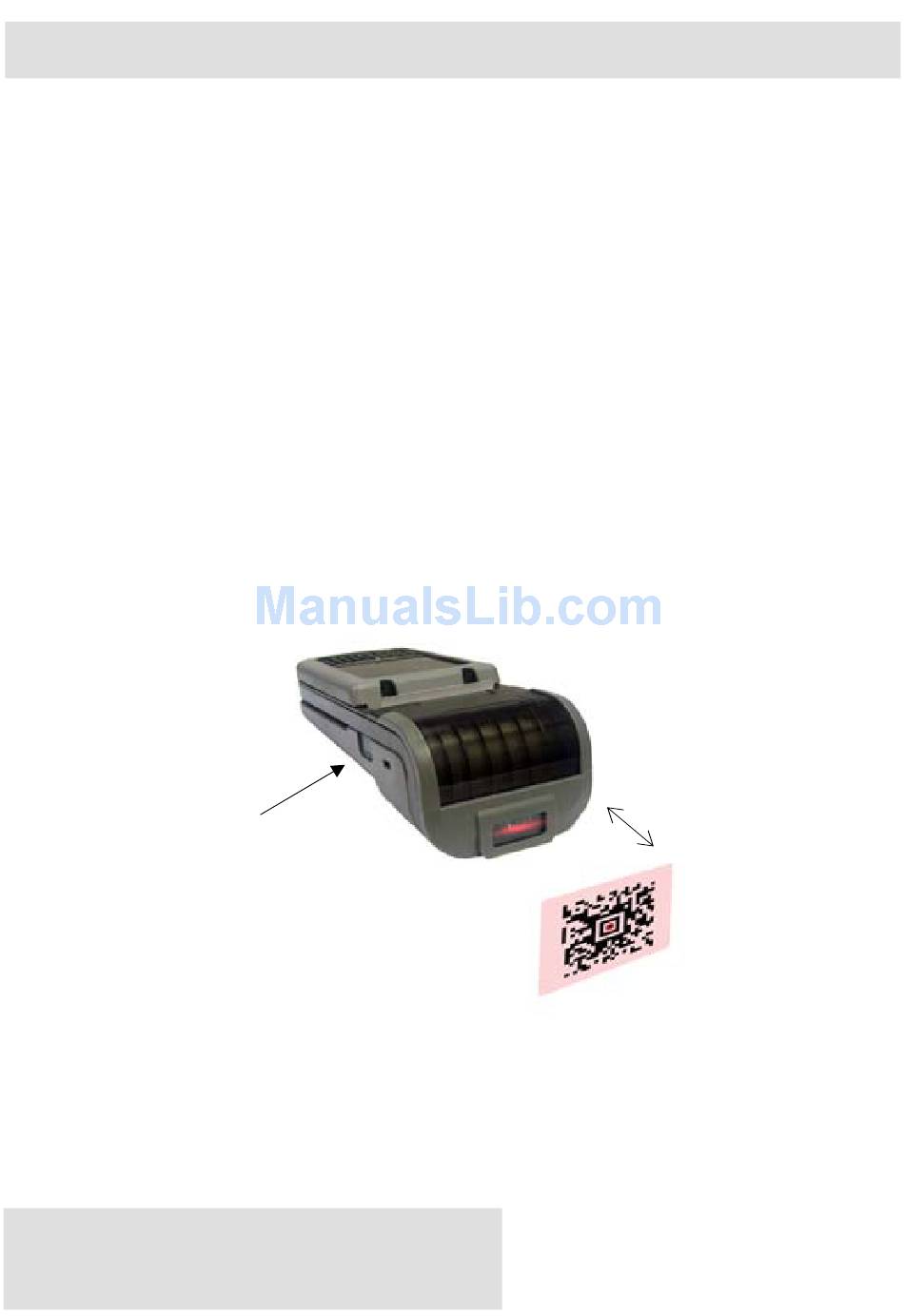

To scan a 2D barcode fist activate the scanner. Then position the scan
head to center the red aiming dot near the center of the barcode and the
scan box is over the outer edges of the barcode as shown in the figure
below.
Slowly pull back the unit increasing the distance between the barcode
and scan head until the barcode has been read by the scanner.
Scan button
Infinite Peripherals, Inc.
www.ipcprint.com
PP-60 User Manual v1.0
Figure 18
. . . . . . . . . . . . . . . . . . . .
~ 10-20 cm
