Getac V100 User Manual

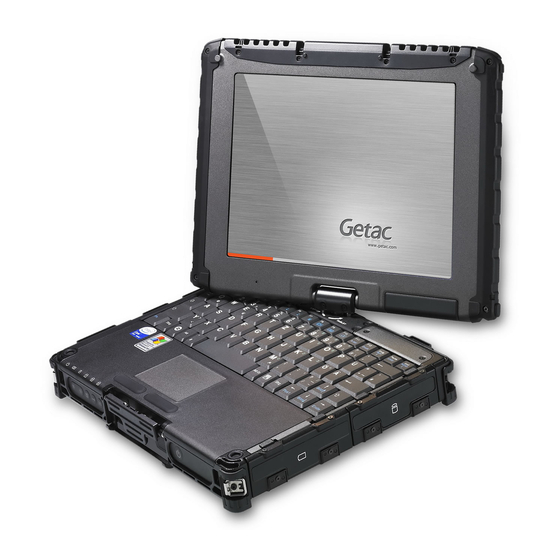

Lightweight rugged laptop
Hide thumbs Also See for V100:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
V100
USER'S MANUAL
Rugged Mobile Computing Solutions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Getac V100

Summary of Contents for Getac V100

  • Page 1 V100 USER’S MANUAL Rugged Mobile Computing Solutions...
  • Page 2 All brand and product names are trademarks or registered trademarks of their respective companies. NOTE The information in this manual is subject to change without notice. For the latest version of the manual, please visit the Getac website at www.getac.com.
  • Page 3 ® Please reference ENERGY STAR related information from www.energystar.gov. ® As an ENERGY STAR Partner, Getac Technology Corporation has ® determined that this product meets the ENERGY STAR guidelines for energy efficiency. ® An ENERGY STAR qualified computer uses 70 % less electricity than computers without enabled power management features.
  • Page 4 ® Over its lifetime, ENERGY STAR qualified equipment in a single home  office (e.g., computer, monitor, printer, and fax) can save enough electricity to light an entire home for more than 4 years.  Power management (“sleep settings”) on computers and monitors can result in much savings annually.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 Getting Started ............. 1-1 Getting the Computer Running ..........1-2 Unpacking ................1-2 Connecting to AC Power ............ 1-3 Opening and Closing the Cover ........1-4 Operating in Tablet Mode ..........1-6 Turning On and Off the Computer ........1-8 Attaching the Handgrip Strap ...........
  • Page 6 Function Keys ..............2-6 Fn Key .................. 2-6 Hot Keys ................2-6 Using the Software Keyboard ..........2-8 Using the Touchpad ..............2-9 Configuring the Touchpad ..........2-11 Navigating on the Screen ............. 2-12 Using the Touchscreen ............. 2-12 Using Multi-touch Gestures (Windows 7 Only) ....2-13 Using the Dual Mode Display (Optional) ......
  • Page 7 Hibernation ................. 3-9 Power-Saving Tips ..............3-10 Chapter 4 Expanding Your Computer ........... 4-1 Connecting an External Monitor (Optional) ......4-2 Connecting a Serial Device ............. 4-3 Connecting a USB Device ............4-4 Connecting an eSATA Device ..........4-5 Using Smart Cards (Optional) ..........4-6 Inserting and Removing a Smart Card ......
  • Page 8 Viewing Images..............7-11 Viewing Image Properties ..........7-14 Adding Notes to an Image ..........7-15 Camera Settings ..............7-16 Using Getac Barcode Reader (Optionl) ....... 7-20 Reading Barcodes ............. 7-20 Toolbar ................7-23 Floating Button and Shortcut Menu ....... 7-24 Barcode Reader Settings ..........
  • Page 9 Battery Pack Guidelines ............8-5 Touchscreen Guidelines ............8-6 When Traveling ............... 8-8 Chapter 9 Troubleshooting ............9-1 Preliminary Checklist ............... 9-2 Solving Common Problems ............ 9-3 Battery Problems ..............9-3 Bluetooth Problems ............9-3 Display Problems ..............9-4 Hardware Device Problems ..........9-5 Hard Disk Drive Problems ...........

  • Page 11: Chapter 1 Getting Started

    Chapter 1 Getting Started Congratulations on purchasing this rugged computer. This chapter first tells you step by step how to get the computer up and running. Then, you will find a section briefly introducing the external components of the computer.

  • Page 12: Getting The Computer Running

    Getting the Computer Running This section guides you through the procedures for getting the computer ready for operation. Unpacking After unpacking the shipping carton, you should find these standard items: Notebook computer  Accessories:   AC adapter  AC power cord ...

  • Page 13: Connecting To Ac Power

    Connecting to AC Power The computer operates either on the external AC power or internal battery power. It is suggested that you use AC power when you start up the computer for the very first time. 1. Make sure that the computer is turned off. 2.

  • Page 14: Opening And Closing The Cover

      Opening and Closing the Cover Open the top cover by pulling up on latch A and releasing latch B () and lifting up the cover (). You can tilt the cover forward or backward for optimal viewing clarity. Latch B Latch A Close the top cover by closing the display ().
  • Page 15 Latch B Latch A...

  • Page 16: Operating In Tablet Mode

    Operating in Tablet Mode In addition to being used as a regular notebook computer (Laptop mode), your computer can also be operated in Tablet mode. In Tablet mode, you operate the computer with a stylus or digitizer pen, or a fingertip, instead of a keyboard or mouse.
  • Page 17 2. Position the latch B on the display side, then bring latch A down () to fix the display in place. Latch B Latch A In Tablet mode, the computer can be operated while holding it as shown. A handgrip strap is supplied to help you hold the computer. (See “Attaching the Handgrip Strap”...

  • Page 18: Turning On And Off The Computer

    Turning On and Off the Computer Turning On 1. Make sure that the computer is connected to AC power. 2. Press the power button ( 3. Each time the computer is turned on, it performs a Power-On Self Test (POST), and the operating system such as Windows should start. Turning Off To turn off the computer power, use the “Shut Down”...

  • Page 19: Attaching The Handgrip Strap

    Attaching the Handgrip Strap To use the handgrip strap, attach its four loops to the four bottom hooks on your computer. Make sure the loops are securely hooked. When you need to operate and hold your computer at the same time, insert your hand through the strap for a firm grip.

  • Page 20: Attaching The Shoulder Strap

    Attaching the Shoulder Strap To use the shoulder strap, secure the snap hooks to the two buckles on your computer. (Select models have four buckles for different positioning of the strap.)  ...

  • Page 21: Taking A Look At The Computer

    Taking a Look at the Computer Front Components Ref Component Description  Strap Holder Two buckles hold the shoulder strap. Four bottom hooks hold the handgrip strap.  OSD Control Toggles the OSD (On Screen Display) control panel ON and OFF. Button Can be re-defined using the Button Manager utility.
  • Page 22 Ref Component Description  RF Button Toggles the wireless LAN /Bluetooth/3G radio frequency ON and OFF. Can be re-defined using the Button Manager utility. (See “Using Button Manager” in Chapter 7 for information.)  Reset Button Serves as the Ctrl+Alt+Del keyboard keys. Can be re-defined using the Button Manager utility.

  • Page 23: Rear Components

    Rear Components Component Description  Strap Holder Two buckles (option) hold the shoulder strap. Four bottom hooks hold the handgrip strap.  Audio Output Connects a set of headphones, external speakers Connector with amplifier, or an audio recording device.  Microphone Connects an external microphone.

  • Page 24: Right-Side Components

    Right-Side Components Component Description  Battery Pack Inside is the battery pack that supplies power to Compartment your computer when external power is not connected.  Hard Disk Drive Inside is the hard disk drive. Compartment Left-Side Components Component Description ...
  • Page 25 Component Description  eSATA/USB Connects an eSATA device such as an external hard Combo Port drive or optical drive. Can also function as a USB port.  RJ-11 Connector Connects the telephone line.  RJ-45 Connector Connects the LAN cable. ...

  • Page 26: Bottom Components

    Bottom Components Component Description  Expansion Bus Inside is the expansion bus connector for using the Connector Port Replicator option.  Memory Slots Inside are the memory slots for expanding the memory size of your computer.

  • Page 27: Top-Open Components

    Top-open Components Component Description  Webcam Lens Allows you to use your computer’s camera function. (option)  GPS Antenna Inside is the antenna for receiving GPS signals. (option)  WLAN Antenna Inside is the antenna for wireless LAN (local area network) transmission.
  • Page 28 Component Description  Light Sensor Detects the surrounding lighting condition for automatic adjustment of the LCD brightness and optional keyboard backlight.  Fingerprint Uses fingerprint verification to protect your Scanner (option) computer against unauthorized access.  Keyboard Serves as the data input device. ...

  • Page 29: Operating Your Computer

    Chapter 2 Operating Your Computer This chapter provides information about the use of the computer. If you are new to computers, reading this chapter will help you learn the operating basics. If you are already a computer user, you may choose to read only the parts containing information unique to your computer.

  • Page 30: Starting And Stopping The Computer

    Starting and Stopping the Computer There are a number of ways to start and stop the computer. Starting the Computer You always start the computer using the power button. A computer starts up with an operating system (OS) existing on the storage device such as the hard disk.
  • Page 31 To stop in this Do this... To start up or mode... resume again Standby/Sleep Depending on your settings in Press any key. Windows, you can place the computer in Standby/Sleep mode by:  Closing the display cover  Pressing the Fn+F10 hot key ...

  • Page 32: Using The Internal Keyboard

    Using the Internal Keyboard Your keyboard has all the standard functions of a full-sized computer keyboard plus an Fn key added for specific functions. The standard functions of the keyboard can be further divided into four major categories: Typewriter keys ...

  • Page 33: Numeric Keypad

    Numeric Keypad A 15-key numeric keypad is embedded in the typewriter keys as shown next: Numeric keys facilitate entering of numbers and calculations. When Num Lock is on, the numeric keys are activated; meaning you can use these keys to enter numerals. ...

  • Page 34: Function Keys

    Function Keys On the top row of the keys are the function keys: . Function keys are multi-purpose keys that perform functions defined by individual programs. Fn Key key, at the lower left corner of the keyboard, is used with another key to perform the alternative function of a key.

  • Page 35: Windows Keys

    Description Decreases the LCD brightness (20 levels). Increases the LCD brightness (20 levels). Switches the system sound output off (mute) and on. Switches LCD backlight on and off. Switches the display output when external devices are connected. NOTE: This function only applies to Plug & Play display devices.

  • Page 36: Using The Software Keyboard

    Using the Software Keyboard When using the computer in Tablet mode, you can use the software keyboard. 1. Press the software keyboard button ( ) and the software keyboard will appear onscreen. (The above is for reference only. The actual one depends on your Windows version.) 2.

  • Page 37: Using The Touchpad

    Using the Touchpad The touchpad is a pointing device that allows you to communicate with the computer by controlling the location of the pointer on the screen and making selection with the buttons. The touchpad consists of a rectangular pad (work surface) and a left and right buttons.
  • Page 38 Term Action Point Move your finger on the pad until the cursor points to the selection on the screen. Click Press and release the left button. –or– Tap gently anywhere on the pad. Double-click Press and release the left button twice in quick succession. –or–...

  • Page 39: Configuring The Touchpad

    Configuring the Touchpad You may want to configure the touchpad to suit your needs. For example, if you are a left-handed user, you can swap the two buttons so that you can use the right button as the left button and vice versa. You can also change the size of the on-screen pointer, the speed of the pointer, and so on.

  • Page 40: Navigating On The Screen

    Navigating on the Screen The screen of your computer is touch-sensitive. You can control the location of the cursor/pointer on the screen using your finger or the included stylus or digitizer pen to communicate with the computer. IdeaCom Calibration CalTouch Using the Touchscreen If your computer is equipped with the touchscreen feature, you can use your finger or the included stylus to navigate and select objects on the screen.

  • Page 41: Using Multi-Touch Gestures (Windows 7 Only)

    Here are some common terms that you should know when using the touchscreen: Term Action Click/Point Tap gently on the touchscreen. Double-click Tap twice on the touchscreen rapidly. Drag and Tap lightly on the touchscreen and move your finger drop until you reach your destination (drag).
  • Page 42 Gestures Actions Descriptions = finger down; = finger up) Zoom Use zooming to make (Pinch) an item (a photo for example) on the screen larger or smaller. The gesture works in applications that Move two fingers apart/toward each support mouse wheel other.
  • Page 43 Gestures Actions Descriptions = finger down; = finger up) Two- The function is defined finger by applications that support the specific gesture. Tap two fingers at the same time (where the target is in the midpoint between the fingers). Flicks Flick left or right to navigate back and forward in a browser...

  • Page 44: Using The Dual Mode Display (Optional)

    Using the Dual Mode Display (Optional) Dual mode display incorporates both touchscreen and digitizer functions. The display is set to Touchscreen mode by default. Touchscreen mode provides all the functionalities that an ordinary touchscreen has. When the computer receives signals from the active digitizer pen, the display automatically switches to Digitizer mode.
  • Page 45 Term Action Wake up The digitizer pen automatically enters Sleep mode after 30 seconds of inactivity. To start using the pen, tap the tip of the pen to activate it. Move Move the cursor pointed by the digitizer pen. Click/Point Tap gently on the display.
  • Page 46     ...

  • Page 47: Using The Hard Disk Drive

    Using the Hard Disk Drive Your computer comes with a removable 2.5-inch SATA (serial ATA) hard disk drive. You can enable AHCI (Advanced Host Controller Interface), a programming interface for SATA host controllers. AHCI defines transactions between the SATA controller and software and enables advanced performance and usability with SATA.

  • Page 48: Using Osd Control Panel

    Using OSD Control Panel The OSD Control Panel allows you to easily activate or operate certain functions on your computer. To use the OSD Control Panel: 1. Press the button on the front of your computer. 2. The following screen appears, providing several control buttons. For detailed descriptions of the Control Panel, click the button.

  • Page 49: Using The Fingerprint Scanner (Optional)

    Using the Fingerprint Scanner (Optional) The fingerprint scanner provides a strong authentication mechanism based on fingerprint recognition. You can log on to your computer or sign in to a web site with your fingerprint instead of a password. You can also encrypt files and folders with your fingerprint.
  • Page 50 You can then use the Fingerprint Software to set up how the fingerprint authentication works. For detailed information, click Start  All Programs  Fingerprint Software  Help.

  • Page 51: Using The Video Features

    Using the Video Features The video subsystem of your computer features: 10.4-inch wide TFT (Thin-Film Transistor) color LCD display with  1024×768 XGA resolution Simultaneous display on LCD and external monitor, which is useful when  you have a presentation as you can control the screen from your computer and face the audience at the same time (option) Multi-display capability, which allows you to expand your desktop on the ...

  • Page 52: Configuring The Display Modes

    Configuring the Display Modes Your computer has been set to a default resolution and number of colors before shipment. You can view and change display settings through your operating system. See your operating system documentation or online help for specific information. For displaying in higher resolutions, you can connect an external monitor that supports higher resolutions.
  • Page 53 For a Model without 3G Module Primary Primary Secondary Secondary Primary Landscape Portrait Landscape Portrait Landscape Display Display Display Display Display For a Model with 3G Module Primary Primary Secondary Primary Landscape Portrait Landscape Landscape Display Display Display Display...

  • Page 54: Using The Audio Features

    Using the Audio Features   The audio subsystem of your computer features: Built-in sound system for recording and playing sound on your computer  Azalia interface (high density audio codec)  Built-in Speaker  External audio connectors  Ways of playing and recording sound vary with the operating system used. See your operating system documentation or online help for specific information.

  • Page 55: Connecting Audio Devices

    Connecting Audio Devices For higher audio quality, you can send or receive sound through external audio devices.  Audio Output Connector ( ) can be connected to speakers, headphones, or earphone set. Microphone Connector ( ) can be connected to an external ...

  • Page 56: Using G-Camera Lite

    Using G-Camera Lite G-Camera Lite allows you to take pictures with the Webcam, if supplied with your computer. To start G-Camera Lite, click Start  All Programs  G-Camera Lite  G-Camera Lite. The camera control panel appears. Mode Current settings Setting buttons for different modes Click the Shutter button...

  • Page 57: Using The Communication Features

    Using the Communication Features Using the Modem The internal 56 K fax/data modem allows you to use the telephone line to communicate with others by fax, email, or connect to an online service or bulletin board. To connect the telephone line to the modem, connect one end of the modem cable to the RJ-11 connector on the computer and the other end to the phone line.

  • Page 58: Using The Lan

    Using the LAN The internal 10/100/1000Base-T LAN (Local Area Network) module allows you to connect your computer to a network. It supports data transfer rate up to 1000 Mbps. To connect the network cable to the LAN module, connect one end of the LAN cable to the RJ-45 connector on the computer and the other end to the network hub.

  • Page 59: Using The Wireless Lan

    Using the Wireless LAN Depending on your model, an internal mini PCI-E wireless LAN (WLAN) card may have been pre-installed by your computer manufacturer at the factory. This card allows you to access corporate networks or the Internet in a wireless environment.

  • Page 60: Connecting To A Wireless Network

    Turning Off/On the WLAN Radio Your computer has a built-in Fn+F2 WLAN hot key to switch the WLAN on/off. If you need to temporarily turn off the radio, press Fn+F2. To resume network connection, press Fn+F2 again. It takes approximately 30 seconds for your computer to make a successful WLAN connection and approximately 10 seconds to disconnect.

  • Page 61: Using The Bluetooth Feature (Optional)

    4. Click to select a wireless network to connect to, and then click Connect. 5. Depending on the settings, you may be asked to enter a wireless security password (encryption key). For more information on the Intel PROSet Wireless utility, click Help? in the Intel(R) PROSet/Wireless window.
  • Page 62 2. To search for Bluetooth devices, use any of the following three methods: Method 1: Right click the Bluetooth icon located in the taskbar in the lower-right part of the screen. Select Explore Bluetooth Places. Method 2: Right click the Bluetooth icon located in the taskbar in the lower-right part of the screen.
  • Page 63 Method 3: Use Windows File Manager to browse to Bluetooth Places and select Search Devices. 3. Select the device you want to connect from the search results. 4. Depending on the type of Bluetooth device that you want to connect to, you will need to enter the pertinent information.

  • Page 64: Using The Gps

    Using the GPS GPS (Global Positioning System) is a constellation of 24 well-spaced satellites that orbit the Earth and make it possible for devices enabled with GPS receivers to pinpoint their location. You need to install third-party GPS navigation software to take advantage of the GPS feature.

  • Page 65: Chapter 3 Managing Power

    Chapter 3 Managing Power Your computer operates either on external AC power or on internal battery power. This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way.

  • Page 66: Ac Adapter

    AC Adapter     The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct Current) power because your computer runs on DC power, but an electrical outlet usually provides AC power. It also charges the battery pack when connected to AC power.

  • Page 67: Battery Pack

    Battery Pack The battery pack is the internal power source for the computer. It is rechargeable using the AC adapter. The operating time of a fully charged battery pack depends on how you are using the computer. When your applications often access peripherals, you will experience a shorter operating time.

  • Page 68: Checking The Battery Level

    Checking the Battery Level By Operating System You can check the approximate battery level using the battery meter function of the operating system. To read the battery level in Windows, click the battery icon on the taskbar. By Gas Gauge On the exterior side of the battery pack is a gas gauge for displaying the estimated battery charge.

  • Page 69: Replacing The Battery Pack

    The value of the corresponding green segment indicates the relative percentage of the battery charge. The battery pack is fully discharged when you see no segment glowing green. Replacing the Battery Pack   If you often rely on battery power for a long period of time while traveling, you may consider the purchase of an additional battery pack from your dealer and keep it with you in a fully charged state as a backup.
  • Page 70 4. Pull on the ribbon strip to remove the battery pack. 5. Slide the new battery pack all the way into the slot. Make sure to observe the correct orientation (the ribbon strip must face outward for future battery back removal). 6.

  • Page 71: Battery Low Signals And Actions

    Battery Low Signals and Actions When the battery is low, Windows gives warning messages and the Battery Charge Indicator ( ) blinks yellow to alert you. Immediately save your data upon Battery Low. The remaining operating time depends on how you are using the computer. If you are using the audio subsystem, PC card, hard or USB flash disk, the battery might run out of charge very quickly.

  • Page 72: Power Management

    Power Management Your computer supports ACPI (Advanced Configuration and Power Interface) for power management. The power management feature allows you to reduce the power consumption for energy saving. With an ACPI-compliant operating system such as Windows, power supply to different computer components is controlled on an as-needed basis. This allows maximum power conservation and performance at the same time.

  • Page 73: Hibernation

    Hibernation Hibernation is a very useful feature. People frequently open many applications when they use computers. It takes some time to get all these applications open and running, and normally they all have to be closed before the computer can be turned off. When you use the hibernation feature, you do not have to close the applications.

  • Page 74: Power-Saving Tips

    Power-Saving Tips Aside from enabling your computer’s power saving mode (see previous section), you can do your part to maximize the battery’s operating time by following these suggestions. Do not disable Power Management.  Decrease the LCD brightness to the lowest comfortable level. ...

  • Page 75: Expanding Your Computer

    Chapter 4 Expanding Your Computer You can expand the capabilities of your computer by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter.

  • Page 76: Connecting An External Monitor (Optional)

    Connecting an External Monitor (Optional) If you want the benefits of a larger display screen with higher resolution, you can connect an external display monitor to your computer. Follow this procedure to connect an external monitor: 1. Make sure that the computer is not turned on. 2.

  • Page 77: Connecting A Serial Device

    Connecting a Serial Device Your computer has one or two serial port (depending on model) for connecting a serial device such as a serial mouse or serial communication device (modem). Follow this procedure to connect a serial device: 1. Make sure the computer is not turned on 2.

  • Page 78: Connecting A Usb Device

    Connecting a USB Device Your computer has a USB port for connecting USB devices, such as a digital camera, scanner, printer, modem, and mouse. The USB port support transfer rates up to 12 MB/s for USB 1.1 devices and 480 MB/s for USB 2.0 devices. To connect a USB device, simply plug the device cable to one of the USB ports.

  • Page 79: Connecting An Esata Device

    Connecting an eSATA Device Your computer has an eSATA/USB Combo port for connecting eSATA devices (such as an external hard drive and external optical drive) / USB devices (see previous section). The port supports SATA II with transfer rate up to 3.0Gbit/s. It can provide 5V power if a certified USB-eSata combo cable is used.

  • Page 80: Using Smart Cards (Optional)

    Using Smart Cards (Optional) Your computer may have a smart card slot for additional security feature, providing tamper-proof storage of user and account identity. A smart card is a type of plastic card embedded with a computer chip that stores and transacts data between you (user) and the computer.
  • Page 81 To remove a smart card: 1. Make sure that the third-party smart card software is not accessing the smart card. 2. Pull the card out of the slot.

  • Page 82: Using Pc Cards

    Using PC Cards Your computer has one or two PC card slots that support CardBus specifications. The slots can accommodate a type II card. Typical type II cards are flash memory, SRAM, modem, LAN, and SCSI cards. Inserting and Removing a PC Card ...
  • Page 83 3. When a new card is seated, the computer will detect it and try to install the appropriate driver. Follow the on-screen instructions to complete the process. To remove a PC card: 1. Double-click on the Safely Remove Hardware icon ( for Windows Vista/Windows 7 or for Windows XP) found on the Windows taskbar...

  • Page 84: Using Expresscards (Optional)

    Using ExpressCards (Optional) Your computer may have an ExpressCard slot. ExpressCard supports the PCI Express and USB 2.0 serial data interfaces (supporting speeds of up to 2.5 Gbps and 480 Mbps respectively), improving speed in data transfer while conserving power usage. ExpressCard Type The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or 34 mm (ExpressCard/34) wide ExpressCard.

  • Page 85: Inserting And Removing An Expresscard

    Inserting and Removing an ExpressCard To insert an ExpressCard: 1. Locate the ExpressCard slot on the left side of the computer. 2. Slide the ExpressCard, with its label facing up, all the way into the slot until the rear connectors click into place. Eject button 3.

  • Page 86: Using The Card Reader

    Using the Card Reader    Your computer has a Card Reader. The Card Reader is a small drive for reading from and writing to removable storage cards (or called memory cards). The Card Reader supports Secure Digital (SD) cards. To insert a storage card: 1.
  • Page 87 2. Right-click the drive with the card and select Eject. 3. Pull the card out of the slot.

  • Page 88: Using The Port Replicator (Optional)

    Using the Port Replicator (Optional) A port replicator is available as an option. This device eliminates the hassles of having you connect and disconnect the various cables when carrying your computer around and allows a variety of peripherals to be connected including a headphone or microphone, etc.
  • Page 89 2. Connect your port replicator to the expansion bus connector. For more detailed information, refer to the instructions supplied with the port replicator.

  • Page 90: System Memory Upgrade

    System Memory Upgrade You can upgrade your computer by changing system memory to a maximum of 8 GB on the DDR3 SO-DIMM slot. To install the RAM module: 1. Remove the battery pack (see chapter 3) and make sure that the computer is not connected to AC power.
  • Page 91 4. To install the RAM module, match the module's notched part with the socket's projected part and firmly insert the module into the socket at a 20-degree angle. Then push down until the retaining clips lock the module into position. 5.

  • Page 93: Using Bios Setup And System Recovery

    Chapter 5 Using BIOS Setup and System Recovery BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output System) settings of the computer. BIOS is a layer of software, called firmware, that translates instructions from other layers of software into instructions that the computer hardware can understand.

  • Page 94: Bios Setup

    BIOS Setup When to Use You need to run BIOS Setup Utility when:  You see an error message on the screen requesting you to run BIOS Setup Utility. You want to restore the factory default BIOS settings.  You want to modify some specific settings according to the hardware. ...

  • Page 95: Moving Around And Making Selections

    Main Advanced Security Boot Exit Model: V100 SATA HDD: [INTEL SSDSA2M080G2GC] 80026MB System Time: [16:33:08] System Date: [06/10/2010] Processor Info: Intel(R)Core(TM)i7 CPU U640@1.20GHz Installed System Memory: 4096 MB System BIOS Version: R1.01 KBC/EC BIOS Version: R1.01e LAN MAC Address: 00-22-20-0A-74-F9...
  • Page 96 Function  ,  Selects a menu title.  ,  Selects an item or option. + / – Changes the value. Enter 1) Brings up the sub-menu when available. 2) Opens or closes the option window when an item is selected.

  • Page 97: Main Menu

    The Main menu contains the system date and time settings as well as shows the basic configuration of the system. Main Advanced Security Boot Exit Model: V100 SATA HDD: [INTEL SSDSA2M080G2GC] 80026MB System Time: [16:33:08] System Date: [06/10/2010] Processor Info: Intel(R)Core(TM)i7 CPU U640@1.20GHz...

  • Page 98: Advanced Menu

    Advanced Menu The Advanced menu contains the advanced settings as shown next. Main Advanced Security Boot Exit Item Specific Help Japanese Keyboard: [Disabled] Disabled SATA Mode [AHCI] ForceEntry Total Graphics Memory: [MaxDVMT] Serial port COM1: [Enabled] Serial port COM2: [Enabled] Serial port COM3: [Enabled] Serial port COM4:...

  • Page 99: Security Menu

    Intel Trusted Execution enables utilization of additional hardware capabilities provided by Intel® Trusted Execution Technology. Intel AMT Setup Prompt sets if the prompt for entering Intel AMT Setup appears during POST. If disabled, you cannot enter Intel AMT Setup. Security Menu The Security menu contains the security settings, which safeguard your system against unauthorized use.
  • Page 100   Password on Boot allows you to enable or disable the entering of password for booting up your system. Once the password is successfully set and this item is enabled, it is required for booting up the system. TPM Support enables or disables TPM (Trusted Platform Module) support. The TPM is a component on your computer’s mainboard that is specifically designed to enhance platform security by providing a protected space for key operations and other security critical tasks.

  • Page 101: Boot Menu

    Boot Menu The Boot menu sets the sequence of the devices to be searched for the operating system. Main Advanced Security Boot Exit Item Specific Help Boot priority order: 1: USB FDC: Keys used to view or 2: SATA HDD: INTEL SSDSA2M080G2GC – (S1) configure devices: 3: USB KEY: Up and Down arrows...

  • Page 102: Exit Menu

    Exit Menu The Exit menu displays ways of exiting BIOS Setup Utility. After finishing with your settings, you must save and exit so that the changes can take effect. Main Advanced Security Boot Exit Item Specific Help Exit Saving Changes Exit Discarding Changes Exit System Setup and Load Setup Defaults...

  • Page 103: System Recovery

    System Recovery Use System Recovery when: Your Windows operating system does not start at all.  You want to restore the factory default Windows settings.  To run System Recovery: 1. During system startup when the following screen appears, press Ctrl + Alt + F2 keys for four seconds.
  • Page 104 1. The recovery software is solely the purpose of reinstalling or restoring software associated with the hard disk of this operating GETAC machine. 2. Except the above, no other use is granted hereunder. **************************************** (1)Yes, I agree to the provisions of this agreement and wish to continue.
  • Page 105 5. After the recovery process has been completed successfully, the GSI (GETAC Smart Installer) screen is displayed at the first boot-up of Windows operating system. 6. GSI will automatically perform system hardware detection and driver installation. After GSI has completed the whole process successfully,...

  • Page 107: Installing Software Drivers And Utilities

    Chapter 6 Installing Software Drivers and Utilities To take full advantage of the unique features of your computer, drivers and utilities must be installed. If you purchased the computer with Windows pre-installed, your dealer may have already installed the drivers and utilities. If not, you need to install them using the disc supplied with your computer.

  • Page 108: How To Use The Driver Disc

    How to Use the Driver Disc     An autorun program is provided on the driver disc to help you easily install the drivers. As you insert the disc, the autorun program automatically starts. If you need to start the program manually, run the Autorun.exe program from the driver disc.

  • Page 109: Installation For Windows Xp

    Installation for Windows XP After selecting the operating system Windows XP, the driver installation menu appears. To install a driver, just click the particular button and follow the onscreen instructions to complete the installation. Drivers on the First Page Item Description Device Driver Ensures the full function of the other drivers.

  • Page 110: Drivers On The Second Page

    Item Description vPro Utility Installs the utility that starts the setup and configuration process for an Intel ® vPro system in an enterprise environment. WiFi Installs the WLAN driver/utility for wireless network connection. Touch Screen Installs the touchscreen driver/utility for using the touchscreen feature (select models only).

  • Page 111: Drivers On The Third Page

    Item Description Installs the GPS driver for using the GPS feature (select models only). The instructions for installing the GPS driver will appear. GPS Filter Works with the previous item. You must install this driver after installing the above driver to complete the GPS driver installation.
  • Page 112 Installs the video capture Capture driver. USB to COM Installs the USB-to-COM driver. Installs the USB-to-LAN USB to LAN driver. Getac Utility Brings up a submenu as shown on the right. Getac Installs the G-Manager Manager utility that manages and configures various system resources.
  • Page 113 Item Description V-GPS Installs the V-GPS utility that displays GPS status (select models only). Barcode Installs the Barcode Reader program (select models only). Reader...

  • Page 114: Installation For Windows Vista

    Installation for Windows Vista After selecting the operating system Windows Vista, the driver installation menu appears. To install a driver, just click the particular button and follow the onscreen instructions to complete the installation. Drivers on the First Page Item Description Device Driver Ensures the full function of the other drivers.

  • Page 115: Drivers On The Second Page

    Drivers on the Second Page Item Description vPRO Utility Installs the utility that starts the setup and configuration process for an Intel ® vPro system in an enterprise environment. Digitizer Installs the digitizer driver for using the digitizer feature (select models only). Installs the TPM driver/utility for using the TPM (Trusted Platform Module) support for security.

  • Page 116: Drivers On The Third Page

    Item Description WCDMA Brings up a submenu as shown on the right. Install the three items for using the 3G feature (select models only). Drivers on the Third Page Item Description Smart Card Installs the SmartCard driver for accessing SmartCards Reader (select models only).
  • Page 117 Installs the video capture Capture driver. USB to COM Installs the USB-to-COM driver. Installs the USB-to-LAN USB to LAN driver. Getac Utility Brings up a submenu as shown on the right. Installs the G-Manager Getac utility that manages and Manager configures various system resources.

  • Page 118: Installation For Windows 7

    Installation for Windows 7 After selecting the operating system Windows 7, the driver installation menu appears. To install a driver, just click the particular button and follow the onscreen instructions to complete the installation. Drivers on the First Page Item Description Device Driver Ensures the full function of the other drivers.

  • Page 119: Drivers On The Second Page

    Drivers on the Second Page Item Description vPro Utility Installs the utility that starts the setup and configuration process for an Intel ® vPro system in an enterprise environment. Digitizer Installs the digitizer driver for using the digitizer feature (select models only). Installs the TPM driver/utility for using the TPM (Trusted Platform Module) support for security.

  • Page 120: Drivers On The Third Page

    Item Description WCDMA Brings up a submenu as shown on the right. Install the three items for using the 3G feature (select models only). Drivers on the Third Page Item Description Smart Card Installs the SmartCard driver for accessing SmartCards Reader (select models only).
  • Page 121 Installs the video capture Capture driver. USB to COM Installs the USB-to-COM driver. Installs the USB-to-LAN USB to LAN driver. Getac Utility Brings up a submenu as shown on the right. Installs the G-Manager Getac utility that manages and Manager configures various system resources.

  • Page 123: Using Getac Software

    Chapter 7 Using Getac Software Getac software is provided for enhanced capabilities and management. This chapter describes how to use the software.

  • Page 124: Using G-Manager

    Monitoring  GPS Status  To start up G-Manager, do one of the following: Click Start  All Programs  GETAC Utility, or  Right-click on the GETAC Utility icon ( ) located on the taskbar and  click G-Manager.
  • Page 125 For detailed descriptions of G-Manager, click...

  • Page 126: Using Button Manager

    Using Button Manager The five quick buttons located on the front of your computer come with predefined functions. You can use Button Manager to re-define the buttons. 1. Click Start  Programs  Button Manager  Button Manager. The following screen appears. 2.
  • Page 127 4. Repeat the steps for the other buttons that you want to re-define. 5. Click Save to save your configurations. 6. Click Start Flash to start the flash process, the percentage of flash process will be shown. 7. Click Load the next time you use Button Manager to load any previously saved configurations.

  • Page 128: Using Getac Camera (Optional)

    Using Getac Camera (Optional) Getac Camera is a geo-tagging camera program, which allows you to stamp geographical information on photos as watermarks and embed such information into JPEG files as EXIF 2.2 metadata.    To start the program, tap the Getac Camera program icon on Windows desktop.
  • Page 129          Screen Descriptions Elements  Preview/Display Displays the live image in Camera mode and the Window selected image in View mode.  GPS Status Indicates if the GPS positioning is completed ( or not ( ...
  • Page 130 Screen Descriptions Elements  Status Display Indicates the use of a feature. GPS Lock in use Front/Bottom camera in use Night mode in use Continuous/Timer mode in use  Control Buttons Perform immediate tasks on the current image. (See “Camera Controls” and “Viewing Controls” for information.) ...

  • Page 131: Taking Pictures

    Taking Pictures 1. Start the Getac Camera program. You will be in Camera Mode. 2. For camera settings such as timer, brightness, etc., tap . (See “Camera Settings” for detailed information.) If needed, you can turn on/off GPS lock or watermark using the buttons on the right.
  • Page 132 Camera Controls Two control buttons to the right of the Preview Window allow you to turn on or off GPS lock and watermark. Control Buttons Descriptions Turns on/off GPS lock. The icon in the button shows the current status. GPS lock allows you record the exact location of the object you are shooting instead of where you are using the computer to shoot the picture.

  • Page 133: Viewing Images

    Viewing Images at the bottom of the screen to switch to View Mode. While in Camera Mode, you can also switch to View Mode by either of the two methods: Method 1: Double tap the thumbnail in the Thumbnail Tray. ...
  • Page 134 Selecting an Image to View To scroll through the Thumbnail Tray, drag the tray toward the left or right. To select an image to view, use either of the two methods: Method 1: Double tap the thumbnail in the Thumbnail Tray. ...
  • Page 135 Via Control Via Multi-touch Operations Buttons (Select Models Only*)  Restore to the 100% scale Rotate to the right/left by 15 Drag two fingers in a clockwise/counterclockwise circular motion. * Multi-touch operations are available only on computer models with multi-touch screen and Windows 7.

  • Page 136: Viewing Image Properties

    Viewing Image Properties Switch to View Mode, select the image, and tap to view the properties. Scroll down for more information. To switch back to image view, tap...

  • Page 137: Adding Notes To An Image

    Adding Notes to an Image 1. Switch to View Mode, select the image, and tap 2. In properties view, tap 3. Type your notes in the entry field. 4. When completed, tap The first three lines of the notes show on the screen.

  • Page 138: Camera Settings

    Camera Settings To change camera settings, tap at the bottom of the screen. The Settings window appears showing the setting item previously accessed. Along the left of the window are all the setting items. You can drag this area up or down to scroll through the items. The middle of the window displays the current item and setting value.
  • Page 139 Setting Name Descriptions Items White Five choices from which you can select one that Balance matches the current light source: Automatic (default), Sunshine, Cloudy, Fluorescence, and Incandescence. NOTE: (Automatic) Brightness Adjusts the brightness level. The range of levels depends on computer models. You can tap to restore to the default level.
  • Page 140 Setting Name Descriptions Items Camera Three choices for the shooting mode: Mode Normal This is the default setting whenever the program is started. Continuous Continuous shooting of 3 pictures (1 shot per second). Timer 5-second countdown before shooting. Status Turns On (default) or Off the display of the Display status indicators.
  • Page 141 Setting Name Descriptions Items Folder Path Sets the storage location of the images. To change to a different folder, tap Browse and select the folder. The default location is User\[user name]\Pictures folder that contains the original images. A subfolder named Thumbs contains a copy of the same images (with filename prefix Thumb_) for the thumbnail view.

  • Page 142: Using Getac Barcode Reader (Optionl)

     UPC-A, UPC-E) 2D – QR Code  NOTE: Reading Barcodes    1. Tap the Getac Barcode Reader program icon on Windows desktop to start the program. The Barcode Reader screen is always on top of other screens.
  • Page 143 Preview Toolbar window If this is the first time you start the program after it has been installed, the Settings screen instead of the main screen appears. (See “Barcode Reader Settings” for information.) 2. Start your processing software and open a new or existing file. Place the insertion point (or called cursor) where you want the data to be entered.
  • Page 144 4. Wait for the program to focus and read the barcode. 5. When the reading is successful, the green indicator lights up. The barcode type and decoded data are shown at the bottom. The Accept and Discard buttons appear. Indicator Barcode information 6.

  • Page 145: Toolbar

    If you want to discard the data, tap the Discard button. 7. The orange indicator lights up again ready for the next barcode. Repeat the same action for the next entry. 8. To exit the program, tap and hold the floating button and select Exit from the shortcut menu.

  • Page 146: Floating Button And Shortcut Menu

    Floating Button and Shortcut Menu Whenever the program is started, the floating button appears at the upper right corner of the computer screen. This button provides a quick way to bring up the hidden Barcode Reader main screen. When tapping and holding the button, the shortcut menu appears.

  • Page 147: Barcode Reader Settings

    Barcode Reader Settings To set up Barcode Reader, tap in the Barcode Reader main screen or select Settings from the shortcut menu. The Settings screen with three tabs appears.
  • Page 148 Tabs Setting Items Descriptions Input Appending Sets how individual barcodes are separated. Character Enter Each barcode begins in a new line. (default) Barcodes are separated by tabs. None Barcodes are not separated. Following Sets if the Barcode Reader main screen moves the Insertion when necessary.
  • Page 149 To restore default settings, tap the Default button. To save any changes you have made, tap OK. All the changes remain effective until you change them again. If you want to leave without applying any changes, tap Cancel or...

  • Page 151: Caring For The Computer

    Chapter 8 Caring for the Computer Taking good care of your computer will ensure a trouble-free operation and reduce the risk of damage to your computer. This chapter gives you guidelines covering areas such as protecting, storing, cleaning, and traveling.

  • Page 152: Protecting The Computer

    Protecting the Computer To safeguard the integrity of your computer data as well as the computer itself, you can protect the computer in several ways as described in this section. Using an Anti-Virus Strategy You can install a virus-detecting program to monitor potential viruses that could damage your files.

  • Page 153: Using The Cable Lock

    Using the Cable Lock You can use a Kensington-type cable lock to protect your computer against theft. The cable lock is available in most computer stores. To use the lock, loop the lock cable around a stationary object such as a table.

  • Page 154: Taking Care Of The Computer

    Taking Care of the Computer Location Guidelines  For optimal performance, use the computer where the recommended temperature is between 0C (32F) and 55C (131F) – actual operating temperature depending on product specifications. Avoid placing the computer in a location subject to high humidity, ...

  • Page 155: Cleaning Guidelines

    a screen saver or other software that prevents the power management from working. Cleaning Guidelines  Never clean the computer with its power on.  Use a soft cloth moistened with water or a non-alkaline detergent to wipe the exterior of the computer. Gently wipe the display with a soft, lint-free cloth.

  • Page 156: Touchscreen Guidelines

    It is recommended that you do not charge the battery pack more than  once a day. It is recommended that you charge the battery pack with the computer’s  power off.  To maintain the battery pack’s operating efficiency, store it in a cool dark place removed from the computer and with 30% ~ 40% charge remaining.
  • Page 157 To remove hard to remove dirt, blow some steam on the particular area and gently wipe away using a soft cloth. Turn off the computer power when cleaning the display. Cleaning the  display with the power on may cause improper operation. ...

  • Page 158: When Traveling

    When Traveling Before traveling with your computer, make a backup of your hard disk  data into flash disks or other storage devices. As an added precaution, bring along an extra copy of your important data. Make sure that the battery pack is fully charged. ...

  • Page 159: Chapter 9 Troubleshooting

    Chapter 9 Troubleshooting Computer problems can be caused by hardware, software, or both. When you encounter any problem, it might be a typical problem that can easily be solved. This chapter tells you what actions to take when solving common computer problems.

  • Page 160: Preliminary Checklist

    Preliminary Checklist Here are helpful hints to follow before you take further actions when you encounter any problem: Try to isolate which part of the computer is causing the problem.  Make sure that you turn on all peripheral devices before turning on the ...

  • Page 161: Solving Common Problems

    Solving Common Problems Battery Problems The battery does not charge (Battery Charge indicator does not light yellow). Make sure that the AC adapter is properly connected.  Make sure that the battery is not too hot or cold. Allow time for the ...

  • Page 162: Display Problems

    Make sure that the distance between the two devices are not over 10  meters or that there are no walls or other obstructions between the devices.  Make sure that the other device is not in “Hidden” mode.  Make sure that both devices are compatible.

  • Page 163: Hardware Device Problems

    Simultaneous display/multi-display does not work.  Make sure that you turn on the external monitor before turning on the computer. Press the Fn+F9 hot key to toggle through the display options or change  the settings in Display Properties in Windows. Hardware Device Problems The computer does not recognize a newly installed device.

  • Page 164: Keyboard, Mouse, And Touchpad Problems

    Keyboard, Mouse, and Touchpad Problems The keyboard does not respond. Try connecting an external keyboard. If it works, contact an authorized  dealer, as the internal keyboard cable might be loose. The numeric keypad is disabled.  Make sure that the Num Lock is switched on. (Check if the Num Lock Indicator glows or not.) The external keyboard does not work.

  • Page 165: Pc Card Problems

    Make sure that the telephone line is properly connected.  Make sure that the COM port in the communication software is correctly  set.  Turn off power management. PC Card Problems The PC card does not work. Make sure that the PC card controller driver is correctly installed. ...

  • Page 166: Software Problems

     Connect the AC adapter to the computer.  Replace the empty battery pack with a fully charged one. The computer does not enter Hibernation mode with the Fn+F10 hot keys. Make sure that the Hibernation function is specified for the sleep ...

  • Page 167: Startup Problems

    The sound system does not record.  Adjust the playback or recording sound levels. The external microphone or audio device does not work. Make sure that the microphone is connected to the proper connector on  the computer. Make sure that your computer is equipped with the driver needed. ...
  • Page 168 Your computer may be in an out-of-range situation. Move your  computer closer to the Access Point or another WLAN device it is associated with.  Check if there is high interference around the environment and solve the problem as described next. Radio interference exists.

  • Page 169: Other Problems

    Reconfigure and reset the Access Point.  I cannot access the network.  Make sure that the necessary driver(s) is correctly installed.  Make sure that the network configuration is appropriate.  Make sure that the user name or password is correct. You have moved out of range of the network.

  • Page 170: Resetting The Computer

    Resetting the Computer You may have to reset (reboot) your computer on some occasions when an error occurs and the program you are using hangs up. If the computer operation seems to hang up, first wait. It is possible that the computer is processing data.

  • Page 171: Appendix A Specifications

    Appendix A Specifications Parts Specifications ® Processor Intel i7-640UM, 1.2GHz, Max. 2.266 GHz with Intel Turbo Boost Technology, Thermal 18W ® Intel i5-540UM, 1.2GHz, Max. 2.00 GHz with Intel Turbo Boost Technology, Thermal 18W Cache i7-640UM, 512K L2, 4MB L3 i5-540UM, 512K L2, 3MB L3 Memory RAM (system)
  • Page 172 Parts Specifications Audio Features Azalia interface, left/right-channel analog output for line-out connector Speaker One built-in Ports Two audio ports for Line-out (green) / Mic-in (red) Keyboard Standard keys with numeric pad keys, 12 function keys, special Fn (Function) key and Windows keys Water-proof and dust-proof membrane, large character printing, water-proof rubber (option) Pointing device...
  • Page 173 Parts Specifications Handle Grip and cross-type hand strap Power AC adapter Universal 60 W; input: 100240 V, 50/60 Hz; output: 19 V Battery Li-ion smart 6-cell battery 5200 mAH / 11.1 V (option) Li-ion smart 9-cell battery 7800 mAH / 11.1 V user-swappable, under –20 C combined with hard drive low temperature solution...

  • Page 175: Appendix B Regulatory Information

    Appendix B Regulatory Information This appendix provides regulatory statements and safety notices on your computer.

  • Page 176: On The Use Of The System

    On the Use of the System Class B Regulations Federal Communications Commission Radio Frequency Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 177: Ul1604 Installation Instructions

    Canada Canadian Department of Communications Radio Interference Regulations Class B Compliance Notice This Class B digital apparatus meets all requirements of the Canada Interference-Causing equipment regulations. Cet appareil numérique de Classe B respecte toutes les exigences du Règlement Canadien sur le matériel brouileur. This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

  • Page 178: Safety Notices

    storm. There may be a remote risk of electric shock from lightning.  Do not use the telephone to report a gas leak in the vicinity of the leak. Use only the power cord and batteries indicated in this manual. Do not ...
  • Page 179 DEUTSCH VORSICHT: Explosionsgefahr bei unsachgemäß em Austausch der Batterie. Ersatz nur durch denselben oder einen vom Hersteller empfohlenen gleich-wertigen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers. FRENCH ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la batterie.

  • Page 180: About The Modem

    About the Modem Caution Never install telephone wiring during a lightning storm.  Never install telephone jacks in wet locations unless the jack is  specifically designed for wet locations. Never touch non-insulated telephone wires or terminals unless the  telephone line has been disconnected at the network interface.

  • Page 181: On The Use Of The Rf Device

    On the Use of the RF Device USA and Canada Safety Requirements and Notices IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 182 The use of wireless devices on airplanes is governed by the Federal  Aviation Administration (FAA). The use of wireless devices in hospitals is restricted to the limits set forth  by each hospital. Antenna use: In order to comply with FCC RF exposure limits, low gain integrated ...
  • Page 183 EMC Requirements This device uses, generates and radiates radio frequency energy. The radio frequency energy produced by this device is well below the maximum exposure allowed by the Federal Communications Commission (FCC). This device complies with the limits for a Class B digital device pursuant to Part 15 subpart C of the FCC Rules and Regulations.

  • Page 184: European Union Ce Marking And Compliance Notices

    Canada Radio Frequency Interference Requirements To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit être utilisé...
  • Page 185 Greek To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας 1999/5/EC. Icelandic Þessi vara stenst reglugerð Evró pska Efnahags Bandalagsins nú mer 1999/5/EC. Italian Questo prodotto è conforme alla Direttiva Europea 1999/5/EC. Norwegian Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 1999/5/EC.
  • Page 186 General European standards dictate maximum radiated transmit power of 100 mW Effective Isotropic Radiated Power (EIRP) and the frequency range 2400 – 2483.5 MHz. Belgium and the Netherlands In Belgium and the Netherlands, the product may not be used outdoors. See the instructions next under the heading “Turning Off the Wireless LAN Radio.”...
  • Page 187 Departments in Which the Wireless LAN Module’s Maximum EIRP Not Shown in the Previous Table Frequency Ranges Indoors Outdoors (MHz) 2400 – 2446.5 10 mW Not permitted 2446.5 – 2483.5 100 mW 100 mW on private property with Ministry of Defense approval Turning Off the Wireless LAN Radio NOTE: Turning the wireless LAN radio off is not the same as disabling the wireless LAN card.

Table of Contents
