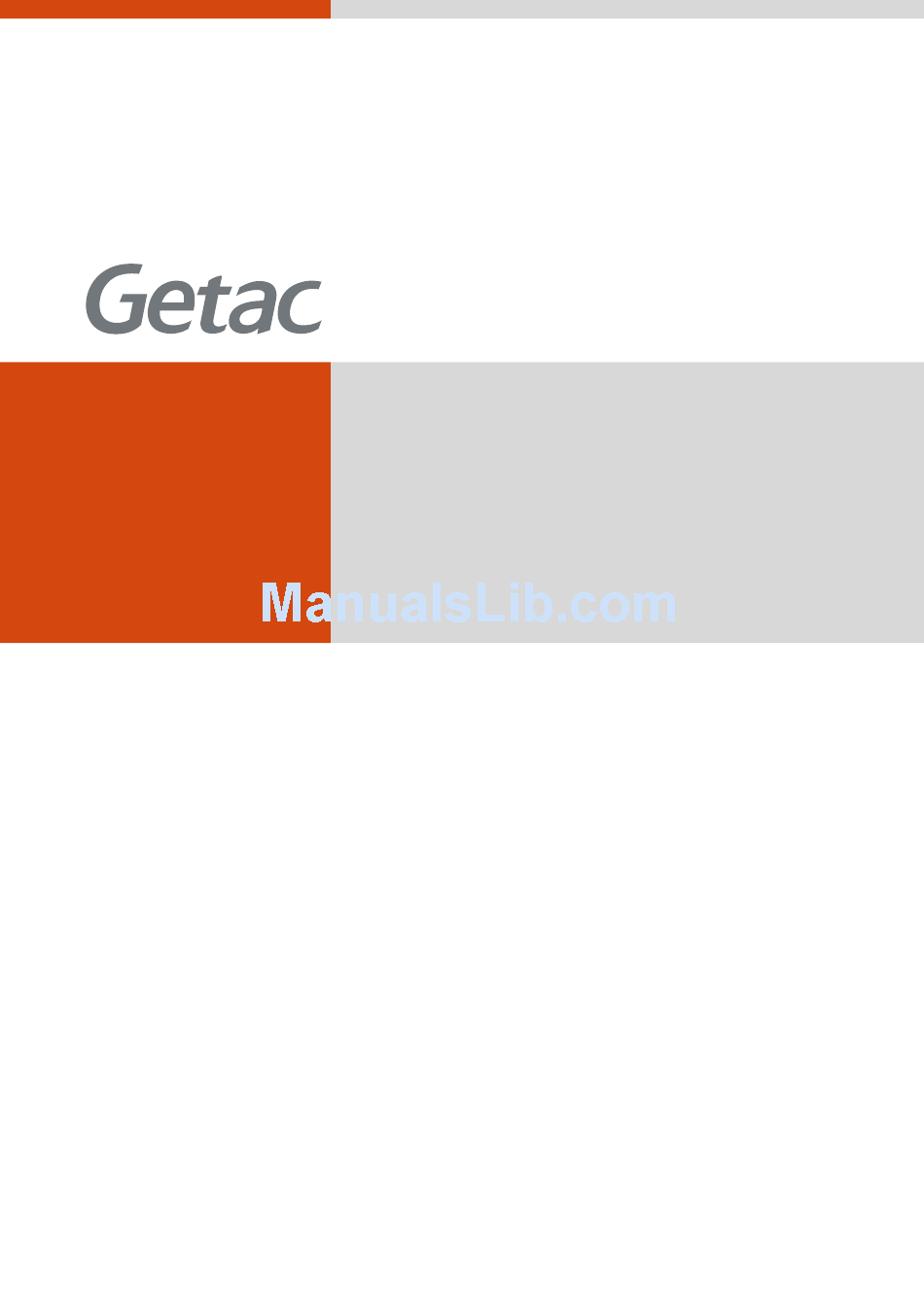

  • Page 1 V100 USER’S MANUAL Rugged Mobile Computing Solutions...
  • Page 2 April 2009 TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective companies. NOTE The information in this manual is subject to change without notice.
  • Page 3 ® ENERGY STAR is a government program that offers businesses and consumers energy-efficient solutions, making it easy to save money while protecting the environment for future generations. ® Please reference ENERGY STAR related information from www.energystar.gov. ® As an ENERGY STAR Partner, MiTAC Technology Corporation has ®...
  • Page 4 ® Over its lifetime, ENERGY STAR qualified equipment in a single home  office (e.g., computer, monitor, printer, and fax) can save enough electricity to light an entire home for more than 4 years.  Power management (“sleep settings”) on computers and monitors can result in much savings annually.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 Getting Started ............. 1-1 Getting the Computer Running ..........1-2 Unpacking ................1-2 Connecting to AC Power ............ 1-3 Opening and Closing the Cover ........1-4 Operating in Tablet Mode ..........1-6 Turning On and Off the Computer ........1-8 Attaching the Hand Strap ..........
  • Page 6 Using the Software Keyboard ..........2-9 Using the Touchpad .............. 2-10 Configuring the Touchpad ..........2-12 Using the Touchscreen (Optional) ........2-13 Using the Active Digitizer Feature (Optional) ....2-15 Using the Hard Disk Drive ............ 2-18 Using the Video Features ............. 2-19 Configuring the Display Modes ........
  • Page 7 Using PC Cards ................. 4-5 Inserting and Removing a PC Card ........4-5 Using the Card Reader ............4-7 Using the Port Replicator (Optional) ........4-9 System Memory Upgrade ............. 4-11 Chapter 5 Using BIOS Setup and System Recovery ..... 5-1 BIOS Setup ................
  • Page 8 Chapter 7 Caring for the Computer ..........7-1 Protecting the Computer ............7-2 Using an Anti-Virus Strategy ..........7-2 Using the Cable Lock ............7-3 Taking Care of the Computer ..........7-4 Location Guidelines ............7-4 General Guidelines ............. 7-4 Cleaning Guidelines ............
  • Page 9 Appendix A Specifications ..............A-1 Appendix B Regulatory Information ..........B-1 On the Use of the System ............B-2 Class B Regulations ............. B-2 Safety Notices ..............B-3 On the Use of the RF Device ..........B-6 USA and Canada Safety Requirements and Notices ..B-6 European Union CE Marking and Compliance Notices ..

  • Page 11: Chapter 1 Getting Started

    Chapter 1 Getting Started Congratulations on purchasing this rugged computer. This chapter first tells you step by step how to get the computer up and running. Then, you will find a section briefly introducing the external components of the computer.

  • Page 12: Getting The Computer Running

    Getting the Computer Running This section guides you through the procedures for getting the computer ready for operation. Unpacking After unpacking the shipping carton, you should find these standard items: Notebook computer  Accessories:   AC adapter  AC power cord ...

  • Page 13: Connecting To Ac Power

    Connecting to AC Power The computer operates either on the external AC power or internal battery power. It is suggested that you use AC power when you start up the computer for the very first time. 1. Make sure that the computer is turned off. 2.

  • Page 14: Opening And Closing The Cover

      Opening and Closing the Cover Open the top cover by pulling up on latch A and releasing latch B () and lifting up the cover (). You can tilt the cover forward or backward for optimal viewing clarity. Latch B Latch A Close the top cover by closing the display ().
  • Page 15 Latch B Latch A...

  • Page 16: Operating In Tablet Mode

    Operating in Tablet Mode In addition to being used as a regular notebook computer (Laptop mode), your computer can also be operated in Tablet mode. In Tablet mode, the computer can be operated using the touchscreen or active digitizer feature with the software keyboard (see chapter 2), and the tablet buttons (see later section on “Front Components”), instead of the internal keyboard and the touchpad.
  • Page 17 2. Position the latch B on the display side, then bring latch A down () to fix the display in place. Latch B Latch A In Tablet mode, the computer can be operated while holding it as shown. To return to Laptop mode, perform the steps for changing the computer into Tablet mode in reverse order.

  • Page 18: Turning On And Off The Computer

    Turning On and Off the Computer Turning On 1. Make sure that the computer is connected to AC power. 2. Press the power button ( 3. Each time the computer is turned on, it performs a Power-On Self Test (POST), and the operating system such as Windows should start. Turning Off To turn off the computer power, use the “Shut Down”...

  • Page 19: Attaching The Hand Strap

    Attaching the Hand Strap The hand strap can be attached to any two sides of the four (option) corners of your computer. Standard setup: two buckles on the left/right front side of your computer. To release, press on the right spring latch first to detach the right side. Then release the left side.
  • Page 20 Optional setup: buckles on four corners of your computer.  ...

  • Page 21: Taking A Look At The Computer

    Taking a Look at the Computer Front Components Component Description  Hand Strap Holder The hand strap can be attached to the two holders for convenient handling of your computer.  LCD Brightness Adjust the LCD brightness level. Buttons  LCD Rotate Button Rotates the LCD display orientation from default landscape to portrait and vice versa.

  • Page 22: Rear Components

    Rear Components Component Description  Hand Strap The hand strap can be attached to the two holders Holder for convenient handling of your computer.  Audio Output Connects a set of headphones, external speakers Connector with amplifier, or an audio recording device. ...

  • Page 23: Right-Side Components

    Right-Side Components Component Description  Battery Pack Inside is the battery pack that supplies power to Compartment your computer when external power is not connected.  Hard Disk Drive Inside is the hard disk drive. Compartment...

  • Page 24: Left-Side Components

    Left-Side Components Component Description  Power Connector Connects the AC adapter.  USB Ports Each of the two ports connects a USB device, such as a flash disk, printer, digital camera, joystick, and more.  RJ-11 Connector Connects the telephone line. ...

  • Page 25: Bottom Components

    Bottom Components Component Description  Antenna Inside is the connector for using an external Connector antenna.  Expansion Bus Inside is the expansion bus connector for using a Connector Port Replicator.  Wireless LAN Inside is the mini PCI-E slot for using a mini PCI-E (WLAN) Card Slot WLAN card.

  • Page 26: Top-Open Components

    Top-open Components Component Description  Webcam Lens Allows you to use your computer’s camera or GPS / GPS Module function. (option)  WLAN Inside is the antenna for wireless LAN (local area Antenna network) transmission.  WWAN 3G Inside is the antenna for optional wireless WAN (wide Antenna area network) 3G transmission.
  • Page 27 Component Description  Keyboard Serves as the data input device of the computer.  Touchpad Serves as the pointing device of the computer.  Indicators Show the current status of the computer’s devices. Lights green when the computer is turned on and AC Power using AC power.

  • Page 29: Operating Your Computer

    Chapter 2 Operating Your Computer This chapter provides information about the use of the computer. If you are new to computers, reading this chapter will help you learn the operating basics. If you are already a computer user, you may choose to read only the parts containing information unique to your computer.

  • Page 30: Starting And Stopping The Computer

    Starting and Stopping the Computer There are a number of ways to start and stop the computer. Starting the Computer You always start the computer using the power button. A computer starts up with an operating system (OS) existing on the storage device such as the hard disk.
  • Page 31 To stop in this Do this... To start up or mode... resume again Standby/Sleep Depending on your settings in Press any key. Windows, you can place the computer in Standby/Sleep mode by:  Closing the display cover  Pressing the Fn+F10 hot key ...

  • Page 32: Using The Internal Keyboard

    Using the Internal Keyboard Your keyboard has all the standard functions of a full-sized computer keyboard plus an Fn key added for specific functions. The standard functions of the keyboard can be further divided into four major categories: Typewriter keys ...

  • Page 33: Cursor-Control Keys

    Cursor-Control Keys Numeric Keypad A 15-key numeric keypad is embedded in the typewriter keys as shown next:...

  • Page 34: Function Keys

    Numeric keys facilitate entering of numbers and calculations. When Num Lock is on, the numeric keys are activated; meaning you can use these keys to enter numerals.   Function Keys On the top row of the keys are the function keys: F1 to F12. Function keys are multi-purpose keys that perform functions defined by individual programs.
  • Page 35 Description Switches the keyboard backlight on and off (optional). Switches the wireless LAN radio on and off. NOTE: This function works only if an optional mini PCI-E wireless LAN card is installed. Decreases the sound volume. Increases the sound volume. Decreases the LCD backlight.

  • Page 36: Euro Symbol

    Euro Symbol You can press the euro dollar sign on various keyboards. To press the euro sign on a United States-International keyboard, hold  down the Alt Gr key and press 5 (which has an euro sign on it). To press the euro sign on a standard United States keyboard, hold down ...

  • Page 37: Using The Software Keyboard

    Using the Software Keyboard When using the computer in Tablet mode, you can use the software keyboard. 1. Press the software keyboard button ( ) and the software keyboard will appear onscreen. 2. Enter the characters with the the touchscreen pen (option). NOTE:...

  • Page 38: Using The Touchpad

    Using the Touchpad The touchpad is a pointing device that allows you to communicate with the computer by controlling the location of the pointer on the screen and making selection with the buttons. The touchpad consists of a rectangular pad (work surface) and a left and right buttons.
  • Page 39 Term Action Point Move your finger on the pad until the cursor points to the selection on the screen. Click Press and release the left button. –or– Tap gently anywhere on the pad. Double-click Press and release the left button twice in quick succession. –or–...

  • Page 40: Configuring The Touchpad

    Configuring the Touchpad You may want to configure the touchpad to suit your needs. For example, if you are a left-handed user, you can swap the two buttons so that you can use the right button as the left button and vice versa. You can also change the size of the on-screen pointer, the speed of the pointer, and so on.

  • Page 41: Using The Touchscreen (Optional)

    Using the Touchscreen (Optional)   The touchscreen is a touch-sensitive device that allows you to easily use the computer without a mouse or touchpad.
  • Page 42 Here are some common terms that you should know when using the touchscreen: Term Action Click/Point Tap gently on the touchscreen. Double-click Tap twice on the touchscreen rapidly. Drag and drop Press lightly on the touchscreen and move your finger until you reach your destination (drag).

  • Page 43: Using The Active Digitizer Feature (Optional)

    Using the Active Digitizer Feature (Optional)   The active digitizer feature allows you to easily use the computer without a mouse, keyboard, or touchpad to communicate with the computer by using the optional digitizer pen.
  • Page 44 When using the digitizer pen, be sure to install the included size “AAAA” battery. Here are some common terms that you should know when using the active digitizer feature: Term Action Move Move the cursor pointed by the digitizer pen. Click/Point Tap gently on the display.
  • Page 45      ...

  • Page 46: Using The Hard Disk Drive

    Using the Hard Disk Drive Your computer comes with a removable hard disk drive as drive C. A hard disk drive is a storage device with non-removable, rotating, magnetic storage platters inside it. It is where your operating system and application software programs are stored.

  • Page 47: Using The Video Features

    Using the Video Features The video subsystem of your computer features: 10.4-inch wide TFT (Thin-Film Transistor) color LCD display with  1024×768 XGA resolution or 12.1-inch wide TFT (Thin-Film Transistor) color LCD display with 1280×800 WXGA resolution Simultaneous display on LCD and external monitor, which is useful when ...

  • Page 48: Configuring The Display Modes

    Configuring the Display Modes Your computer has been set to a default resolution and number of colors before shipment. You can view and change display settings through your operating system. See your operating system documentation or online help for specific information. For displaying in higher resolutions, you can connect an external monitor that supports higher resolutions.
  • Page 49 For a Model without 3G Module Primary Primary Secondary Secondary Primary Landscape Portrait Landscape Portrait Landscape Display Display Display Display Display   ...

  • Page 50: Using The Audio Features

    Using the Audio Features   The audio subsystem of your computer features: Built-in sound system for recording and playing sound on your computer  Azalia interface (high density audio codec)  Speaker (located on bottom side), and  External audio connectors ...

  • Page 51: Connecting Audio Devices

    Connecting Audio Devices For higher audio quality, you can send or receive sound through external audio devices. Audio Output Connector ( ) can be connected to speakers,  headphones, or earphone set. Microphone Connector ( ) can be connected to an external ...

  • Page 52: Using G-Camera Lite

    Using G-Camera Lite G-Camera Lite allows you to take pictures with the Webcam, if supplied with your computer. To start G-Camera Lite, click Start  All Programs  G-Camera Lite  G-Camera Lite. The camera control panel appears. Mode Current settings Setting buttons for different modes Click the Shutter button...

  • Page 53: Using The Communication Features

    Using the Communication Features Using the Modem The internal 56 K fax/data modem allows you to use the telephone line to communicate with others by fax, email, or connect to an online service or bulletin board. To connect the telephone line to the modem, connect one end of the modem cable to the RJ-11 connector on the computer and the other end to the phone line.

  • Page 54: Using The Lan

    Using the LAN The internal 10/100/1000Base-T LAN (Local Area Network) module allows you to connect your computer to a network. It supports data transfer rate up to 1000 Mbps. To connect the network cable to the LAN module, connect one end of the LAN cable to the RJ-45 connector on the computer and the other end to the network hub.

  • Page 55: Using The Wireless Lan

    Using the Wireless LAN Depending on your model, an internal mini PCI-E wireless LAN (WLAN) card may have been pre-installed by your computer manufacturer at the factory. This card allows you to access corporate networks or the Internet in a wireless environment.
  • Page 56 Installing the Mini PCI-E WLAN Card In case the mini PCI-E WLAN card has not been installed in your computer, perform the following: 1. Remove the battery pack (see chapter 3) and make sure that the computer is not connected to AC power. 2.
  • Page 57 5. Secure with two screws. 6. Connect the antenna cable (see label for the correct one) to the “MAIN” and “AUX” antenna connectors on the card. 7. Close the compartment cover and secure with two screws. Turning Off/On the WLAN Radio Your computer has a built-in Fn+F2 WLAN hot key to switch the WLAN on/off (see “Hot Keys”...

  • Page 58: Connecting To A Wireless Network

    It takes approximately 30 seconds for your computer to make a successful WLAN connection and approximately 10 seconds to disconnect. Connecting to a Wireless Network To connect to a wireless network: 1. Make sure that the WLAN radio is on (controlled by Fn+F2). 2.

  • Page 59: Using The Bluetooth Feature

    For more information on the Intel PROSet Wireless utility, click Help? in the Intel(R) PROSet/Wireless window. Using the Bluetooth Feature Depending on your model, your computer may incorporate the Bluetooth capability for short-range (about 10 meters) wireless communications between devices without requiring a cable connection. With Bluetooth, data can be transmitted through walls, pockets and briefcases as long as two devices are within range.
  • Page 60 2. To search for Bluetooth devices, use any of the following three methods: Method 1: Right click the Bluetooth icon located in the system tray in the lower-right part of the screen. Select Explore Bluetooth Places. Method 2: Right click the Bluetooth icon located in the system tray in the lower-right part of the screen.
  • Page 61 Method 3: Use Windows File Manager to browse to Bluetooth Places and select Search Devices. 3. Select the device you want to connect from the search results. 4. Depending on the type of Bluetooth device that you want to connect to, you will need to enter the pertinent information.

  • Page 62: Using The Gps

    Using the GPS   Navigation and positioning are crucial to so many activities. To try to figure out where you are and where you are going, you need GPS technology. The Global Positioning System (GPS) is a worldwide radio-navigation system.

  • Page 63: Chapter 3 Managing Power

    Chapter 3 Managing Power Your computer operates either on external AC power or on internal battery power. This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way.

  • Page 64: Ac Adapter

    AC Adapter     The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct Current) power because your computer runs on DC power, but an electrical outlet usually provides AC power. It also charges the battery pack when connected to AC power.

  • Page 65: Battery Pack

    Battery Pack The battery pack is the internal power source for the computer. It is rechargeable using the AC adapter. The operating time of a fully charged battery pack depends on how you are using the computer. When your applications often access peripherals, you will experience a shorter operating time.

  • Page 66: Battery Automatic Calibration Utility

    NOTE: The battery level may automatically lessen due to the self-discharge process (0.21 % per day), even when the battery pack is fully charged (100 %). This happens no matter if the battery pack is installed in the computer. Battery Automatic Calibration Utility NOTE: To use the Battery Automatic Calibration Utility, the Battery Calibration driver supplied with your computer must be installed (see chapter 6 for details).

  • Page 67: Error Messages

    Error Messages The battery’s performance would degrade as part of its normal wear-and- tear after using it for a considerable length of time. The Battery Monitor program would check the battery’s condition and may display the following error messages. You are recommended to replace the battery. Error Message What it means ...

  • Page 68: Checking The Battery Level

    Checking the Battery Level By Operating System You can check the approximate battery level using the battery meter function of the operating system. To read the battery level in Windows, click the battery icon on the system tray. By Gas Gauge On the exterior side of the battery pack is a gas gauge for displaying the estimated battery charge.

  • Page 69: Replacing The Battery Pack

    Replacing the Battery Pack   If you often rely on battery power for a long period of time while traveling, you may consider the purchase of an additional battery pack from your dealer and keep it with you in a fully charged state as a backup. To replace the battery pack, follow these steps: 1.
  • Page 70 4. Pull on the ribbon strip to remove the battery pack. 5. Slide the new battery pack all the way into the slot. Make sure to observe the correct orientation (the ribbon strip must face outward for future battery back removal). 6.

  • Page 71: Battery Low Signals And Actions

    Battery Low Signals and Actions When the battery is low, Windows gives warning messages and the Battery Charge Indicator ( ) blinks yellow to alert you. Immediately save your data upon Battery Low. The remaining operating time depends on how you are using the computer.

  • Page 72: Power Management

    Power Management Your computer supports ACPI (Advanced Configuration and Power Interface) for power management. The power management feature allows you to reduce the power consumption for energy saving. With an ACPI-compliant operating system such as Windows, power supply to different computer components is controlled on an as-needed basis. This allows maximum power conservation and performance at the same time.

  • Page 73: Hibernation Mode

    Hibernation Mode Hibernation is a very useful feature. People frequently open many applications when they use computers. It takes some time to get all these applications open and running, and normally they all have to be closed before the computer can be turned off. When you use the hibernation feature, you do not have to close the applications.

  • Page 74: Power-Saving Tips

    Power-Saving Tips Aside from enabling your computer’s power saving mode (see previous section), you can do your part to maximize the battery’s operating time by following these suggestions. Do not disable Power Management.  Decrease the LCD brightness to the lowest comfortable level. ...

  • Page 75: Expanding Your Computer

    Chapter 4 Expanding Your Computer You can expand the capabilities of your computer by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter.

  • Page 76: Connecting An External Monitor (Optional)

    Connecting an External Monitor (Optional) If you want the benefits of a larger display screen with higher resolution, you can connect an external display monitor to your computer. Follow this procedure to connect an external monitor: 1. Make sure that the computer is not turned on. 2.

  • Page 77: Connecting A Serial Device

    Connecting a Serial Device Your computer has one or two serial port (depending on model) for connecting a serial device such as a serial mouse or serial communication device (modem). Follow this procedure to connect a serial device: 1. Make sure the computer is not turned on 2.

  • Page 78: Connecting A Usb Device

    Connecting a USB Device Your computer has two USB ports for connecting USB devices, such as a digital camera, scanner, printer, modem, and mouse. The USB ports support transfer rates up to 12 MB/s for USB 1.1 devices and 480 MB/s for USB 2.0 devices. To connect a USB device, simply plug the device cable to one of the USB ports.

  • Page 79: Using Pc Cards

    Using PC Cards Your computer has two PC card slots that support CardBus specifications. The slots can accommodate a type II card. Typical type II cards are flash memory, SRAM, modem, LAN, and SCSI cards. Inserting and Removing a PC Card ...
  • Page 80 3. When a new card is seated, the computer will detect it and try to install the appropriate driver. Follow the on-screen instructions to complete the process. To remove a PC card: 1. Double-click on the Safely Remove Hardware icon ( for Windows Vista or for Windows XP) found on the Windows system tray and the...

  • Page 81: Using The Card Reader

    Using the Card Reader    Your computer has a Card Reader. The Card Reader is a small drive for reading from and writing to removable storage cards (or called memory cards). The Card Reader supports Secure Digital (SD) cards. Shown next is the appearance and size of Secure Digital (SD) card type for your reference.
  • Page 82 To insert a storage card: 1. Locate the Card Reader slot on the left side of the computer. 2. Align the card with its connector pointing to the slot and its label facing up. Slide the card into the slot until it reaches the end. 3.

  • Page 83: Using The Port Replicator (Optional)

    Using the Port Replicator (Optional) A port replicator is available as an option. This device eliminates the hassles of having you connect and disconnect the various cables when carrying your computer around and allows a variety of peripherals to be connected including a headphone or microphone, etc.
  • Page 84 2. Connect your port replicator to the expansion bus connector. For more detailed information, refer to the Operating Instructions of the port replicator.

  • Page 85: System Memory Upgrade

    System Memory Upgrade You can upgrade your computer by changing system memory to a maximum of 1 GB on the 533 MHz DDR2 SO-DIMM slot. To install the RAM module: 1. Remove the battery pack (see chapter 3) and make sure that the computer is not connected to AC power.
  • Page 86 20-degree angle. Then push down until the retaining clips lock the module into position. 5. Close the compartment cover and secure with two screws.

  • Page 87: Using Bios Setup And System Recovery

    Chapter 5 Using BIOS Setup and System Recovery BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output System) settings of the computer. BIOS is a layer of software, called firmware, that translates instructions from other layers of software into instructions that the computer hardware can understand.

  • Page 88: Bios Setup

    BIOS Setup When to Use BIOS Setup When to Use You need to run BIOS Setup Utility when: You see an error message on the screen requesting you to run BIOS  Setup Utility. You want to restore the factory default BIOS settings. ...

  • Page 89: Moving Around And Making Selections

    The BIOS Setup Utility screen can be divided into four areas: On the top is the menu bar containing the titles of the available menus. Each menu title brings a specific menu. The left column of the menu displays the menu items. The right column of the menu provides more detailed information when a menu item is highlighted.
  • Page 90 Function  ,  Selects a menu title.  ,  Selects an item or option. + / – Changes the value. Enter 1) Brings up the sub-menu when available. 2) Opens or closes the option window when an item is selected.

  • Page 91: Main Menu

    Main Menu The Main menu contains the system date and time settings as well as shows the basic configuration of the system. System Time sets the system time. System Date sets the system date. Using BIOS Setup and System Recovery...

  • Page 92: Advanced Menu

    Advanced Menu The Advanced menu contains the advanced settings as shown next. SATA AHCI Configuration sets the enhanced AHCI (Advanced Host Controller Interface). Digitizer Type or TouchScreen (actual item shown depends on your model) Digitizer Type allows you to select the type of digitizer you are using. TouchScreen allows you to unconditionally disable it when set at Disabled Serial Port COM1/COM2/COM4 allows you to unconditionally disable it...

  • Page 93: Security Menu

    Security Menu The Security menu contains the security settings, which safeguard your system against unauthorized use. Supervisor/User Password Is shows whether you have set the supervisor/user password or not for the system. Set Supervisor/User Password sets the supervisor/user password. When typing the password, first make sure that Num Lock is off, and then type the password in the entry fields and press Enter.
  • Page 94 Fixed disk boot sector allows you to set if a warning message will appear when the hard disk boot sector (partition table) has been changed. Fdisk Format Password on Boot allows you to enable or disable the entering of password for booting up your system.

  • Page 95: Boot Menu

    Boot Menu The Boot menu sets the sequence of the devices to be searched for the operating system. The bootable devices will be automatically detected during POST and shown here, allowing you to set the sequence that the BIOS uses to look for a device from which to load the OS.

  • Page 96: Exit Menu

    Exit Menu The Exit menu displays ways of exiting BIOS Setup Utility. After finishing with your settings, you must save and exit so that the changes can take effect. Exit Saving Changes saves the changes you have made and exits BIOS Setup Utility.

  • Page 97: System Recovery

    System Recovery You need to run System Recovery when: Your computer does not start correctly.  Your Windows operating system does not start at all.  You want to restore the factory default Windows settings.  To run System Recovery: 1.
  • Page 98 1. The recovery software is solely the purpose of reinstalling or restoring software associated with the hard disk of this operating GETAC machine. 2. Except the above, no other use is granted hereunder. **************************************** (1)Yes, I agree to the provisions of this agreement and wish to continue.
  • Page 99 5. After the recovery process has been completed successfully, the GSI (GETAC Smart Installer) screen is displayed at the first boot-up of Windows operating system. 6. GSI will automatically perform system hardware detection and driver installation. After GSI has completed the whole process successfully,...

  • Page 101: Installing Software Drivers And Utilities

    Chapter 6 Installing Software Drivers and Utilities To take full advantage of the unique features of your computer, drivers and utilities must be installed. If you purchased the computer with Windows pre-installed, your dealer may have already installed the drivers and utilities. If not, you need to install them using the disc supplied with your computer.

  • Page 102: How To Use The Driver Disc

    How to Use the Driver Disc     An autorun program is provided on the driver disc to help you easily install the drivers. As you insert the disc, the autorun program automatically starts. If you need to start the program manually, run the Autorun.exe program from the driver disc.

  • Page 103: Installation For Windows Xp

    Installation for Windows XP After selecting the operating system Windows XP from the main screen, the driver installation screen appears as shown next: To install a driver, just click the particular button and follow the onscreen instructions to continue and complete installation. Driver on the First Page Device Driver Ensures the full function of the following drivers.
  • Page 104 Touch Screen Allows you to use your fingers (or optional touchscreen pen) as a pointing device on the LCD screen. (See the “Touchscreen Utility” subsection for further information.) Digitizer Allows you to use your digitizer pen (option) as a pointing device on the digitizer screen. Upon clicking on this, the following screen appears: Driver Allows you to install the driver for using...

  • Page 105: Driver On The Second Page

    Driver on the Second Page Upon clicking on Next Page from page 1, the following screen appears. WEBCAM Allows you to use the optional camera feature.
  • Page 106 Upon clicking on this, the following screen appears: GPS Driver Allows you to install the driver for using the GPS (Global Positioning System) function. Restart your computer after the installation and proceed with the next item GPS Filter. GPS Filter Install this driver after installing the above driver to complete GPS driver installation.

  • Page 107: Driver On The Third Page

    Smart Card Allows you to use the Smart Card Reader feature. Driver on the Third Page Upon clicking on Next Page from page 2, the following screen appears.
  • Page 108 Hotfix Upon clicking on this, the following screen appears. KB896256 Install this update to fix a situation where your Windows-based system that supports processor power management features, and is equipped with multiple processors, may experience decreased performance. After you install this item, you may have to restart your computer.
  • Page 109 Vehicle Dock Upon clicking on this, the following screen appears: Video Capture Allows you to install the video capture driver. USB-to-COM Allows you to install the USB-to-COM driver.
  • Page 110 Module SW Upon clicking on this, the following screen appears. Module SW-A Allows you to power ON/OFF the ® Bluetooth (for USA) wireless feature / Module SW-B WLAN radio / 3G module as well (for other as set the power ON/OFF state regions) during system startup.
  • Page 111 MiTAC Utility Upon clicking on this, the following screen appears. MTCCTRL Allows you to use the built-in heater feature that automatically turns on for low temperature hard disk drive operation. (See the “MTCCTRL Utility” section for more information.) MTCAPP Allows you to use the software keyboard feature when using the computer in Tablet mode as well as toggle between portrait and...
  • Page 112 synchronized with the RTC. G-Camera Installs the G-Camera utility that you can use to take pictures using your computer. Battery Installs the battery pack automatic calibration utility Calibration that includes the Battery Monitor and Battery Learning programs. (See the “Battery Automatic Calibration Utility”...

  • Page 113: Installation For Windows Vista

    Installation for Windows Vista After selecting the operating system Windows Vista from the main screen, the driver installation screen appears as shown next: To install a, just click the particular button and follow the onscreen instructions to continue and complete installation. Driver on the First Page Device Driver Upon clicking this button, the chipset, VGA, modem,...

  • Page 114: Driver On The Second Page

    Touch Screen Allows you to use your fingers (or optional touchscreen pen) as a pointing device on the LCD screen. (See the “Touchscreen Utility” subsection for further information.) Digitizer Allows you to use your digitizer pen (option) as a pointing device on the digitizer screen. WCDMA Install this driver for using the 3G feature.

  • Page 115: Driver On The Third Page

    computer after the installation and proceed with the next item GPS Filter. GPS Filter Install this driver after installing the above driver to complete GPS driver installation. CDMA Allows you to install the Sierra 5720/25 driver and application. Driver on the Third Page Upon clicking on Next Page from page 2, the following screen appears.
  • Page 116 Learning programs. (See the “Battery Automatic Calibration Utility” section in Chapter 3 for information on using the program.) MiTAC Utility Upon clicking on this, the following screen appears. MTCCTRL Allows you to use the built-in heater feature that automatically turns on for low temperature hard disk drive operation.
  • Page 117 more information.) Clock Utility Installs the clock utility that allows your Windows OS clock to be synchronized with the RTC. G-Camera Installs the G-Camera utility that you can use to take pictures using your computer.

  • Page 118: Using Special Utilities

    Using Special Utilities Touchscreen Utility After installing the touchscreen driver/utility, you can use PenMount Monitor to configure your touchsreen. 1. Right-click the PenMount Monitor icon located on the system tray and click Control Panel to bring up the PenMount Control Panel. 2.
  • Page 119 3. Click Standard Calibration. Standard Calibration lets you match the touch screen to your display so that the point you touch is accurately tracked on screen. Standard calibration only requires four points for calibration and one point for confirmation. Under normal circumstances Standard Calibration is all you need to perform an accurate calibration.
  • Page 120 4. Click the red square on the screen to calibrate your touchscreen for use on the computer.
  • Page 121 5. Click Advanced Calibration (if needed). Advanced Calibration improves the accuracy of calibration by using more involved engineering calculations. Use this function only if you have tried the Standard Calibration and there is still a discrepancy in the way the touchscreen maps to the display. You can choose 4, 9, 16 or 25 points to calibrate, though we suggest that you first try 9 points, if it is still not tracking well then try 16 or 25 points.
  • Page 122 6. If your Windows’ Graphics Controller setting is “Extended Desktop” and Primary Device is “Monitor,” click the Multiple Monitors folder and select the Multiple Monitor Support option. 7. Click Map Touch Screens. 8. Then click OK to exit the PenMount Control Panel.

  • Page 123: Module Sw-A Utility (For Usa Only)

    Module SW-A Utility (for USA Only) The Module SW utility allows you to power ON/OFF either one of the ® Bluetooth following: wireless feature / WLAN radio / 3G module (only one module opened at a time) as well as set the power ON/OFF state during system startup, by performing the following: 1.

  • Page 124: Module Sw-B Utility (For Other Regions)

    You can pass the mouse cursor over the Module SW icon on system tray to ® Bluetooth display the power state of wireless feature / WLAN radio / 3G module. Module SW-B Utility (for Other Regions) ® Bluetooth The Module SW utility allows you to power ON/OFF the wireless feature / WLAN radio / 3G module as well as set the power ON/OFF state during system startup, by performing the following:...

  • Page 125: Mtcctrl Utility

    start-up (or restart), Module SW utility will keep the 3G module in a power OFF state. You can pass the mouse cursor over the Module SW icon on system tray to ® Bluetooth display the power state of wireless feature / WLAN radio / 3G module.
  • Page 126 Heater Setup Upon clicking the Heater Setup item the following screen appears. The HDD heater function enables a safe and reliable operating condition for the hard drive in excessively cold temperatures (– 20 C). The heater is used when hard drive temperature is  5 C (default).
  • Page 127 Stop Heater Up Temperature – allows you to set the temperature (8  default) when heater will be deactivated. Heater Up Timeout Timer – allows you to set the runtime timer (0 ~ 16  hours, default is 16 hours). This parameter is used only when system is using battery power (not connected to AC power).
  • Page 128 When vehicle docking is connected audio output will be both from computer speaker and from vehicle docking speaker. Keyboard Backlight Setup Upon clicking the Keyboard Backlight Setup item the following screen appears. If your computer comes with the optional keyboard backlight function, allows you to configure its functionality in conjunction with the light sensor (option) located above the LCD panel.
  • Page 129 OFF (HIGH) – when the sensor light count value is equal or greater than  your specified OFF (HIGH) value (0 to 127), the keyboard backlight will be turned OFF.  Count – you can get the environment brightness count (0 to 127) by clicking the Get Count button.
  • Page 130 Fn+F8 Key Setup The Fn+F8 Key Setup item contains the following sub-items. Panel ON/OFF – when this item is selected, upon pressing Fn + F8 hot key  combination LCD screen will toggle ON/OFF. Sunlight Mode – when this item is selected, upon pressing Fn + F8 hot ...
  • Page 131 Monitor Data Setup Upon clicking the Monitor Data Setup item the following screen appears. Upon checking on any of the four items (all items can be selected), the next item Show Monitor Data will display the details of the selected sub-items.
  • Page 132 Show Monitor Data Upon clicking the Show Monitor Data item the following screen appears. Only the details of the items selected on the previous item Monitor Data Setup will be shown onscreen. About Upon clicking the About item the following screen appears showing the MTCCTRL utility version number.
  • Page 133 Ignition Control Function The MTCCTRL utility includes automatic sensing of the vehicle ignition status when computer is connected to the vehicle docking. This feature sets the power ON/OFF control of the system via the vehicle ignition switch or power button. Power ON –...

  • Page 134: Osd For Hot Key Operations

    OSD for Hot Key Operations With the OSD driver installed, it is activated every time Windows starts up. A graphic display will appear on the screen to indicate the current status when you perform a hot key operation (as listed next). The OSD disappears after a few seconds.
  • Page 135 Hot Key OSD Description Operation ON or OFF. The OSD appears to indicate the display output. Whether it LCD only, CRT only, or LCD and CRT.

  • Page 137: Caring For The Computer

    Chapter 7 Caring for the Computer Taking good care of your computer will ensure a trouble-free operation and reduce the risk of damage to your computer. This chapter gives you guidelines covering areas such as protecting, storing, cleaning, and traveling.

  • Page 138: Protecting The Computer

    Protecting the Computer To safeguard the integrity of your computer data as well as the computer itself, you can protect the computer in several ways as described in this section. Using an Anti-Virus Strategy You can install a virus-detecting program to monitor potential viruses that could damage your files.

  • Page 139: Using The Cable Lock

    Using the Cable Lock You can use a Kensington-type cable lock to protect your computer against theft. The cable lock is available in most computer stores. To use the lock, loop the lock cable around a stationary object such as a table.

  • Page 140: Taking Care Of The Computer

    Taking Care of the Computer Location Guidelines  For optimal performance, use the computer where the recommended temperature is between 0 C (32 F) and 55 C (131 F) – actual operating temperature depending on product specifications. Avoid placing the computer in a location subject to high humidity, ...

  • Page 141: Cleaning Guidelines

    a screen saver or other software that prevents the power management from working. Cleaning Guidelines  Never clean the computer with its power on.  Use a soft cloth moistened with water or a non-alkaline detergent to wipe the exterior of the computer. Gently wipe the display with a soft, lint-free cloth.

  • Page 142: Touchscreen Guidelines

    It is recommended that you do not charge the battery pack more than  once a day. It is recommended that you charge the battery pack with the computer’s  power off.  To maintain the battery pack’s operating efficiency, store it in a cool dark place removed from the computer and with 30 % ~ 40 % charge remaining.
  • Page 143 To remove hard to remove dirt, blow some steam on the particular area and gently wipe away using a soft cloth. Turn off the computer power when cleaning the display. Cleaning the  display with the power on may cause improper operation. ...

  • Page 144: When Traveling

    When Traveling Before traveling with your computer, make a backup of your hard disk  data into flash disks or other storage devices. As an added precaution, bring along an extra copy of your important data. Make sure that the battery pack is fully charged. ...

  • Page 145: Chapter 8 Troubleshooting

    Chapter 8 Troubleshooting Computer problems can be caused by hardware, software, or both. When you encounter any problem, it might be a typical problem that can easily be solved. This chapter tells you what actions to take when solving common computer problems.

  • Page 146: Preliminary Checklist

    Preliminary Checklist Here are helpful hints to follow before you take further actions when you encounter any problem: Try to isolate which part of the computer is causing the problem.  Make sure that you turn on all peripheral devices before turning on the ...

  • Page 147: Solving Common Problems

    Solving Common Problems Battery Problems The battery does not charge (Battery Charge indicator does not light yellow). Make sure that the AC adapter is properly connected.  Make sure that the battery is not too hot or cold. Allow time for the ...

  • Page 148: Display Problems

    Make sure that the distance between the two devices are not over 10  meters or that there are no walls or other obstructions between the devices.  Make sure that the other device is not in “Hidden” mode.  Make sure that both devices are compatible.

  • Page 149: Hardware Device Problems

    Simultaneous display/multi-display does not work. Make sure that you turn on the external monitor before turning on the  computer.  Press the Fn+F9 hot key to toggle through the display options or change the settings in Display Properties in Windows. Hardware Device Problems The computer does not recognize a newly installed device.

  • Page 150: Keyboard, Mouse, And Touchpad Problems

    Keyboard, Mouse, and Touchpad Problems The keyboard does not respond. Try connecting an external keyboard. If it works, contact an authorized  dealer, as the internal keyboard cable might be loose. The numeric keypad is disabled. Make sure that the Num Lock is switched on. (Check if the Num Lock ...

  • Page 151: Wlan Problems

    WLAN Problems I cannot use the WLAN feature. Make sure that the mini PCI-E WLAN card is correctly installed.  Make sure that the necessary driver(s) is correctly installed.  Make sure that the WLAN feature is turned on.  Transmission quality is poor.

  • Page 152: Modem Problems

    If the operating radio channel is in poor quality, change the Access Point  and all the wireless station(s) within the BSSID to another radio channel. Your computer may be in an out-of-range situation. Move your  computer closer to the Access Point it is associated with. ...

  • Page 153: Pc Card Problems

    PC Card Problems The PC card does not work. Make sure that the PC card controller driver is correctly installed.  Make sure that the PC card is correctly seated.  If the card requires an IRQ (Interrupt ReQuest), make sure that there is ...

  • Page 154: Software Problems

    You might be using a PC card that prevents the computer from entering  Hibernation mode. To enter the mode, stop the communication program and then remove the card or stop the card. Software Problems An application program does not work correctly. ...

  • Page 155: Startup Problems

    Make sure that your computer is equipped with the driver needed.  Click the speaker symbol on the taskbar and check the Windows volume  control.  Check the volume control of your computer. Startup Problems When you turn on the computer, it does not respond and the Power Indicator does not light green.

  • Page 156: Resetting The Computer

    Resetting the Computer You may have to reset (reboot) your computer on some occasions when an error occurs and the program you are using hangs up. If the computer operation seems to hang up, first wait. It is possible that the computer is processing data.

  • Page 157: Appendix A Specifications

    Appendix A Specifications Parts Specifications Intel® Core Duo ULV 1.2 GHz processor 533 MHz FSB (Front Side Bus) Chipset NorthBridge Intel® 945GMS SouthBridge ICH7-M Memory System RAM 512 MB DDR2 533 MHz (1 GB option) Cache 2 MB L2 cache Display Panel 10.4-inch wide TFT LCD, resolution up to 1024×...
  • Page 158 Parts Specifications Card Reader (option) Secure Digital (SD) I/O ports Two USB ports (USB 2.0 support), serial ports × 2 (RS-232), RJ-45 port, RJ-11 port Modem 56 Kbps, ITU V.92 MDC internal fax modem 10/100/1000Base-T Ethernet Wireless LAN (option) Intel® PRO 3945a/b/g Bluetooth (option) Specification 2.0 module Camera (option)

  • Page 159: Appendix B Regulatory Information

    Appendix B Regulatory Information This appendix provides regulatory statements and safety notices on your computer.

  • Page 160: On The Use Of The System

    On the Use of the System Class B Regulations Federal Communications Commission Radio Frequency Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 161: Safety Notices

    Canada Canadian Department of Communications Radio Interference Regulations Class B Compliance Notice This Class B digital apparatus meets all requirements of the Canada Interference-Causing equipment regulations. Cet appareil numérique de Classe B respecte toutes les exigences du Règlement Canadien sur le matériel brouileur. This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
  • Page 162 FINNISH VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. ENGLISH CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer.

  • Page 163: About The Modem

    paper or other objects that will reduce cooling. Do not use the AC adapter while it is inside a carrying case. Connect the adapter to a proper power source. The voltage  requirements are found on the product case and/or packaging. ...

  • Page 164: On The Use Of The Rf Device

    On the Use of the RF Device USA and Canada Safety Requirements and Notices IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 165 The use of wireless devices on airplanes is governed by the Federal  Aviation Administration (FAA). The use of wireless devices in hospitals is restricted to the limits set forth  by each hospital. Antenna use: In order to comply with FCC RF exposure limits, low gain integrated ...
  • Page 166 This device uses, generates and radiates radio frequency energy. The radio frequency energy produced by this device is well below the maximum exposure allowed by the Federal Communications Commission (FCC). This device complies with the limits for a Class B digital device pursuant to Part 15 subpart C of the FCC Rules and Regulations.

  • Page 167: European Union Ce Marking And Compliance Notices

    shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal.
  • Page 168 Icelandic Þessi vara stenst reglugerð Evró pska Efnahags Bandalagsins nú mer 1999/5/EC. Italian Questo prodotto è conforme alla Direttiva Europea 1999/5/EC. Norwegian Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 1999/5/EC. Portuguese Este produto cumpre com as normas da Diretiva Européia 1999/5/EC. Spanish Este producto cumple con las normas del Directivo Europeo 1999/5/EC.
  • Page 169 Belgium and the Netherlands In Belgium and the Netherlands, the product may not be used outdoors. See the instructions next under the heading “Turning Off the Wireless LAN Radio.” France Departments in Which the Wireless LAN Module Can Be Used (Indoors Only) The wireless LAN module can currently be used indoors only in the following 38 departments of mainland France.
  • Page 170 Frequency Ranges Indoors Outdoors (MHz) 2400 – 2446.5 10 mW Not permitted 2446.5 – 2483.5 100 mW 100 mW on private property with Ministry of Defense approval Turning Off the Wireless LAN Radio NOTE: Turning the wireless LAN radio off is not the same as disabling the wireless LAN card.

Table of Contents
