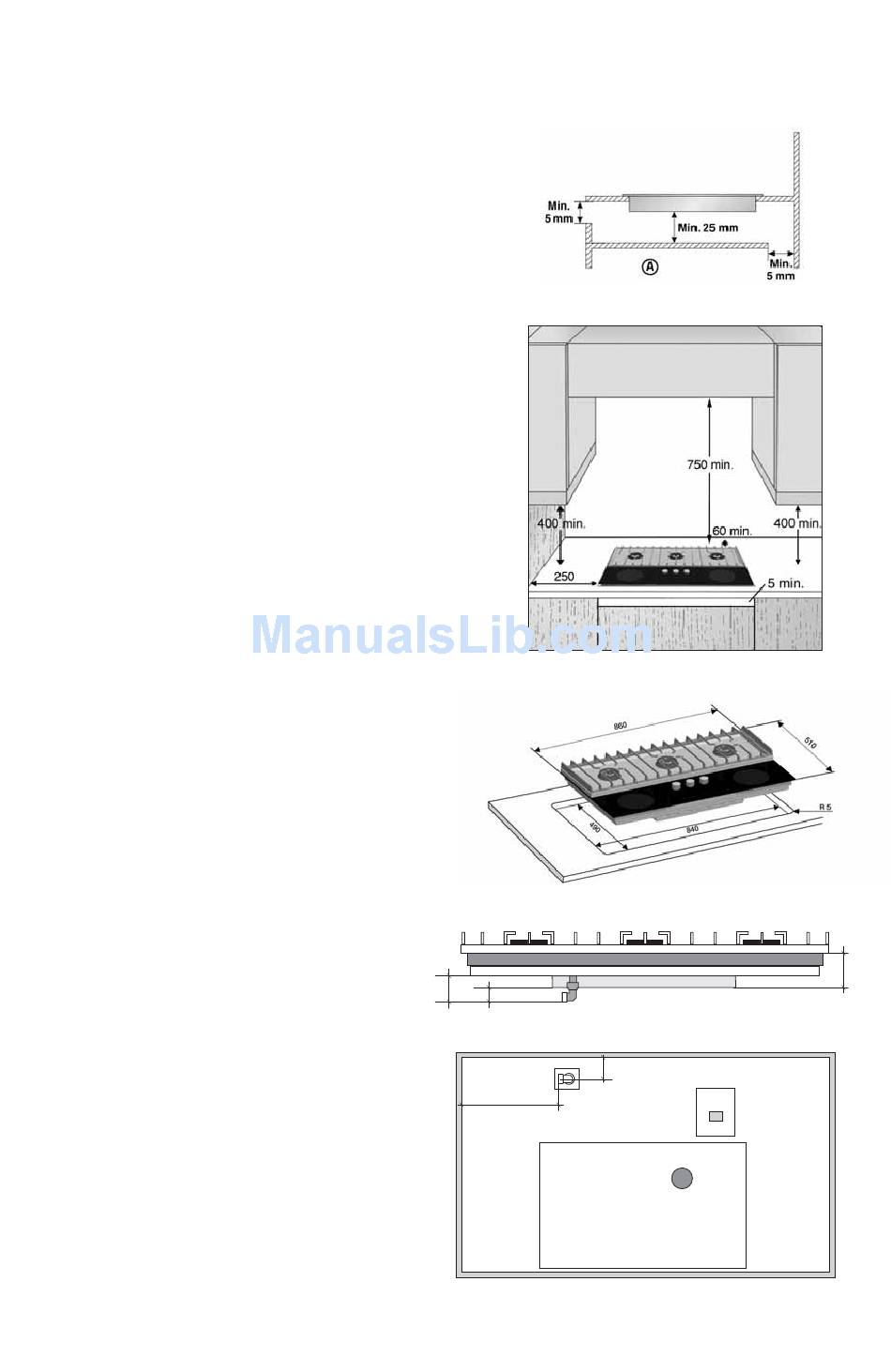

Sizes and installation measurements (mm)

NOTE: If a hood is installed above the hob, read
the instructions for fitting the hood where it
indicates the correct distances to be complied
with.
• The cooktop has to be set into a work top
between 20 - 40 mm deep.
• The distance between the lower face of the
glass ceramic hob and the cupboard or
separating panel must comply with the sizes
shown in diagram "A".
• If a column unit has to be installed next to
the cooktop, leave a distance of at least
100mm from the edge of the cooktop.
• Cut an opening in the worktop as per the
dimensions indicated in the enclosed product
description sheet.
• Apply the supplied gasket around the cooktop
(unless it has already been installed), after cleaning
the surface.
Important
In order to prevent the electronic circuits overheating
and becoming damaged, we recommend the
following:
• do not install the cooktop near a dishwasher
or washing machine, to prevent the
electronic circuits coming into contact with
steam or moisture which could damage them.
Front
59
16
212
8
Rear wall
44,5
91,5
