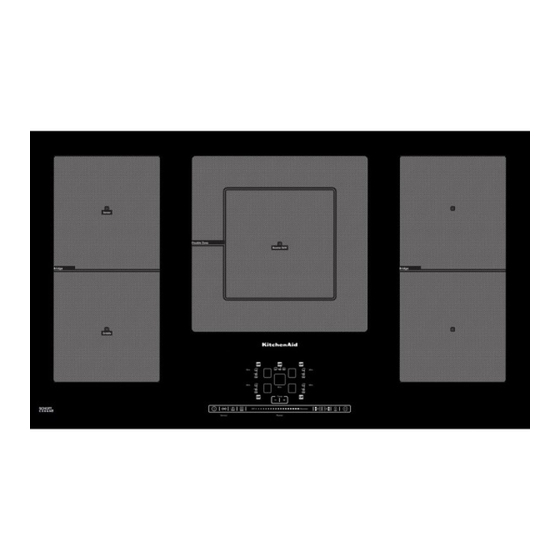

Kitchenaid KHIP5 90510
o cerca
il tuo prodotto tra le
migliori offerte di Cucine e Piani cottura
Instructions for use

Advertisement

Table of Contents
loading

Summary of Contents for KitchenAid KHIP5

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Kitchenaid KHIP5 90510 o cerca il tuo prodotto tra le migliori offerte di Cucine e Piani cottura Instructions for use...
  • Page 3: Table Of Contents

    Installation diagrams Important safety information Safeguarding the environment Declaration of conformity Before use Using existing pots and pans Recommended pan base diameters Installation Electrical connection Instructions for use Cleaning Troubleshooting guide After-Sales Service Power level table Functions table Cooking table...
  • Page 4: Installation Diagrams

    Installation diagrams 180 mm 180 mm 310/190 mm 180 mm 180 mm Min. 5 cm Min. 10 cm 5 mm Min. 3 cm Max. 6 cm...
  • Page 5 Installation diagrams...
  • Page 6 These instructions shall also be available on website: www.kitchenaid.eu IMPORTANT SAFETY INSTRUCTIONS YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT This manual and the appliance itself provide important safety messages, to be read and always observed. This is the danger symbol, regarding safety, warning of potential risks to users and others.
  • Page 7 - Do not use multi-sockets or extension cords. - Do not pull the appliance’s power cable. - The electrical parts must not be accessible to the user after installation. - The appliance is designed solely for domestic use for cooking food. No other use is permitted (e.g.
  • Page 8 Danger of fire: do not store items on the cooking surfaces. - Do not use steam cleaners. - Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. - After use, switch off the hob element by its control and do not rely on the pan detector.
  • Page 9: Safeguarding The Environment

    Safeguarding the environment Disposal of packaging materials Energy saving tips The packaging material is entirely recyclable and For optimum results, observe the following advice: marked with the recycling symbol ( ). Do not • Use pots and pans whose bottom diameter is dispose of the various packaging materials equal to that of the cooking zone.
  • Page 10: Using Existing Pots And Pans

    Using existing pots and pans Use a magnet to check whether pots or pans are suitable for use on the induction hob: pots are unsuitable if they cannot be magnetically detected. - Ensure pots have a smooth bottom, otherwise they may scratch the hob's glass ceramic surface. Check dishes.
  • Page 11: Electrical Connection

    Electrical connection WARNING - Disconnect the appliance from the mains power supply. - Installation must be carried out by a qualified electrician who is fully aware of current safety and installation regulations. - The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the regulations provided in this chapter.
  • Page 12 Electrical connection If the hob does not have power supply cables provided, for electrical connection, use two H05RR-F type cables (to be connected to the two terminal boards) as indicated in the table below. 380-415 V 3N ~ 220-240 V ~ 220-240 V ~ (AU and UK) Conductors Amount x size...
  • Page 13: Instructions For Use

    Instructions for use Control Panel Description The control panel is equipped with touch controls: to use them, just press the corresponding symbol (a light touch is sufficient). To select and activate the cooking zones To switch the single cooking To activate the zone OFF flexible zone Switching/...
  • Page 14 Instructions for use If you are using a pot that is not suitable, not correctly positioned or not of the correct dimensions for your induction hob, the message "no pot" will appear in the display (see figure on the left). If no pot is detected within 60 seconds, the hob switches off.
  • Page 15 Instructions for use Flexible Zone This function allows you to use two cooking zones as an extra-large single zone. It is perfect for oval, rectangular and elongated pans (with maximum base dimensions of 40x18 cm). After switching on the hob, press the key: the two cooking zone displays show level "0";...
  • Page 16 Instructions for use Simmering Bring the food to boiling point then press the relative key to select the simmering function; an appropriate power level will be set automatically to keep it just under boiling point. To deactivate the function, simply press OFF on the slide touchscreen. Melting This function maintains a permanently low temperature in the cooking zone.
  • Page 17: Cleaning

    Cleaning WARNING - Never use steam cleaners. - Before cleaning, make sure the cooking zones are switched off and that the residual heat indicator ("H") is not displayed. IMPORTANT: do not use abrasive sponges or pan scourers. as they could ruin the glass surface. •...
  • Page 18: After-Sales Service

    After-Sales Service Before contacting the After-Sales Service 1. See if you can eliminate the problem on your own by referring to the "Troubleshooting guide". 2. Turn the hob off and on again to check if the problem has been eliminated. If the fault persists after the above checks, contact the nearest After-Sales Service.
  • Page 19: Power Level Table

    Power level table Level use Power level Type of cooking (indicating cooking experience and habits) Ideal for rapidly increasing the temperature of Boost To heat quickly. food to fast boiling in the case of water or rapidly heating cooking liquids. Max.
  • Page 20: Functions Table

    Functions table Function Description of automatic functions Identifies a power level that is suitable for simmering long-cooking recipes. Suitable for cooking tomato sauce, ragu, soups, minestrone, maintaining a constant cooking level; ideal for cooking in a bain-marie Simmering (creams) and regenerating cooked food. Prevents food from boiling over or sticking to the bottom and burning, as often happens with these recipes.
  • Page 21: Cooking Table

    Cooking table Power level and cooking status Food Dishes or type of categories cooking First stage Power Second stage Power Cooking the pasta and Fresh pasta Heating the water Booster - 9 maintaining the boil Cooking the pasta and Dry pasta Heating the water Booster - 9 maintaining the boil...
  • Page 22 Cooking table Power level and cooking status Food Dishes or type of categories cooking First stage Power Second stage Power Grilled Preheating the grill Cooking on both sides Browning with oil (if with Cooking and maintaining Fish Stewed butter power level 6) the temperature Heating the oil or fatty Fried...
  • Page 24 Whirlpool Europe S.r.l. Viale G. Borghi, 27 - 21025 Comerio (VA) Phone 0332.759111 - Fax 0332.759268 www.whirlpool.eu Printed in Italy 03/15 400010765296...
