Summary of Contents for Simpson Washing Machine
-

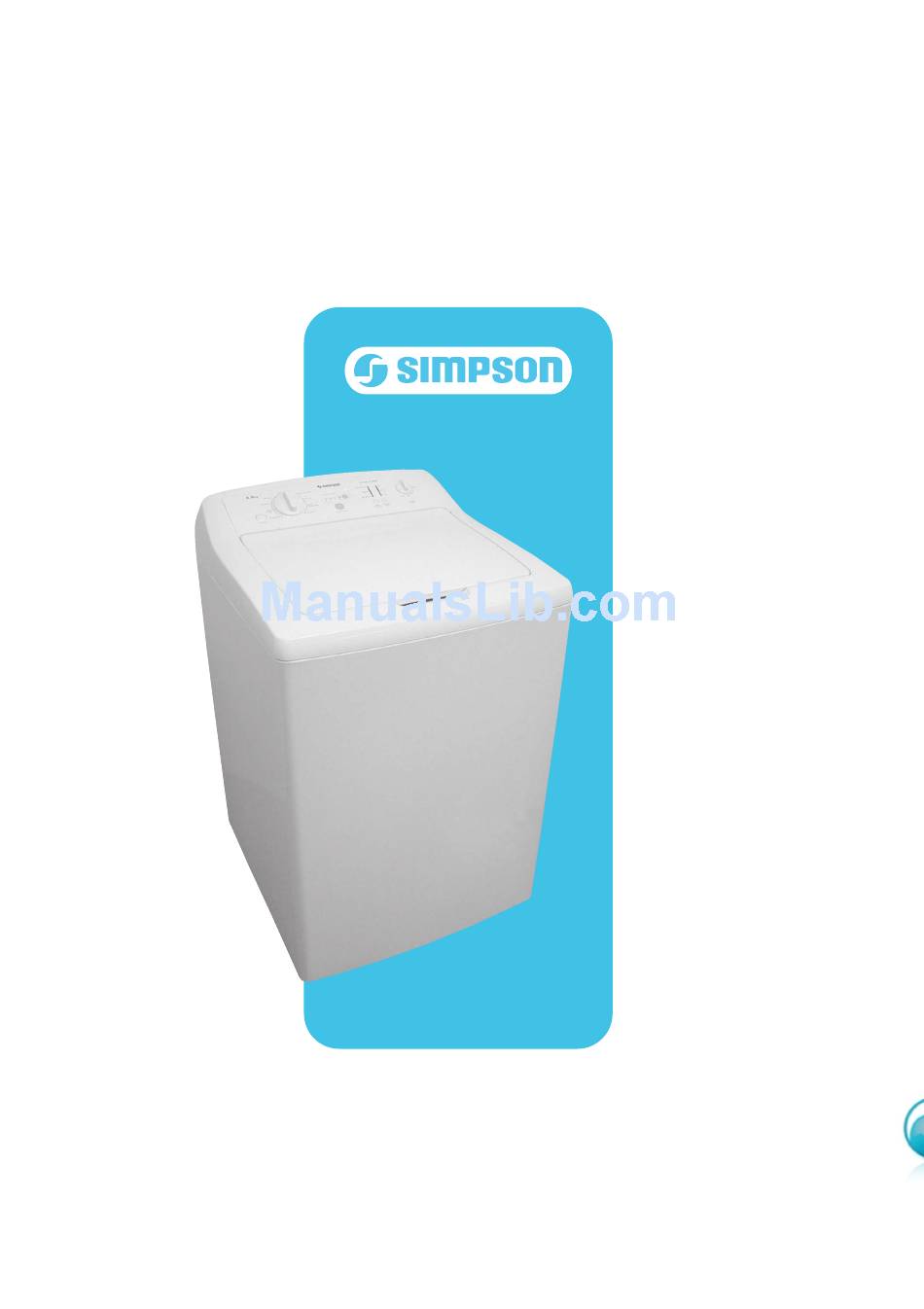

Page 1: C H O O S E The W A H S C H O C I , E C H O O S E The W T A R E E L V L E
USER MANUAL How to Use and C are for your Washing Machine... -
Page 2: Table Of Contents
SECTION B: Washing instructions e the e the e the To start the wash cycle/program SECTION C: Features of your washing machine – SECTION D: Caring for your washing machine t l i For Your Safety SECTION E: Handy washing hints... -
Page 3: Section A: Knowing Your Washing Machine
Your machine is most water efficient when ECO RINSE is used as the rinse option. Each time you switch on your washing machine, Eco Rinse is selected for you to help you save money and to reduce the impact on the environment. You can select the traditional Deep Rinse option for your first wash load if you wish. -
Page 4: The Difference Between The Deep Rinse And Eco Rinse Options
Deep rinse is automatically selected for you. Deep rinse option When Deep rinse is used, rinse water enters the washing machine filling up to the wash water level selected. The machine will then agitate and finally empty the water through the drain hose. -
Page 5: About Your Washing Machine
When you press a button you will get a short ‘BEEP’ to acknowledge the entry. If the option is not available at the time, a long ‘ERROR BEEP’ will be heard. NOTE: All functions of the washing machine will stop when the lid is open, except for pump out before spin. -
Page 6: Section B: Washing Instructions
2. Clothes must not be wrapped around the agitator. 3. The washing machine must not be overloaded. Clothes must be able to move during the washing cycle. 4. The load should contain only three or four large items, for example sheets. -
Page 7: Add Detergent/Fabric Softener/Bleach
IMPORTANT: If you are going to use fabric softener, you must select the DEEP RINSE option, ie deselect the ECO RINSE option. NOTE: You do not have to use fabric softener, your washing machine will wash the clothes perfectly well without it. -
Page 8: Choose The Wash Program
When you select the DRAIN & SPIN program, there will be a delay of approximately 5 minutes before the washing machine starts to spin. This delay is a pump out (DRAIN) period to ensure the bowl is empty of water, which is necessary before spin commences. Even though you may have only put wet clothes into... -
Page 9: C H O O S E The W A H S W T A R E E T M P E A R U T E R
Eco rinse. (See pages 4 and 13) CHOOSE THE WASH WATER TEMPERATURE For each wash program your washing machine automatically selects a suitable fill water temperature. If you want to use a different wash water temperature, press the WATER TEMP button repeatedly. -
Page 10: Choose The Water Level
If the water level you have is high and you wish to reduce this level for the following Deep Rinse cycle or for your next wash program, turn the Water Level knob to low level when the machine is running and NOT in pause mode. The washing machine will use this new lower level for next fill of water. NOTE: Flood diagnostic is explained on page 19. -
Page 11: To Start The Wash Cycle/Program
Do not hold the button down as this will advance the cycle, refer page 13 Advancing The Wash Progress. MACHINE IN PAUSE MODE You can tell when your washing machine is in pause mode. A PROGRESS INDICATOR light is ‘FLASHING’ and the IN PROGRESS light is ‘OFF’. -
Page 12: Section C: Features Of Your Washing Machine
SECTION C: Features of your washing machine Additional features on your washing machine are described in this section. INFORMATION AND GUIDANCE FEATURE The washing machine will give you information by using the control panel lights and the ‘beeping’ function. light is... -
Page 13: Rinse Option
TO SWITCH OFF THE END OF CYCLE BEEP The washing machine is factory set to ‘beep’ when your wash is finished. It will also 'beep' when the machine has paused at completion of the Drip Dry wash program, to alert you to remove the drip dry clothes from the wash bowl. -
Page 14: Section D: Caring For Your Washing Machine
SECTION D: Caring for your washing machine Your washing machine will give you long and trouble-free service, if you follow the instructions in this section. These instructions show you how to care for your washing machine. WHAT TO DO AFTER YOU HAVE FINISHED YOUR WASHING 1. -
Page 15: Cleaning Stains In The Wash Bowl
Never use bleach cleaners or steel wool. AVOIDING BUILD UP OF UNDISSOLVED DETERGENTS If you only wash with cold water, undissolved detergent and body oils will build up in the washing machine. This build-up can cause spotting on your clothes. -
Page 16: Section E: Handy Washing Hints
Test synthetic fabrics on an inside seam before using any chemicals or bleaches. IMPORTANT: Do not use dry cleaning fluids near your washing machine. These fluids will damage your washing machine and may cause an explosion. -
Page 17: A Guide To Stain Removal
A GUIDE TO STAIN REMOVAL Treat stains as soon as possible. The longer they are left the harder they are to remove. The following information may assist you in stain removal. Sponge with methylated spirit. Same as for whites but omit bleach. BALL POINT PEN INK BLOOD, MEAT JUICE, EGG Cover area with meat tenderiser... -
Page 18: Do Not Call For Service Until You Have Checked These Points
IMPORTANT: If you call for service and there is nothing wrong with your washing machine, you will have to pay for the service call. You will have to pay even when your washing machine is under warranty. Before you call for service, check the points in the table below. -
Page 19: Other Diagnostic Help And A Guide For When You Should Call
OTHER DIAGNOSTIC HELP AND A GUIDE FOR WHEN YOU SHOULD CALL FOR SERVICE If you are having a problem with your washing machine, make sure you have followed ALL of the instructions on page 18 in the “What to do” column before calling for service. -
Page 20: For Service
FOR SALES IN USTRALIA AND EALAND exhaustive): APPLIANCE : SIMPSON WASHING MACHINE (a) The Appliance is damaged by: (i) accident This document sets out the terms and conditions of product (ii) misuse or abuse, including failure to properly maintain or warranties for Electrolux branded appliances.
