Summary of Contents for Simpson SWT554

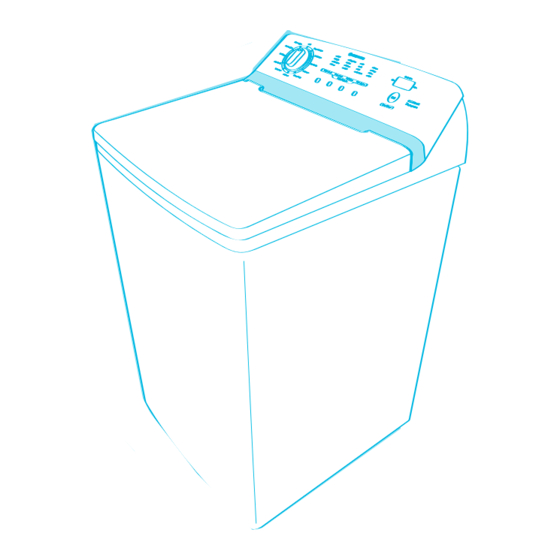

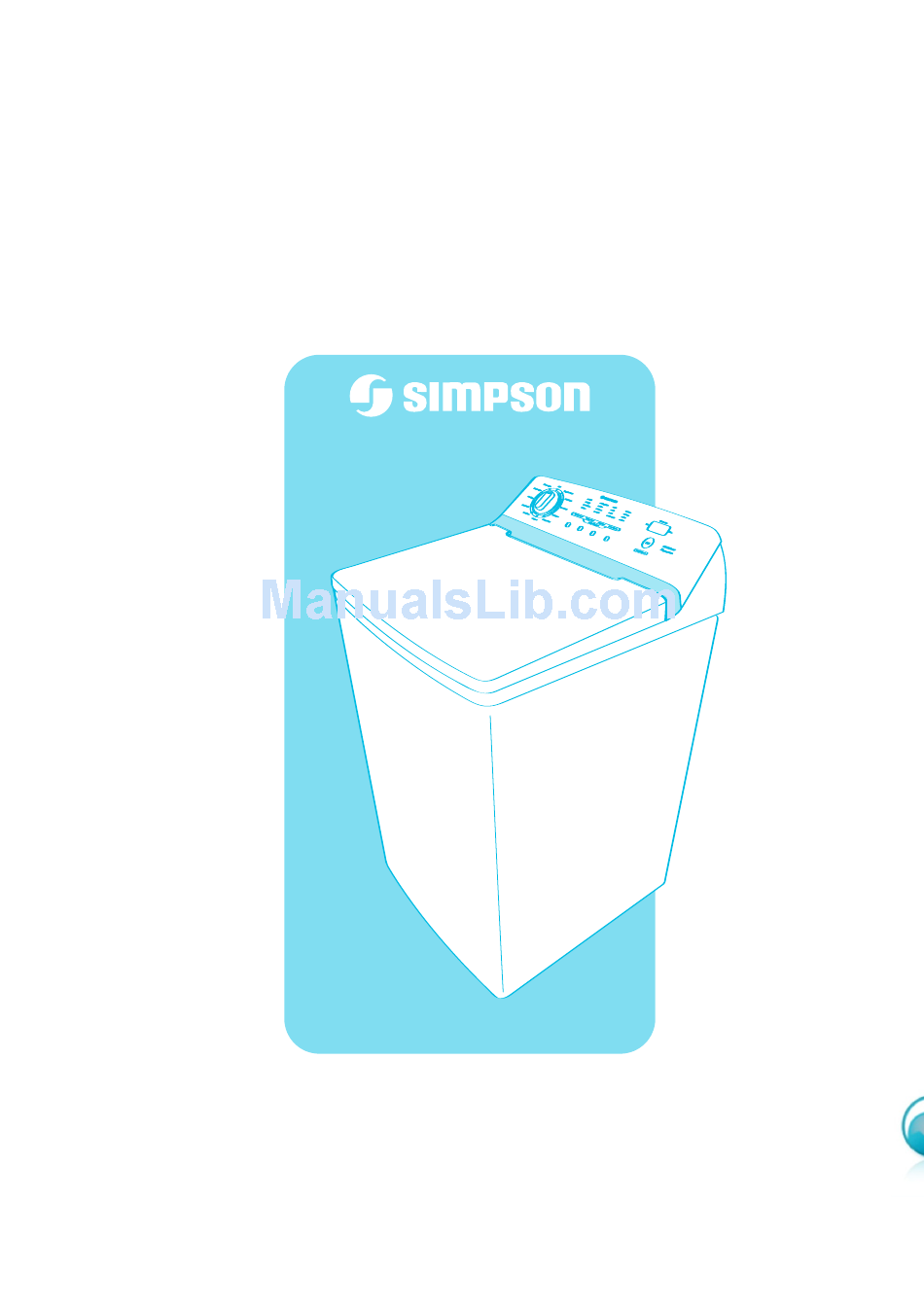

- Page 1 USER MANUAL Washing Machine SWT554 SWT604 SWT704 SWT754 119730101 SWT954...
-
Page 2: Table Of Contents
washing machine Choose the water level Choose the wash water temperature Choose the soak time , End of program, Lid lock feature (model SWT954) Rinse option How dose Eco Rinse work? Eco option Water return Water save, Rinse save Drain Hose And Return Hose (Model: SWT754) What to do after you have finished your washing, Cleaning the lint filter... -
Page 3: Parts Of The Washing Machine
SECTION A: Knowing your washing machine PARTS OF THE WASHING MACHINE This booklet talks about different parts of your washing machine. The main ones you need to know are shown on the diagrams below. Wash bowl Outlet Hose / Drain Hose Control Panel See installation instructions to... -
Page 4: Control Panel
Check the control panels for the one which matches your washing machine. MODELS: SWT554, SWT604 Program selector dial Soak Time Button Display See page 9. -
Page 5: Washing Machine
MODELS: SWT704, SWT954 Program selector dial Soak Time Button Display See page 9. See page 11. See page 12. Water Level button Rinse Option Button See page 10. See page 14. Temperature Button Start/Pause Button See page 11. See page 12. MODEL: SWT754 Program selector dial Soak Time Button... - Page 6 If you have frequent out of balance interruptions, it may be due to your washing machine not standing firm and level on the floor. This can be corrected by adjusting the washing machine legs as described in the Installation Instructions supplied with your machine. Button response and lights Always press buttons gently.
-
Page 8: Add Detergent/Fabric Softener/Bleach
ADD THE DETERGENT 1. Measure the correct amount of powder or liquid detergent by following the recommendations on the package. 2. Mix detergent in one litre of hot or warm water. 3. Add the pre-mixed detergent to the wash load. Don’t do these things: * Using too little detergent will give you a poor wash result. -
Page 9: Choose The Wash Program
START YOUR WASHING MACHINE AS FOLLOWS Model: SWT954 1. Turn on the taps and turn power on at the power point 2. Close the lid 3. Press the POWER button (only model SWT954) at the back of control panel above the rating label. -
Page 10: Choose The Water Level
YOUR PROGRAM GUIDE Default Program Select this Program Water Rinse*** Temp. Soak Level Option To reset a program and to switch off the machine. Warm No Soak Eco Rinse Regular Wash For an average domestic load of mixed fabrics. Full For synthetic or mixed fabrics, underwear, No Soak Cold... -
Page 11: Choose The Wash Water Temperature
CHOOSE THE WASH WATER TEMPERATURE For each wash program your washing machine automatically selects a suitable fill water temperature. If you want to use a different wash water temperature, press the WATER TEMP button repeatedly. The water temp lights will tell you the temperature for each press of the button. -
Page 12: End Of Program
TO START THE WASH CYCLE / PROGRAM Press the START/PAUSE button. START/PAUSE is used to Start, Stop and Continue the wash. If you have started your wash and you wish to stop it for some reason, press the START/PAUSE button and hold it for 1.2 second to enter pause mode MACHINE IN PAUSE MODE You can tell when your washing machine is in pause mode. -
Page 13: Information And Guidance Feature
SECTION C: Features of your washing machine Additional features on your washing machine are described in this section. INFORMATION AND GUIDANCE FEATURE The washing machine will give you information by using the control panel display and "beeping" function. Display will show ‘ ’and ‘FLASHING’... -
Page 14: Rinse Option
RINSE OPTION (Models: SWT554, SWT604, SWT704, SWT954) Pressing the “Rinse Option” button allows you to change the rinse type. For most washes the machine automatically selects “Deep Rinse” for you. There are four rinses to choose from… Fast rinse, Eco rinse, Deep rinse and Extra rinse. -
Page 15: Eco Option
ECO OPTION (Model: SWT754) Pressing the “Eco Option” button allows you to change the Eco options. You can select: Water Return to return water to the washing machine from the laundry trough. Water Save to automatically save your wash water for use in your next wash load. Rinse Save to automatically save water from the rinse cycle for later use. -
Page 16: Water Save, Rinse Save
Water Save To automatically save the wash water: Press the ECO OPTION button pad until the WATER SAVE light is ‘ON’. Your washing machine will pump the sudsy wash water into the laundry trough at the end of the wash cycle. Rinse water will be pumped down the drain. -
Page 17: What To Do After You Have Finished Your Washing, Cleaning The Lint Filter
Rotate Selector knob to “Off” position. Turn of power switch (only model SWT954). -
Page 18: Cleaning Stains In The Wash Bowl
CLEANING STAINS IN THE WASH BOWL Stains in the wash bowl can be caused by: metal objects such as bobby pins, dressmaking pins and nails. salt IMPORTANT: Check all pockets before loading clothes into your washing machine. t ’ n y l l n the bowl for too long before you wash it. -
Page 19: Yellowing Or Greying Clothes
SECTION E: Handy washing hints This section gives you some help in dealing with washing problems. Chemicals referred to on pages 19 and 20 are available from your local supermarket, hardware store or the chemist. YELLOWING OR GREYING CLOTHES Problem Possible causes What to do •... - Page 20 CREAM and MILK...
-
Page 21: Troubleshooting Check List
SECTION F: Don’t call for service until you’ve checked these points IMPORTANT: If you call for service and there is nothing wrong with your washing machine, you will have to pay for the service call. You will have to pay even when your washing machine is under warranty. - Page 22 OTHER DIAGNOSTIC HELP AND A GUIDE FOR WHEN YOU SHOULD CALL FOR SERVICE If you are having a problem with your washing machine, make sure you have followed ALL of the instructions on page 21 in the “What to do” column before calling for service. Description Display Code Customer action (Summary)
Need help?
Do you have a question about the SWT554 and is the answer not in the manual?
Questions and answers

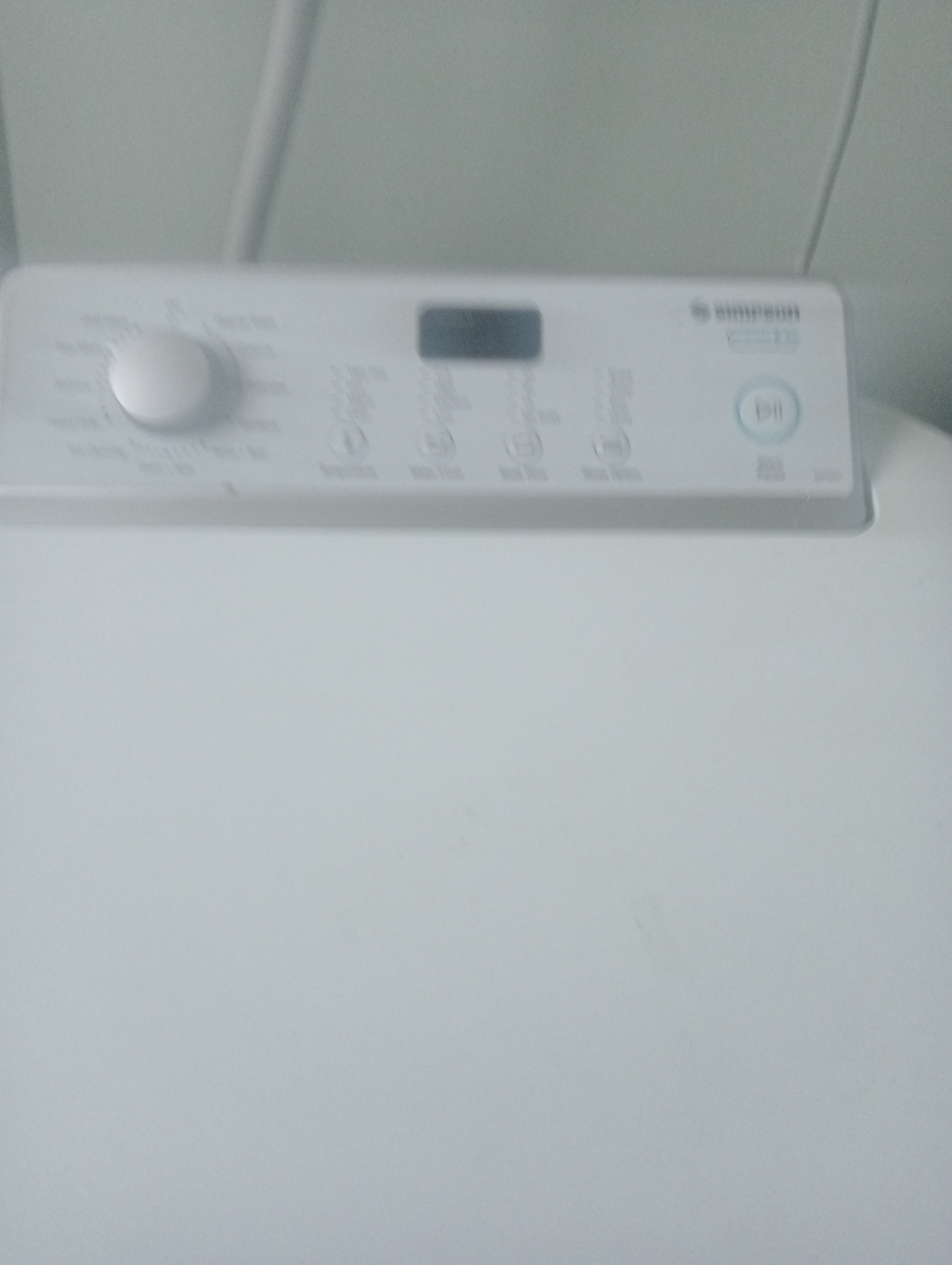

We turn the machine on and it then turns itself off.
