Simpson SWT7055LMWA User Manual

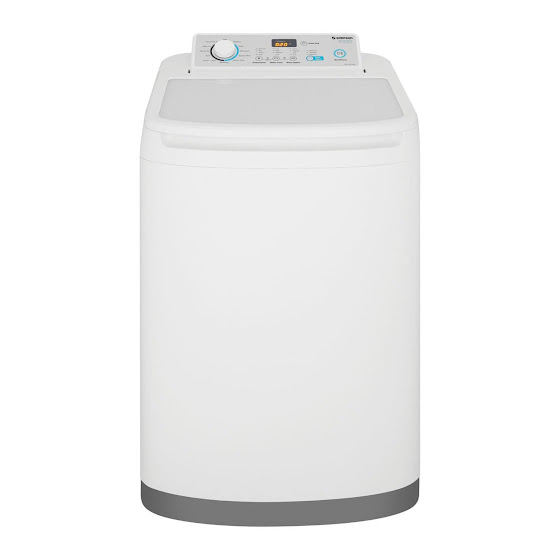

Top-load washing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

SWT7055LMWA
SWT7055TMWA
SWT6555TMWA
SWT6055TMWA
......................................................
TOP-LOAD WASHING MACHINE
REGISTER YOUR TOP LOAD
WASHING MACHINE
WITH YOUR SMARTPHONE
1
2
3
.................................................
USER MANUAL
Locate the label
on the back of the
top control panel
Easy register with your smartphone
1. Photograph the camer a icon ,
including the 4 dots( ).
2. Then text it to 0488 446 622
(Australia only )
00000000000
Photograph the
camera icon, including
the 4 dots ( )
Text to 0488 446 622
(Australia only )
© 2017 Electrolux Home Products Pty Ltd. EST_Phot oRegister_Fabric_7 0x70_Oct17
00000000000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWT7055LMWA and is the answer not in the manual?

Questions and answers

Related Manuals for Simpson SWT7055LMWA

Summary of Contents for Simpson SWT7055LMWA

  • Page 1 ....................... TOP-LOAD WASHING MACHINE USER MANUAL SWT7055LMWA SWT7055TMWA SWT6555TMWA SWT6055TMWA REGISTER YOUR TOP LOAD WASHING MACHINE WITH YOUR SMARTPHONE Locate the label on the back of the top control panel Easy register with your smartphone 1. Photograph the camer a icon , including the 4 dots( ).

  • Page 2: Table Of Contents

    CONTENTS SAFETY INFORMATION ................. 2 PRODUCT DESCRIPTION ................5 CONTROL PANEL ..................7 WASHING INSTRUCTIONS ................14 DAILY USE ....................16 CARING FOR YOUR WASHING MACHINE ........... 20 HELPFUL HINTS IN DEALING WITH WASHING PROBLEMS ....... 23 A GUIDE TO STAIN REMOVAL ..............
  • Page 3 1.1 GENERAL SAFETY It is dangerous to alter the specifica- tions or attempt to modify this product in anyway. Do not use your washing machine to wash articles with whale bones, material without hems or torn material. Always unplug the appliance and turn off the water supply after use, clean and maintenance.
  • Page 4 Never pull the power supply cable Any plumbing work required to to remove the plug from the socket, install this appliance should be always take hold of the plug itself. carried out by a qualified plumber. Any electrical work required to install this appliance should be carried out by a qualified electrician.

  • Page 5: Product Description

    PRODUCT DESCRIPTION WASHING MACHINE PARTS FRONT VIEW BACK VIEW INSIDE VIEW : SWT7055TMWA PARTS LIST INSIDE VIEW : SWT7055LMWA SWT6055TMWA Control Panel SWT6555TMWA Cabinet Levelling Adjustable Front Feet Water Inlet Hose - RED fittings (Hot Water) - BLUE fittings (Cold Water)
  • Page 6 PRODUCT FEATURES The Simpson wash system After the machine has started, the entire wash option button will be disabled and 1) Wash operation the display will show “ ” and flashing The agitator & bowl rotates while it is filled with three short beeps to indicate the with water to immerse the clothes.

  • Page 7: Control Panel

    CONTROL PANEL SWT7055LMWA / SWT7055TMWA / SWT6055TMWA Very Hot Extra Regular Warm Fast Cold Sports Wear SWT6555TMWA Very Hot Warm Cold...
  • Page 8 Cold. The temperature of warm water will depend on the temperature and move around pressure of your hot and cold water agitator supplies. The recommended temperature for warm is 35°C. NOTE : SWT7055LMWA use low profile agitator on page 5...
  • Page 9 1) Model SWT6055TMWA Maximum mass of dry cloth is 6.0 kg. 2) Model SWT6555TMWA Maximum mass of dry cloth is 6.5 kg. 3) Model SWT7055LMWA Maximum mass of dry cloth is 7.0 kg. 4) Model SWT7055TMWA Maximum mass of dry cloth is 7.0 kg.
  • Page 10 3.4 RINSE OPTION BUTTON The machine will go through a series of maximum six pulses spray and Pressing the Rinse Option button to short spin cycles in this manner, choose the rinse type for your wash depending on program selection, load.
  • Page 11 3.5 TIME ADJUST, FAVOURITE , CHILD LOCK TIME ADJUST (SWT7055TMWA / SWT7055LMWA / SWT6055TMWA) This option allows you to increase/decrease washing time from 3 available options. (Default is “Standard”) : Standard > Minimum > Maximum Time adjust is only applicate to...
  • Page 12 3.8 DELAY END OPTION End Of Program BUTTON (SWT6055TMWA,SWT7055TMWA ,SWT7055LMWA) When the program is completed Before you start the program, this display show will show “End”. option makes it possible to delay the end of the washing program by 2, 4,...
  • Page 13 YOUR PROGRAM GUIDE Available Model Recommended SWT7055TMWA Program Select this program SWT6555TMWA Water Rinse SWT7055LMWA Temp Spin SWT6055TMWA Level Option For normally soiled cotton load at rated load Regular Regular * Full Warm High capacity. /Eco* For synthetic or mixed fabrics, underwear,...

  • Page 14: Washing Instructions

    WASHING INSTRUCTIONS These Washing Instructions are of a Lint collectors Lint producers general nature and you should get good wash results by following them. - Corduroy - Towels - Synthetics - Nappies However, due to the variables of fabric - Permanent - Chenille/ types, soil levels, detergent types and press fabrics...
  • Page 15 Wash bras, pantyhose and other Don’t use the wrong type of detergent. You must use a low sudsing detergent delicates in a mesh laundry bag, which you can purchase from designed for front load washing machines or high efficiency top your supermarket.

  • Page 16: Daily Use

    NOTE : NOTE : SWT7055LMWA use low profile agitator on page 5 SWT7055LMWA use low profile agitator on page 5 Clothes must be loaded evenly Don’t do these things: around the agitator. For best...
  • Page 17 ADD FABRIC SOFTENER FOR SWT6055TMWA FOR SWT7055LMWA SWT6555TMWA Before adding softener to the dispenser, SWT7055TMWA make sure the siphon cap is pushed firmly down onto the spigot in the drawer. The softener will not siphon out if the cap is incorrectly fitted, is missing or blocked with...
  • Page 18 If you want your laundry to be washed with functions different from the one proposed by the NOTE : machine, press Temperature, fill some of water SWT7055LMWA use low profile before pour bleach solution agitator on page 5 Water Level, Soak Time and Rinse Option buttons.
  • Page 19 INTERRUPTION OF A STARTING A PROGRAM PROGRAM To start a program, press the Start/Pause button, a default If you have started your wash and program duration will be displayed you wish to stop it for some reason, on the screen. press the Start/Pause button to enter PAUSE mode.

  • Page 20: Caring For Your Washing Machine

    CARING FOR YOUR WASHING MACHINE Your washing machine will give you long Unclip the filter bag from the and trouble-free service, if you follow column. the instructions in this section. These instructions show you how to care for your washing machine. WHAT TO DO AFTER YOU HAVE FINISHED YOUR Squeeze tabs...
  • Page 21 6.3 CLEANING THE DISPENSER (SWT7055LMWA) The dispenser needs to be cleaned regularly, preferably after each wash. Inspect the dispenser after each wash to see if there is any residue of detergent. To do this proceed as follows: Pull the dispenser drawer forward until it stops.
  • Page 22 CLEANING STAINS IN AVOIDING BUILD UP OF THE WASHBOWL UNDISSOLVED DETERGENTS Stains in the wash bowl can be caused by: If you only wash with cold water, metal objects such as bobby undissolved detergent and body pins, dressmaking pins and nails; oils will build up in the washing machine.

  • Page 23: Helpful Hints In Dealing With Washing Problems

    HELPFUL HINTS IN DEALING WITH WASHING PROBLEMS RESIDUES ON WASHED Use another program as below, which has been designed to ITEMS minimise residual particles (they Some detergents have ingredients are in order of increasing benefit which do not fully dissolve and as a and will help you choose the best consequence, may leave white program for your wash load.)
  • Page 24 WARNING! CAUTION! Pre-treatment sprays and stain Do no use dry cleaning fluids or removers can damage plastic solvents near your washing components on your washing machine. These fluids will damage machine. your washing machine and may cause an explosion. YELLOWING OR GREYING CLOTHES Problem Possible causes What to do...

  • Page 25: A Guide To Stain Removal

    A GUIDE TO STAIN REMOVAL Stain White Cottons And Linens Washable Coloured Fabrics Ball Point Spong with methylated spirit. Same as for whites - use oxygen type Pen Ink Bleach if required. bleach. Rinse as soon as possible under Same as for whites - use oxygen type Beetroot cold water.
  • Page 26 Stain White Cottons And Linens Washable Coloured Fabrics Soak/rinse in lukewarm water Same as for whites. Check for colour until a majority of the colour is fastness before applying solvent. removed. Sponge with solvent to Curries break down any remaining fats and oils then wash.

  • Page 27: Trouble Shooting

    TROUBLE SHOOTING DO NOT call for service until you have checked the points listed below. If you call for service and there is nothing wrong with your washing machine, you will have to pay for the service call. You will have to pay even when your washing machine is under warranty. Before you call for service, check the points in the table below.
  • Page 28 Problem Display Possible Causes What to do Code Check detergent use and Not enough or no detergent. Clothes still rewash clothes. dirty after wash Remove some clothes and maximum load exceeded. completed. rewash. Incorrect wash program or Reselect program or temperature selected.
  • Page 29 TROUBLESHOOTING FAULT DISPLAYS If you have a problem with your washing machine and before you call service, make sure you have followed ALL of the instructions that may remedy the problem. You will find instructions in the ‘Troubleshooting’ section and in the table below. When the washing machine detects a problem that requires your attention, you will be alerted.

  • Page 30: Environment Concerns

    ENVIRONMENT CONCERNS Ecological hints Packaging materials The materials marked with the To save water, energy and to help protect the environment, we symbol are recyclable. recommend that you follow these tips: >PE<=polyethylene Normally soiled laundry may be >PS<=polystyrene washed without prewashing in order >PP<=polypropylene to save detergent, water and time (the environment is protected too!).

  • Page 31: Warranty

    (c) ‘ASC’ means Electrolux’s authorised serviced centres; the Appliance; (d) ‘Simpson’ is the brand controlled by Electrolux Home Products Pty In addition, Electrolux is not liable under this warranty if: Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762...
  • Page 32 www.simpson.com.au...
  • Page 33 5 Feb 2020 New create for Mini 7kg Agitator Worawoot K. New Create NOTE: THIS PAGE IS A GUIDELINE NOT AN ARTWORK DO NOT PRINT IDC ASIA COLOUR User Manual for MINI-SIMPSON Gray Scale BRAND Electrolux SWT7055LMWA,SWT6555TMWA SWT6055TMWA, SWT7055TMWA Worawoot K. A12246403...

This manual is also suitable for:

Swt7055tmwaSwt6555tmwaSwt6055tmwa
