Summary of Contents for Simpson SWF85561

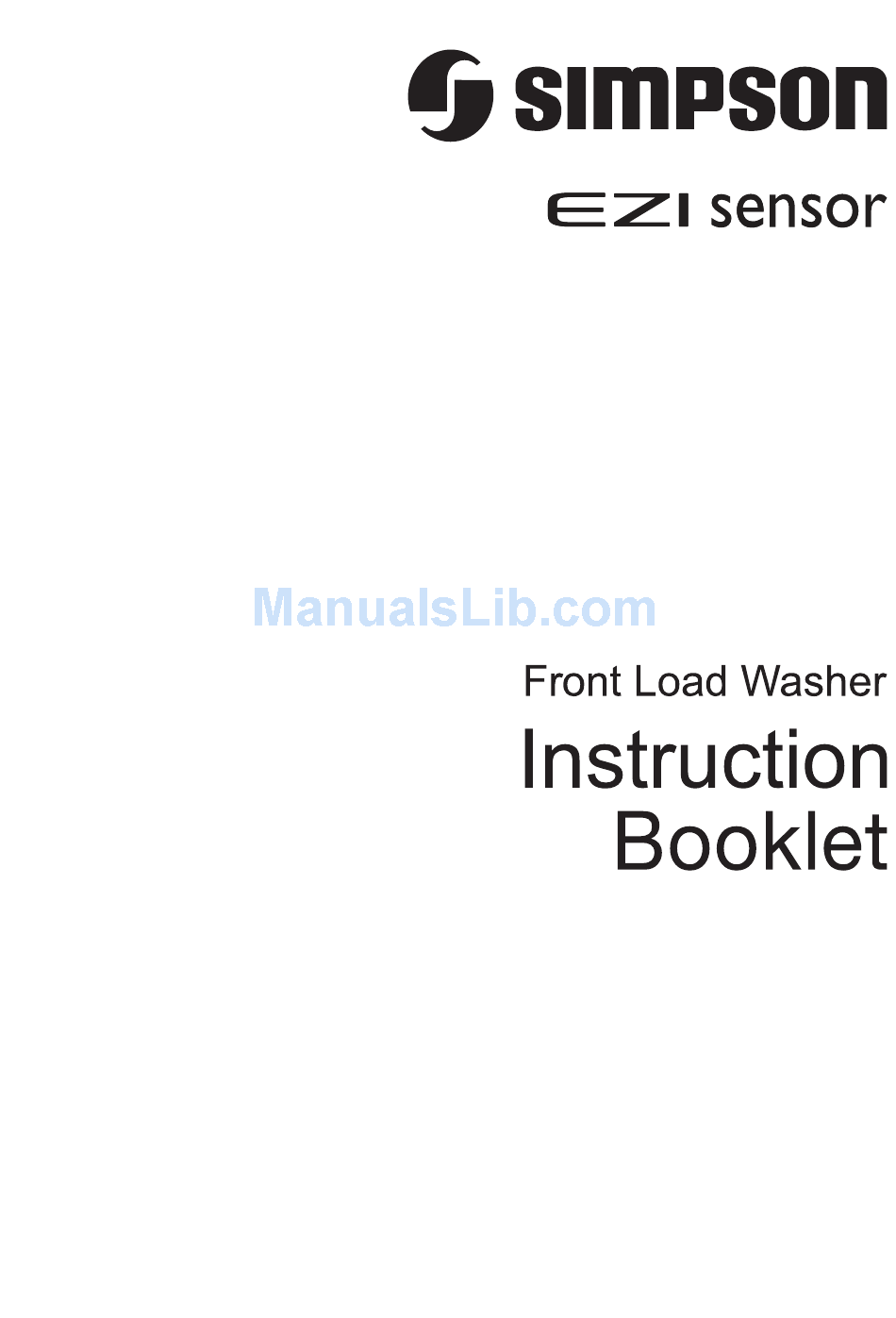

- Page 1 5.5 kg 6.0 kg 7.0 kg SWF85561 SWF85661 SWF10761 147194860...
-
Page 2: Table Of Contents
2 contents The symbols you will see on some paragraphs of this booklet have the following meaning: The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct functioning of the appliance. The information marked with this symbol provides additional instructions and practical tips on the use of the appliance. -
Page 3: Safety Information
safety information 3 Safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, In the interest of your safety and to or lack of experience and knowledge, ensure the correct use, before unless they have been given supervision installing and first using the or instruction concerning use of the... -
Page 4: Child Safety
4 safety information After having installed the appliance, Never pull the power supply cable to check that it is not standing on the inlet remove the plug from the socket; and drain hose and the worktop is not always take hold of the plug itself. pressing the electrical supply cable. -
Page 5: Product View And Parts
product description 5 Product description Your new appliance meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. This program selector dial combines the function of program and temperature selection, making it easier to set the program. The automatic cooling of the washing water from 90°... -
Page 6: Control Panel
6 control panel Control panel Program selector dial See page 8. Spin button See page 8. Option button See page 9. Fast Wash button See page 10. Delay Start button See page 10. Start/Pause button See page 11. Program progress display See page 11. -
Page 7: Use
use 7 First Use Measure out the detergent and the fabric softener Pull out the dispenser drawer until it stops. Ensure that the electrical and water Measure out the amount of detergent connections comply with the required, pour it into the main wash installation instructions. -
Page 8: Select Required Program
If you turn the program selector dial to Delicates and Synthetics: 700 rpm. another program when the machine is working, the red Start/Pause pilot light will For SWF85561 and SWF85661 flash 3 times to indicate a wrong Cottons, Synthetics and selection. The machine will not perform Hand Wash: 850 rpm;... - Page 9 use 9 Select the Prewash, Economy No Spin: by selecting this option, the machine will not spin the clothes after it options drains the water at the last rinse. Press the Options button repeatedly, to select the desired option. The relevant light Rinse Hold: by selecting this option will light up.
-
Page 10: Select The Delay Start
10 use Select the Fast Wash option This option makes it possible to delay the starting of the washing program by 3, 6, and 9 hours. You must select this option after you have set the program and before you press the Start/Pause button. -
Page 11: Select The Start/Pause
use 11 Select the Start/Pause Program progress display After having pressed the Start/Pause button, the “Washing” pilot light comes To start the selected program, press the “Start/Pause” button; the corresponding When the pilot light “Washing” comes on green pilot light stops flashing. this means that the machine is performing The “Washing”... -
Page 12: Interrupting A Program
12 use Interrupting a program Depress the “Start/Pause” button to interrupt a program which is running, the corresponding light starts to flash. Depress the button again to restart the program. Cancelling a program Turn the selector dial to “Off” to cancel a program which is running. -
Page 13: Washing Hints
washing hints 13 Washing hints Remove persistent stains before washing. Rub particularly soiled areas with a special Sorting the laundry detergent or detergent paste. Treat Follow the wash code symbols on each curtains with special care. Remove hooks garment label and the manufacturer’s or tie them up in a bag or net. -
Page 14: Removing Stains
14 washing hints Removing stains Tar stains: first treat with stain remover, Stubborn stains may not be removed by just water and detergent. It is therefore methylated spirits or benzine, then rub advisable to treat them prior to washing. with detergent paste. (*) do not use acetone on artificial silk. -
Page 15: Quantity Of Detergent To Be Used
washing hints 15 Follow the product manufacturer’s recommendations on quantities to use and do not exceed the MAX mark in the detergent dispenser drawer. Do not spray stain pre-treatment products (e.g. Preen) on or near the machine, as it can attack plastic materials reducing its life. -
Page 16: International Wash Code Symbols
16 International wash code symbols International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max.wash Max.wash Max.wash Max.wash temperature temperature temperature temperature 95 °C 60 °C 40 °C 30 °C... -
Page 17: Washing Program
washing program 17 Washing program Description Max. Load Program/ Type of laundry Options Temperature program 10761 85661 85561 - Spin Red. White cotton (heavy - No Spin - Main wash at soiled cotton items): - Rinse Hold Cottons 90° C e.g. - Page 18 18 washing program Description Max. Load Program/ Type of laundry Options Temperature program 85661 85561 10761 - Main wash at Delicates 40° C - Rinses - Spin Red. 40° C - Short spin - No Spin Delicate fabrics, for - Rinse Hold example curtains.
-
Page 19: Care And Cleaning
care and cleaning 19 Care and cleaning Cleaning the dispenser drawer The washing powder and additive dispenser drawer should be cleaned You must DISCONNECT the appliance regularly. from the electricity supply, before you can carry out any cleaning or maintenance Remove the drawer by pressing the work. -
Page 20: Cleaning The Drain Filter
20 care and cleaning Replace the drawer and run the rinse Hold filter securly programme without any clothes in the and pull upwards drum. to remove it from its position. Remove eliminate the eventual fluff or small objects Cleaning the drain filter around the filter. -
Page 21: Cleaning The Water Inlet Filter
care and cleaning 21 Cleaning the water inlet filter close the filter cover. If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is therefore a good idea to clean it from time to time. -
Page 22: Troubleshooting
22 troubleshooting Troubleshooting Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below. During machine operation it is possible that the red Start/Pause pilot light flashes to indicate that the machine is not working. - Page 23 troubleshooting 23 Malfunction Possible cause Solution The drain hose is squashed Check the drain hose or kinked. (Red Start/ connection. Pause pilot light flashes) The drain pump is clogged. Clean the drain filter. The machine does (Red Start/Pause pilot not empty and/or light flashes) does not spin: Disable the option...
- Page 24 24 troubleshooting Malfunction Possible cause Solution The transit bolts and Check the correct packing have not been installation of the appliance. removed. The support feet have not Check the correct levelling been adjusted. of the appliance. The machine vibrates or is noisy: The laundry is not evenly Redistribute the laundry.
- Page 25 troubleshooting 25 If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.
-
Page 26: Technical Data
Depth 54 cm Power supply voltage/frequency 220-240 V/50 Hz Total power absorbed 2000 W Minimum fuse protection Maximum 0,8 MPa SWF10761 SWF85661 SWF85561 Maximum Load Cottons 7.0 kg 6.0 kg 5.5 kg Synthetics 2.5 kg 2.5 kg 2.0 kg Delicates 2.5 kg... -
Page 27: Installation
installation 27 Installation Remove the polystyrene block(s) protecting Unpacking the motor All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices Very carefully so that they can be refitted if the machine slide out the ever has to be transported again. -
Page 28: Water Drainage
28 installation Positioning The inlet hose must not be lengthened. If it is too short and you do not wish to move Install the machine on a flat hard floor. the tap, you will have to purchase a new, Make sure that air circulation around the longer hose specially designed for this machine is not impeded by carpets, type of use. -
Page 29: Electrical Connection
installation 29 Electrical Connection This machine is designed to operate on a 220-240 V, single-phase, 50 Hz supply. “An incorrect power supply may void your warranty.” Check that your domestic electrical For the correct functioning of the installation can take the maximum load machine the drain hose must remain required (2.0 kW), also taking into hooked on the proper support piece... -
Page 30: Environment Concerns
30 environment concerns Environment concerns Packaging materials Ecological hints The materials marked with the symbol To save water, energy and to help protect are recyclable. the environment, we recommend that you >PE<=polyethylene follow these tips: >PS<=polystyrene Normally soiled laundry may be >PP<=polypropylene washed without prewashing in order to save detergent, water and time (the...
