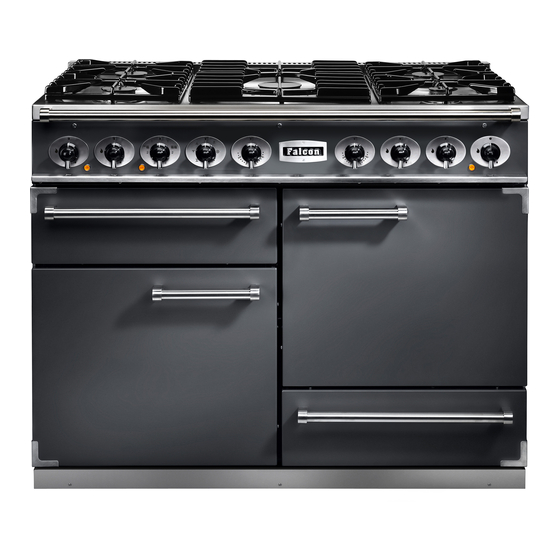

Falcon 1092 CT Dual Fuel User's Manual & Installation And Servicing Instructions
Hide thumbs
Also See for 1092 CT Dual Fuel:
- User manual (60 pages) ,
- User's manual & installation instructions (40 pages) ,
- User's manual & installation instructions (40 pages)
Subscribe to Our Youtube Channel
Related Manuals for Falcon 1092 CT Dual Fuel
Summary of Contents for Falcon 1092 CT Dual Fuel
- Page 1 1092 CT Dual Fuel User’s Manual & Installation and Servicing Instructions U109410-04...
-
Page 2: Peculiar Smells
Be safe Warning Accessible parts will become hot in use. To avoid burns and scalds children should be kept away. You need clean fresh air - so does your cooker. Burner flames produce exhaust gases, heat and moisture. Make sure that the kitchen is well ventilated: keep natural ventilation holes open or install a powered cooker hood that vents outside. -
Page 3: Table Of Contents
Contents Hotplate Burners The Glide-Out Grill The Ovens Storage Falcon Multi-function Oven cooking guide Oven Cooking chart - Conventional and full Fan oven functions Cleaning your cooker Moving your cooker Troubleshooting General Safety Instructions Installation Conversion to LP Gas Servicing... -
Page 4: Hotplate Burners
Hotplate Burners When hotplate control knob is pressed in, sparks will be made at every burner. This is normal. If, after lighting, a hotplate burner’s flame goes out, turn it off and leave it for one minute before relighting it. The open burners Make sure flames are under the pans. -
Page 5: The French Cooktop
The front of the French cooktop should be level with the front of the outer pan supports, with the ‘Falcon’ name at the front. The cooktop should only be fitted over the centre burner - don’t try to use it over the outer burners. -
Page 6: The Glide-Out Grill
The Glide-Out Grill To heat the right hand half, : Accessible parts may be hot when the AUTION turn it anti clockwise. grill is in use. Young children should be kept away. Before using the grill for the first time turn on the grill and run for 30 minutes with the grill pan in position, pushed fully back, and the grill door open. - Page 7 Grill Cooking Chart MEAT Time (minutes) Back Bacon Rashers Chicken Satay Fillet Steak (170g) Sirloin Steak (170g) Hamburger (113g) Lamb Chop Lamb Kidneys Lamb’s Liver Pork Chops Pork Sausage (57g) Pork Kebabs FISH Time (minutes) Cod Fillet Halibut Steaks 10-11 Herring Fillets in Oatmeal Lemon Sole Fillets Salmon Steaks...
-
Page 8: The Ovens
The Ovens During use the appliance becomes hot. Care should be taken to avoid touching the heating elements inside the oven. The Left Hand Oven The Right Hand Oven The left hand oven is a Multi-function oven. As The fan in the right hand oven circulates hot air well as the oven fan and fan element, it is fitted continuously, which means faster more even with two extra heating elements, one visible in... -
Page 9: Fan Oven
Multi-function oven functions The Multi-function oven has many varied Fanned grilling in the oven uses. We suggest you keep a careful eye on This function operates the fan whilst the your cooking until you are familiar with each top element is on. It produces a more even, less function. - Page 10 The Oven shelves Both Ovens Please remember that all cookers vary - temperatures in your new Falcon ovens may There are 4 differ to those in your previous cooker. standard oven shelves (A) and 1 The wire shelves should always be pushed drop shelf (B).
-
Page 11: Storage
on the oven shelf. For best results pre-heat the oven until the oven indicator light goes out. To remove a shelf first make sure it is pushed fully back, so that the shelf stop is in line with the kink in the side of the shelf For safety’s sake push the drawer runners back... -
Page 12: Falcon Multi-Function Oven Cooking Guide
Falcon Multi-function Oven cooking guide Remember - not all functions will be suitable for all food types. The oven control settings and cooking times given are intended to be used only as a guide. Individual tastes may require the temperature to be altered to provide a preferred result. -
Page 13: Oven Cooking Chart - Conventional And Full Fan Oven Functions
Oven Cooking chart - Conventional and full Fan oven functions Convection Oven Fan Oven Shelf Food Temperature Position Temperature Approximate Cooking Time FISH 190°C 180°C Fillets 15-20mins. 190°C 180°C Whole 10mins.per 500g + 10mins. 190°C 180°C Steaks according to thickness. ROAST MEATS Beef with bone 160°C... -
Page 14: Cleaning Your Cooker
Cleaning your cooker Check that the burner ports are not blocked. If blockage occurs, remove stubborn particles Before thorough cleaning, isolate your cooker using a piece of fuse wire. from the electricity supply. Cleaning your French Cooktop Never use paint solvents, washing soda, Things to avoid caustic cleaners, biological powders, bleach, The enamel finish of the cooktop is very... - Page 15 finish. Carefully place the cooktop in position, with the Falcon name at the front. The front of the cooktop should be level with the front of For each side, support the side rail with one the outer pan supports.
-
Page 16: Moving Your Cooker
each side in turn, support the side rail and press the frame down in to the side rails. To refit the side support, first locate the tag at the bottom Replace the grill pan. of the support in the slot in Control Panel and Oven Doors the locating bracket in the For best results, diluted liquid detergents... - Page 17 To remove the drawer Pull the drawer forward. Lift up the ends of the plastic clips (one each side) to release the catches holding the drawer to the side runners and at the same time pull the drawer forward and away from the side runners. Move the oven a bit at a time, checking behind it to make sure the gas hose is not caught.
-
Page 18: Troubleshooting
Troubleshooting example, if it is deeper at the back, then the back of the cooker should be raised up or the front lowered.) If the cooker is not level, Steam is coming from the oven arrange for your supplier to level it for you. When cooking foods with a high water content (e.g. -
Page 19: General Safety Instructions
General Safety Instructions All parts of the cooker become hot with use and will retain heat even after you have stopped cooking. In the UK In the UK the cooker must be installed by a Take care when touching cooker, to minimize CORGI registered engineer. - Page 20 Do not use water on grease fires. Never pick up warming plates, dishes, drying tea towels or a flaming pan. Turn the controls off. Smother softening butter. a flaming pan on a surface unit by covering When using an electrical appliance near the the pan completely with a well fitting lid or hotplate, be sure that the cord of the appliance baking tray.
-
Page 21: Installation
Installation In the Republic of Ireland:- The installation must be carried out by a Competent Person and installed in accordance with the current Dear Installer edition of I.S.813 “Domestic Gas Installations” and the Before you start your installation, please current Building Regulations. Reference should also be complete the details BELOW. -
Page 22: Positioning The Cooker
You will need the following equipment Positioning the Cooker to complete the cooker installation The diagrams show the minimum recommended distance satisfactorily from the cooker to nearby surfaces. The cooker should not be placed on a base. STABILITY BRACKET If the cooker is to be supplied with gas through a flexible hose, a stability bracket or chain must be fitted. -
Page 23: Moving The Cooker
Unpacking the Cooker Do not take any packaging off the cooker until it is directly in front of the place it is to be installed (unless it will not fit through a door in its outer packaging). For safety’s sake push the drawer runners back out of the Cut the banding straps and lift the cardboard box off... -
Page 24: Gas Connection
not the front roller, to prevent accidental movement of the cooker. Gas Connection Fitting a stability bracket A stability bracket or chain (not supplied by with the cooker) should be fitted when the cooker is connected to a flexible gas supply. Any restraining device should be secured to the fabric of the building and should be able to be released so that the cooker can be pulled out for Make sure you lower BOTH REAR ROLLERS. -
Page 25: Electrical Connection
Electrical Connection This appliance must be installed by a qualified electrician to comply with the relevant regulations and also the local electricity supply company requirements. WARNING: THIS APPLIANCE MUST BE EARTHED. Note The cooker must be connected to the correct electrical supply as stated on the voltage label on the cooker, through a suitable cooker control unit incorporating a double pole switch having a contact separation of at least... -
Page 26: Conversion To Lp Gas
Conversion to LP Gas Grill Open the grill compartment door. Turn on the grill control and check that the grill heats up. Servicing - warning Oven check This conversion must be performed by a competent Turn on the ovens and check that they start to heat up. person. - Page 27 If you have lifted up the hotplate then carefully replace it taking care not to damage or displace the ignition electrodes or flame safety probes (arrowed) and replace the rear fixing screws. To convert the control taps Natural Gas at 20mbar The 95 jet in burner A is counter-bored and is different to Pull off...
- Page 28 The Outer Burners Reassembly Replace the smaller rings on the LP Gas outer burners. The very small ring is for the right hand front burner. Centre burner Screw in the hexagon headed venturis but to make fitting the other burners easier do not fully tighten yet. If you are converting to LP Gas the burner ring in the centre burner must be...
-
Page 29: Stick On Label
Refit the pan supports. Reassemble in reverse order. Stick on label Stick the appropriate label on to the data badge to indicate the gas the appliance is now set for. Pressure Testing Connect the appliance to the gas supply. Check the appliance is gas sound. The gas pressure can be measured at the pressure test point on the gas inlet. -
Page 30: Servicing
SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Servicing a) Remove the control panel as detailed in Section 3 b) Remove the retaining screw on the upper front edge and the two fixings on the rear or the side panel. Undo When servicing or replacing gas carrying components, the lower retaining screw situated below the edge at disconnect from the gas supply before commencing... - Page 31 SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. a) Pull the unit forward to gain access to the cover box. f ) Replace in reverse order. Check the appliance is gas Undo the cover screws and lift clear.
- Page 32 SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 17 To Remove the Oven Door Seal 21 To Remove Oven Inner Back a) Open the oven door. For the LH oven unscrew the 2 thermostat phial fixing screws.
- Page 33 SERVICING - WARNING Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Top Element a) Open the LH oven door and undo the fixings that secure the heat shield. b) Remove the top element bracket fixings and withdraw element.
-
Page 34: Circuit Diagram
Circuit Diagram Connection shown in circuit diagram is for single phase. Ratings are for 230V 50Hz Key to circuit diagram Colour Code A Grill energy regulator b Blue B Left hand Multi function oven thermostat bl Black C Multi function oven function control br Brown D Hotplate control tap switches or Orange... -
Page 35: Technical Data
Technical Data This cooker is category II 2 H 3+ It is supplied set for group H natural gas. A conversion kit from NG to LP gas is included. INSTALLER: Please leave these instructions with the User. DATA BADGE LOCATION: Cooker back, serial number repeater badge below oven door opening. Country of Destination: GB/IE (See appliance data badge for test pressures) Electric... - Page 36 ��� �������...
