Summary of Contents for Coway P-08L

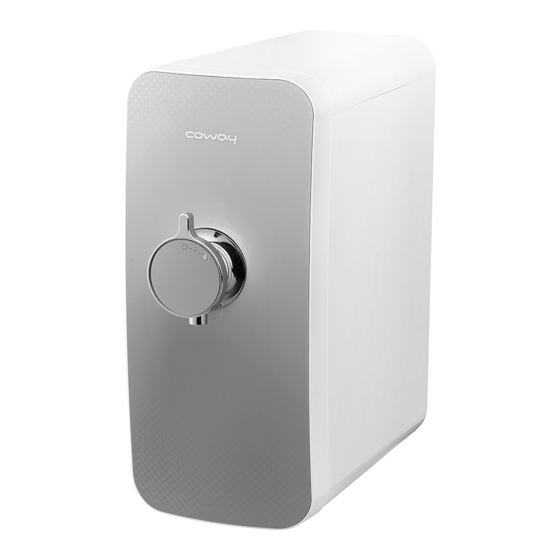

- Page 1 P-08L Water Filtration Device • For your safety and proper use of the product, please read this User’s Manual before use. • Warranty card is included in this User’s Manual. • English(MY)
- Page 2 Continuous Continuous dispensing dispensing FEATURES Continuous dispensing function Maintains a set Maintains a set Continuous Continuous Turn the water dispensing lever 45° clockwise and lock it in water pressure water pressure dispensing dispensing place to conveniently dispense purified room-temperature Continuous Continuous water.
-
Page 3: Table Of Contents
DEAR CUSTOMERS Coway Water Filtration Device. Thank you for using our Please be sure to read this user's manual to use and maintain your device correctly. If you experience any problems during use, you can refer to this user's manual to resolve them. -
Page 4: Safety Information
SAFETY INFORMATION Be careful to keep this safety information. Please read this information to prevent property loss and ensure your safety. Danger : If not observed, serious injury or even death could occur. • Do not install near electric heaters. •... - Page 5 Caution : If not observed, slight injury or property damage could occur. • Device installation/use should comply with regulations for the relevant region. • Replace filters according to the filter replacement cycle to drink clean water. • Completely close the Storage tank cover inside the product before use.
-
Page 6: Parts Name
PARTS NAME Front / Rear Water dispensing lever Faucet Top cover Inlet hose(orange) Outlet hose (blue) Accessories User's manual Antibacterial Fitting/ filter locking clip... -
Page 7: Water Filtration Process
WATER FILTRATION PROCESS The life of a water filtration device is its filters. If filters are not authorized or if authorized filters are used for too long, their performance may decrease. The filter method for managing drinking water is explained below. 5-step water filtering system STEP 1, 2 : NEO-SENSE FILTER This neo-sense filter has the functions to remove particulates, dissolved organic and inorganic... - Page 8 INSTALLATION PRECAUTIONS The summary for the proper installation of the water filtration device 1. Close main water supply valve to separate the faucet. 2. Apply the Teflon tape to the adaptor and fit it to the pipe. Do not turn the water pipe. 3.
- Page 9 HOW TO USE To Drink Room-Temperature Water Turn the water dispensing lever clockwise to drink room-temperature water. Large Volume Dispensing To dispense water continuously, turn the water lever 45° clockwise to lock it in place. To Lock Room-Temperature Water Gently turn the water dispensing lever counter-clockwise to orient it upward to lock room-temperature water.
-
Page 10: Installation
INSTALLATION Follow the instruction for installation Connection valve Connect the inlet hose (orange) to the tap. Connect the outlet hose (blue). Outlet hose (blue) connection Inlet hose (orange) connection... - Page 11 Be sure to connect to the cold water pipe. (If you connect to the hot water pipe, the device filters may be damaged.) Please consult a Coway installation technician for detailed instructions on installation for optimal product performance. Water used for the inspection process during production may remain inside the filter.
-
Page 12: Cleaning Method
CLEANING METHOD Cleaning the Storage tank 1. Lock the connection valve. 2. Use continuous dispensing to completely drain all water from inside the device (see p. 8). 3. Lift the latch at the back of the device to open the top cover. Open the clips (in 5 places) affixing the Storage tank and then open the Storage tank cover. - Page 13 4. Remove the antibacterial filter from the Storage tank cover and shake in purified water to clean, then reinstall. 5. Wipe the Storage tank surfaces with a soft cloth. 6. Rinse the Storage tank clean with water from the device, then completely drain it using continuous dispensing.
- Page 14 CLEANING METHOD 7. Close the Storage tank cover and fasten the clips. 8. Close the rear cover and open the connection valve. Completely close the Storage tank cover. Otherwise, insects or dirt may enter. Do not use chemicals or detergent when cleaning the Storage tank. If chemicals or detergent are not completely washed away, they may be hazardous Tips to your health.
-
Page 15: Filter Replacement
Replace with authorized filters according to the replacement cycle. A Coway Cody will visit to replace the filters. Filter replacement cycle If you do not regularly replace filters, the quality of water from the device will decrease. - Page 16 FILTER REPLACEMENT Replace the filters! 1. Lock the connection valve and completely drain all water from inside the device (see p. 8). 2. Open the product side cover.
- Page 17 3. Remove fittings attached to the filter you wish to replace, and then replace the filter. After replacing the filter, connect fittings and hoses precisely and check that there are no leaks. Be sure to first drain purified water. Tips 4.
-
Page 18: Troubleshooting
TROUBLESHOOTING The product may not operate correctly for minor reasons or due to unfamiliarity with how to use the product that are not product malfunctions. In such cases, the problem can be solved easily without the need to resort to going to a service center if the following items are checked. -
Page 19: Specifications
SPECIFICATION ▶ Quality display to manage drinking water Product name Coway water filtration device Model name P-08L Filtration method Reverse osmosis method Collection rate 50% (343 kPa, 25°C, NaCI 200 ppm) Main functions Water purification Storage tank capacity 3.5 L... -
Page 20: Water Flow Diagram
WATER FLOW DIAGRAM P-08L Antibacterial lter Room- temperature water tank Room-temperature water dispensing Decompression valve Drain water Source water inlet adjustment valve Drain water... - Page 21 MEMO...
- Page 22 Water Filtration System Performance Data Sheet Model: P-08L This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42, 53 and 58 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53, 58 and 372.
- Page 23 • For parts and service availability, please contact your CODY or call center. • This system has been tested for the treatment of water containing pentavalent arsenic (also know as As(V), As(+5), or arsenate) at concentrations of 0.050 mg/L or less. This system reduces pentavalent arsenic, but may not remove other forms of arsenic.
- Page 24 0.0046 1,1,2-trichloroethane 0.150 0.0005 > 99 trichloroethylene 0.180 0.0010 > 99 trihalomethanes (includes): chloroform (surrogate chemical) bromoform bromodichloromethane 0.300 0.015 chlorodibromomethane xylenes (total) 0.070 0.001 > 99 Coway Co.,Ltd. 136-23, Yugumagoksa-Ro, Yugu Eub, Gongju-Si, Choongchungnam-Do, Korea Tel.: 82-41-850-7879 Fax.: 82-41-841-7816...
- Page 25 MEMO...
-
Page 26: Warranty Card
INCLUDING ITS REPRESENTATIVES, TO MAKE ANY only to Product used for an application specified REPRESENTATION OR TO OFFER ANY WARRANTY, by COWAY for the Product and applied in strict CONDITION OR GUARANTY IN RESPECT OF THE accordance with COWAY published specifications PRODUCT OTHER THAN THIS WARRANTY. - Page 27 If the Product fails to operate for its accident, alteration, improper installation or intended purpose, then notify Coway or its other acts that are not the fault of Coway or Representative Agency within 48 hours or the manufacturer of the product or that are within the next business day after discovery not covered by the manufacturer’s warranty;...
- Page 28 1227058 www.coway.com...
