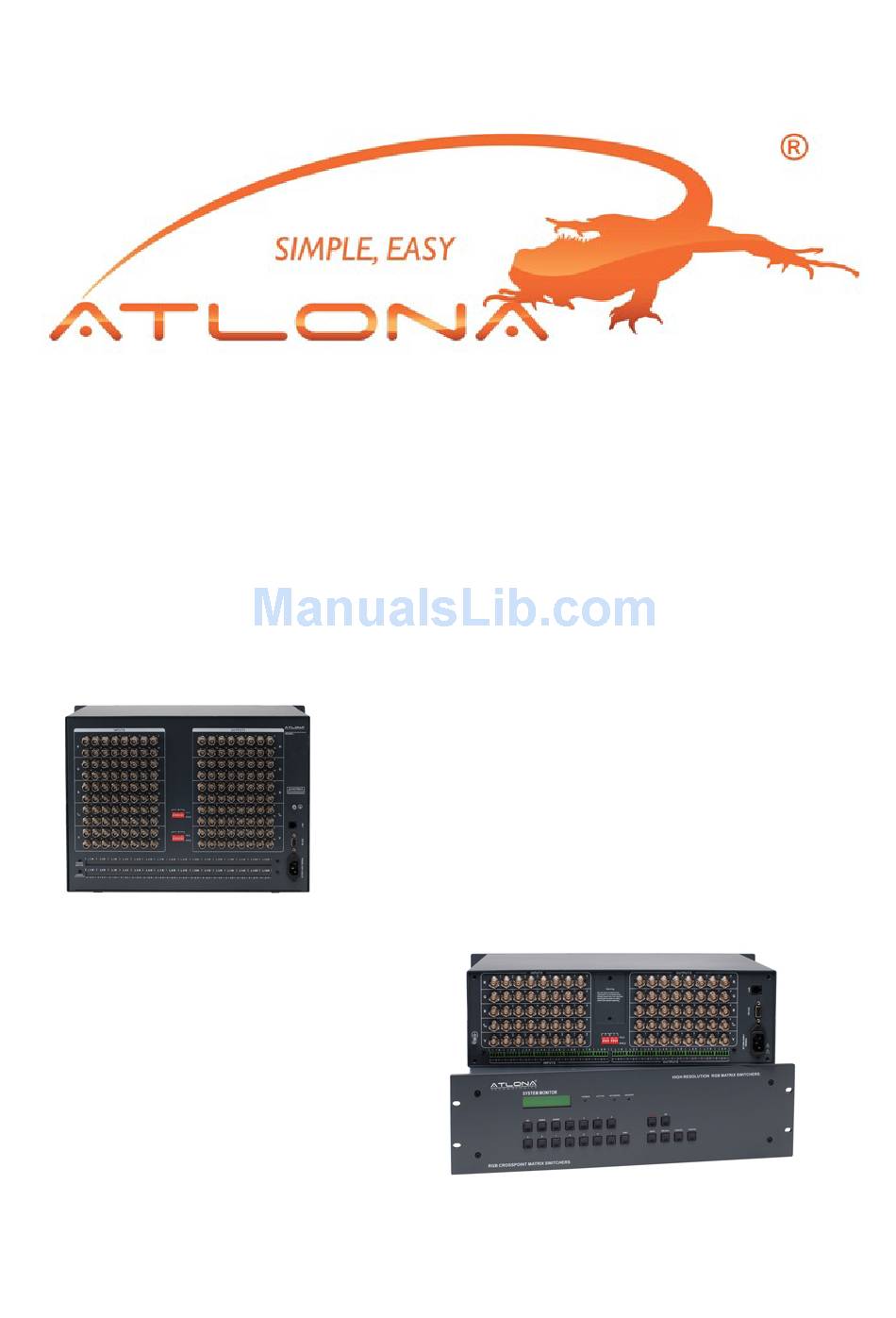

- Page 1 RGB / COMPONENT VIDEO SWITCHER USER GUIDE RGB SWITCHERS: AT-RGB0802 TO AT-RGB6464 RGB SWITCHERS W/AUDIO: AT-RGB0802A TO AT-RGB6464A Atlona Technologies www.atlona.com...
-
Page 2: Table Of Contents
5.2 Remote Control Operation..............24 5.3 Operation of Application Software...........24 5.4 Keyboard Tab...................26 5.5 Auto Tab...................26 5.6 Custom Code Tab................27 5.7 Code Group Tab................28 5.8 Send / Recieve Code List Tab............29 6.0 RS-232 Operation................29 7.0 Technical Specifications..............31 8.0 Troubleshooting................33 Atlona Technologies www.atlona.com... -
Page 3: Safety Operation Guide
This manual is only an instruction for operators, not for any maintenance usage. Any changes of functions and parameters since then will be informed separately. This manual is copyright Atlona Technologies. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of Atlona Technologies. -
Page 4: Introduction
× √ RGB9696 × × √ RGB12864 × × √ RGB12896 × × √ RGB128128 × × √ All modules above are for separated case design; audio case is the optional accessory. There will be wider bandwidth. Atlona Technologies www.atlona.com... -
Page 5: Installation
• RGB / Component Video Matrix Switcher • RJ45 & RS-232 Communication Cables • BNC to RCA adapters • Power Supply Cord • CD with Application SWITCHER 2.0 • User Manual and Quality Guarantee • Remote Control Atlona Technologies www.atlona.com... - Page 6 Atlona Technologies www.atlona.com...
- Page 7 Atlona Technologies www.atlona.com...
- Page 8 Atlona Technologies www.atlona.com...
- Page 9 Atlona Technologies www.atlona.com...
- Page 10 Atlona Technologies www.atlona.com...
- Page 11 Atlona Technologies www.atlona.com...
- Page 12 Atlona Technologies www.atlona.com...
- Page 13 Atlona Technologies www.atlona.com...
- Page 14 Atlona Technologies www.atlona.com...
- Page 15 Atlona Technologies www.atlona.com...
- Page 16 Red Channel Green Channel Blue Channel Horizontal Channel Vertical Channel Atlona Technologies www.atlona.com...
- Page 17 Atlona Technologies www.atlona.com...
-
Page 18: Operation And Control
RGBHV signal output terminals are needed in the VGA device. The BNC connector is shown as the figure below. If switching Component Video and 2-channel analog audio, utilize the existing H/V inputs and outputs with the supplied BNC to RCA adapters for connecting the audio inputs and outputs. Atlona Technologies www.atlona.com... -
Page 19: Audio Signal Connection
If in a nonstandard case, it is done to connect balanced for the balanced end and unbalanced for the unbalanced end. But if in a standard one, the converter must be used to switch the signals as the same, balanced or unbalanced. Atlona Technologies www.atlona.com... -
Page 20: Connecting Rgb48/642,Rgb48/6432,Rgb48/6448,Rgb6464
Operation: Press buttons in the following order “3”, “VIDEO”, “1”, “0”, “END”, “ENTER” “AUDIO” Audio button: To transfer only audio signals from input channel to output channel. Example: To transfer audio signals from input channel No.12 to output channel No.6. Atlona Technologies www.atlona.com... - Page 21 “STATUS” Inquiring status button: To inquire the present status Example1: To inquire the status of output channel No.7 Operation: Press buttons in the following order “7”, “STATUS” Example2: To inquire the status of all the output channels one by one Operation: Press the “STATUS” button. Atlona Technologies www.atlona.com...
- Page 22 To unlock it, a password is needed. “DEMO” Demo button: To demonstrate the commands one by one every 3 seconds. The Switch can be controlled directly by entering the following command: “Input Channel” + “Switching Mode” + “Output Channel” + “END”+ “ENTER” Atlona Technologies www.atlona.com...
- Page 23 Display feedback on LCD: The video signal of output channel No.4 is transferred from the input channel No.3 and the audio signal is from the input channel No.2 Atlona Technologies www.atlona.com...
-
Page 24: Remote Control Operation
Switcher 2.0 is a switcher control application compatible with switchers with different inputs and out- puts. Requirments to run the software Operating System: Window98/2000/NT/XP/Vista/7 Memory: At least 32M Space in hard disk: At least 10M CD-ROM COM Port Atlona Technologies www.atlona.com... - Page 25 IP address of the switcher) “Set Password”: Set the password for the control panel on the Matrix (The password must be an 8 digit number) “Unlock Keyboard”: Unlock the keyboard of the control panel on the Matrix. Atlona Technologies www.atlona.com...
-
Page 26: Keyboard Tab
Transfer the signals from input channel No.2 to output channel No.1-32; Transfer the signals from the input channel No.64 to the output channel No.1-32; This switching test will perform this way one by one every second until the test is over. Atlona Technologies www.atlona.com... -
Page 27: Custom Code Tab
No.7, and the audio signals from the input channel No.2 to the output channel No.4, just perform the following steps below. 1. Select the “ASCII” as the command codes format; 2. Input the command codes “1B7.2A4.” 3. Click the button “Send” to perform the commands. Atlona Technologies www.atlona.com... -
Page 28: Code Group Tab
Execute: Executse a selected preset command or a selected group of preset commands Clear: Clears the feedback window Add Code ltem: To add another new group of preset commands Edit: To edit the User’s name (User), Delete: Deletes the selected group. Atlona Technologies www.atlona.com... -
Page 29: Send / Recieve Code List Tab
Clear: Clears either of the two lists 6.0 RS-232 Operation With the application “Switcher 2.00” one is able to control and operate the RGB Matrix remotely Communication protocol: Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Atlona Technologies www.atlona.com... - Page 30 Save the present operation to the preset command [Y]. [Y] ranges from 0 to 9. Recall[Y] Recall the preset command [Y]. Clear[Y] Clear the preset command [Y]. [X1]*[X2]! Transfer both video and audio signals from input channel [x1] to output channel [x2]. Atlona Technologies www.atlona.com...
-
Page 31: Technical Specifications
Analog signals: 0.5V ~ 2.0V p-p Level Impedance 75 Ω Echo loss -30dB@5MHz Max Error in DC Offset 15mV Output video Connector BNC female Maximum/Minimum 2.0V p-p Level Impedance 75 Ω Echo loss -30dB@5MHz Max Compensation in ±5mV DC Offset Atlona Technologies www.atlona.com... - Page 32 100VAC ~ 240VAC, 50/60 Hz, universal international power supply Temperature Storing and operating temperature: -20° ~ +70°C Humidity Storing and operating humidity: 10% ~ 90% Size 485(L)X133(W)X266(H) 485(L)X311(W)X266mm(H) 485(L)X315(W) X266mm(H) (single box) Weight 4.5kg 9.5kg 10kg MTBF 30,000 hours Quality Guarantee 3 Year Warranty Atlona Technologies www.atlona.com...
-
Page 33: Troubleshooting
The unit may be broken, contact dealer for repair. keys, RS-232 port or remote control ATLONA 1293 Mountain View Alviso Rd, Suite A Sunnyvale, CA 94089 Toll Free: 1-877-536-3976 International: 408-954-8782 FAX: 408-743-5622 Website: www.atlona.com E-MAIL: info@atlona.com Atlona Technologies www.atlona.com...
